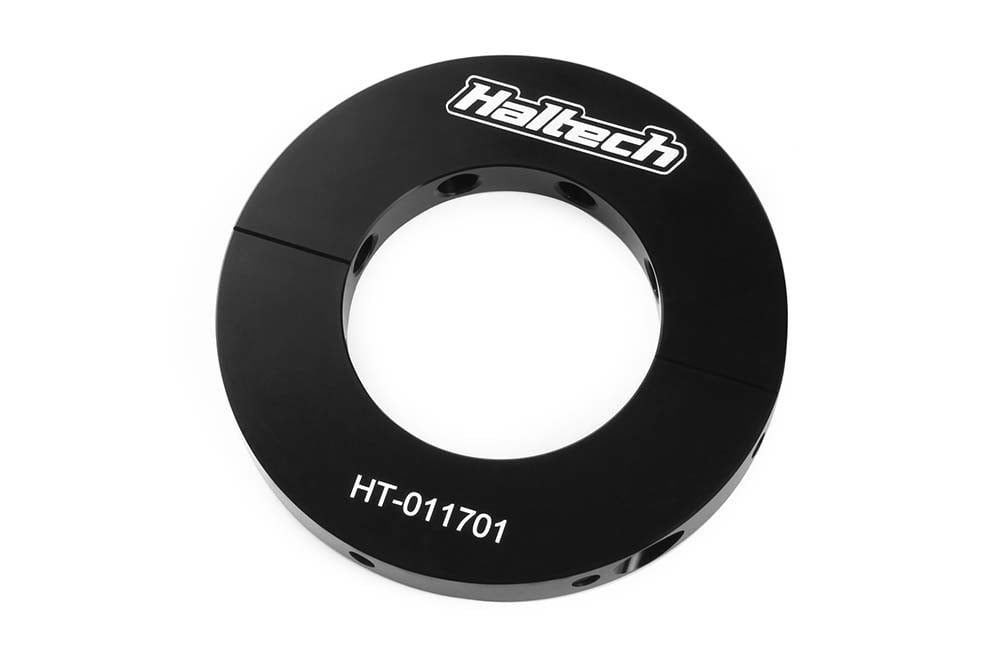

Haltech Driveshaft Split Collar 1.875" / 47.63mm I.D. 8 Magnet Size: ID : 1.875" / 47.63mm

Overview

The Haltech Driveshaft Split Collar delivers precision speed sensing for your EFI conversion or performance build. This 8-magnet collar provides accurate RPM and speed data to your Haltech ECU, essential for proper traction control, launch control, and data logging functionality in serious builds.

Technical Specifications

• Part Number: HT-011701
• Internal Diameter: 1.875" / 47.63mm
• External Diameter: 3.385" / 86mm
• Width: 0.375" / 9.54mm
• Magnet Count: 8 magnets
• Material: Precision machined aluminium

Why You Need This

Speed sensing is critical for any serious performance build running Haltech ECU management. Without proper driveshaft speed monitoring, your ECU can't deliver accurate traction control intervention, launch control timing, or meaningful data logging for chassis dyno sessions. Many builders discover too late that their generic speed sensors provide inconsistent signals, causing erratic traction control behaviour or failed launch attempts.

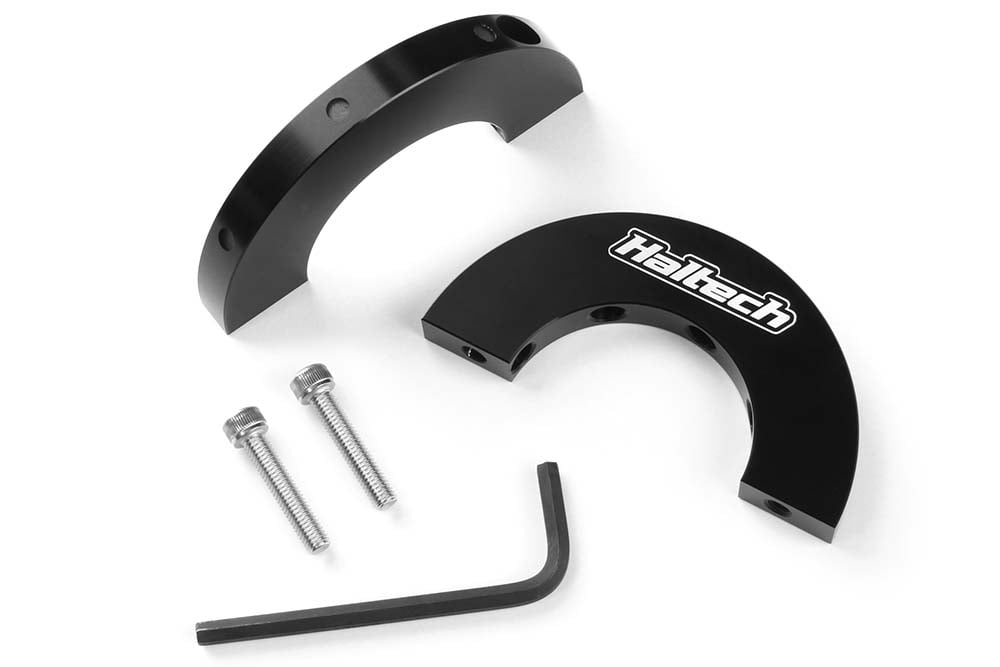

This split collar design solves installation challenges on builds where the driveshaft can't be easily removed. Common applications include LS swap projects in Japanese chassis, RB-powered drift builds, and turbo conversions where driveshaft access is limited. The 8-magnet configuration provides excellent resolution for precise speed calculation, particularly important for high-power builds where traction management makes the difference between grip and wheel spin. We regularly fit these on SR20DET and 2JZ builds running over 400bhp where launch control and anti-lag systems demand accurate speed feedback.

ECU & System Compatibility

Compatible with the full Haltech Elite and Nexus range, including Elite 550, 750, 1000, 1500, 2000, and 2500 models, plus Nexus R3 and R5 systems. Works with any Haltech ECU equipped with speed sensor inputs for traction control and data logging functionality.

What's in the Box

• Haltech Driveshaft Split Collar (47.63mm ID)
• 8 precision magnets pre-installed
• Installation hardware
• Technical documentation

Complete Your Build

Most customers installing driveshaft speed sensing also require a compatible speed sensor pickup and ECU loom modifications. Our technical team can specify the complete speed sensing package for your specific Haltech ECU and chassis combination. With UK stock held for immediate despatch, we'll ensure your speed sensing setup is properly matched to your build requirements. Contact our pre-sales team for application-specific advice and companion component recommendations.
