TCA 8 4+4 (programmed as TCA 4 A / TCA 4B)

Overview

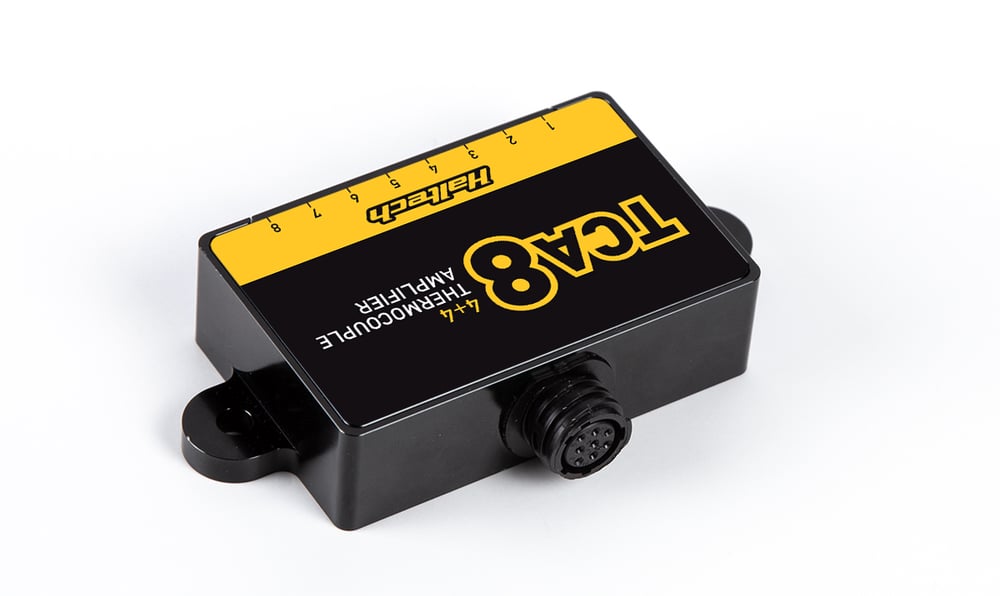

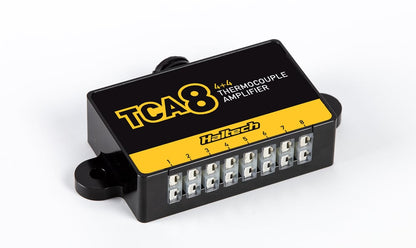

The Haltech TCA 8 4+4 delivers eight channels of programmable thermocouple amplification in a single compact unit, pre-configured to appear as separate TCA-4 Box A and TCA-4 Box B modules in your ECU Manager software. Perfect for serious motorsport builds requiring comprehensive EGT monitoring across multiple cylinders, turbocharger systems, or complex temperature mapping throughout your engine bay and exhaust system.

Technical Specifications

• Part Number: HT-059908
• Channels: 8 thermocouple inputs (4+4 configuration)
• Display Configuration: TCA-4 Box A + TCA-4 Box B in ECU Manager
• Connection: Direct CAN bus integration
• Compatibility: Elite ECU CAN port, Elite Harness CAN connector, Elite 4 Port CAN HUB
• Installation: Plug and play with Elite ECU systems

Why You Need This

When you're running a serious build — whether it's a twin-turbo LS swap, high-boost 2JZ, or multi-cylinder RB engine — monitoring exhaust gas temperatures across all cylinders becomes critical for both performance tuning and engine protection. Individual cylinder EGT monitoring reveals lean cylinders before they cause damage, helps optimise fuel maps under load, and provides essential data for turbocharger temperature management. The TCA 8 4+4 eliminates the complexity and cost of running two separate TCA-4 units while providing the same eight-channel capability.

This unit excels in applications like V8 engine swaps where you need comprehensive per-bank monitoring, turbo builds requiring pre and post-turbo temperature measurement, or race applications where detailed thermal analysis drives setup decisions. The dual-box software presentation means your existing ECU Manager layouts and logging templates work seamlessly — you're simply adding more channels without software complications.

ECU & System Compatibility

Direct plug-and-play compatibility with the complete Haltech Elite range including Elite 550, 750, 1000, 1500, 2000, and 2500 ECUs. Integrates seamlessly with existing CAN networks via Elite ECU CAN ports, harness CAN connectors, or expanded CAN setups using the Elite 4 Port CAN HUB. Contact our technical team to discuss optimal CAN network configuration for your specific multi-device installation.

What's in the Box

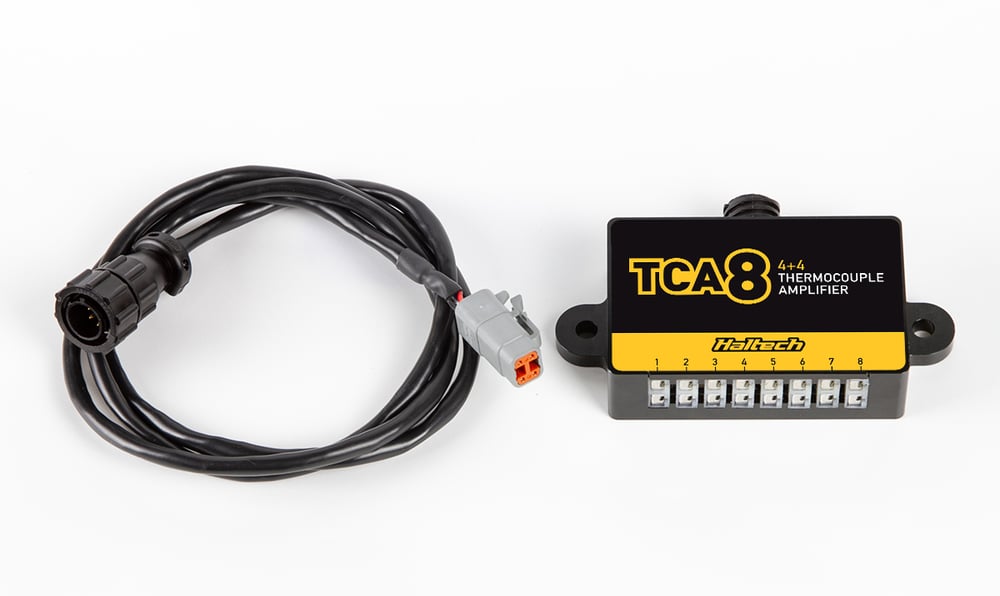

• TCA 8 4+4 thermocouple amplifier unit (pre-programmed as TCA-4 Box A + Box B)
• CAN bus connection hardware
• Installation documentation

Complete Your Build

Most customers running comprehensive EGT monitoring also require quality thermocouple sensors and proper CAN network expansion. Our technical team can recommend the ideal thermocouple specifications for your application — whether that's high-temperature Inconel probes for turbo applications or fast-response units for precise cylinder-to-cylinder analysis. We stock complementary Haltech CAN expansion hardware and maintain comprehensive thermocouple inventory at our UK facility. Contact us for a complete temperature monitoring package tailored to your build requirements and UK delivery timeline.
