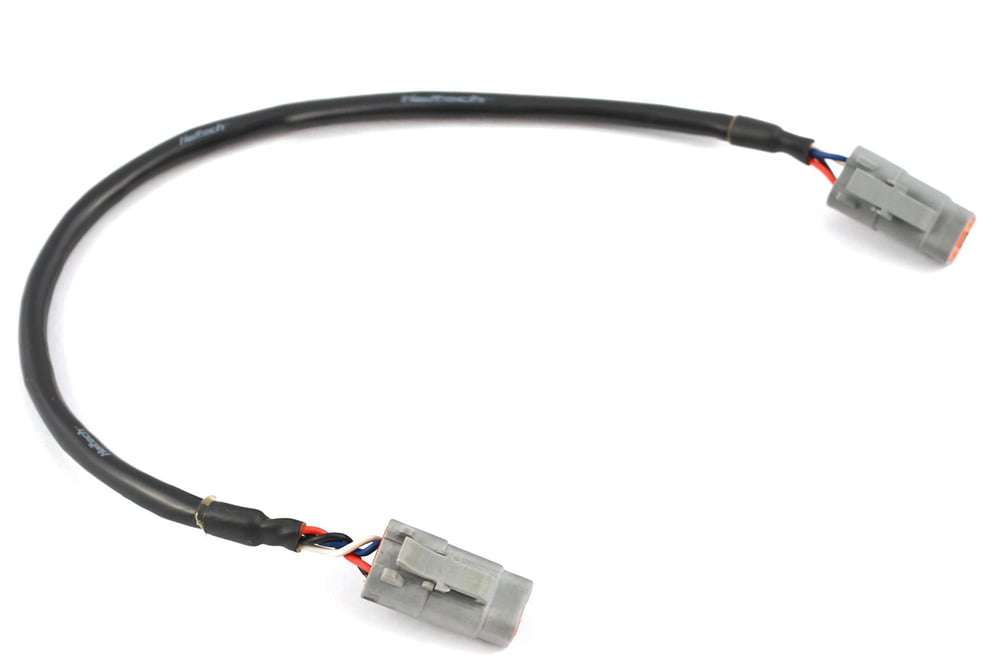

Haltech Elite CAN Cable DTM-4 to DTM-4 600mm (24") Length: 600mm (24")

Overview

The Haltech Elite CAN Cable DTM-4 to DTM-4 provides reliable high-speed data communication between your Elite ECU and CAN-enabled devices at 600mm length. Essential for connecting wideband controllers, dash displays, and additional modules in your performance build without the voltage drops and interference that plague inferior cables.

Technical Specifications

• Part Number: HT-130023
• Length: 600mm (24")
• Connector Type: DTM-4 to DTM-4
• Application: Haltech Elite ECU CAN communication
• Wire Specification: Twisted pair CAN-rated cable

Why You Need This

CAN communication is the backbone of modern ECU systems, carrying critical data between your Elite ECU and auxiliary devices like wideband controllers, boost control solenoids, and dash displays. Generic automotive wire simply won't cut it here — CAN networks require proper twisted-pair cable with correct impedance matching to prevent data corruption and communication dropouts that can leave you with incomplete sensor readings or non-functioning displays.

We see this constantly in LS swap builds where builders try to extend CAN networks with standard wire, only to get intermittent wideband readings or dash communication failures. The 600mm length is perfect for most engine bay applications — long enough to route cleanly from the ECU to a firewall-mounted WB1 or WB2 controller, or to reach a CAN hub for multiple device connections. In turbo builds running Elite 1500 or 2500 ECUs, this cable length typically handles the run from ECU to boost control module whilst maintaining the clean routing that prevents interference from ignition systems.

ECU & System Compatibility

Compatible with the full Haltech Elite range including Elite 550, 750, 1000, 1500, 2000, and 2500 ECUs. Also works with Nexus R3, R5, and Rebel systems where CAN communication is required. Perfect for connecting WB1 and WB2 wideband controllers, CAN-enabled boost control modules, and dash displays that require reliable data transmission.

What's in the Box

• Haltech Elite CAN Cable DTM-4 to DTM-4, 600mm length
• Genuine Haltech twisted-pair CAN specification cable
• Factory-fitted DTM-4 connectors both ends

Complete Your Build

Most customers building comprehensive Elite ECU systems also require wideband controllers for accurate AFR monitoring and CAN hubs for multiple device connections. Contact our technical team for specific cable requirements in your build — we'll advise on the complete CAN network setup including termination requirements and proper routing practices. With UK stock and same-day despatch, we'll get your CAN communication sorted quickly whilst our pre-sales advice ensures you order exactly what your specific Elite ECU configuration requires.
