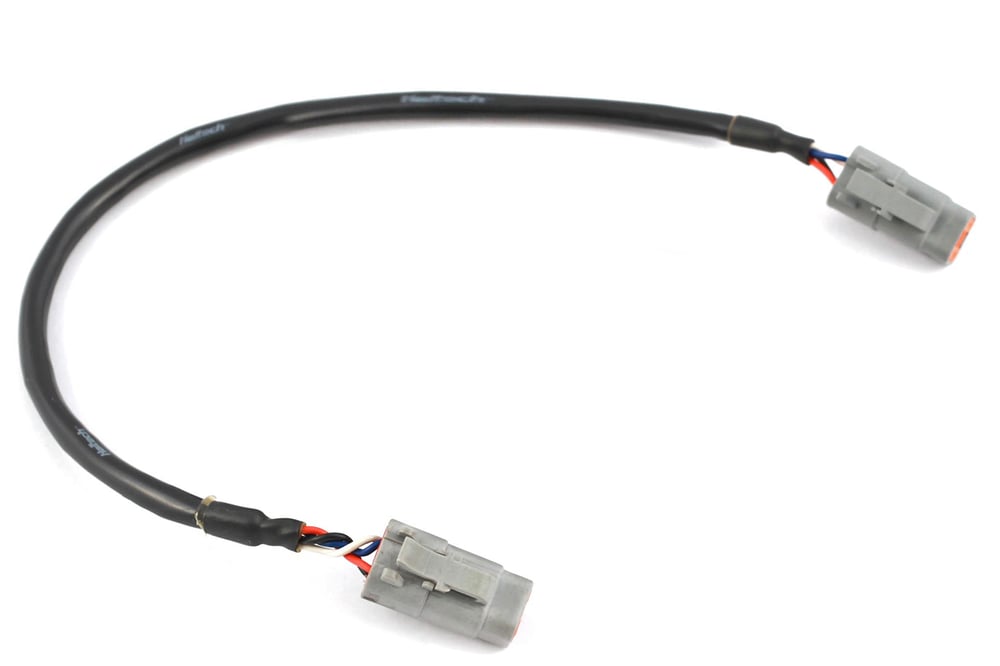

Haltech Elite CAN Cable DTM-4 to DTM-4 1800mm (72") Length: 1800mm (72")

Overview

The Haltech Elite CAN Cable DTM-4 to DTM-4 connects your Elite ECU to external CAN devices with proper shielded construction and OEM-grade DTM-4 connectors. At 1800mm (72"), this cable provides the reach needed for dash installations, additional I/O modules, or wideband controllers whilst maintaining signal integrity across your CAN network.

Technical Specifications

• Part Number: HT-130026
• Length: 1800mm (72")
• Connector Type: DTM-4 male to DTM-4 male
• Application: Haltech Elite ECU CAN communication
• Construction: Shielded twisted pair CAN cable

Why You Need This

CAN (Controller Area Network) communication is the backbone of modern engine management, allowing your Elite ECU to communicate with displays, I/O expanders, wideband controllers, and other modules. Poor quality CAN cables or incorrect termination cause communication dropouts, error codes, and intermittent failures that can leave you stranded. This genuine Haltech cable uses proper shielded twisted pair construction with the correct impedance matching for reliable data transmission.

The 1800mm length is ideal for reaching dash-mounted displays from engine bay ECU mounting locations, connecting to remote I/O modules in the boot for sequential gearbox control, or linking multiple CAN devices in larger installations. In our workshop, we see this length specified most often for RB25/26 and 2JZ swaps where the ECU mounts on the firewall but the dash display needs clean routing through the cabin. The DTM-4 connectors provide waterproof sealing and positive retention - crucial for professional installations where reliability matters more than saving a few pounds on generic cables.

ECU & System Compatibility

Compatible with all Haltech Elite ECUs (550, 750, 1000, 1500, 2000, 2500) and Nexus R3/R5 units. Also works with Haltech CAN-enabled accessories including IQ3 displays, CAN I/O boxes, and WB1/WB2 wideband controllers. Contact our team to confirm compatibility with your specific setup and discuss proper CAN network topology for multi-device installations.

What's in the Box

• 1x Haltech CAN cable, DTM-4 to DTM-4, 1800mm length
• Genuine Haltech shielded construction with proper impedance matching

Complete Your Build

Most customers building CAN networks also need termination resistors and additional cables for multi-device setups. If you're installing an IQ3 dash or adding I/O expansion, our technical team can spec the complete cable kit and walk you through proper CAN topology to avoid communication issues. We stock the full range of Haltech CAN accessories and can supply pre-configured bundles for common applications. Contact us for expert pre-sales advice - we'd rather get your CAN network right first time than troubleshoot communication problems later.
