Elite 2000/2500 Ford Barra 4.0 BA/BF Ignition Harness

Overview

Purpose-built ignition harness for Elite 2000/2500 ECUs controlling Ford Barra 4.0 engines in BA/BF Falcon applications. Eliminates the guesswork and reliability issues of adapting generic harnesses, delivering proper pin assignments and signal integrity for direct coil-on-plug ignition control. Essential for any serious Barra build requiring precise ignition timing and cylinder-specific control.

Technical Specifications

• Part Number: HT-130345
• Application: Ford Barra 4.0L BA/BF Falcon
• ECU Compatibility: Elite 2000/2500 series
• Ignition Type: Coil-on-plug direct connection
• Wire Gauge: Automotive grade specification
• Connector Type: OEM-matched terminals

Why You Need This

The Barra 4.0's coil-on-plug ignition system demands precise signal delivery to each cylinder's ignition coil. Generic harnesses or DIY wiring often result in misfires, timing inconsistencies, and poor idle quality because they lack proper shielding and correct pin assignments. This becomes critical on modified Barras running higher boost or aggressive timing maps where ignition precision directly impacts reliability and power output.

We've seen countless Barra swaps and turbo builds where ignition issues traced back to inadequate wiring. The OEM Ford loom integrates with factory PCM logic that doesn't translate to standalone ECU operation. This Haltech-engineered harness provides the correct impedance matching and signal paths your Elite ECU expects, eliminating the trial-and-error of adapting factory connectors. Particularly crucial for BA/BF platforms where the ignition system differs from earlier AU series, requiring specific pin configurations that this harness delivers out of the box.

ECU & System Compatibility

Specifically designed for Elite 2000 and Elite 2500 ECUs controlling Ford Barra 4.0L engines in BA and BF Falcon chassis. The harness integrates seamlessly with Haltech's ignition output drivers and timing control algorithms optimized for the Barra's coil-on-plug architecture.

What's in the Box

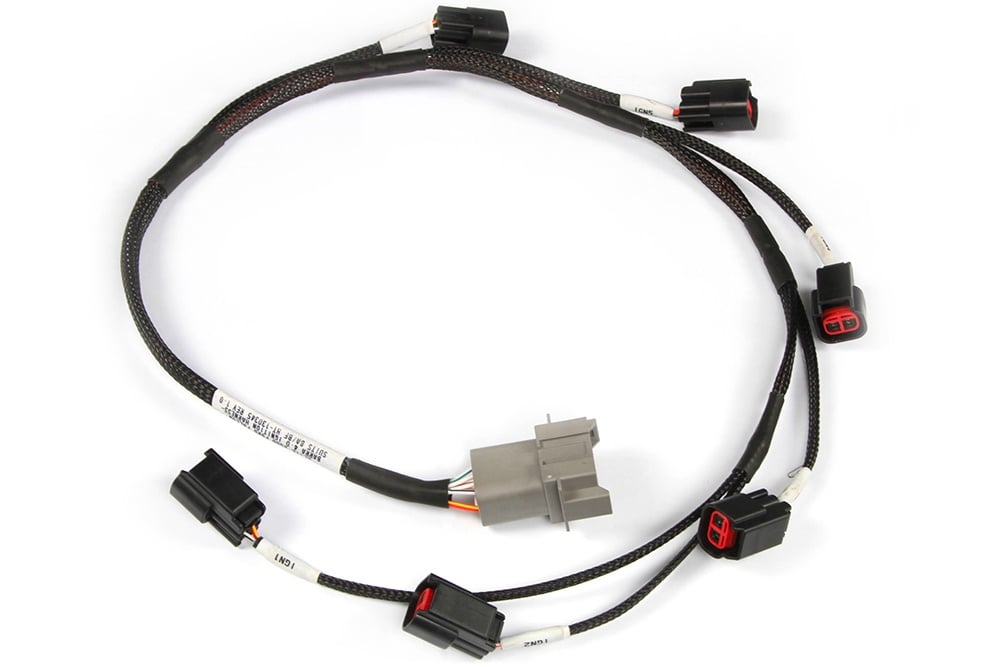

• Elite 2000/2500 to Barra 4.0 BA/BF ignition interface harness
• Pre-terminated ECU-side connector
• Vehicle-side ignition coil connectors (x6)
• Installation documentation

Complete Your Build

Most customers fitting this ignition harness are completing comprehensive Barra ECU conversions, typically adding our Elite series main engine harness and relevant sensors for full standalone control. Contact our technical team for recommended companion parts specific to your BA/BF application – we maintain UK stock of the complete Elite ecosystem and can advise on the optimal component selection for your build requirements and performance goals.
