Nexus Rebel LS - Gen IV Oil pressure sensor adaptor harness

Overview

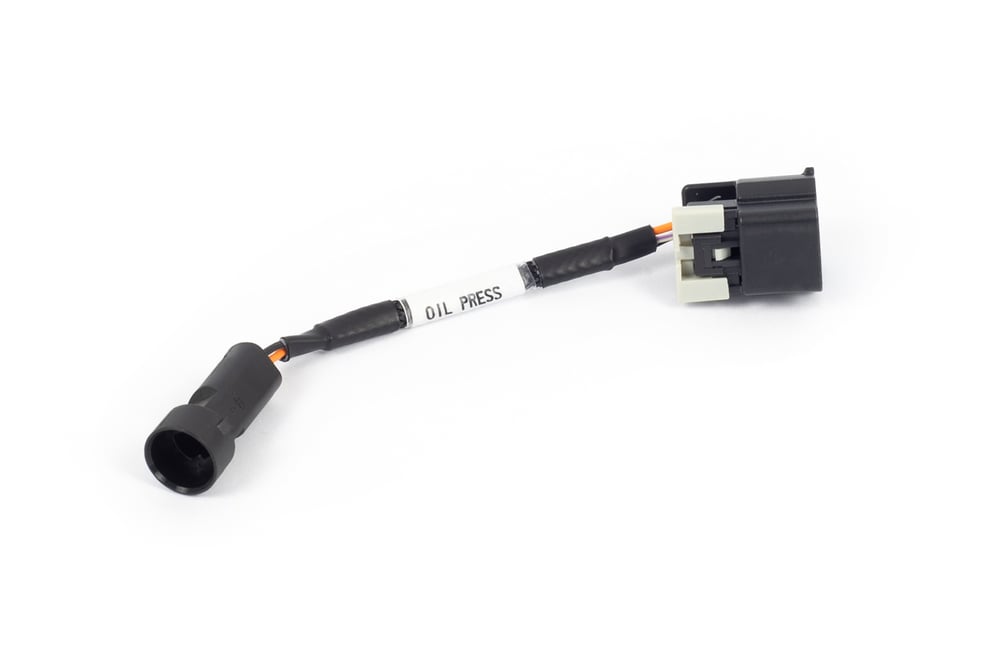

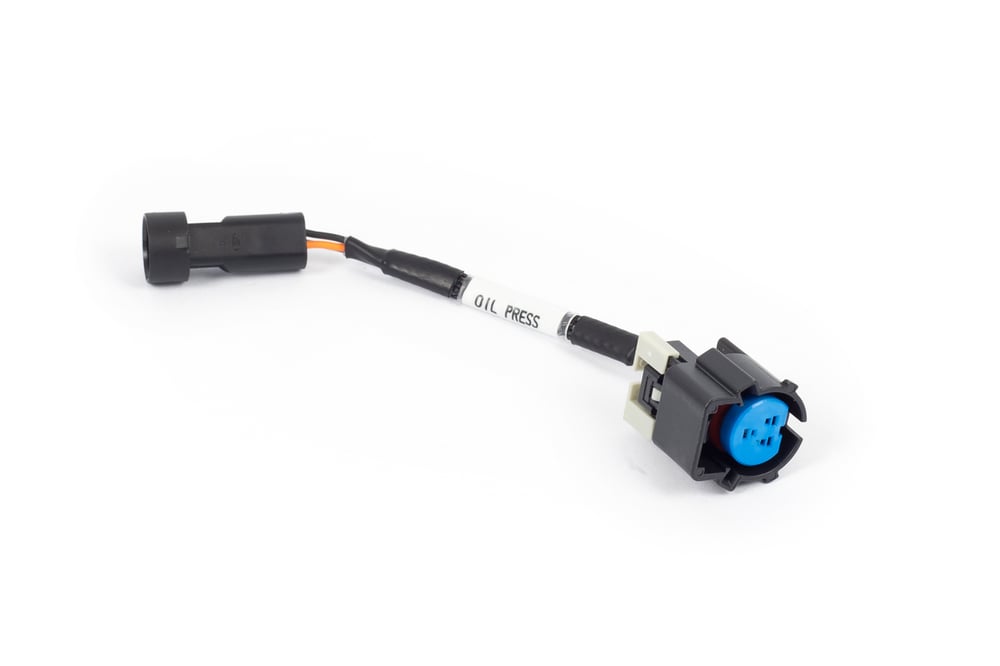

The Nexus Rebel LS Gen IV Oil Pressure Sensor Adaptor Harness eliminates compatibility headaches when running a Gen IV LS engine with your Rebel LS ECU setup. This purpose-built adaptor converts the early-style Gen III connector on your main terminated harness to the correct Gen IV oil pressure sensor connector, ensuring proper monitoring without rewiring or sensor swaps.

Technical Specifications

• Part Number: HT-186510
• Compatibility: Gen IV LS engines with Rebel LS ECU
• Connector Type: Gen III to Gen IV oil pressure sensor adaptor
• Construction: OEM-grade terminated harness
• Application: Direct plug-and-play conversion

Why You Need This

Gen IV LS engines (LY6, L76, L92, LS3, L99, LSA) use a different oil pressure sensor connector compared to earlier Gen III units. Without this adaptor, you're faced with either rewiring your main harness—a time-consuming job that risks introducing faults—or hunting down the correct Gen III sensor to retrofit onto your Gen IV block. Both approaches add complexity and potential failure points to what should be a straightforward EFI conversion.

This becomes particularly critical on popular swaps like LS3-powered track cars, LSA-swapped hot hatches, or truck pulls using LY6/L76 engines. Oil pressure monitoring isn't optional—it's your early warning system for bearing damage, oil pump failure, or blockage issues that can destroy an expensive LS build in seconds. The factory Gen IV sensor provides accurate readings and integrates seamlessly with the Rebel LS ECU's protection strategies, but only with the correct electrical connection.

ECU & System Compatibility

Designed specifically for Haltech Nexus Rebel LS ECU installations running Gen IV LS engines. This adaptor works with the standard Rebel LS main terminated harness, providing the correct electrical interface for factory Gen IV oil pressure sensors without modification to your primary wiring loom.

What's in the Box

• Gen IV Oil Pressure Sensor Adaptor Harness
• Plug-and-play connectors (Gen III harness side, Gen IV sensor side)
• OEM-specification terminations

Complete Your Build

Most customers completing a Gen IV LS conversion also require complementary wiring solutions for their specific engine variant. Popular additions include cam sensor adaptors, knock sensor harnesses, and drive-by-wire throttle extensions depending on your chassis and engine combination. Our technical team can recommend the complete harness package for your specific Gen IV LS swap—we keep the full Rebel LS ecosystem in UK stock for rapid despatch, and our in-house experience with these conversions means we know exactly what works together first time.
