HolleyPart 12-351✓ Fits 1 vehicleMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
1 applicationApplication Notes
450 LPH
View all 1 vehicle application
Years
Make / Model
Submodel
Engine
2010–2015
Chevrolet Camaro
No applications match your search.
⭐
Key Features

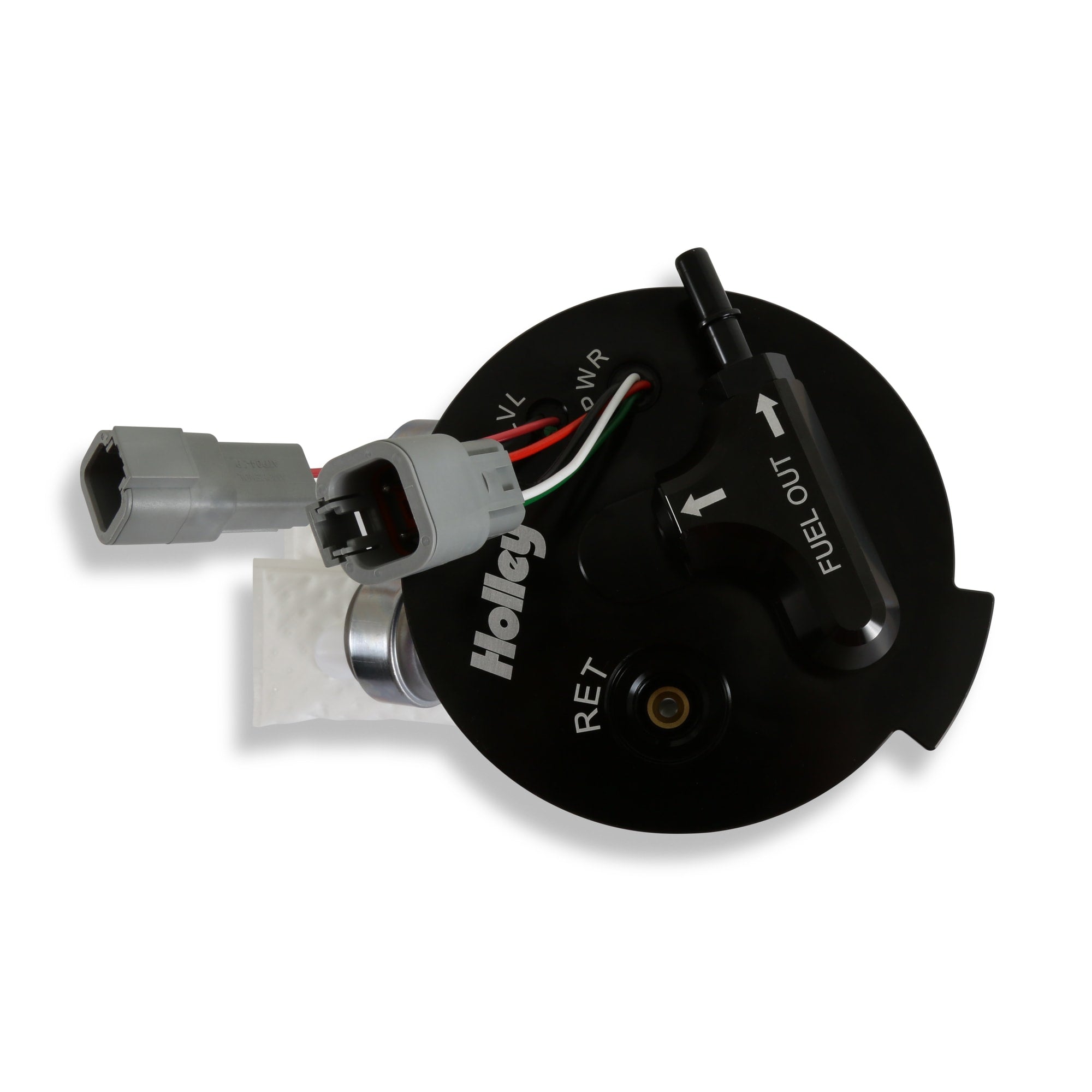

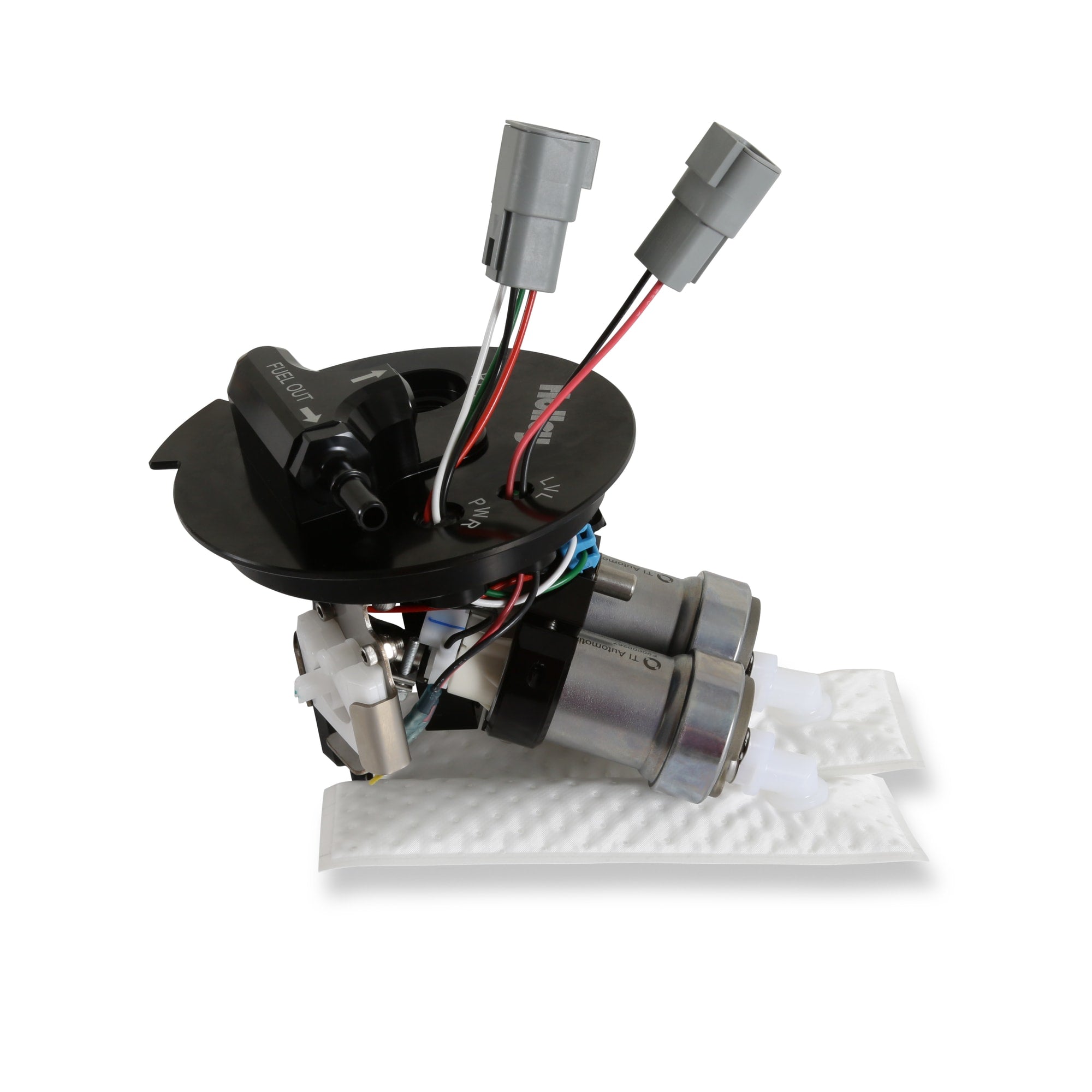

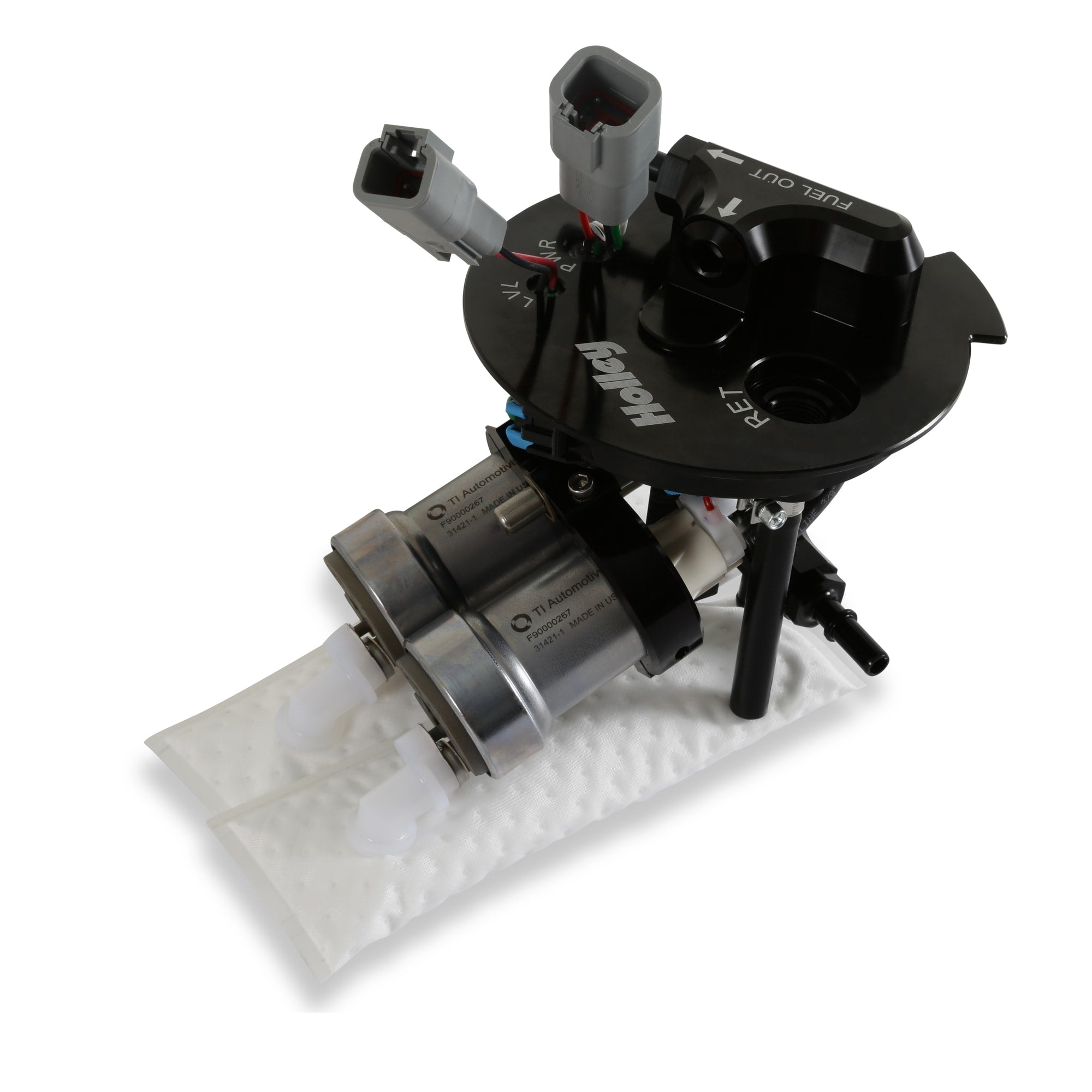

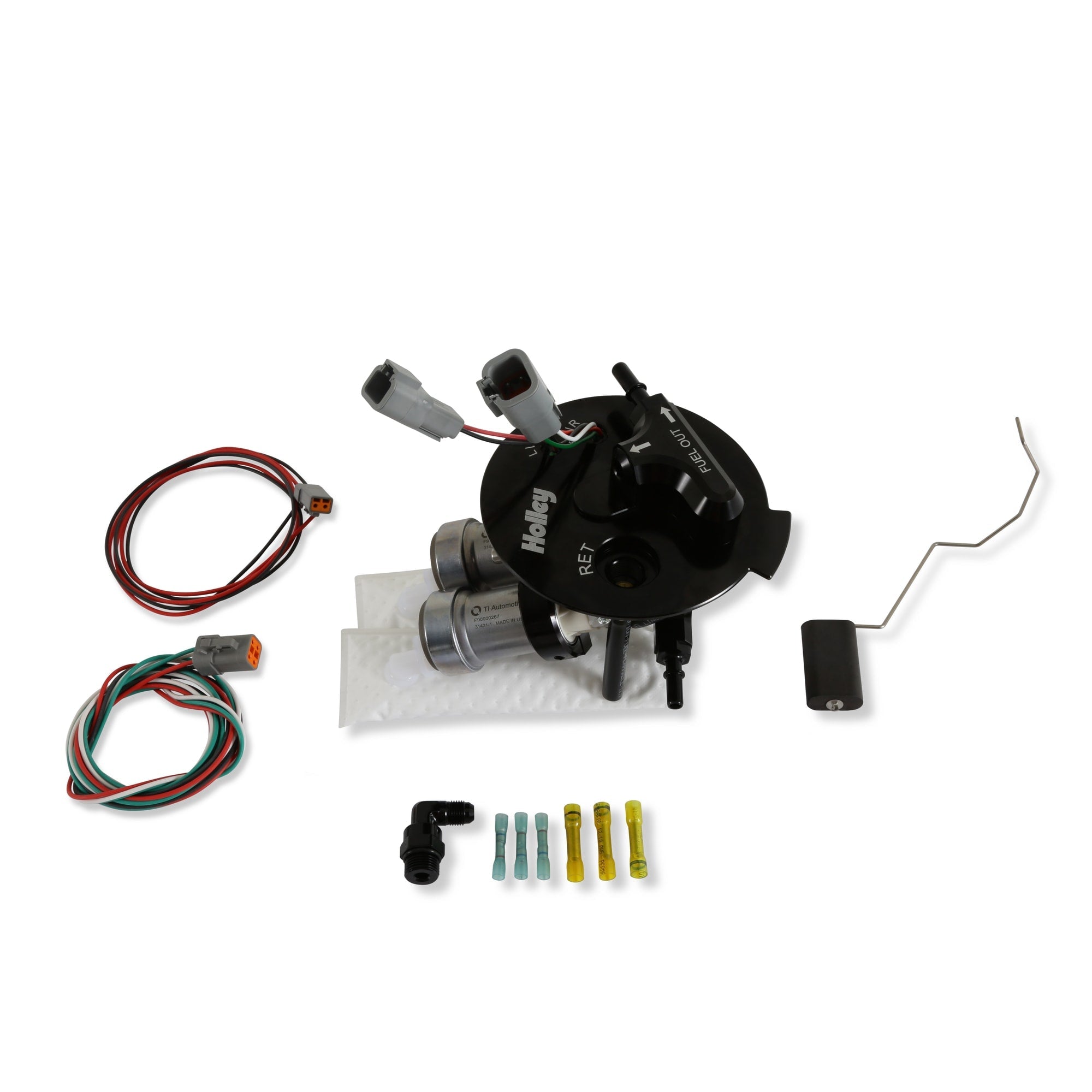

2010-2015 Camaro Dual 450 LPH Pump Module
If you are adding nitrous or boost to your 2010-2015 Camaro race car, Holley has the fuel pump upgrades for you! The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 LPH fuel pumps for maximum fuel delivery of gasoline or E85. | The fuel pump module design starts with a billet pump flange assembly and connects it to dual 340 or 450 LPH fuel pumps for maximum fuel delivery. The module also includes two HydraMats to eliminate fuel starvation under hard acceleration or cornering. The Integrated Jet pump assembly allows retention of factory drivers side fuel pickup. | A new level sensor is included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module. Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line if you so desire. The module is a return style only so a regulator such as the 12-895 will be needed to complete the return portion of your system. | The dual 340 LPH module will support up to 1400 HP while the dual 450 LPH will support up to 1750 HP.
2010-2015 Camaro Dual 450 LPH Pump Module
- -8AN ORB inlets and outlets (return fitting included)
- Dual 450 (1750 hp) @ 60 psi at 13.5 volts / 16.9 amp draw

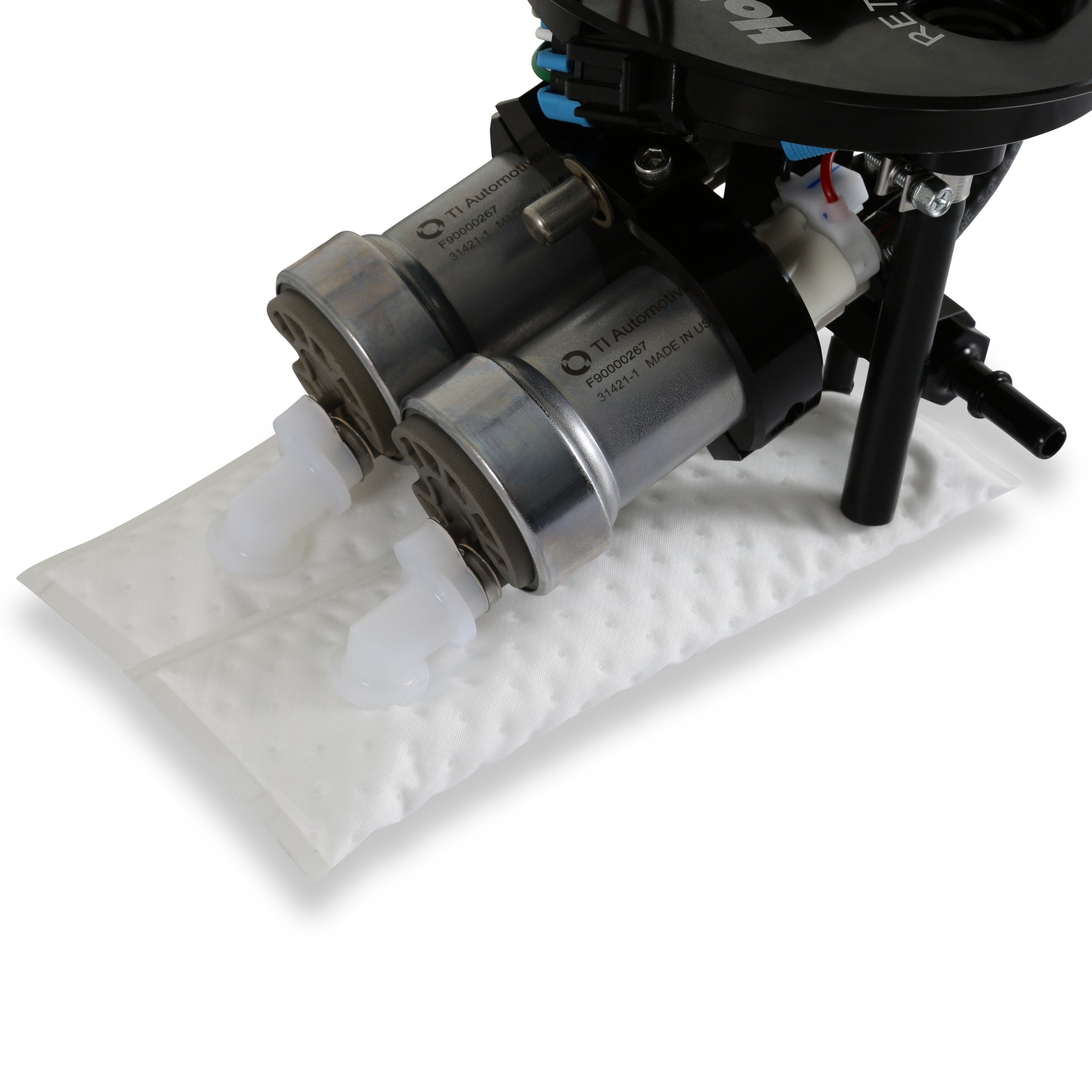

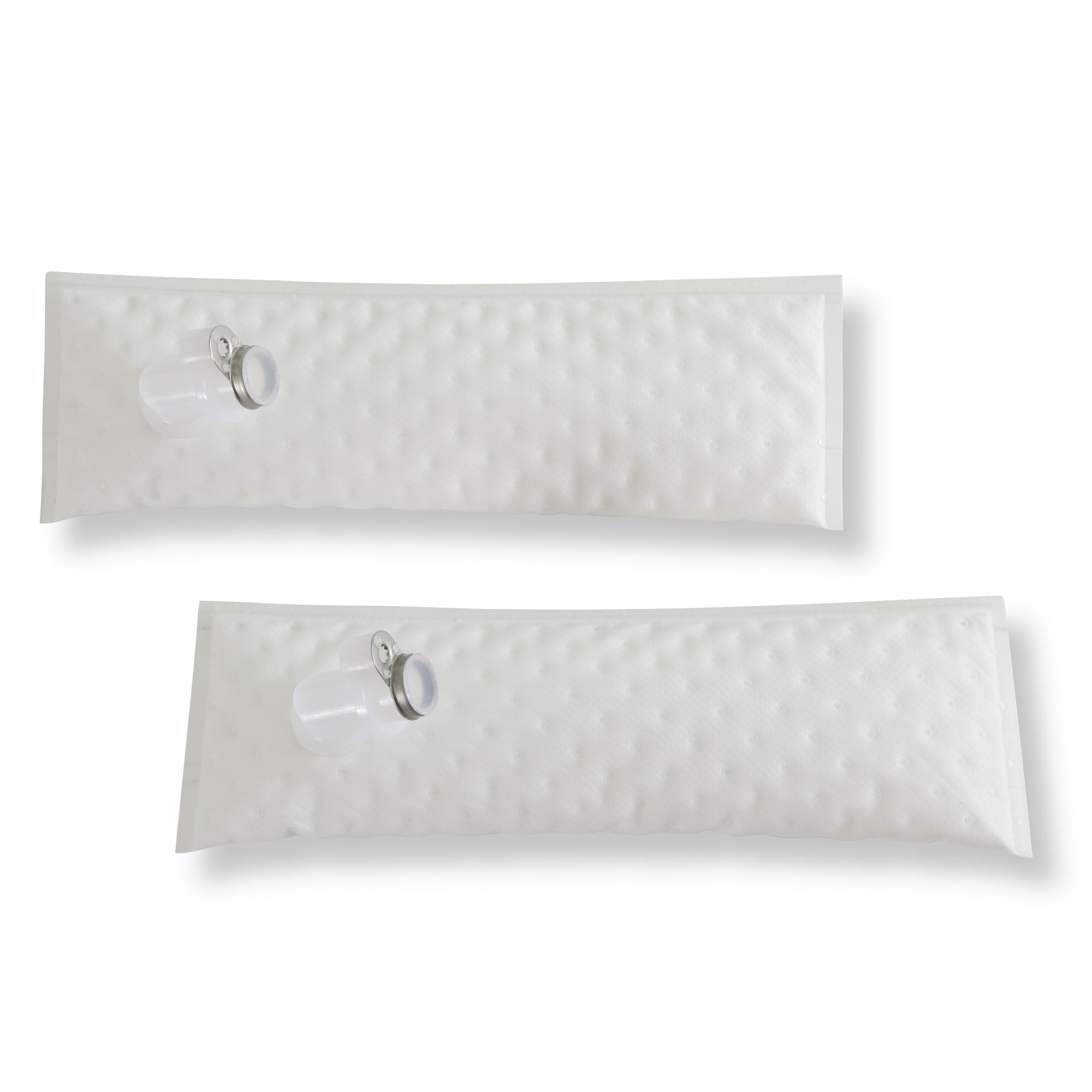

- Two HydraMats, one for each pump

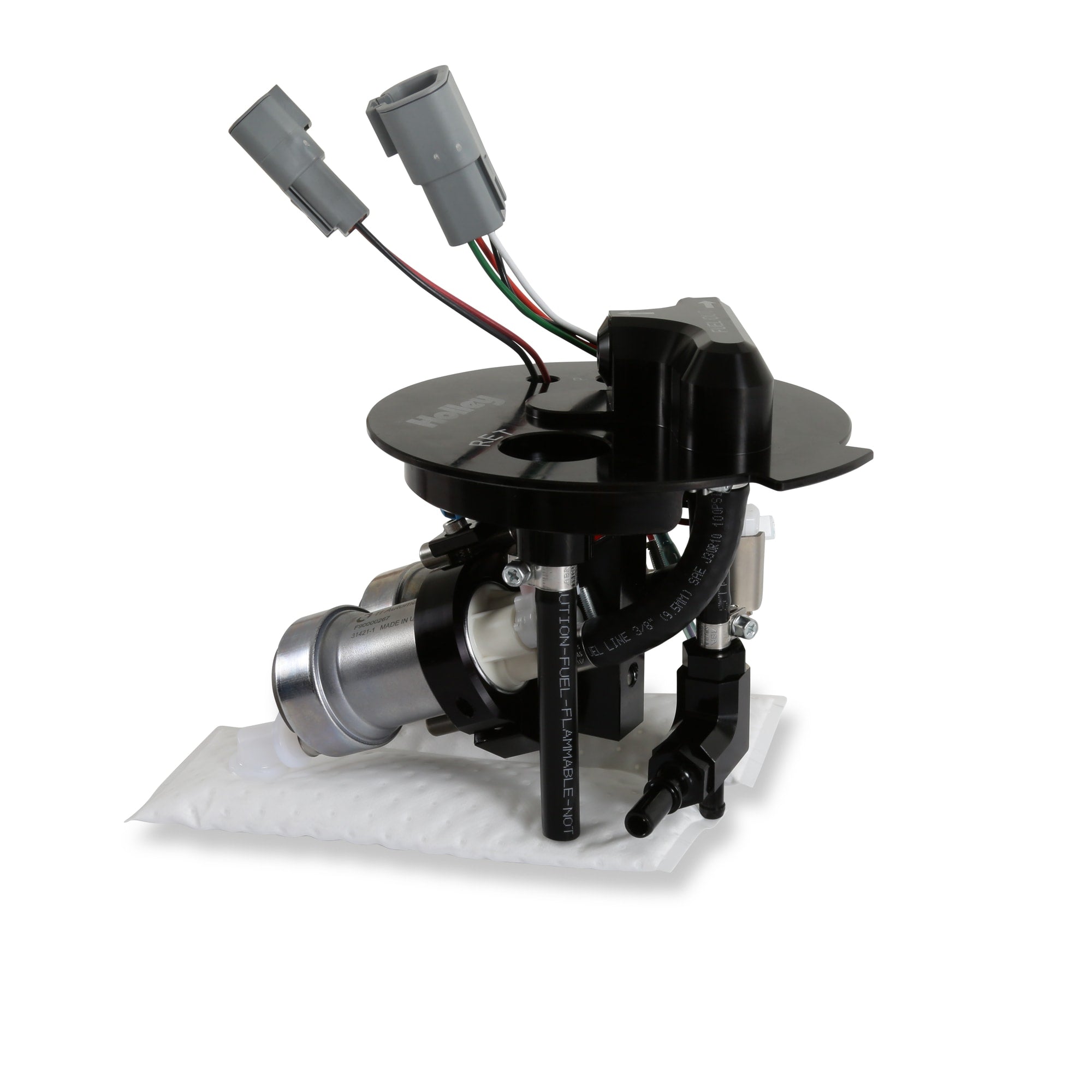

- Integrated jet pump assembly allows retention of factory drivers side fuel pickup
- Have been tested to deliver stable fuel pressure down to low fuel indicator warning light
- Brand new level sensor included and pre-installed. Installation is as simple as removing factory module and replacing with Holley module

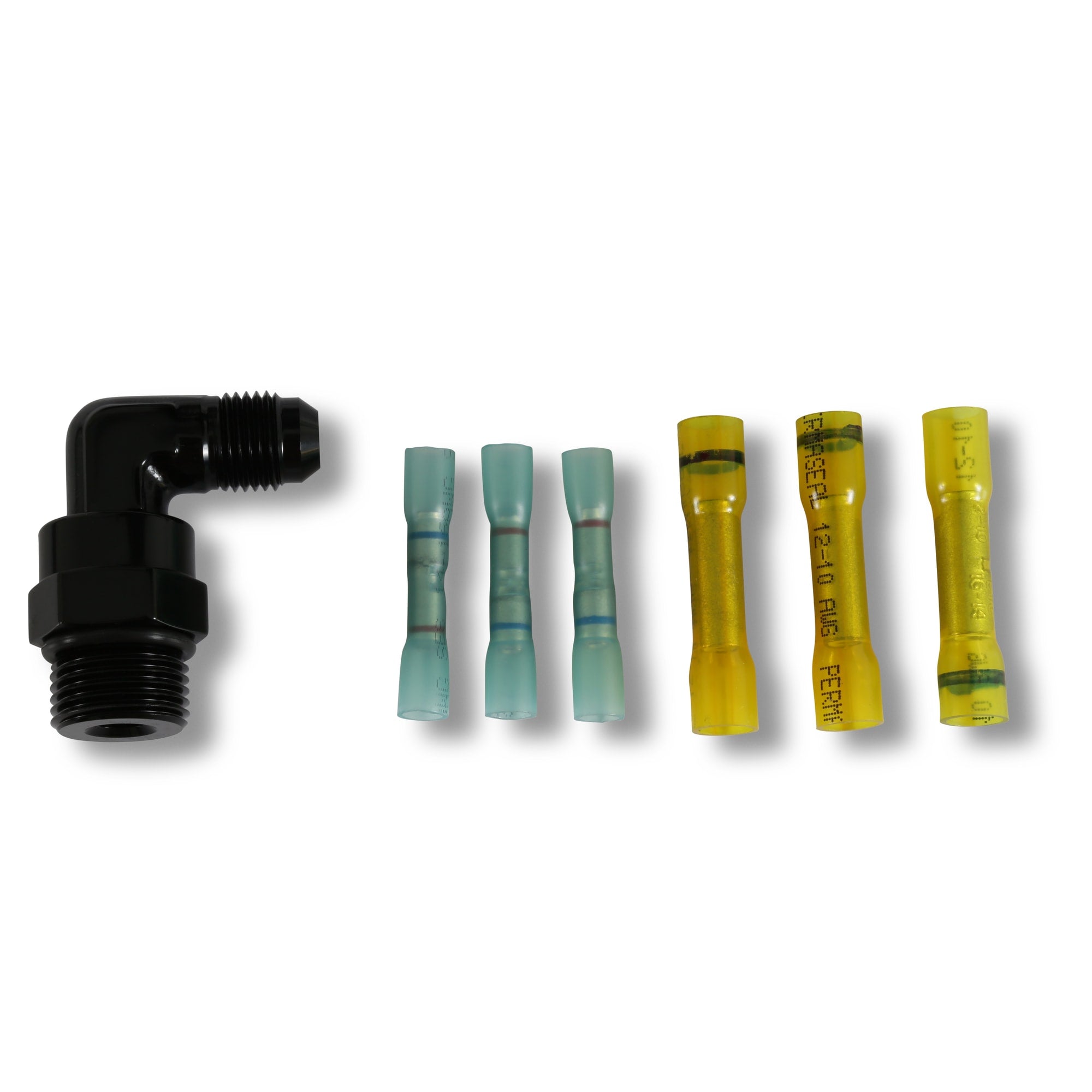

- Outlet fitting included to connect to factory feed line. Secondary ORB port machined into flange for easy AN plumbing of feed line
- Module is return style only so a regulator must be installed
- Machined, billet, anodized, laser etch components for durability and good looks
📖
About this product
2010-2015 Camaro Dual 450 LPH Pump Module
📋
Product Specifications
Automotive Item Grade
Performance
Average Current Draw
34
Average Flow Rating
900
Average Flow Rating
900 LPH
Brand
Holley
California Proposition 65 Chemical Name
4
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Connector Color
Gray
Connector Gender
Female
Connector Quantity
2
Emission Code
5
Free Flow GPH
240
Free Flow LPH
910
Fuel Filter Included
Yes
Fuel Sending Unit Included
Yes
Fuel System
EFI
Fuel Tank Pressure Sensor Included
No
Fuel Type
Gasoline/E85 Compatible
Gasket Or Seal Included
No
Grade Type
Performance
Height
Standard
Housing Material
Aluminum
In Tank Or External
In Tank
Inlet Quantity
One
Internal Or External Strainer
External
Lock Ring Included
No
Material
Billet Aluminum and Steel
Maximum Pressure
60
Maximum Pressure
60 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
Yes
Negative Ground
Yes
Outlet Quantity
2
Outlet Type
Factory Quick Connect
Outlet Type
ORB
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Body Color
Silver
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty
40
Resistance Ohms Empty
40 82
Resistance Ohms Full
250
Sub Category
Fuel Pumps and Related Components
Universal Or Specific Fit
Specific
Voltage
12
Voltage
12 2H
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty

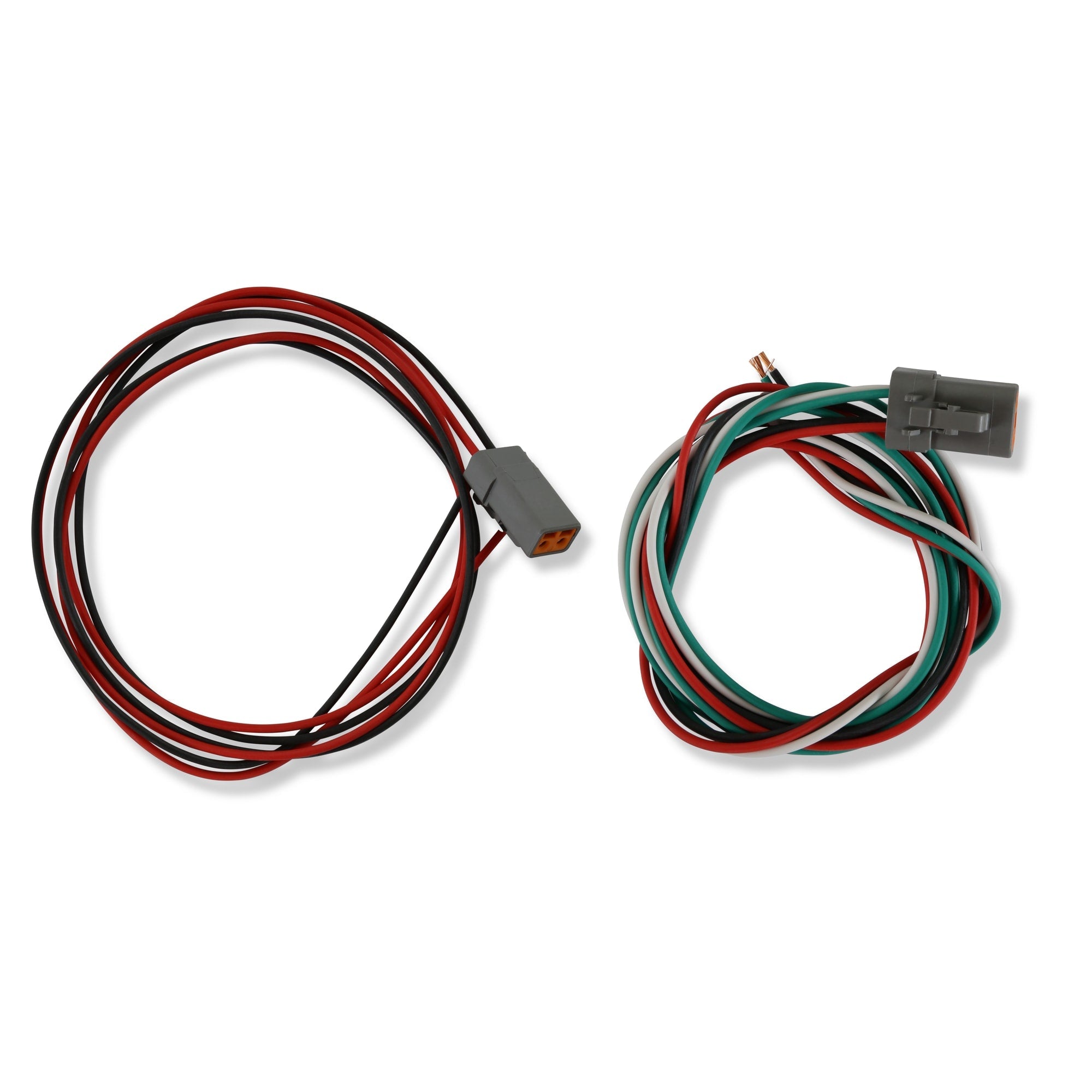

Wire Harness Included
Yes
Wire Quantity
6
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
12.6 × 9.4 × 6.4 in
Shipping Dimensions
12.6 × 9.4 × 6.4 in
Weight
2926 g (2.93 kg)
