HolleyPart 12-600Made in US
Product Details
⭐
Key Features
These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel This pump is not designed to use a standard conical seat style union in the inlet or outlet o

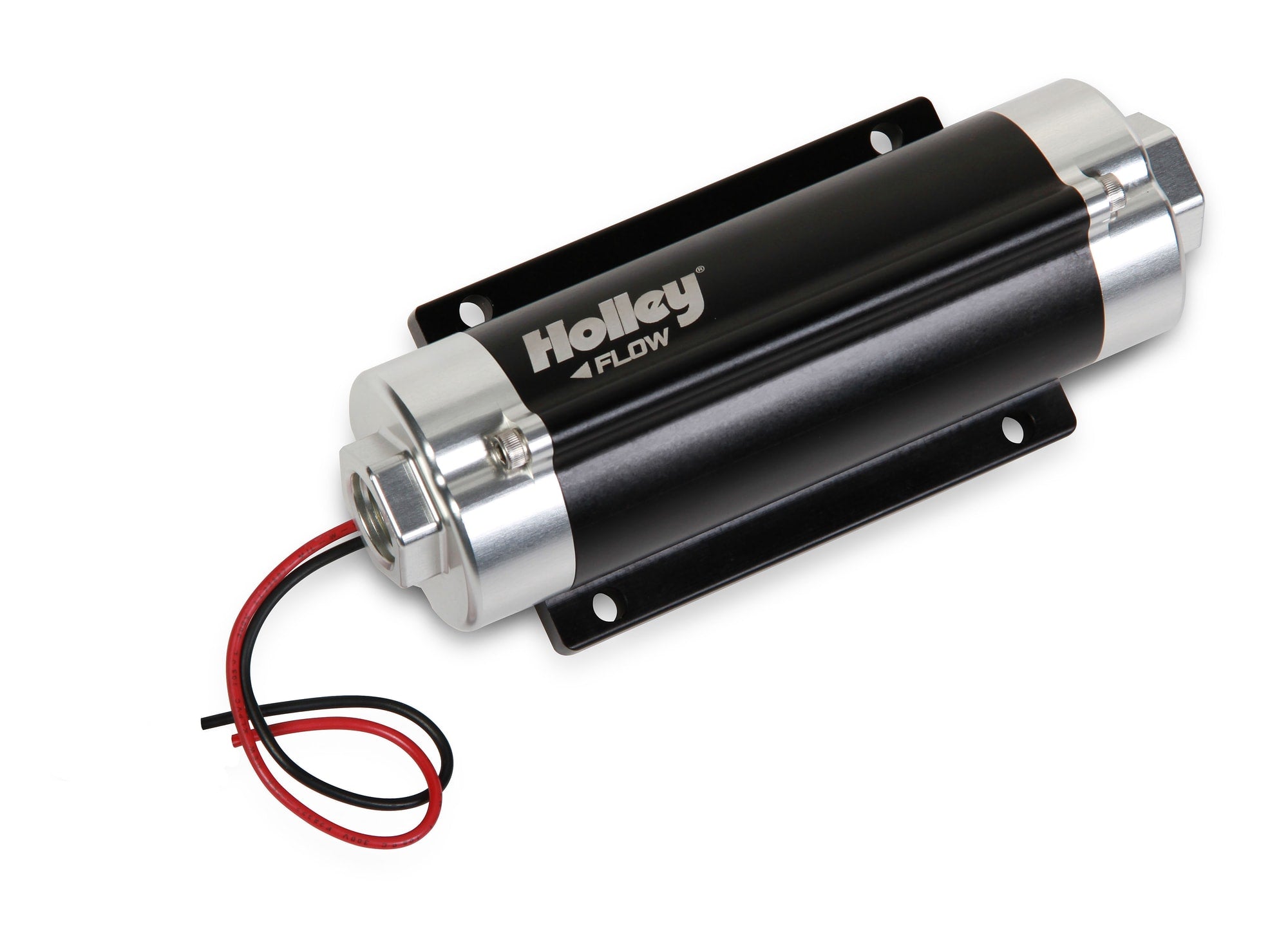

Holley's HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost effective, attractive package. | The 12-600 features improved hot fuel handling capabilities and was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is compatible for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-890 fuel pump. HP fuel pumps work well on the street or in racing applications with up to 18.5 volt charging systems and 80 psi
Street/Strip Carb or EFI Applications Supports up to 600 EFI or 730 Carb HP Compatible with Pump or Race gas
- Billet aluminum construction for durability & good looks
- -10 an O-ring inlet and -8 an O-ring outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
- Proven durability beyond 3,000 hours in gasoline
- Weighs only 3.1 lbs.
- 10 AMP maximum amp draw
- Not designed for use on aircraft of any type.
📖
About this product
Street/Strip Carb or EFI Applications Supports up to 600 EFI or 730 Carb HP Compatible with Pump or Race gas
📋
Product Specifications
Application
Universal
Automotive Item Grade
Performance
Brand
Holley
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Forced Induction Hp@43psi
450
Forced Induction Hp@60psi
380
Free Flow GPH
67
Fuel Delivery Type
Carburetor
Fuel Delivery Type
Fuel Injection
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Gasoline
Gasket Or Seal Included
No
Gph@43psi
48
Gph@60psi
41
Gph@8psi
65
Grade Type
Performance
Inlet Fitting Thread Size
7/8-14
Inlet Fitting Thread Size
7/8-14 IN
Inlet Size
10 AN O-Ring - 7/8-14 SAE
Inlet Type
10 AN ORB
Internal Or External
Internal External
Lph@43psi
181
Lph@60psi
155
Lph@8psi
230
Material
Aluminum
Maximum Amperage Draw
10
Maximum Flow Rating
65
Maximum Flow Rating
65 GPH
Maximum Pressure
80
Maximum Pressure
80 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
No
Naturally Aspirated Hp@43psi
600
Naturally Aspirated Hp@60psi
500
Naturally Aspirated Hp@8psi
730
Negative Ground
Yes
Outlet Fitting Thread Size
3/4-16
Outlet Fitting Thread Size
3/4-16 IN
Outlet Quantity
1
Outlet Size
8 AN O-Ring - 3/4-16 SAE
Outlet Type
8 AN ORB
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Pump Body Color
Black Anodized
Regulator Included
No
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Terminal Quantity
2
Universal Or Specific Fit
Universal
Voltage
12-18.5
Voltage
12-18.5 2H
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wire Quantity
2
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
10.7 × 7.2 × 3.1 in
Shipping Dimensions
10.7 × 7.2 × 3.1 in
Weight
1361 g (1.36 kg)
