HolleyPart 12-880Made in US
Product Details
⭐
Key Features

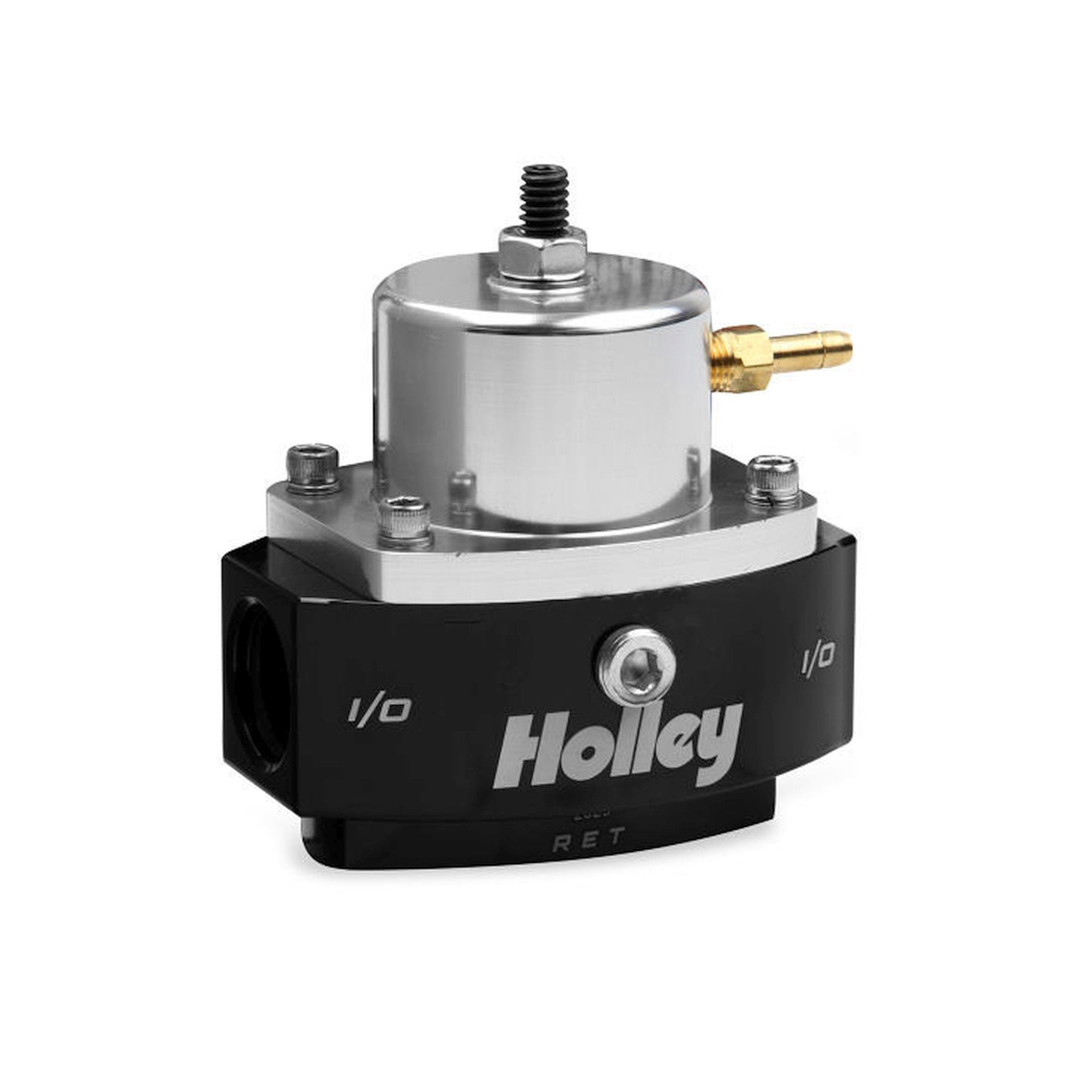

Carb/EFI adjustable billet by-pass return style fuel pressure regulator 6AN Boost Reference - 1:1

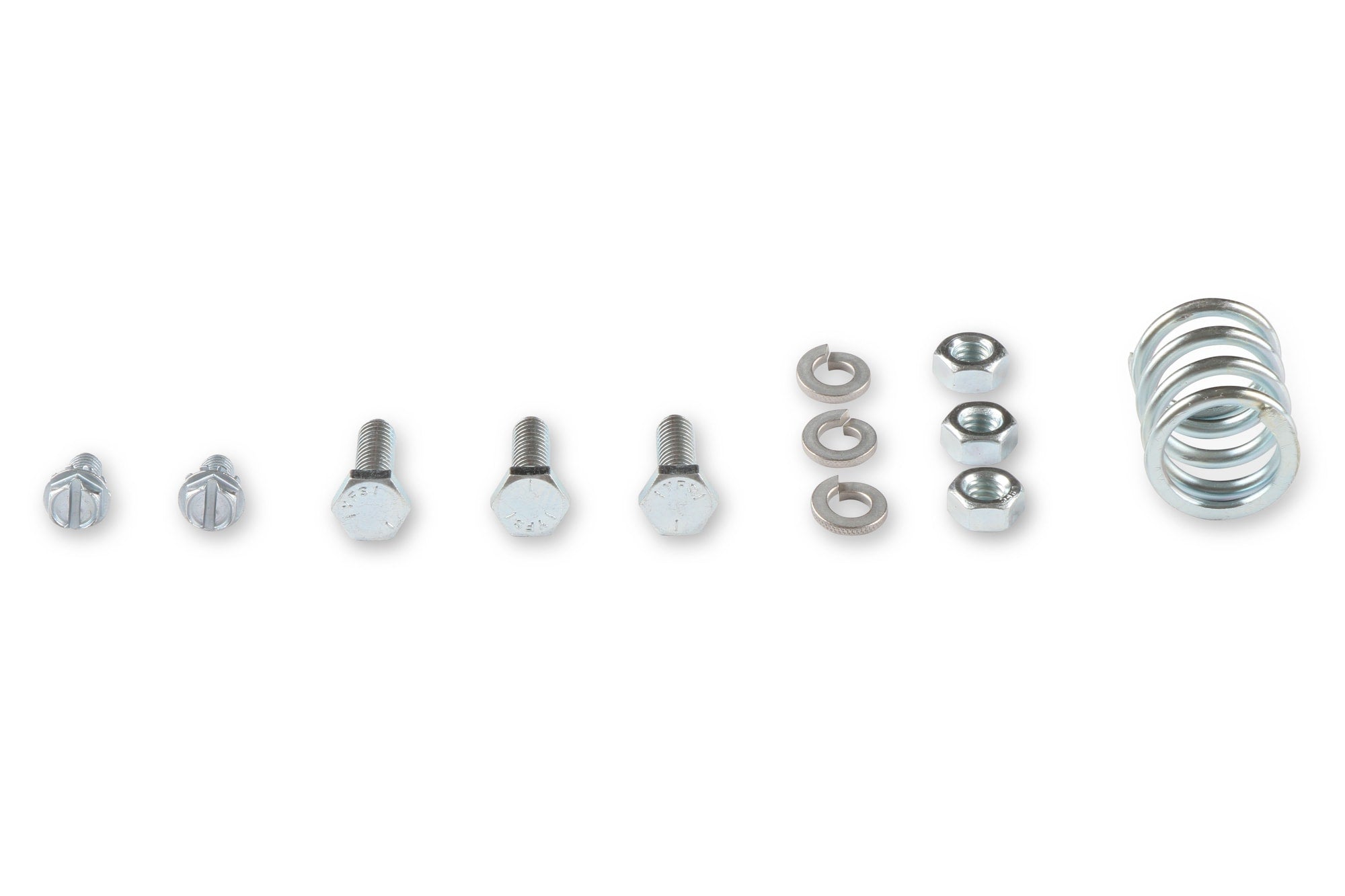

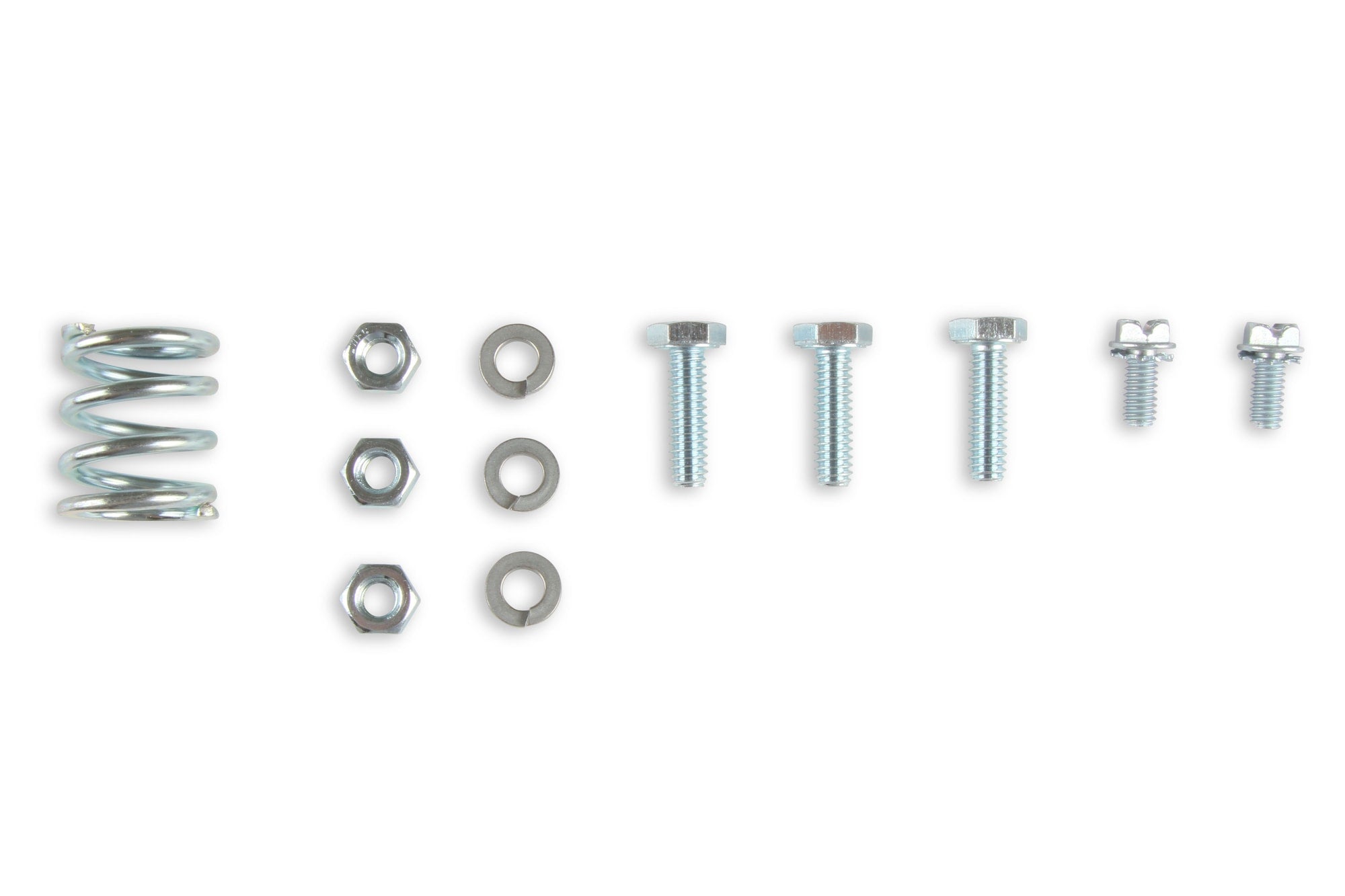

Holley Billet Fuel Pressure Regulators are part of a complete line of fuel system products from Holley. They are precision machined from 6061-T6 billet aluminum for strength and durability. These regulators are adjustable from 4-65 psi and will handle both carbureted and EFI applications. A second pressure spring is included allowing you to increase the fuel pressure range up to 65 psi for EFI systems. They are offered with two port sizes, 3/8" NPT or 6AN to adapt to your new or existing fuel lines. So, if you are currently running a carbureted system but plan to upgrade to EFI in the future, these regulators will have you covered either way.
Carb/EFI adjustable billet by-pass return style fuel pressure regulator 6AN Boost Reference - 1:1
- Carb/EFI adjustable from 4-65 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and a clear anodized top for good looks
- Used in systems with a return line back to the tank

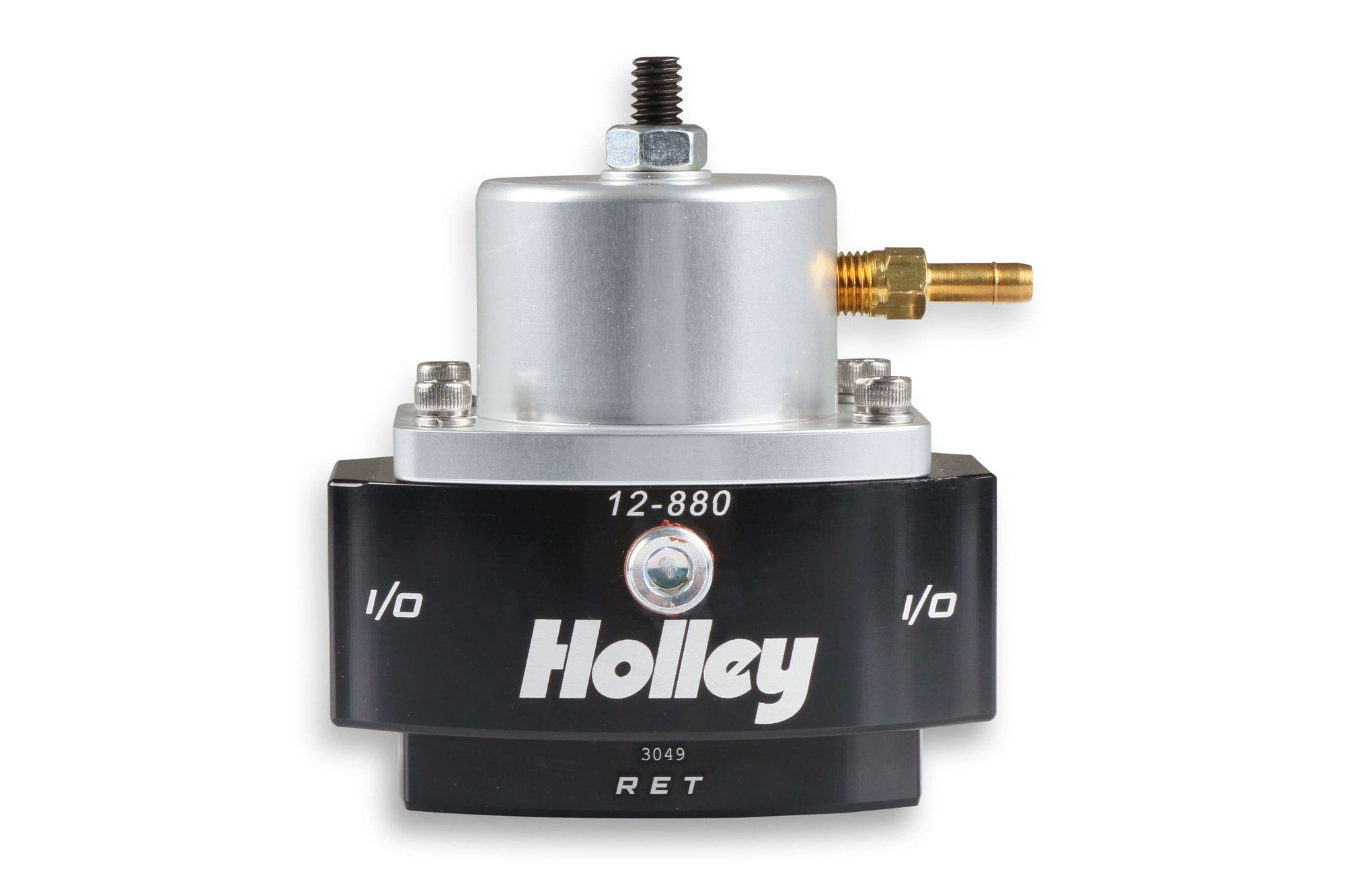

- (1) 6AN O-ring Inlet, (1) 6AN O-ring Outlet, and (1) 6AN O-ring return

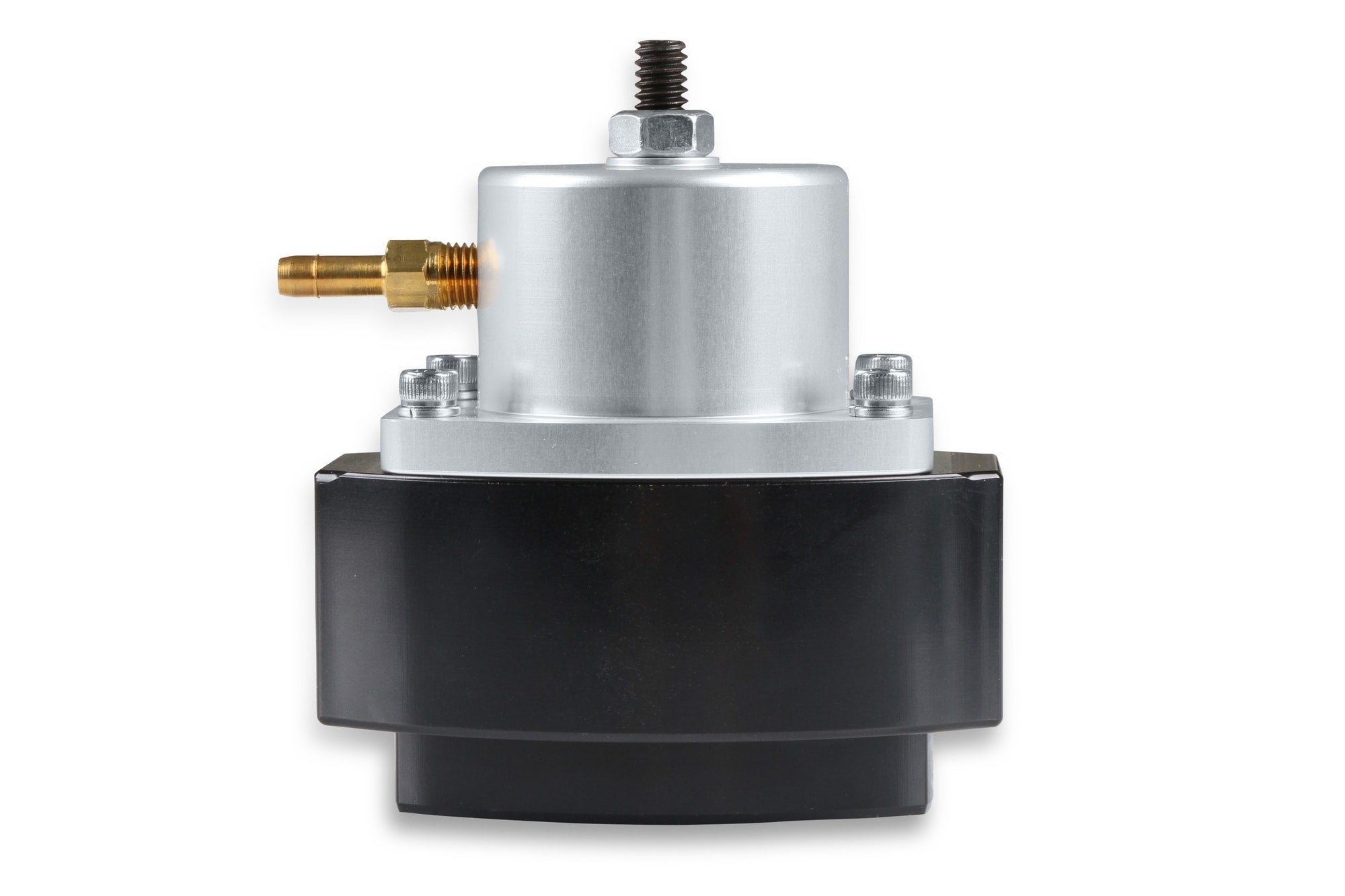

- Includes fitting for manifold reference
- Includes an 1/8 NPT gauge port
- Boost Reference - 1:1
- The 4-15 psi carbureted spring comes installed in the regulator
📖
About this product
Carb/EFI adjustable billet by-pass return style fuel pressure regulator 6AN Boost Reference - 1:1
📋
Product Specifications
Adjustable
Yes
Automotive Item Grade
Performance
Brand
Holley
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Collection
Suspension & Steering
Collection
Suspension & Steering - Steering Racks & Columns
Color
Black
Emission Code
5
Fuel System
EFI/Carb
Fuel Type
Gasoline
Gauge Port
Yes
Grade Type
Performance
Inlet Quantity
1
Inlet Size
6 AN O-Ring
Inlet Type
6 AN ORB
Material
Aluminum
Menu
Carburetion

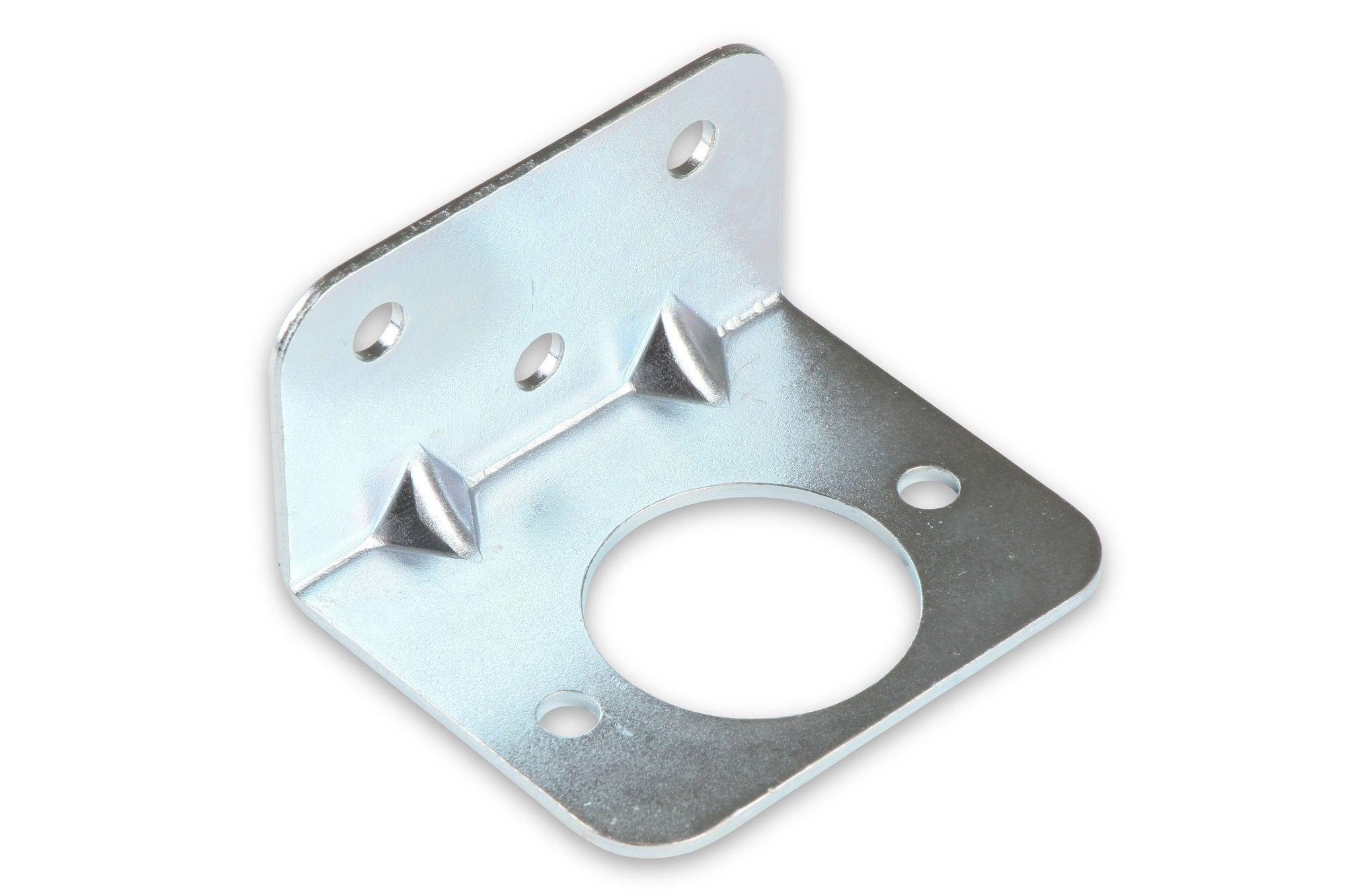

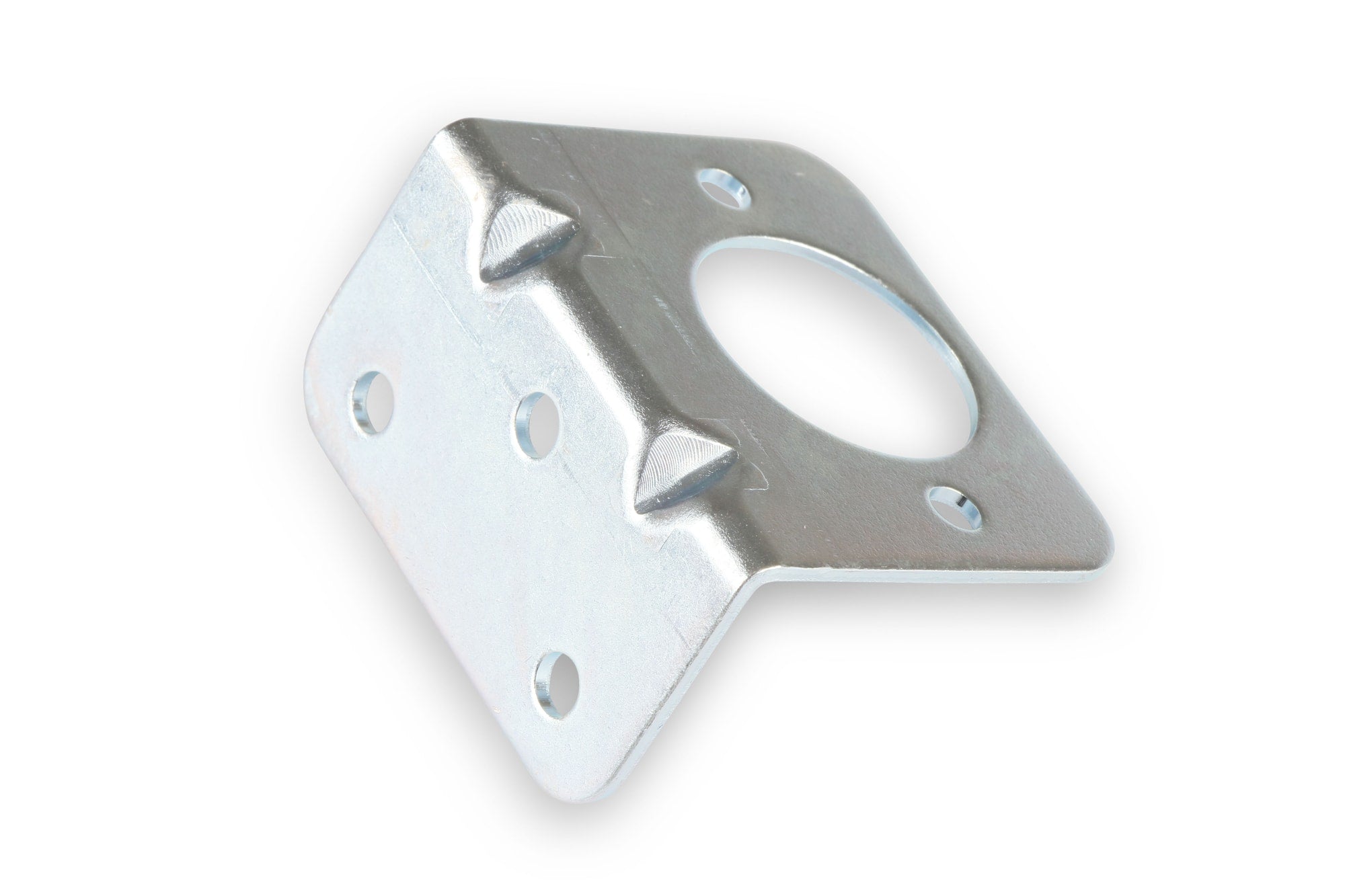

Mounting Hardware Included
Yes
Mounting Type
Inline
Outlet Quantity
1
Outlet Size
6 AN O-Ring
Outlet Type
6 AN ORB
Part Type
Fuel Pressure Regulator
Port Quantity
3
Product Type
Fuel Pressure Regulator
Return Size
6 AN O-Ring
Style
Bypass
Sub Category
Carburetion
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
10.1 × 5.3 × 3.1 in
Shipping Dimensions
10.1 × 5.3 × 3.1 in
Weight
544 g (0.54 kg)
