HolleyPart 300-110Made in US
Product Details
⭐
Key Features

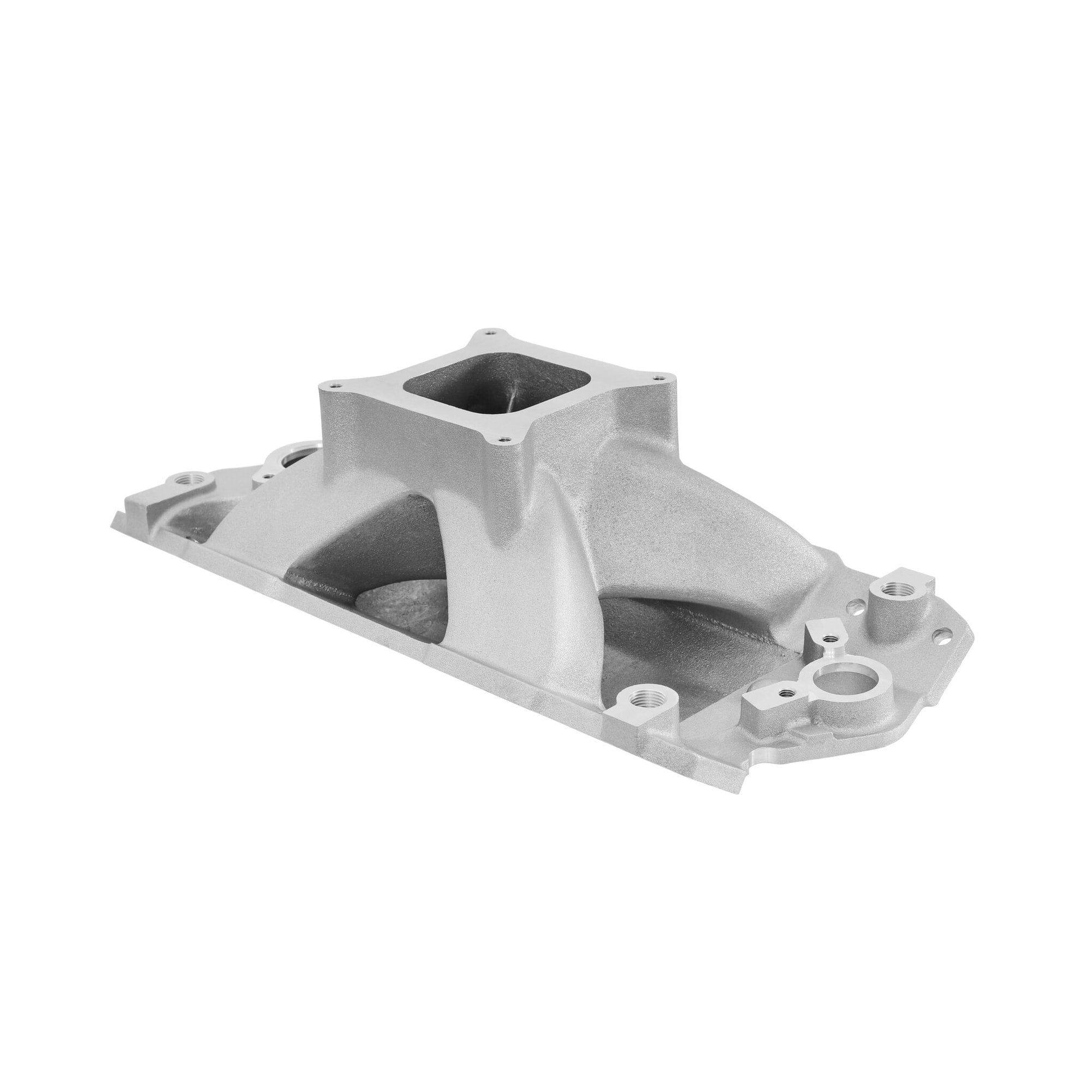

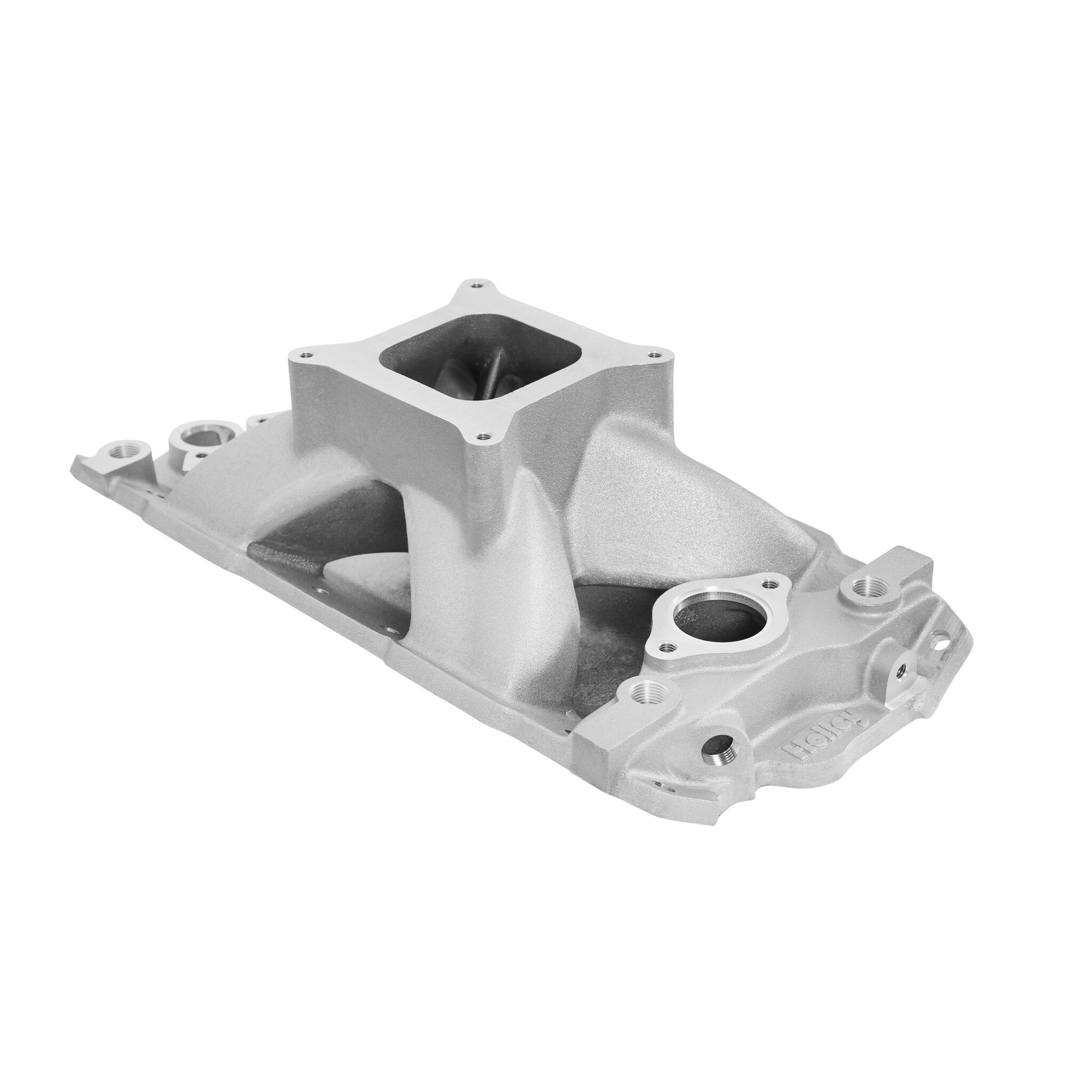

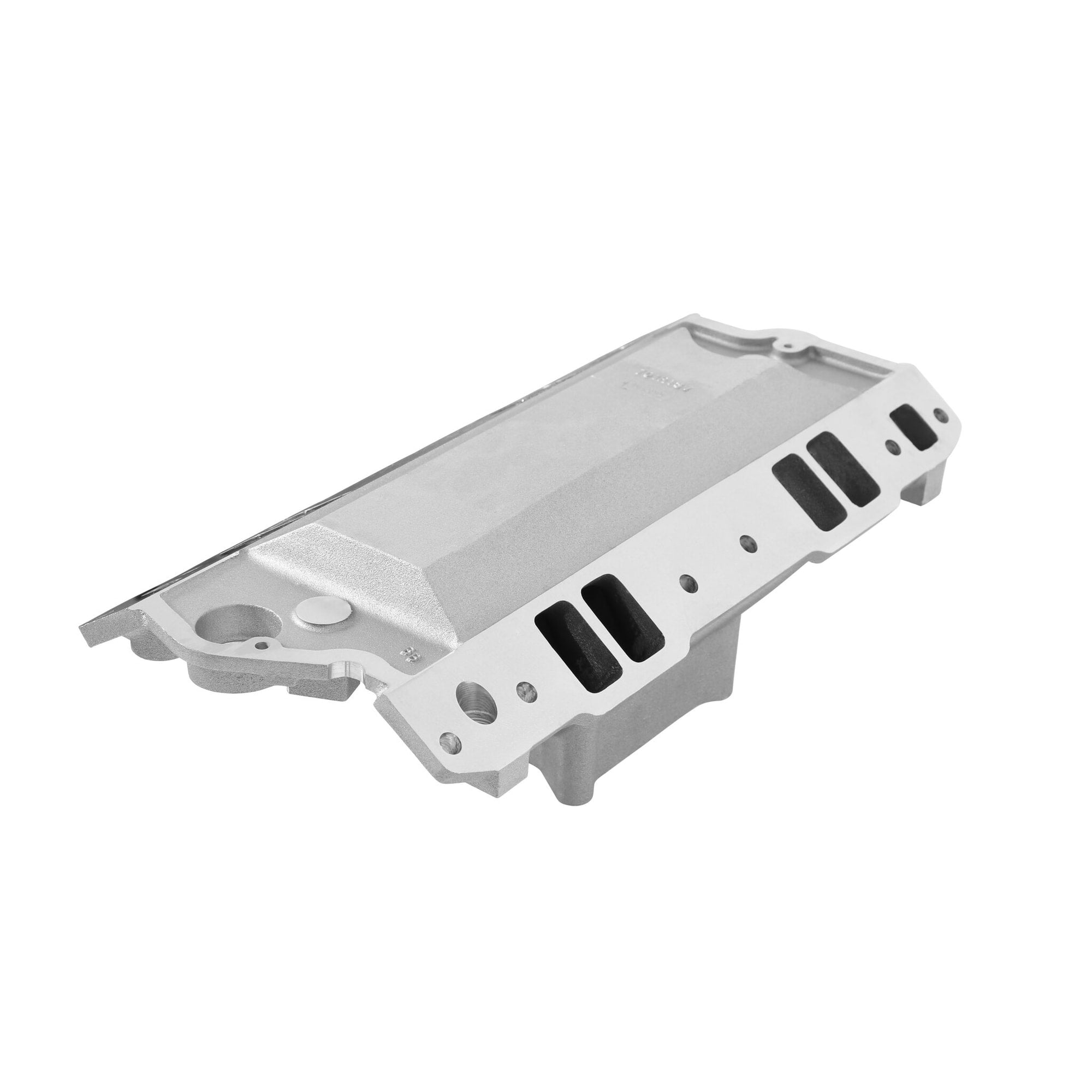

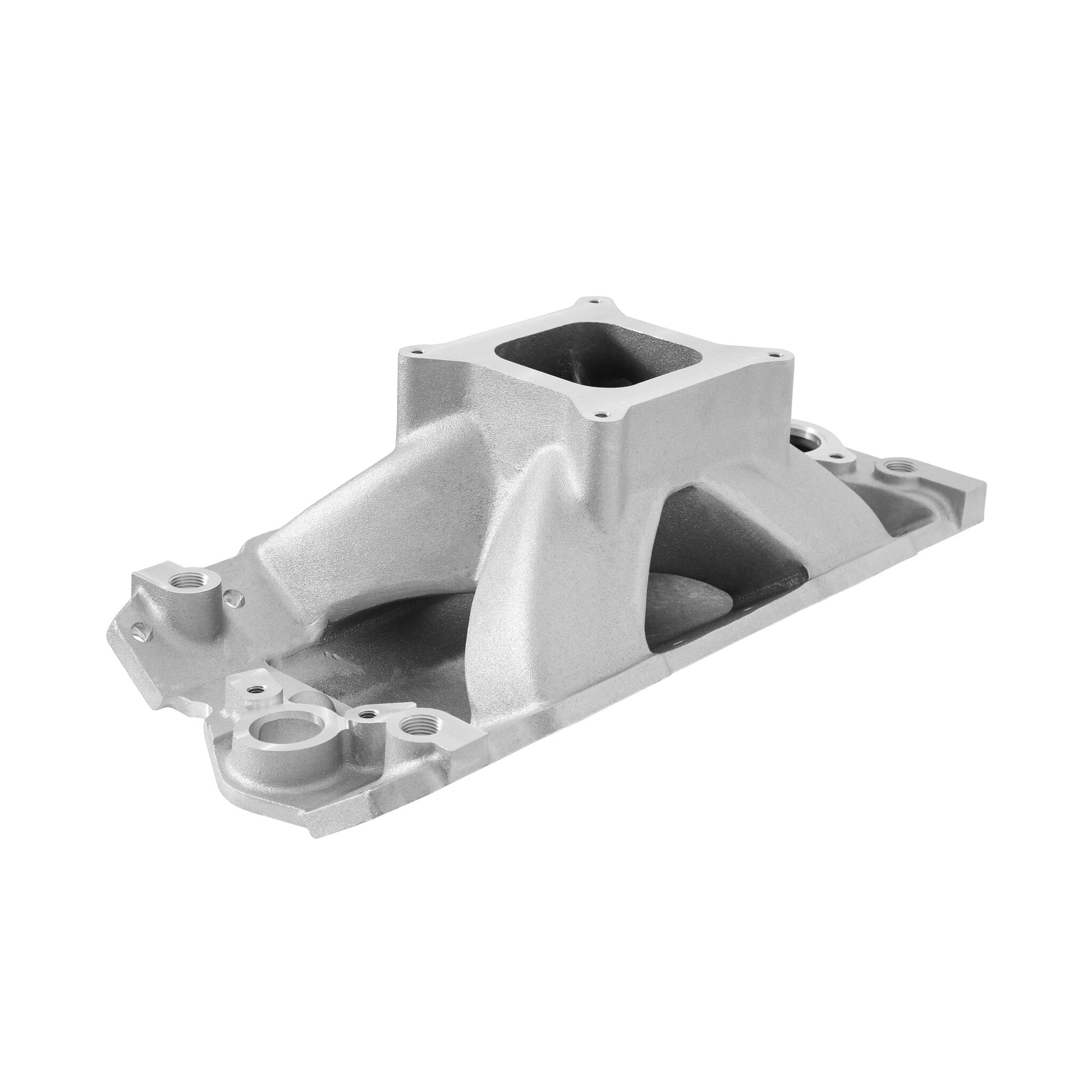

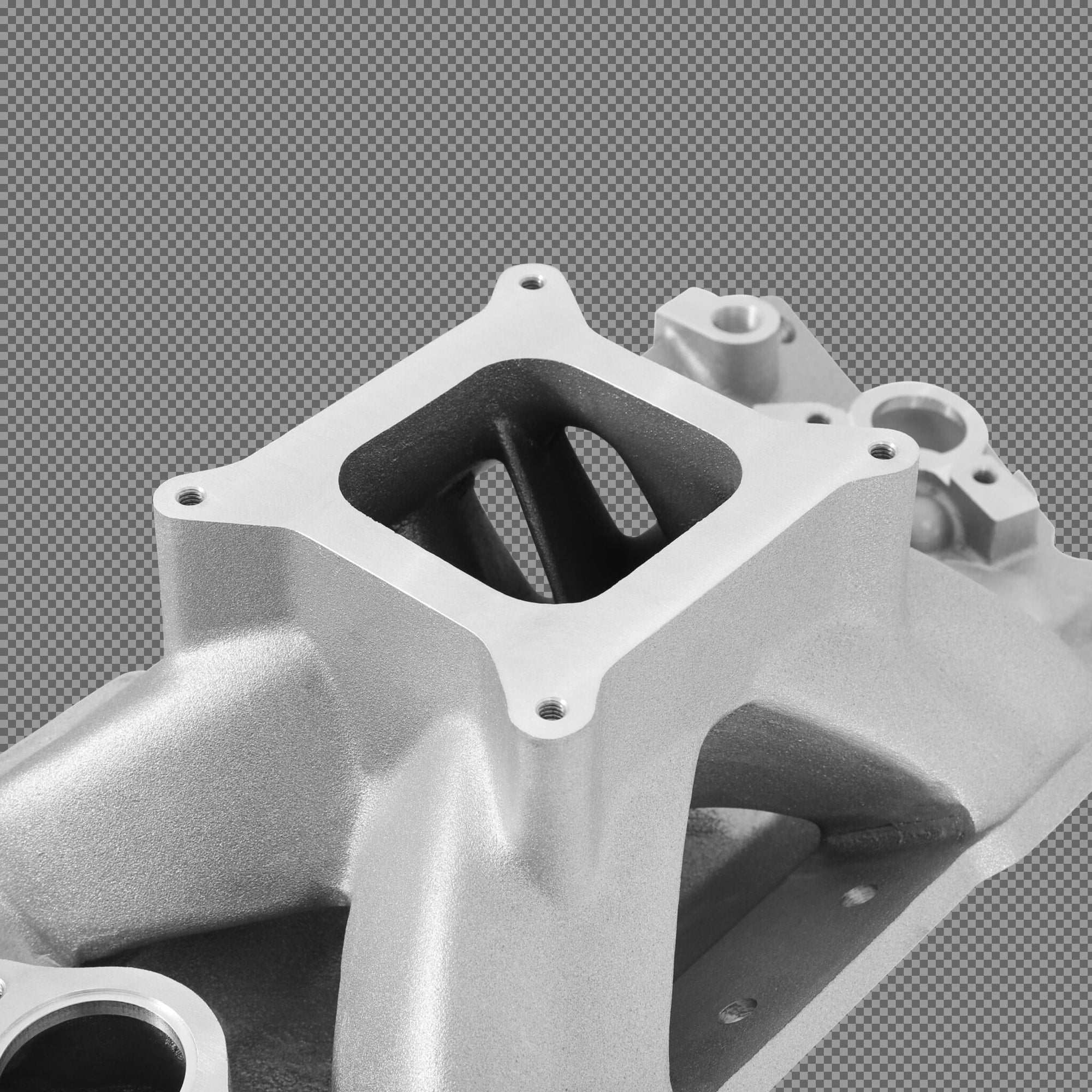

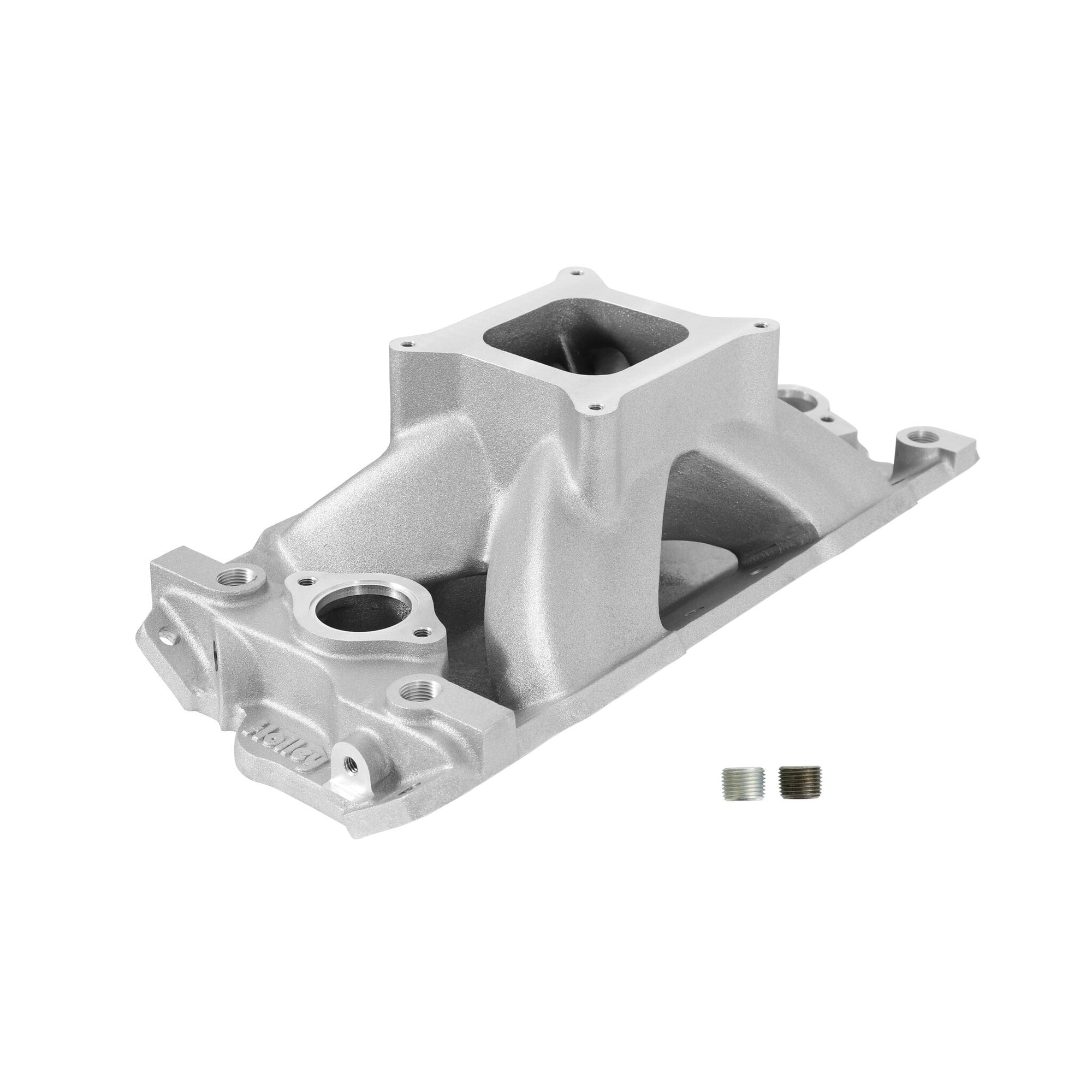

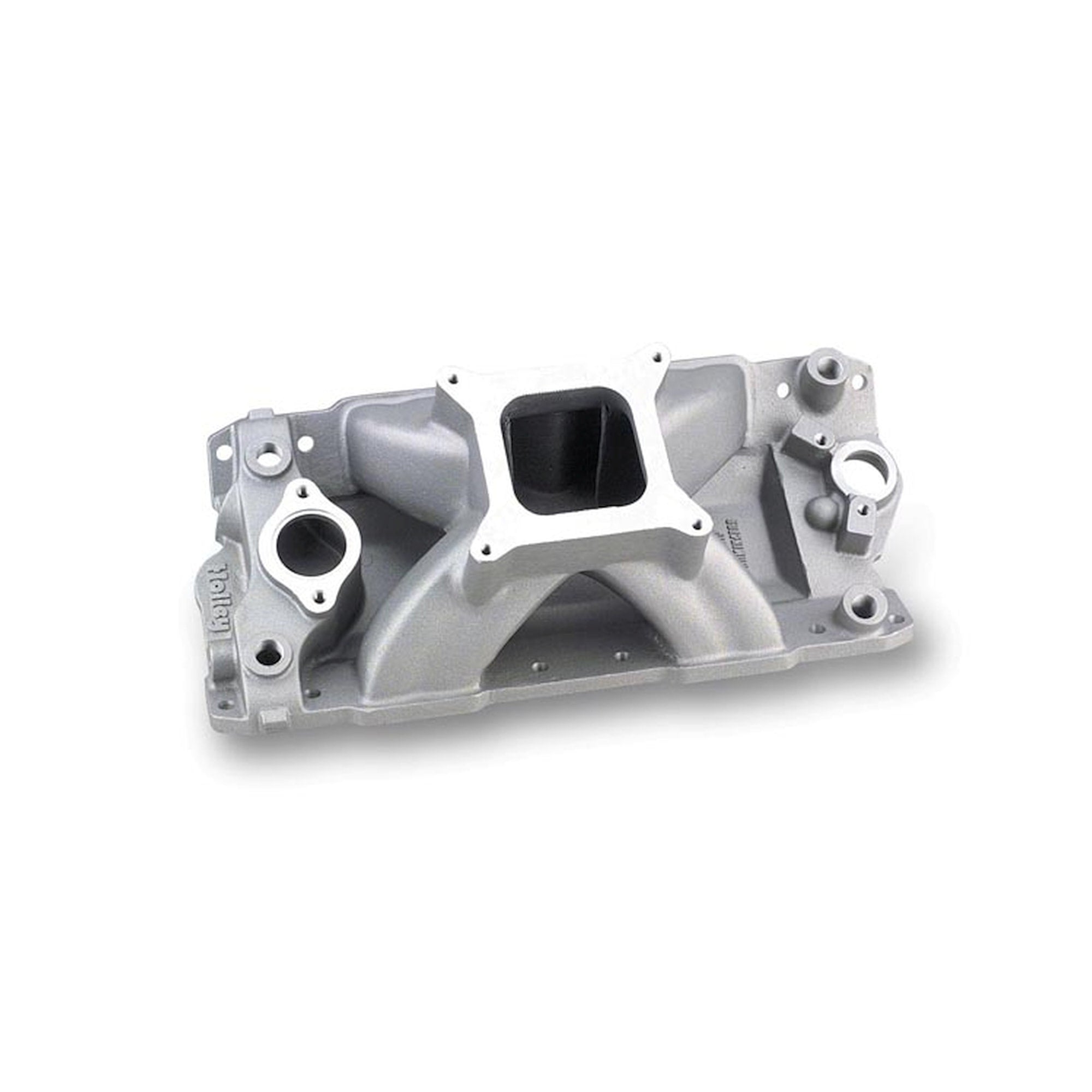

Keith Dorton Series Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads
This is a great manifold designed for competition engines built for circle track and drag racing using 23º standard port heads. Ideal for classes that require cast iron heads that require an unported intake manifold.
Keith Dorton Series Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads
- Isolated Water cross-over
- Square Bore Carburetor Mounting Flange
- Power band: 4500-8500 RPM
- Single Plane with Isolated Plenum
- Port Size: 2.00” height 1.20" width
- Height: Front 6.13", Rear 6.13"
📖
About this product
Keith Dorton Series Intake Manifold 1957-1986 262ci-400ci, 1987-later with Aluminum Heads
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
4500-8500
Basic Operating RPM Range
4500-8500 R3
Brand
Holley
California Proposition 65 Chemical Name
20
Carburetor Flange
Square/4150
Carburetor Quantity
1
Carburetor Studs Included
No
Category
Engine
CNC Ported
No
Color
Natural
Construction
Cast
Cylinder Head Port Shape
Rectangle
Deck Height
9.025
EGR Port
No
Emission Code
4
Flange Style
4150 Square Bore
Front Maximum Height
6.13
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carb
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
High Rise
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold
Rear Maximum Height
6.13
Removable Runners
No
Removable Top/Lid
No
RPM Power Band
4500-8500
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
3.6
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
No
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
23.0 × 13.2 × 7.8 in
Shipping Dimensions
23.0 × 13.2 × 7.8 in
Weight
7507 g (7.51 kg)
