HolleyPart 300-277Made in CN
Product Details
⭐
Key Features

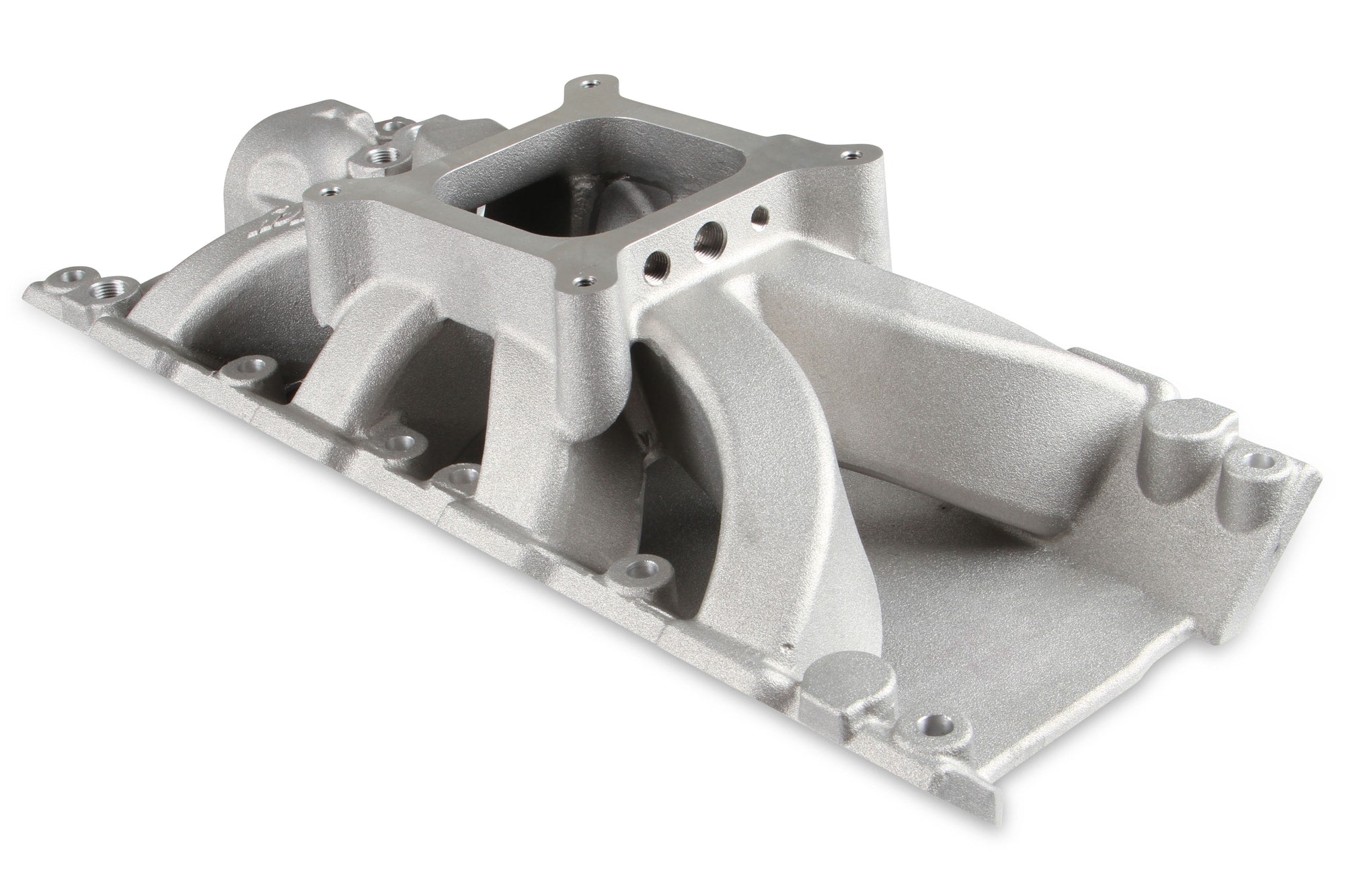

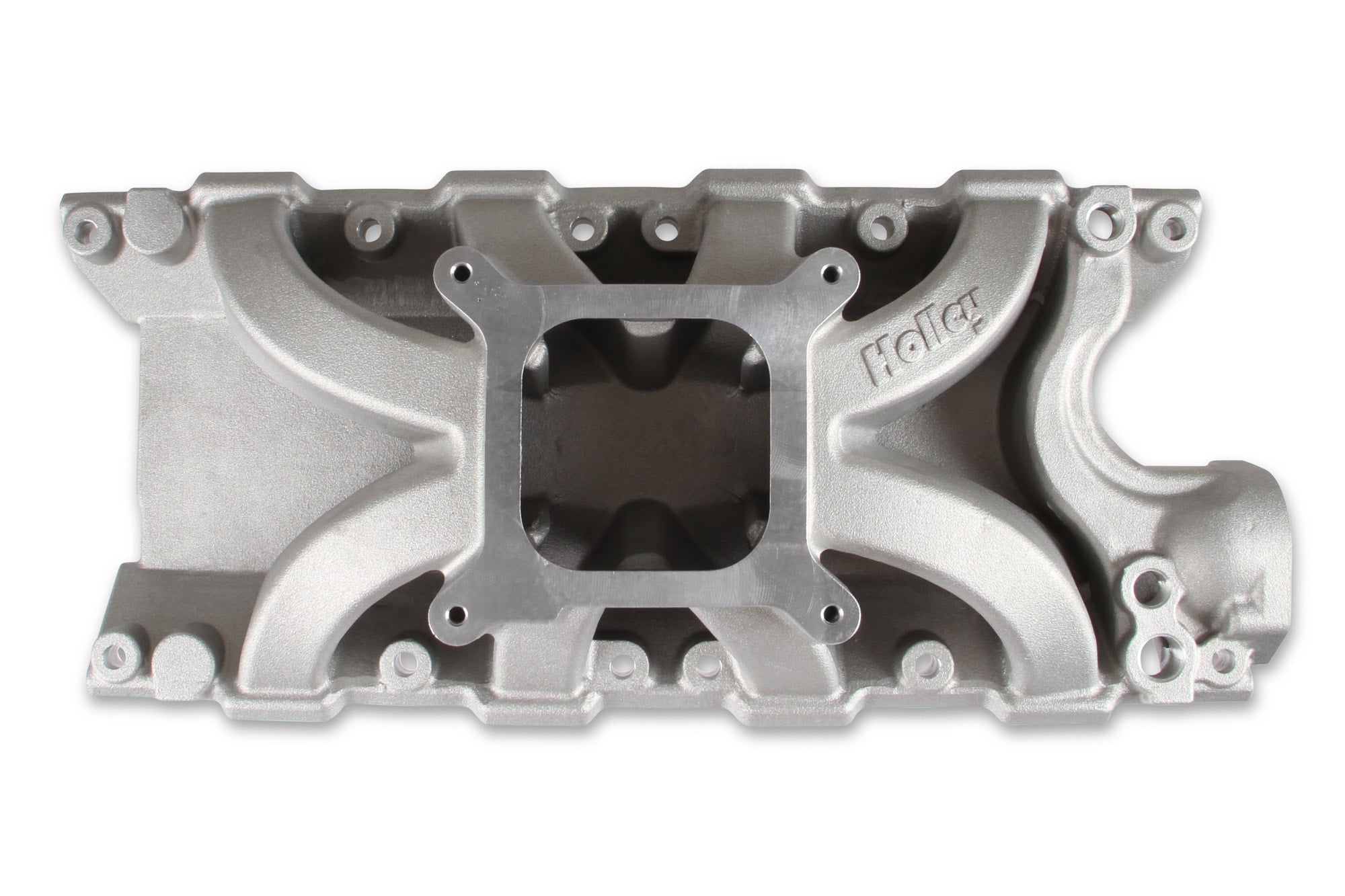

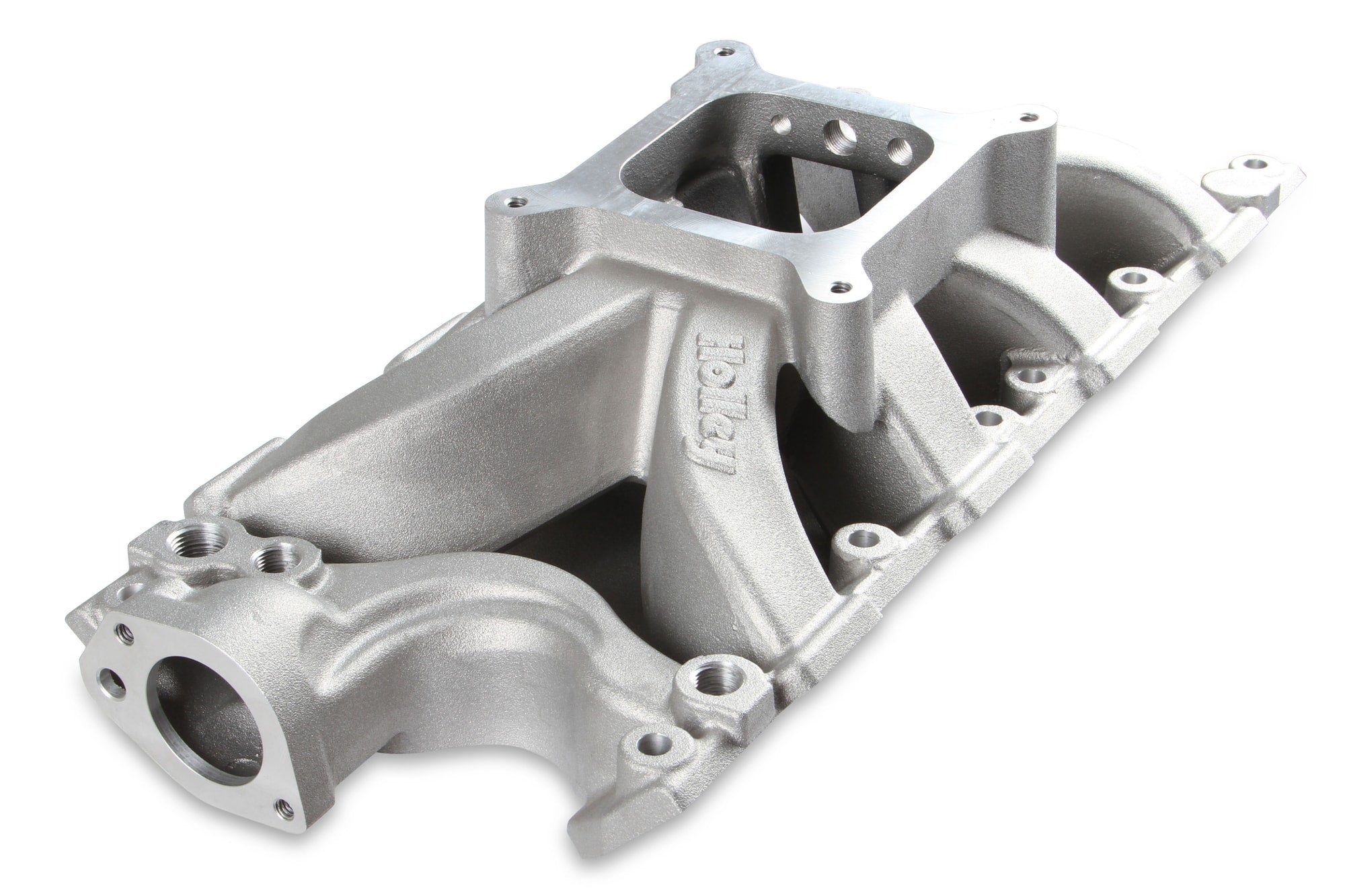

Carbureted Single Plane Intake Manifold Small Block Ford 289-347
The intake manifolds are designed for use with 289-347 cubic inch Small Block Ford engines with a 8.2" deck height. | The new single plane intake manifolds are designed to provide a broad RPM powerband for high-performance street/strip engine applications to a maximum engine speed of 7500 RPM. The carbureted manifold has a 4150 flange to work with all mechanical secondary square bore carburetors. These intake manifolds are designed to accept most stock hardware and accessory brackets, but offer performance features like better plenum and runner geometry for improved charge airflow. The isolated design of the air/fuel passages helps to increase charge air density and performance.
Carbureted Single Plane Intake Manifold Small Block Ford 289-347
- Port size: 1.82” height, 1.04” width
- Extra material allows for porting to 2.00” height, 1.20” width
- 4150 square bore mounting flange
- Single plane design with isolated plenum for cooler charge air temperatures

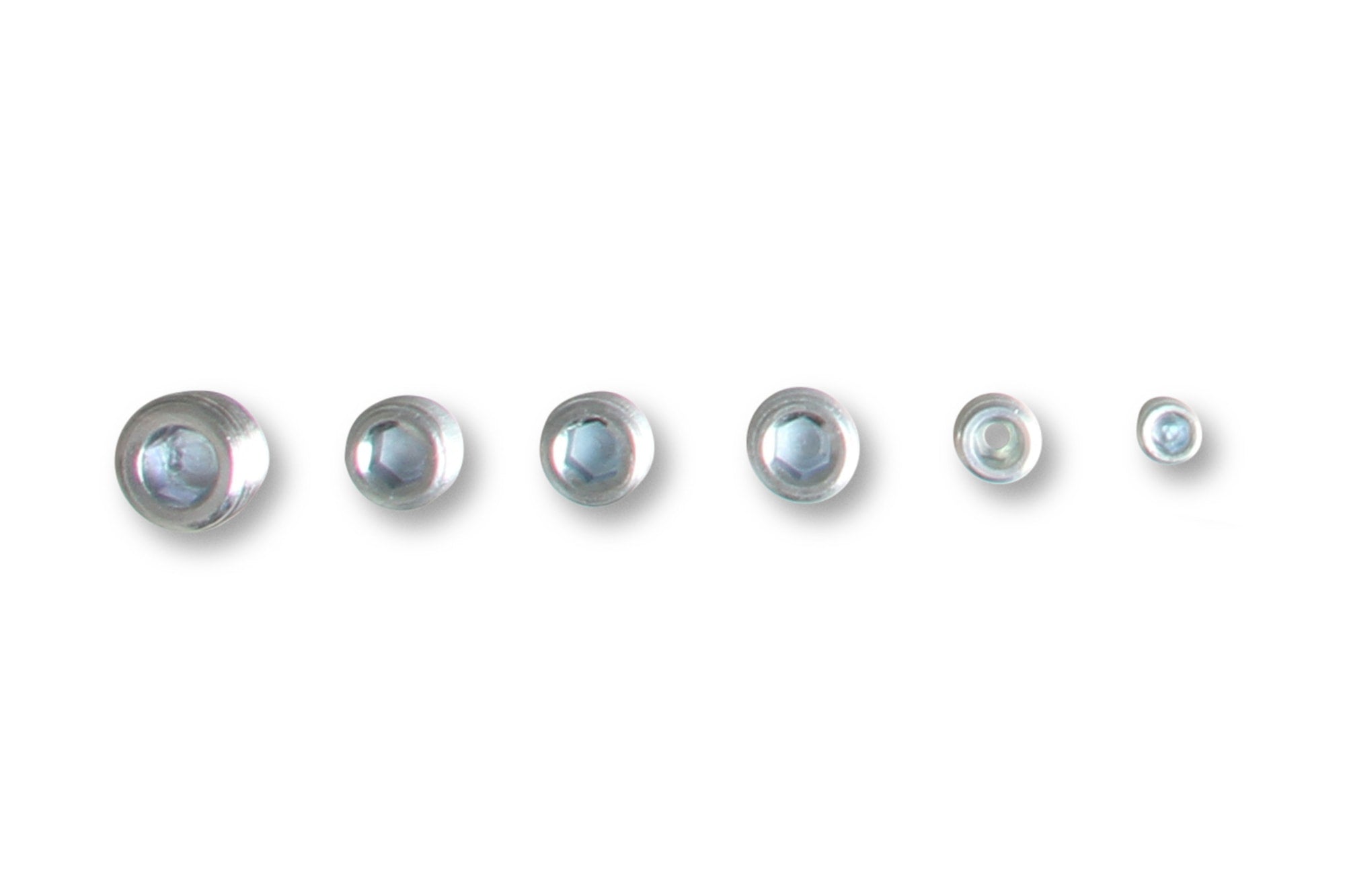

- Accessory ports under the carburetor in 1/8 NPT, 1/4 NPT and 3/8 NPT sizes
- Power band: 2500-7500 RPM
- Height: front 5.58”, rear 6.40”
📖
About this product
Carbureted Single Plane Intake Manifold Small Block Ford 289-347
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
2500-7500
Basic Operating RPM Range
2500-7500 R3
Brand
Holley
California Proposition 65 Chemical Name
4
Carburetor Flange
4150 Square Bore
Carburetor Quantity
1
Carburetor Studs Included
No
Category
Engine
CNC Ported
No
Color
Natural
Construction
Cast
Cylinder Head Port Shape
Rectangle
Deck Height
8.2
EGR Port
No
Emission Code
3
Flange Style
4150 Square Bore
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carbureted
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Single Plane
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold
Removable Runners
No
Removable Top/Lid
No
RPM Power Band
2500-7500
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
3.6
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
24.9 × 12.0 × 5.3 in
Shipping Dimensions
24.9 × 12.0 × 5.3 in
Weight
6577 g (6.58 kg)
