MFLD KIT, FORD 302W HI-RAM ...
Get notified when this item is back in stock
Press & drag to view
Holley EFI
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

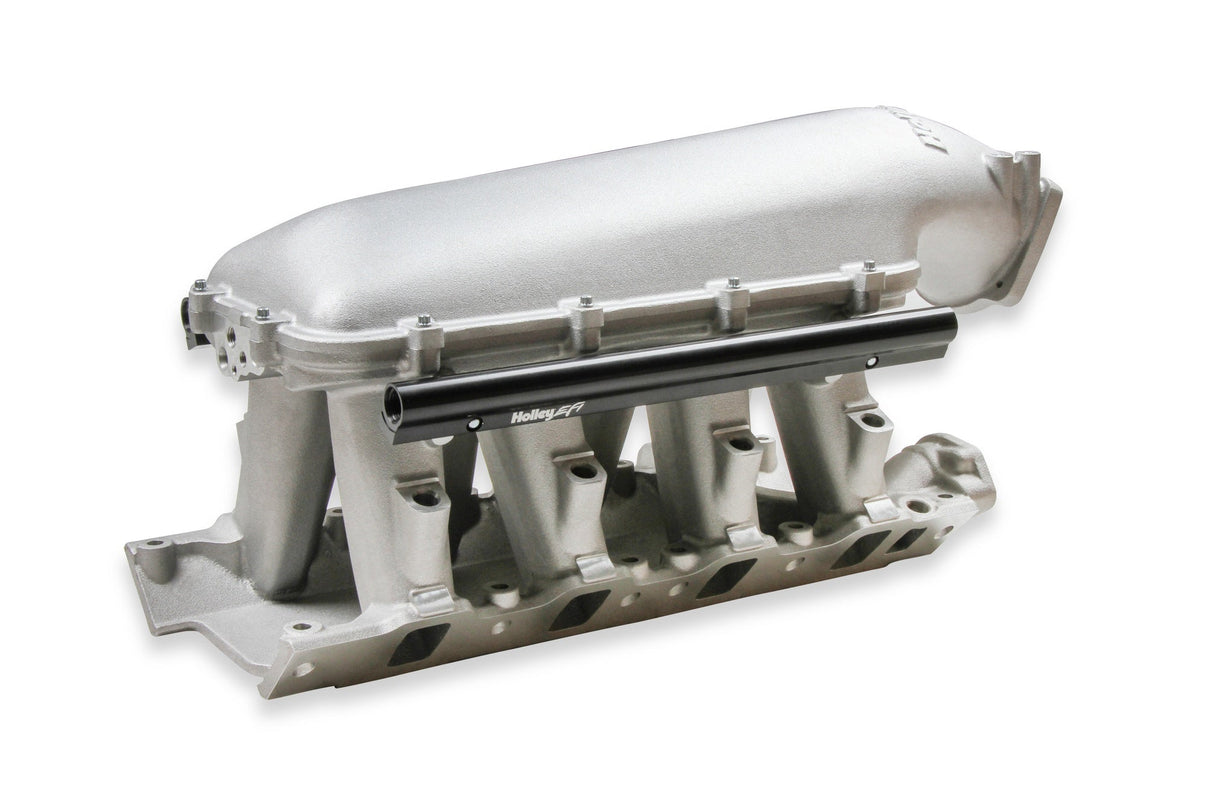

8.2" SBF Ford Hi-Ram Intake Manifold with 105mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top.
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type 3/32� Round O-ring Cord
- Manifold is designed for a 8.2" SBF deck height.
- The 8.2 SBF manifold is available to work with 105MM throttle bodies
- Ford 5.0 throttle body fitment
- Lid has been verified to fit under Cervinis 2.5� cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
- Designed for side mounted throttle bodies
- Allows room for designing boosted applications
📋
Product Specifications
Basic Operating RPM Range
1500-7000 RPM
Brand
Holley EFI
Construction
Cast
EGR Port
No
Engine
Ford Small Block
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Port Size
2.00" x 1.190"
Product Type
Intake Manifold
Removable Runners
No
RPM Power Band
1500-7000
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
105 MM
Throttle Body Included
No
Throttle Bore
105mm
Vehicle
Ford MUSTANG 1919
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
