Holley EFI
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

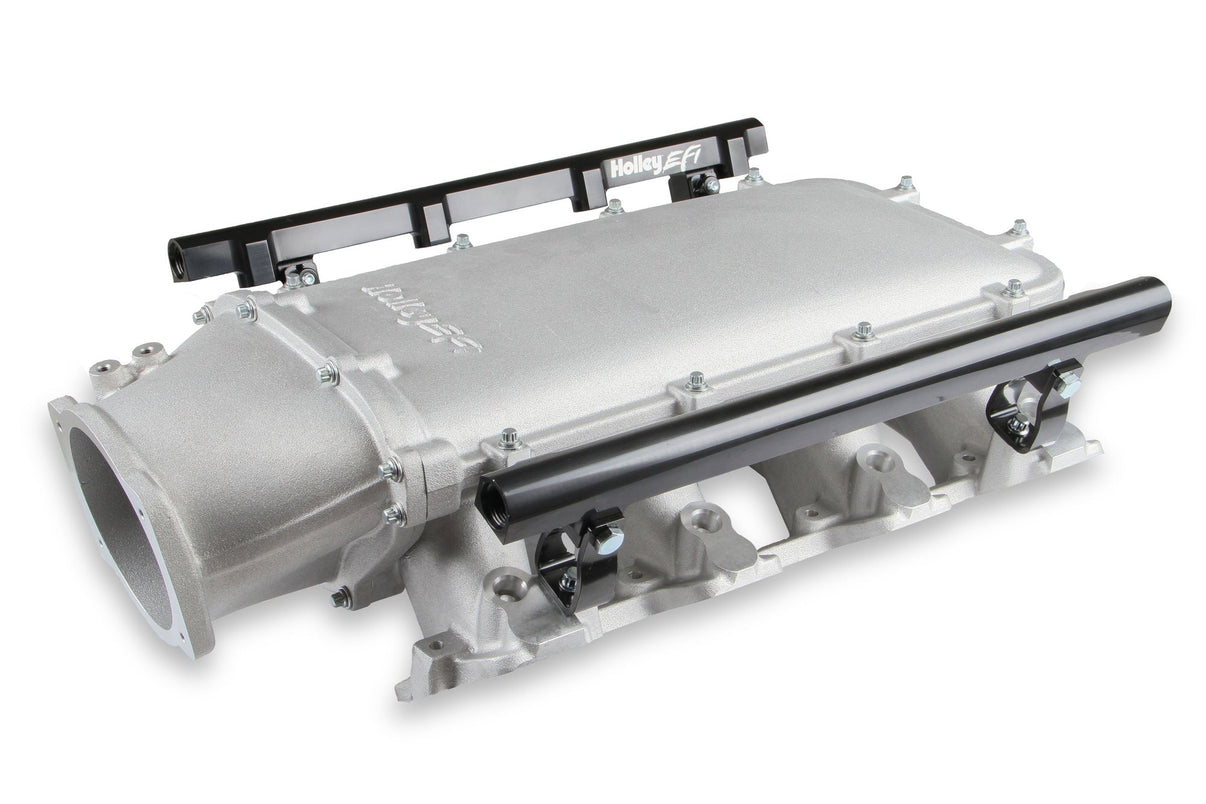

Ultra Lo-Ram Manifold Kit - LS1/2/6
- Designed for GM LS Gen III and IV engines equipped with GM LS1/2/6 (cathedral port) cylinder heads
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
- With forced-induction and the short runner length the engine rpm at which peak power occurs is more likely to be coupled to the supercharger or turbocharger being used
- Modular design allowing the use of front-feed plenum entry
- Intake design facilitates custom inlet duct and throttle body placement
- Low height to fit under a stock or mildly modified hood in the front configuration
- Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
- Clears 4th Gen Camaro and C5 Corvette cowls and hoods without modification
- High volume fuel rails and mounting hardware included with ¾�-16 o-ring ports (8 AN)
📋
Product Specifications
Basic Operating RPM Range
3500-8000 RPM
Brand
Holley EFI
Construction
Cast
EGR Port
No
Engine
GM LS1/LS2/LS6
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
Injector Quantity
Single
Inlet Location
Front
Intake Port Gasket(s) Included
No
Manifold Type
Ultra Lo-Ram
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Product Type
Intake Manifold
Recommended Use
Forced Induction
Removable Runners
No
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
105 MM
Throttle Body Included
No
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
