BILLET FUEL RAILS LSA/LS9 -...
Get notified when this item is back in stock
Press & drag to view
Holley EFI
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐

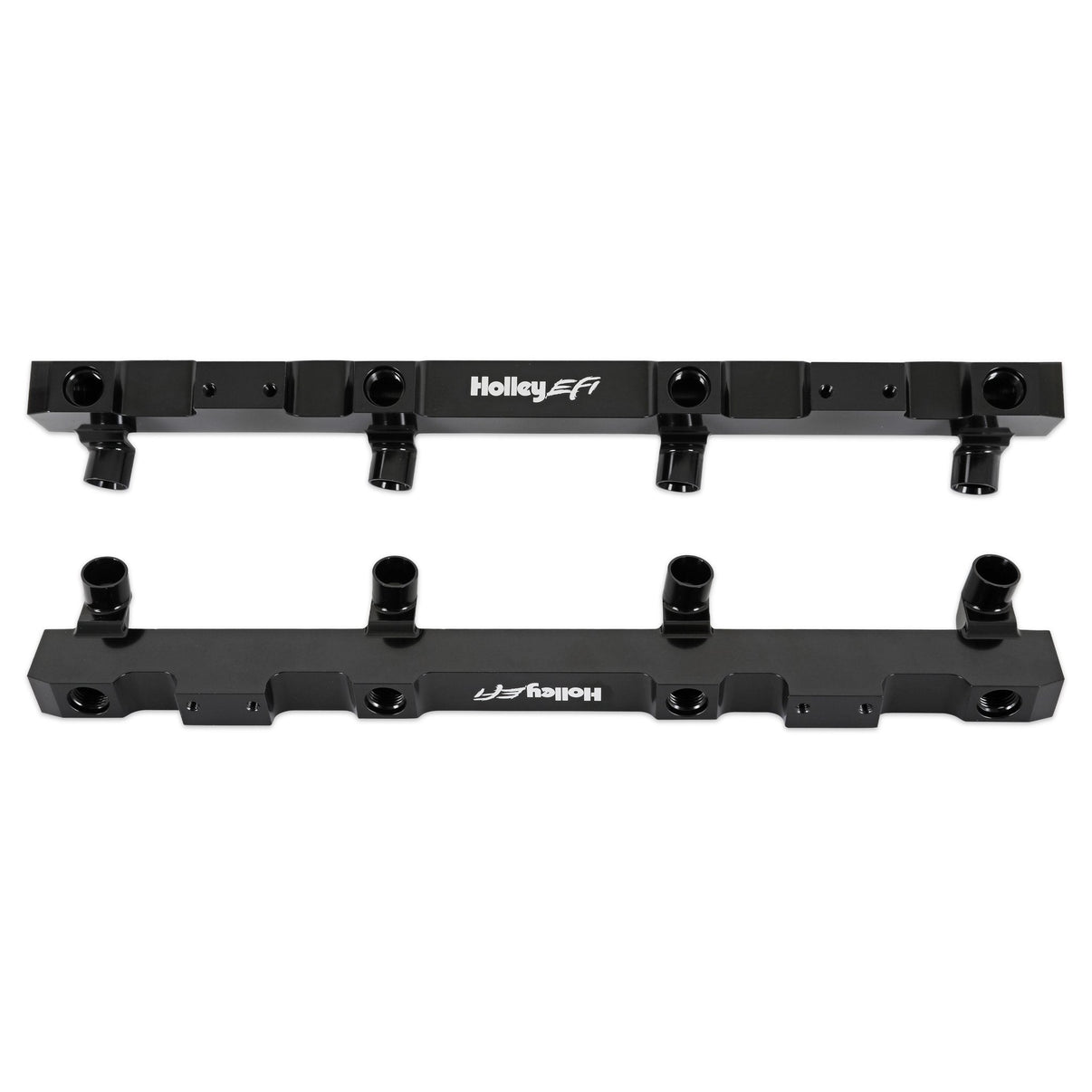

Key Features
Fits LSA and LS9 Engines
- Direct replacement for the OEM rails on the factory blower or any other supercharger that was designed to use OEM rails
- Bright dip, black anodized finish with laser etched EFI logo for long-lasting good looks
- Fuel rails are machined to accept -8 (3/4-16) ORB ports which use O-ring fittings
- Fuel rails are also machined in the center with four -6 (9/16-18) ORB ports to accept O-ring fittings (sold separately). Qty. 8 -6 ORB port plus also included to seal unused ports
- -6 (9/16-18) ORB ports can be used as fuel gauge/sensor locations by using a -6 ORB to 1/8 NPT adapter (sold separately). Can also be used for fuel pulse damper (sold separately) mounting locations
- 21/32� (0.656�) diameter fuel passage provides the flow capacity for high horsepower applications
- ¼� (0.25�) diameter fuel passage feeding each injector
- Brackets are included for factory height injectors (33.60mm)
- Compatible with factory fuel line quick-connect by using P/N 534-211 adapter kit (sold separately)
📋
Product Specifications
Brand
Holley EFI
Engine
GM LSA/LS9
Fuel Injection Type
Port
Fuel Injectors Included
No
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
Part Type
Fuel Injector Rail
Product Type
Fuel Rail Kit
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
