MSDPart 7566-4Made in US
Product Details
⭐
Key Features
Four 40 Amp Relays

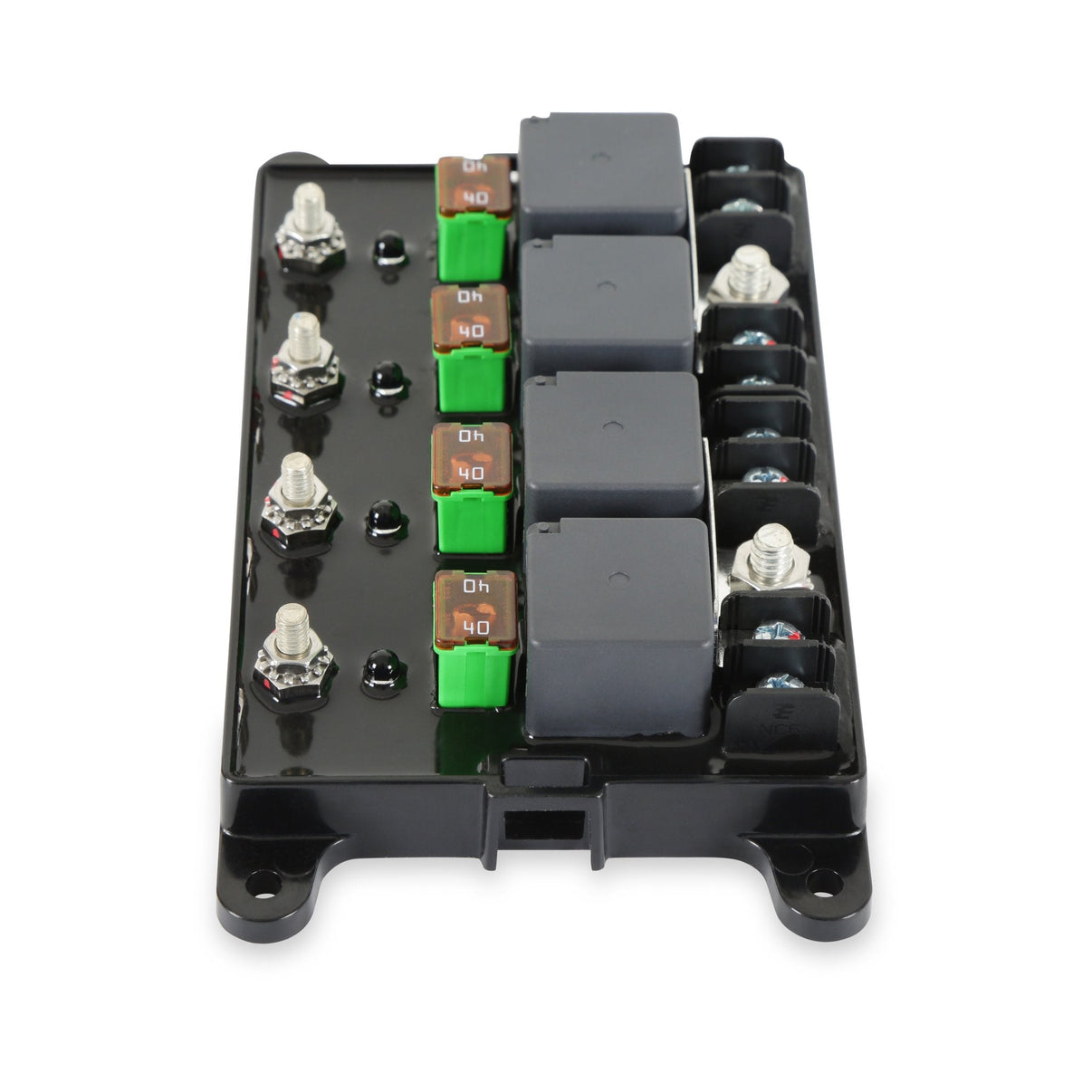

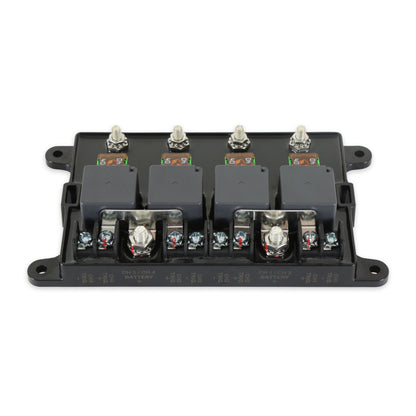

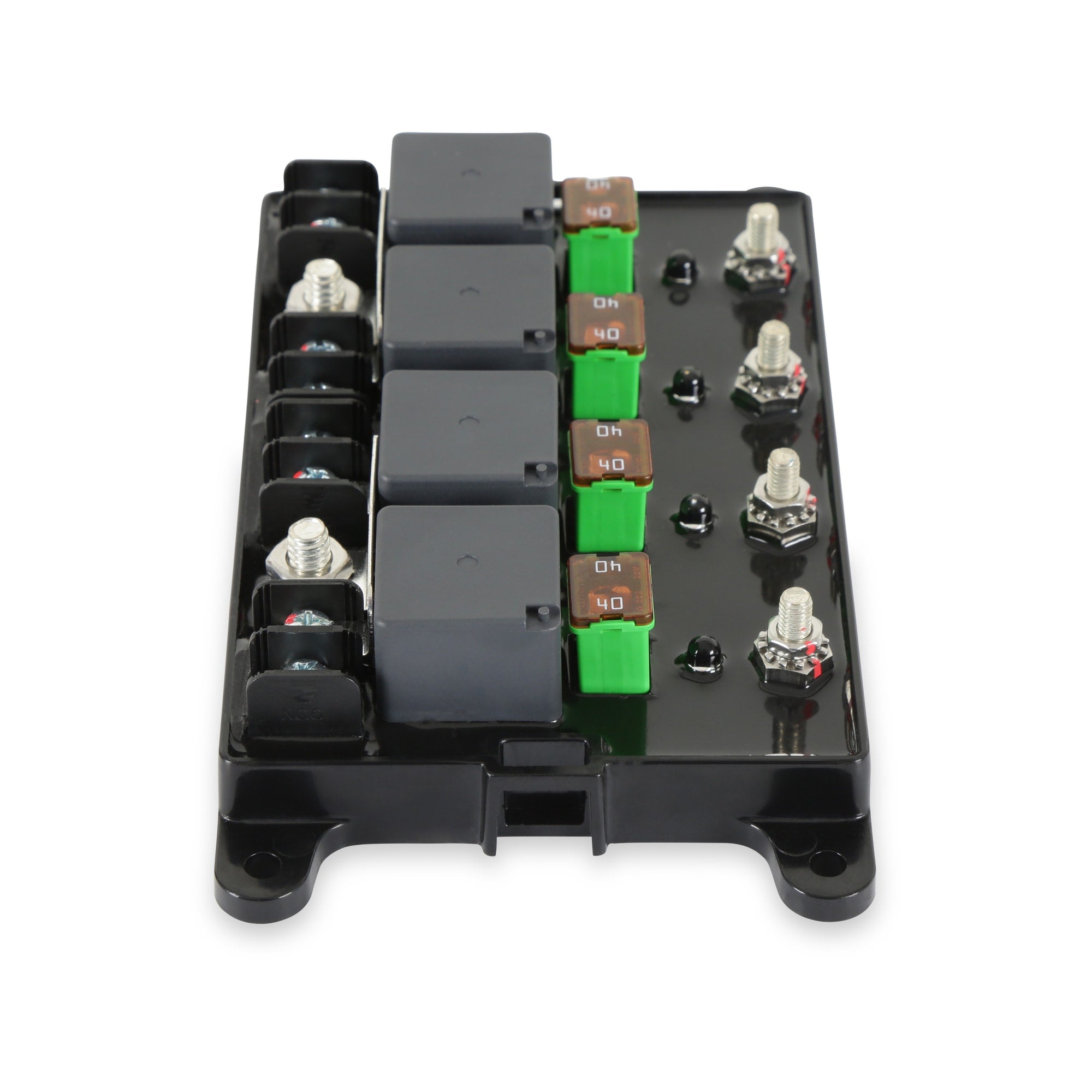

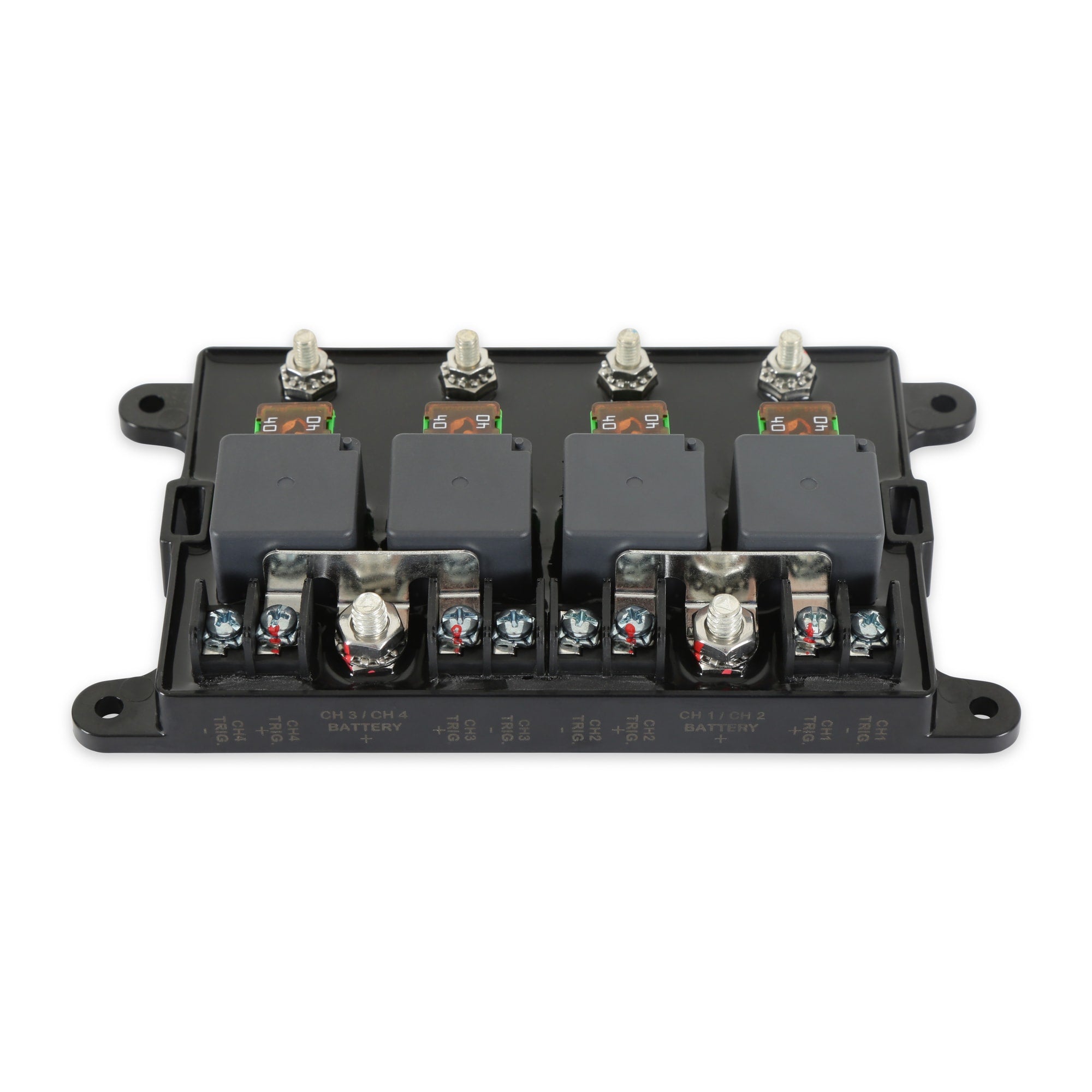

MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.
Four 40 Amp Relays
- LED status indicators, show you which channel is triggered at a glance
- 7V to 20V supply to fit a wide variety of applications
- Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar

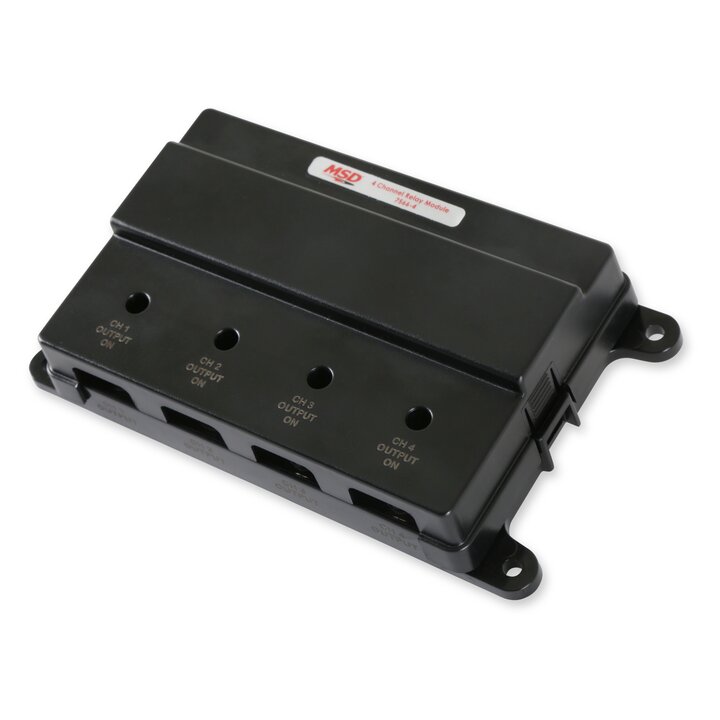

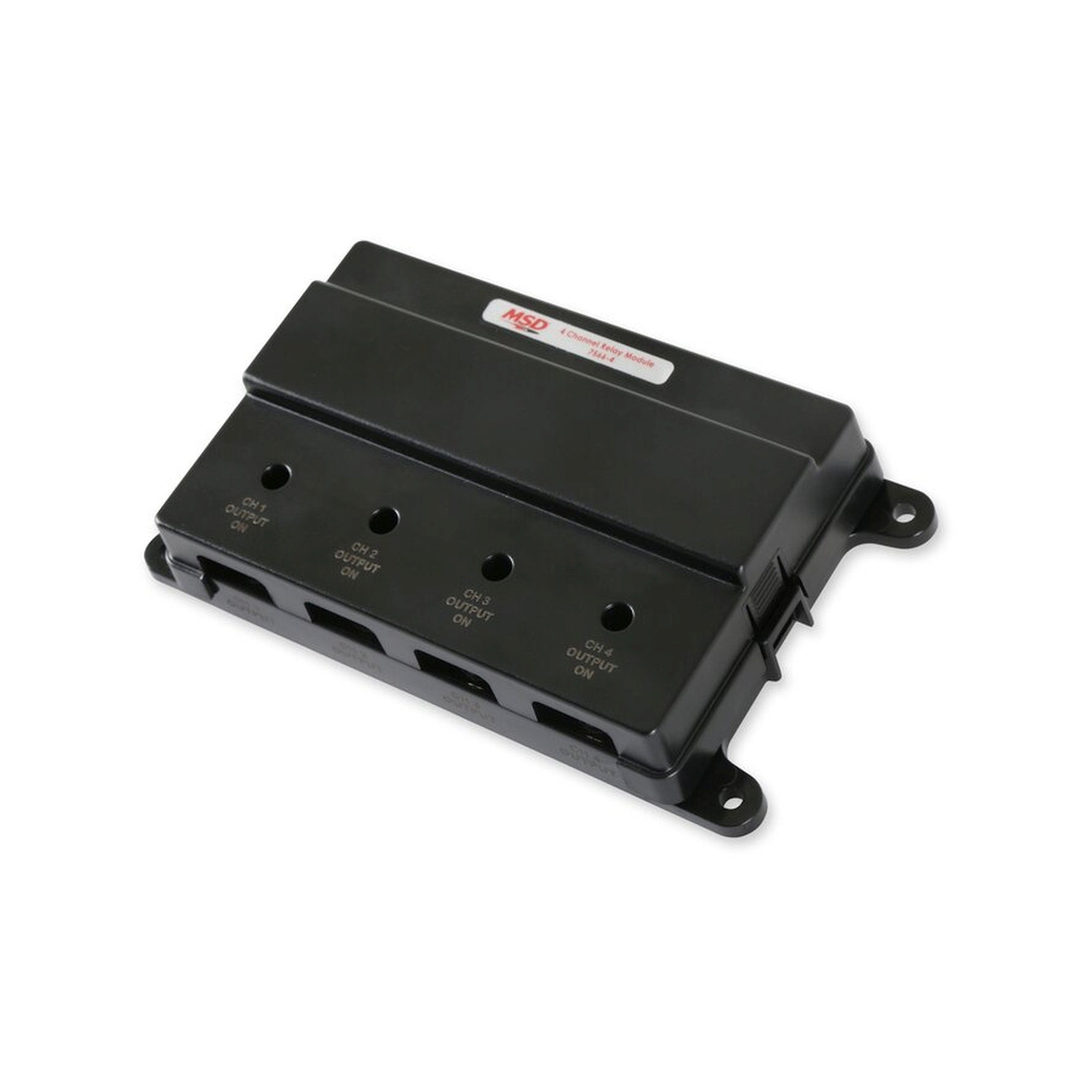

- Removable cover for easy accessibility
- Low profile JCASE fuses provide ample protection in case of a short

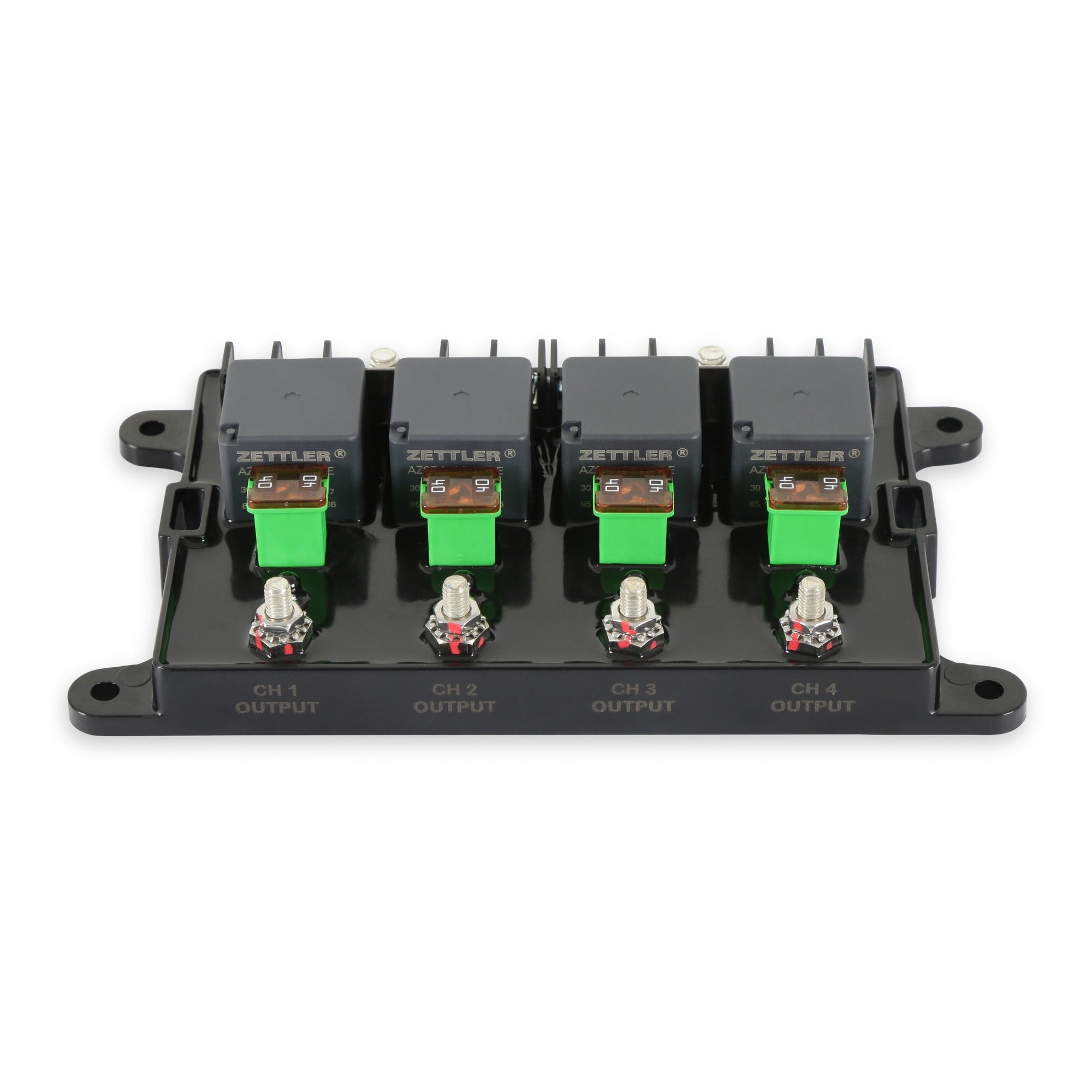

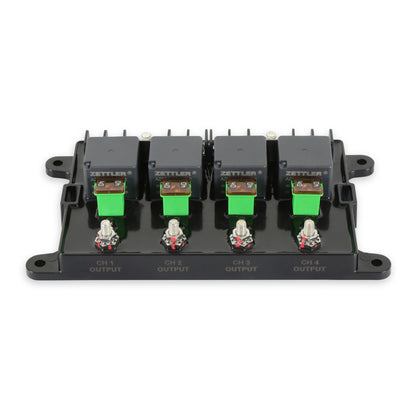

- Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
📖
About this product
Four 40 Amp Relays
📋
Product Specifications
Brand
MSD
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Electrical
Emission Code
5
Part Type
Relay Control Module
Product Type
Relays
Prop 65 Yes/No
Yes
Sub Category
Control Modules
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
7.5 × 4.6 × 3.9 in
Shipping Dimensions
7.5 × 4.6 × 3.9 in
Weight
1774 g (1.77 kg)
