Product Details
⭐
Key Features
Overview

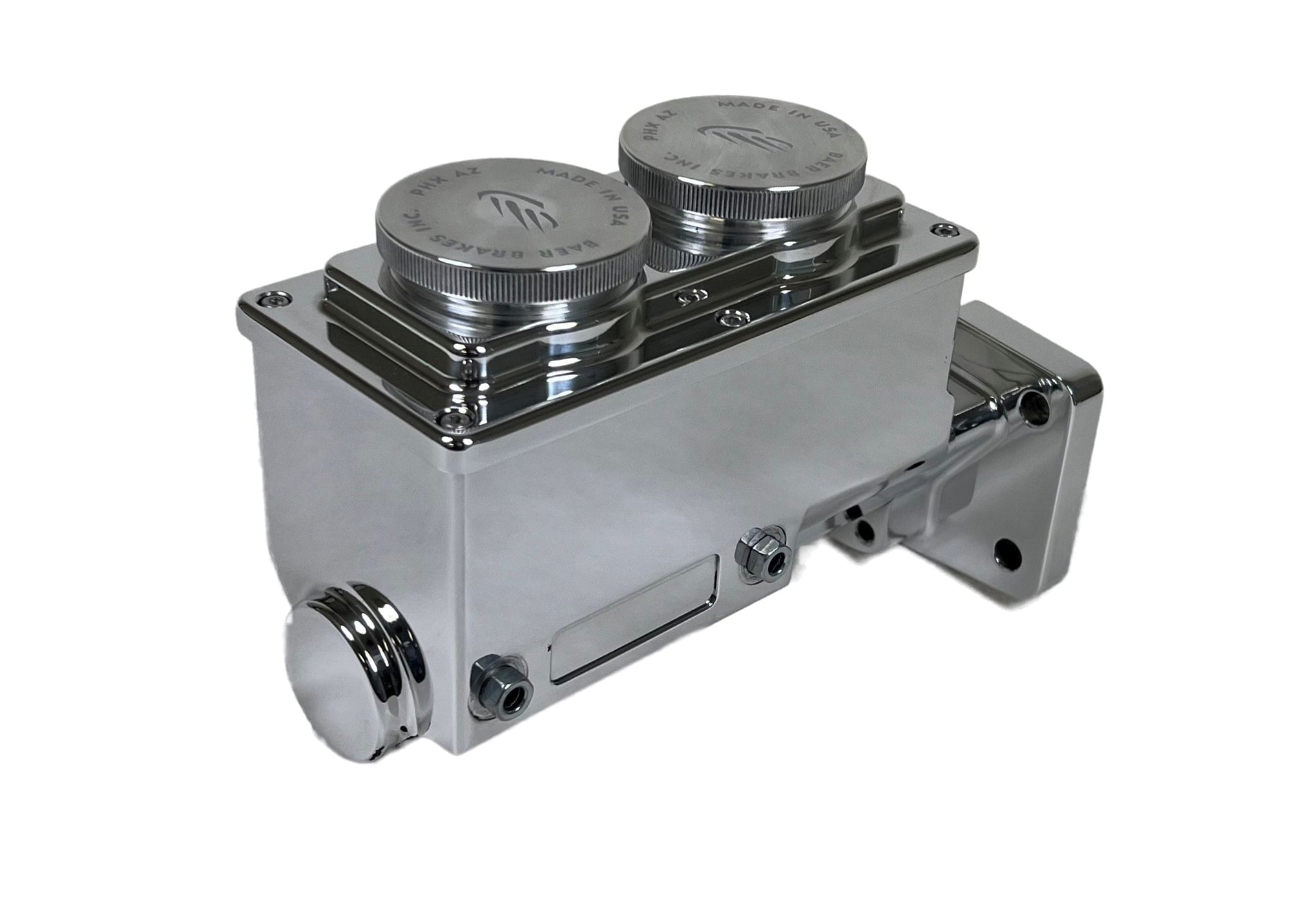

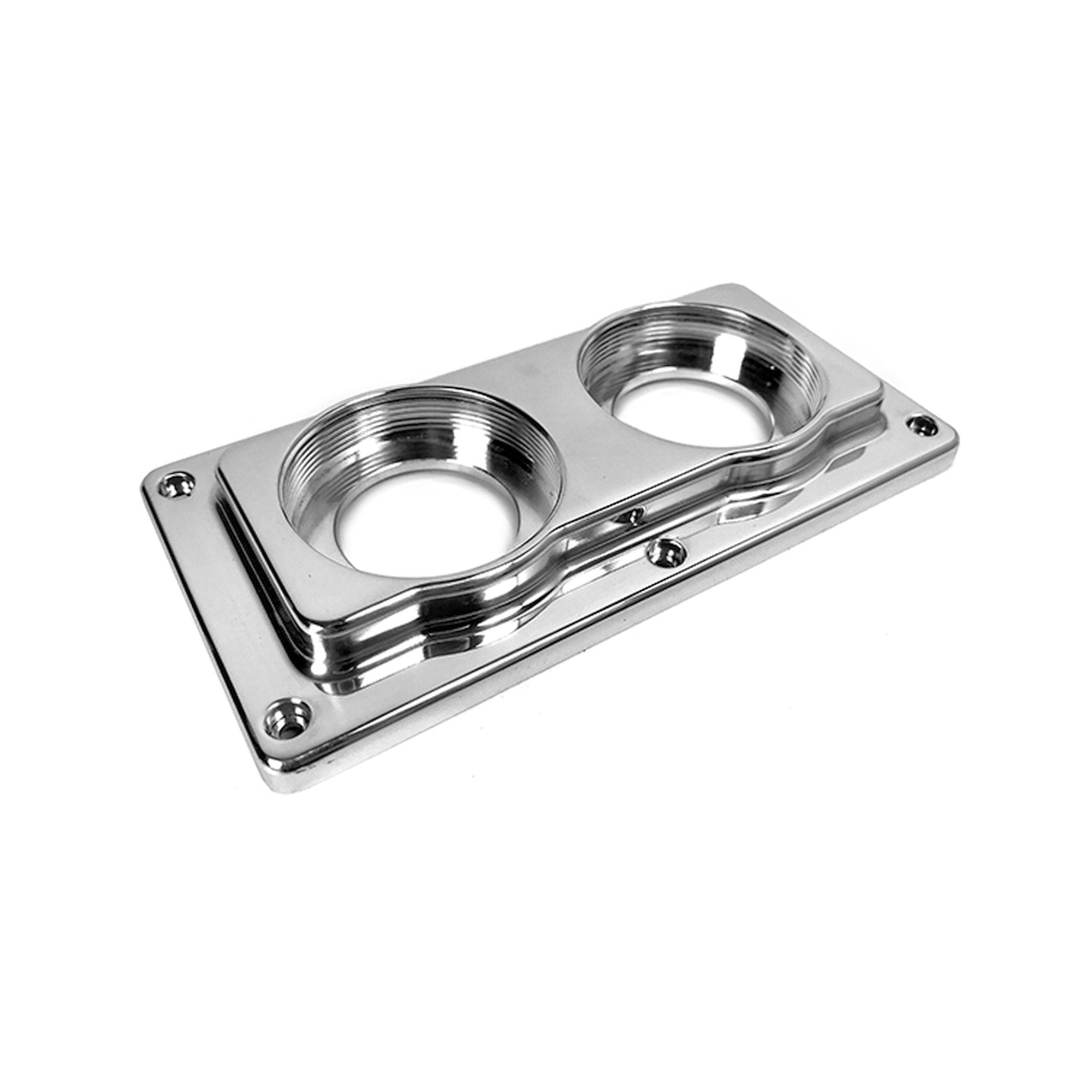

This Remaster master cylinder features a small, compact, 1-piece body machined out of 6061 T6 billet aluminum with a 1" bore, left side ports and a 4-bolt mounting flange fitting many early Mopar applications. The billet top is attached with 6 allen screws and has two large billet aluminum, knurled screw-on caps making for easy filling without spillage. The unique outlet port design allows for either inverted flare (w/included removable seats) or banjo style, straight fittings. The Remaster is compatible on most long and short, w/included bullet, boosters or manual brake applications. Optional proportioning valves also available
Baer Brakes Remaster Master Cylinder: A small, compact, 1-piece body machined out of 6061 T6 billet aluminum, 1.000 in. Bore, Left Side Ports, Polished, with a early Mopar 4-bolt mounting flange
Features
- 4-Bolt Mopar Firewall Mounting Bracket
- Fully machined 6061 T6 billet aluminum construction
- Unique 3/8-24 outlet port design allows for either inverted flare (w/included removable seats), banjo style or straight fittings.
- Left Side Ports

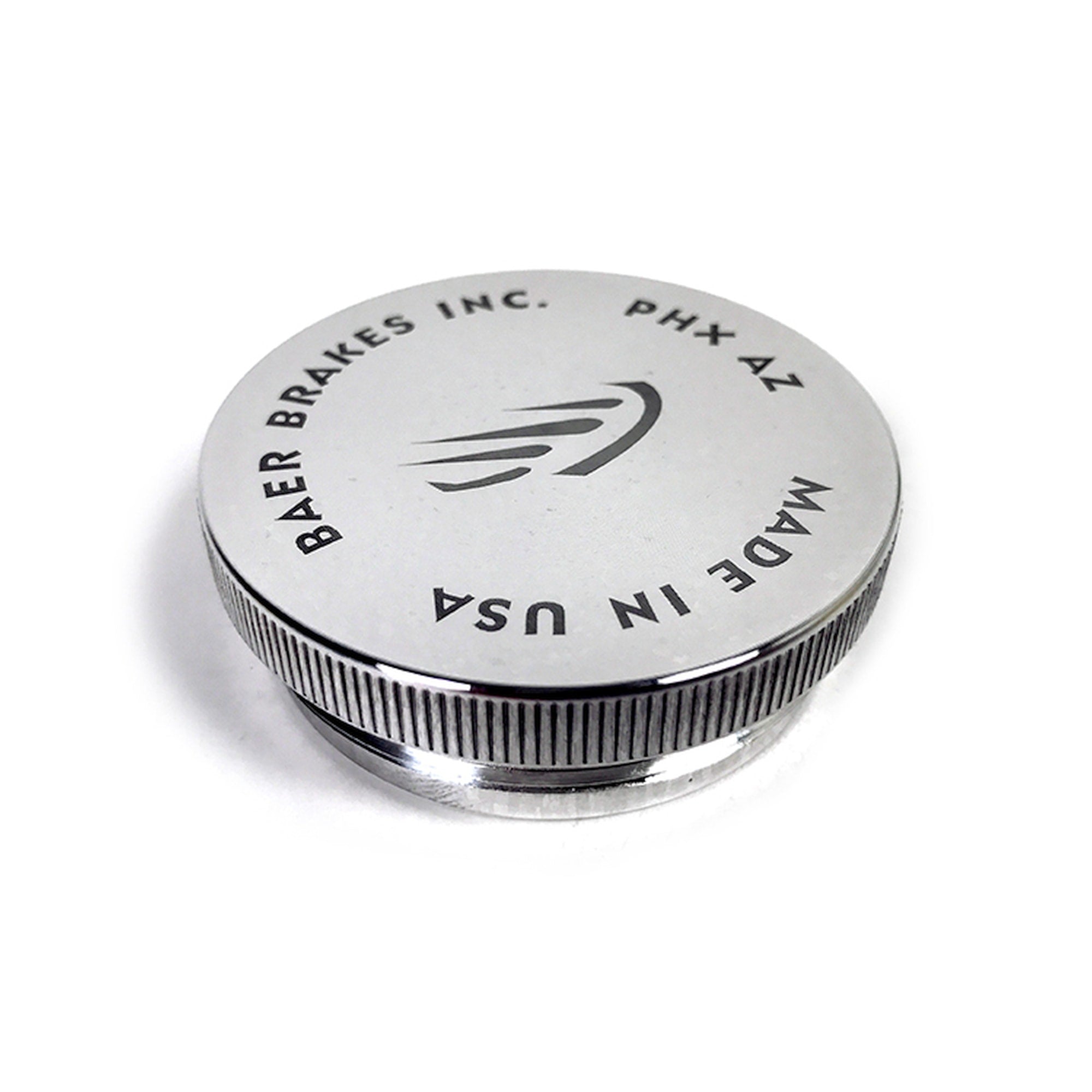

- Machined and knurled screw-on caps for easy access to fill without spillage
- Anodized Remasters feature laser-etched logos
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Area
0.78
Automotive Item Grade
Premium
Bleeder Hoses Included
No
Bleeder Screw Included
No
Bore Size
1.00
Box Count
1
Brake Booster Included
No
Brake Pressure Switch(s) Included
No
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Brake
Connector For Warning Light
No
Country
US
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fittings Included
Yes
Flange Type
4 Bolt Mopar
Gasket Or Seal Included
No
Grade Type
Premium
HTS Code
8708305090
Includes
1x Master Cylinder Assembly
Master Cylinder Cap Included
Yes
Master Cylinder Material
6061 T6 billet aluminum
Master Cylinder Outlet Port Fittings

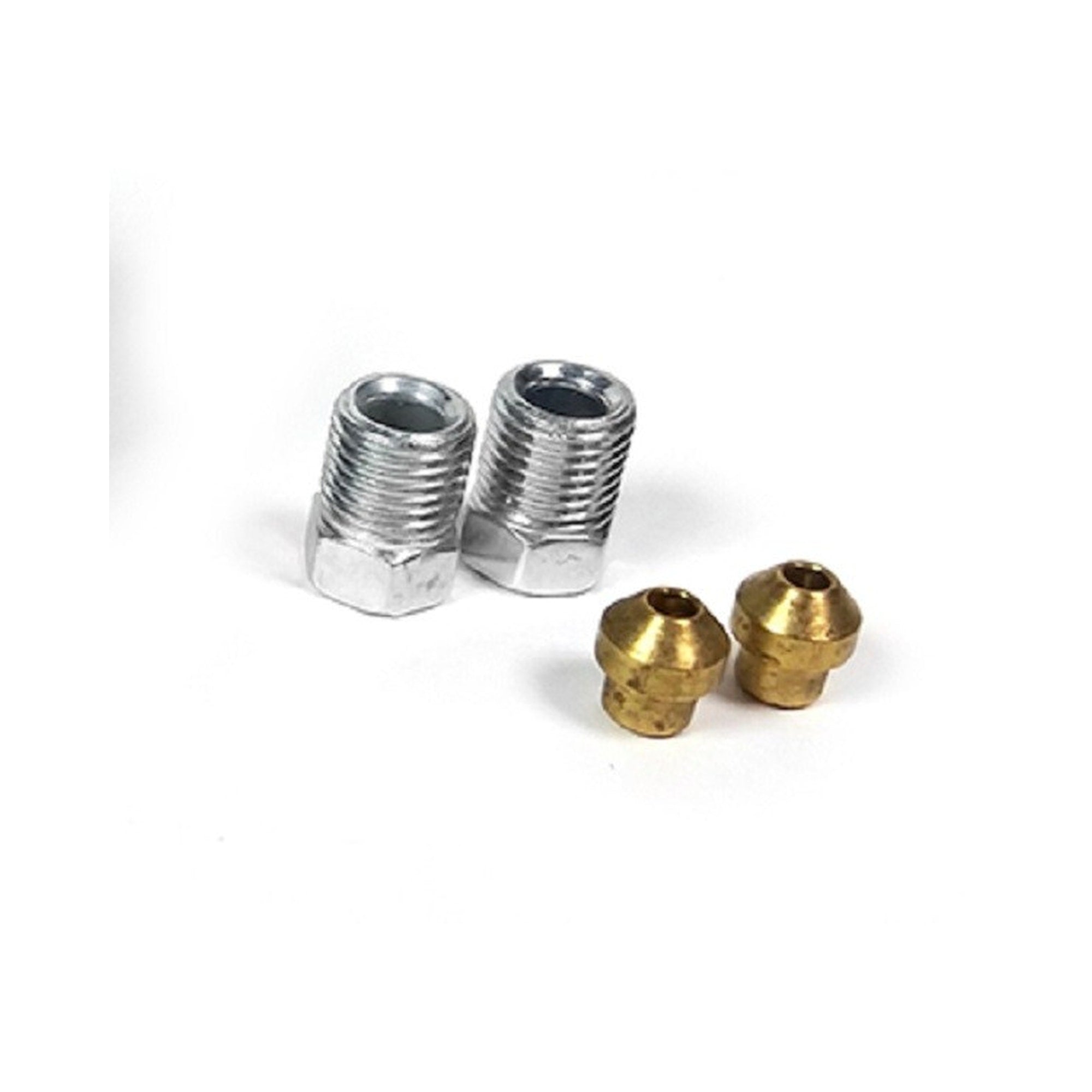

3/16" Inverted Flare and Tube Nuts w/ Brass Seat
Master Cylinder Outlet Port Fittings
Banjo w/o Brass Seat
Master Cylinder Outlet Port Quantity
2
Master Cylinder Outlet Port Size
3/8-24
Master Cylinder Port Exit
Left side
Mounting Hardware Included
No
Part Type
Brake Master Cylinder
Product Line
Master Cylinder Assembly
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
Quantity
Sold Individually
Remaster Body Color
Polished
Remaster Body Finish
Polished
Remaster Caps Color
Polished
Remaster Caps Finish
Polished
Remaster Lid Color
Polished
Remaster Lid Finish
Polished
Removable Seats
Yes
Reservoir Included
Yes
Reservoir Material
6061 T6 billet aluminum
Reservoir Size
7oz per reservoir
Reservoir Style
Integral
Reservoir Type
Dual
Sensor Included
No
Series
ReMaster
Stroke
1.1
Sub Category
Brake Hydraulics
System Notes
polished
Title
ReMaster Master Cylinder 4 Bolt Mopar
Universal Or Specific Fit
Universal
Volume Ratio
2:1
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
