Product Details
⭐
Overview

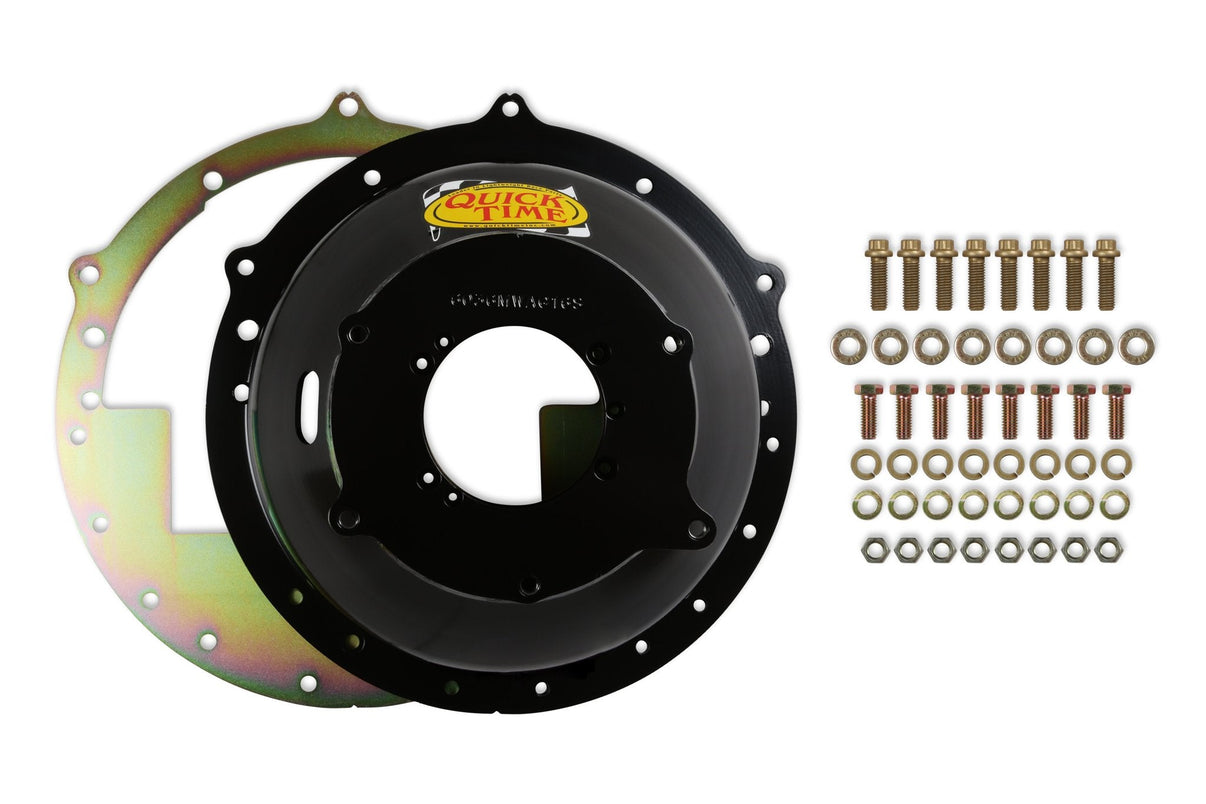

Fits Chevy LS engines with Muncie, Jerico, and GM style TKX, TKO 500/600, or T5 Transmissions
- Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
- Quick Time cones are spun, not rolled or stamped - This allows Quick Time Bellhousings to be the most dimensionally stable bellhousings available
- Built from high-grade steel - Work hardens to over 80,000 PSI strength, over two times the strength of other steel bellhousings
- 100% built in the USA
- Patent on 16 points of bellhousing design & process
- 6.1 SFI certification
- Includes GM pivot ball, block plate and hardware
📋
Product Specifications
Brand
Quick Time
Certification
6.1 SFI
Clutch Diameter
11 inch max.
Clutch Operation
Hydraulic or Mechanical
Engine Make
Chevrolet
Engine Plate
RM-6036-MWA-C
Menu
Transmission Hard Parts
Part Type
Transmission Bell Housing
Patented
yes
Product Type
Bellhousing
SFI Approved
Yes
Trans Bore
4.685
Trans. Bore Diameter
4.687 inch
Transmission Type
Manual
Weight (lb)
21
📐
Dimensions & Shipping
Product Dimensions
— × — × 15.24 in
Weight
14.374 kg
