Product Details
🔧
Vehicle Compatibility
Fits Blaster SS Coil - MSD Ignition Coil - Blaster SS - Red.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

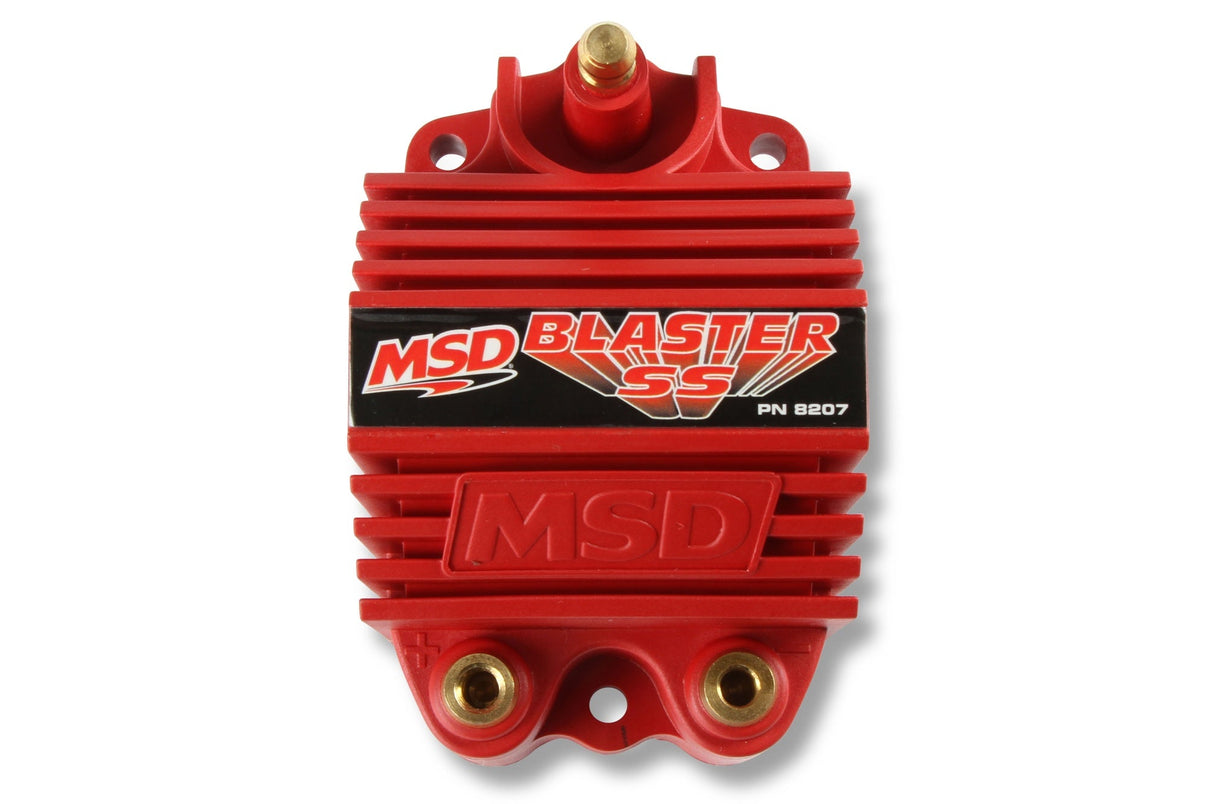

MSD Ignition Coil - Blaster SS - Red
Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and maximum voltage output of 40,000 volts!
Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.
Don't let the compact size of the Blaster SS Coil fool you, because it is packed with performance! The efficient E-core windings are designed to produce high amounts of current without sacrificing the voltage output. In fact, when used with an MSD 6 Series Ignition, the Blaster SS produces 300 milliamps of current and maximum voltage output of 40,000 volts!
Note: If installing the Blaster SS Coil to a points distributor or a non-current limiting ignition system without an MSD Ignition, a 0.8 ohm ballast resistor is required (MSD PN 8214). The resistor should wire in series along with any factory resistors on the positive coil wire.
📋
Product Specifications
Brand
MSD
C.A.R.B. EO #
D-40-37
Category
Ignition
Coil Type
Blaster
Color
Red
Emission Code
1
Inductance
6.9 mH
Maximum Voltage
40
part type
Ignition Coil
Peak Current
300
Primary Resistance
.355 OHMs
Product Type
Ignition Coil
Secondary Resistance
4.4K OHMs
Spark Duration
220 uS
Sub Category
Ignition Coil
Turns Ratio
2.917361111111111
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
Weight
1.08 lbs.
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
