Earl's PerformancePart 230631erlMade in KR
Product Details
⭐
Key Features

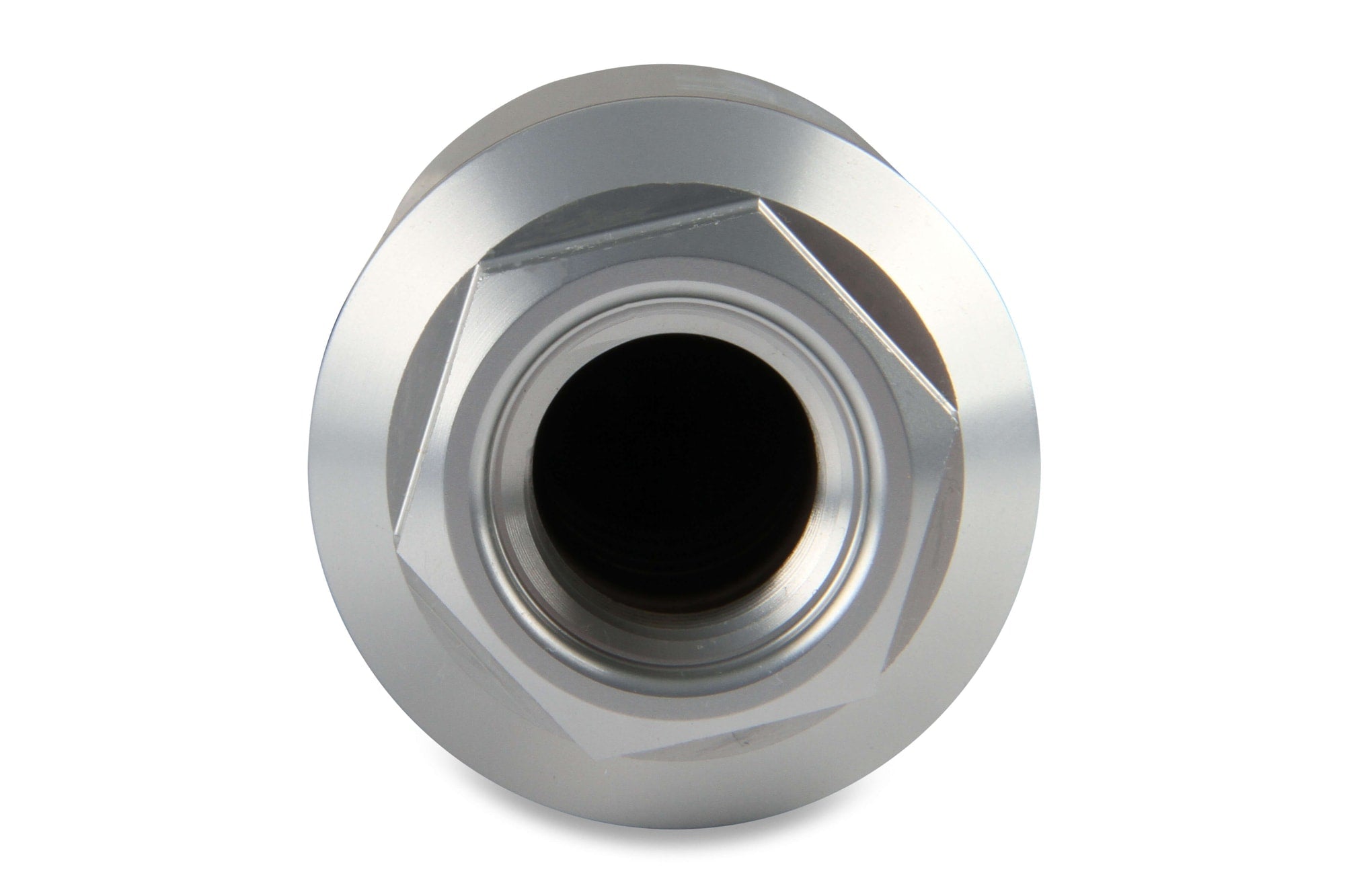

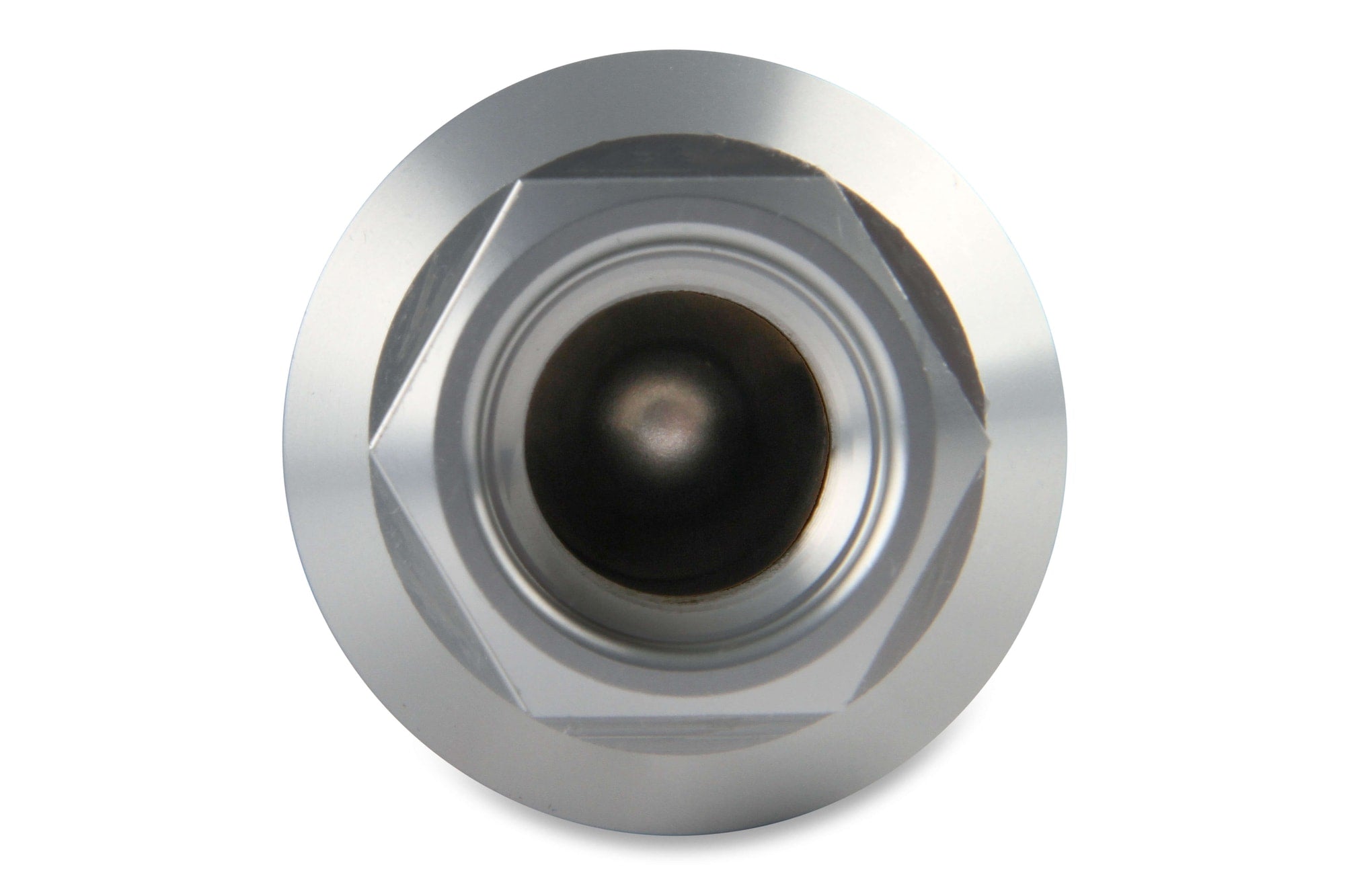

460 GPH Billet Aluminum Fuel Filer - 10 Micron - 12 AN O-Ring Female Inlet & Outlet, Black Body w/ Clear Anodized Ends
Earl's new HP Billet Fuel Filters are part of the complete HP Fuel Systems product line. HP Billet fuel filters are precision CNC machined from 6061-T6 billet aluminum for strength and durability. They feature a black bright dip anodized body and clear bright dip anodized ends for superior corrosion resistance and good looks. The Earl's 230631ERL fuel filter features - 12 AN inlet and outlet ports. Replacement elements are also available.
460 GPH Billet Aluminum Fuel Filer - 10 Micron - 12 AN O-Ring Female Inlet & Outlet, Black Body w/ Clear Anodized Ends
- Recommended as a post filter (after the pump) in EFI applications
📖
About this product
460 GPH Billet Aluminum Fuel Filer - 10 Micron - 12 AN O-Ring Female Inlet & Outlet, Black Body w/ Clear Anodized Ends
📋
Product Specifications
Body Diameter
2.0"
Body Length
8.750 Inch
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Color
Black and Silver
Diameter
2 inch
Element Material
Depth Media
Emission Code
5
Filter Type
Post Filter
Finish
Black
Fuel Type
Gasoline / Diesel / E85
Gph
460
Inlet / Outlet Size
1-1/16 Female O-Ring (AN 12)
Inlet Size
12 AN O-Ring
Length
8.75 inch
Material
Aluminum
Max PSI
100
Micron
10 Micron
Outlet Size
12 AN O-Ring
Outlet
-12 AN O-Ring
Part Type
Fuel Filter
Product Type
Fuel Filter
Prop 65 Yes/No
Yes
Sub Category
Filters
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
KR
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8421230000
📐
Dimensions & Shipping
Product Dimensions
5.4 × 2.3 × 2.1 in
Shipping Dimensions
5.4 × 2.3 × 2.1 in
Weight
386 g (0.39 kg)
