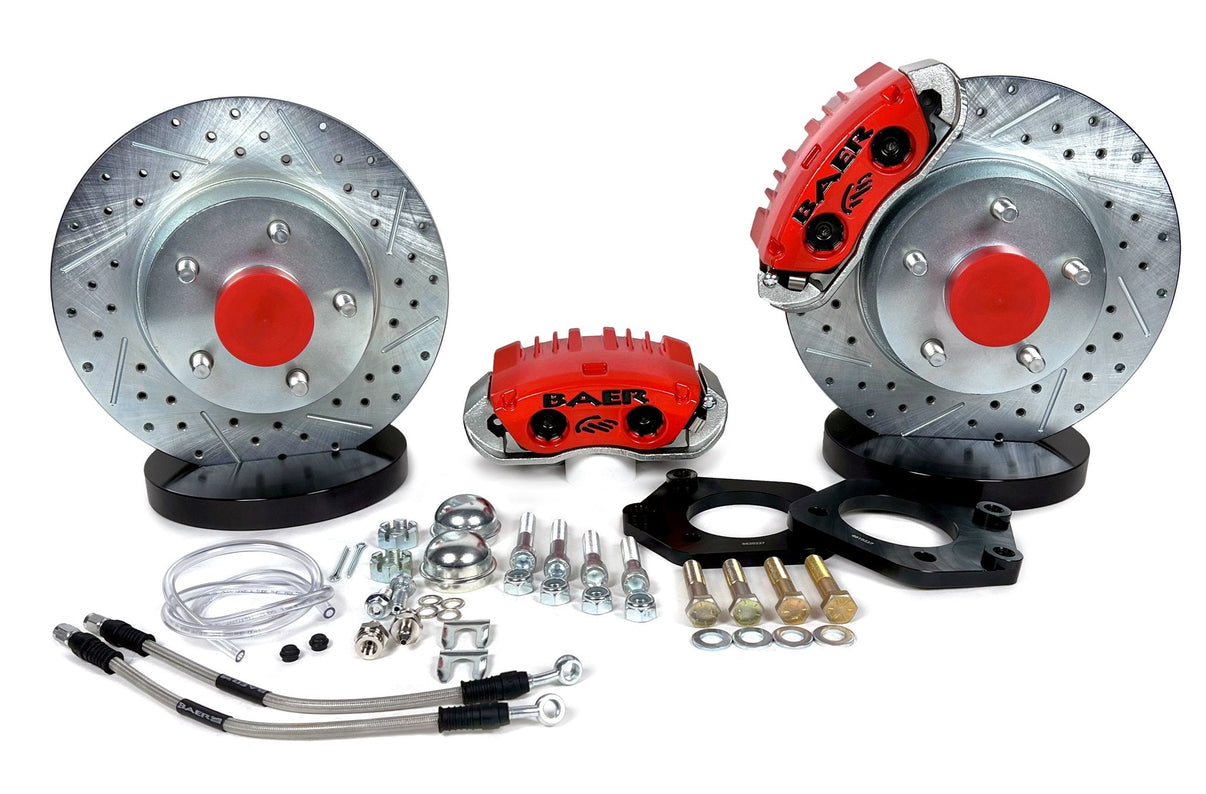

Baer Brakes 11" Classic Series Front Brake Kit
This system features the "Original" Baer 2-piston, pad guided caliper (PGC) mounted to a 11.29", 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type. The system includes premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware. The 11.29" "Classic" system fits select 14" and most 15" or larger wheels.
**IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.**
This system features the "Original" Baer 2-piston, pad guided caliper (PGC) mounted to a 11.29", 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type. The system includes premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware. The 11.29" "Classic" system fits select 14" and most 15" or larger wheels.
**IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.**
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Applications
Ford Fairlane 70 (w/Disc)
Applications
Ford Fairlane 70 (w/Drum)
Applications
Ford Falcon 70 (w/Drum)
Applications
Ford Maverick 70-74 (w/Drum)
Applications
Ford Mustang 70 (w/Disc)
Applications
Ford Mustang 70-73 (w/Drum)
Applications
Ford Mustang 71-73 (w/Disc)
Applications
Ford Torino 70-71 (w/Disc)
Applications
Ford Torino 70-71 (w/Drum)
Applications
Mercury Comet 71-74 (w/Drum)
Applications
Mercury Cougar 70 (w/Disc)
Applications
Mercury Cougar 70-73 (w/Drum)
Applications
Mercury Cougar 71-73 (w/Disc)
Applications
Mercury Cyclone 70 (w/Drum)
Applications
Mercury Cyclone 70-71 (w/Disc)
Applications
Mercury Montego 70-71 (w/Disc)
Applications
Mercury Montego 70-71 (w/Drum)
Axle
Front
Box Count
2
Brake Hose DOT Approved
Yes
Brand
Baer Brakes
Caliper Color
Red
Caliper
2 PGC
Category
Brake
Disc Brake Caliper (Front) Piston Quantity
2
Disc Brake Caliper (Front) Type
Floating
Disc Brake Pad FMSI Number
D0412
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
11.290
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/OE Disc Brake Spindles
Fitment Notes
w/OE Drum Brake Spindles
Friction Material Composition
Ceramic
Grade Type
Performance
Hose Material
Stainless Steel
Lug Count
5 Lug
Min Wheel Dia (verify using template)
15
part type
Disc Brake Upgrade Kit
Product Line
Classic
Product Type
11 Inch Classic Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
R or CR)
CR
Rotor Diameter
11.290
Rotor Thickness
.940
Rotor Type
1-Piece Integral Hub
Solid Or Vented Type Rotor
Vented
Sub Category
Service Kits
Surface Type
Slotted
System Notes
5 Lug
Template
D200A
Title
Classic Series Front Brake Kit
Warning
California Proposition 65

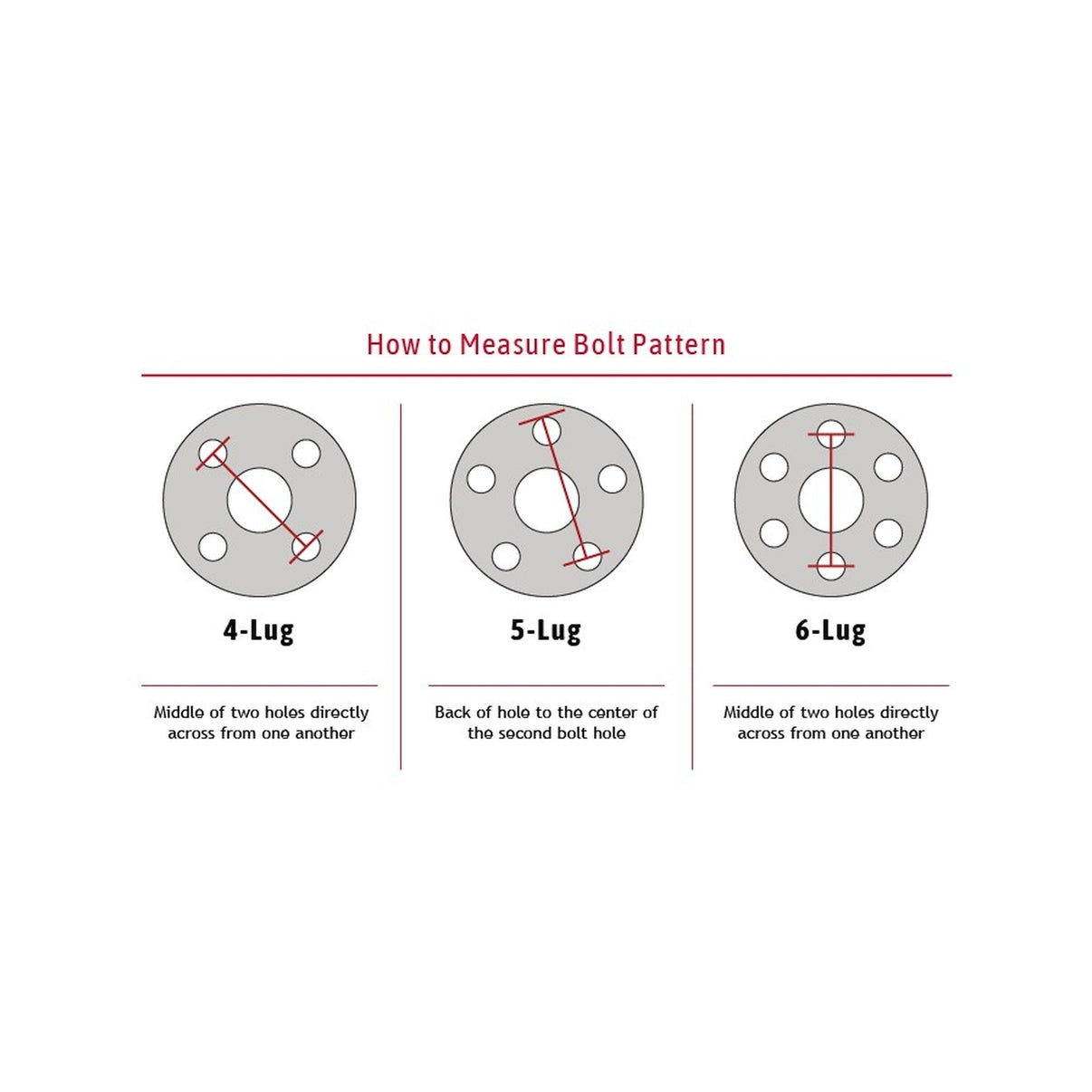

Wheel Lug/Bolt Pattern
5x4.50
Wheel Stud Size
1/2-20
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
