Baer Brake SystemsPart 4261565R✓ Fits 9 vehiclesMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
9 applicationsView all 9 vehicle applications
Years
Make / Model
Submodel
Engine
1970
Ford Fairlane
1970
Ford Falcon
1970–1974
Ford Maverick
1970–1973
Ford Mustang
1970–1971
Ford Torino
1971–1974
Mercury Comet
1970–1973
Mercury Cougar
1970–1971
Mercury Cyclone
1970–1971
Mercury Montego
No applications match your search.
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

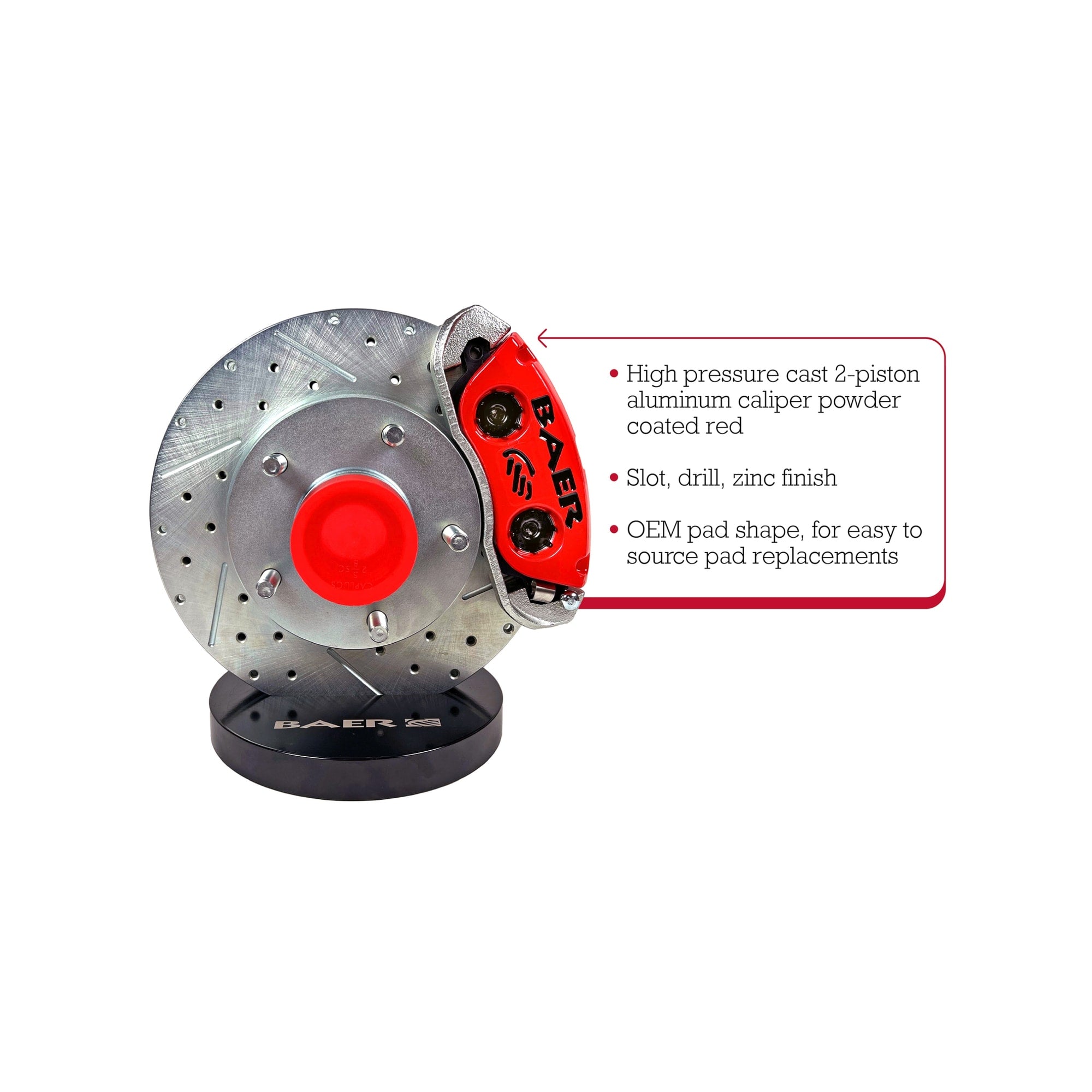

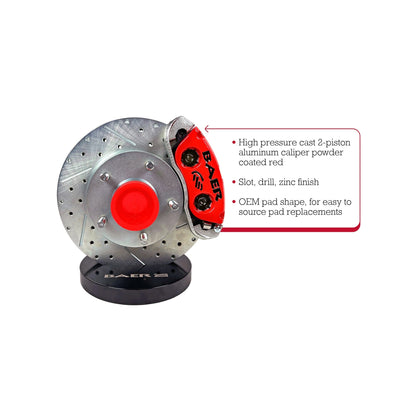

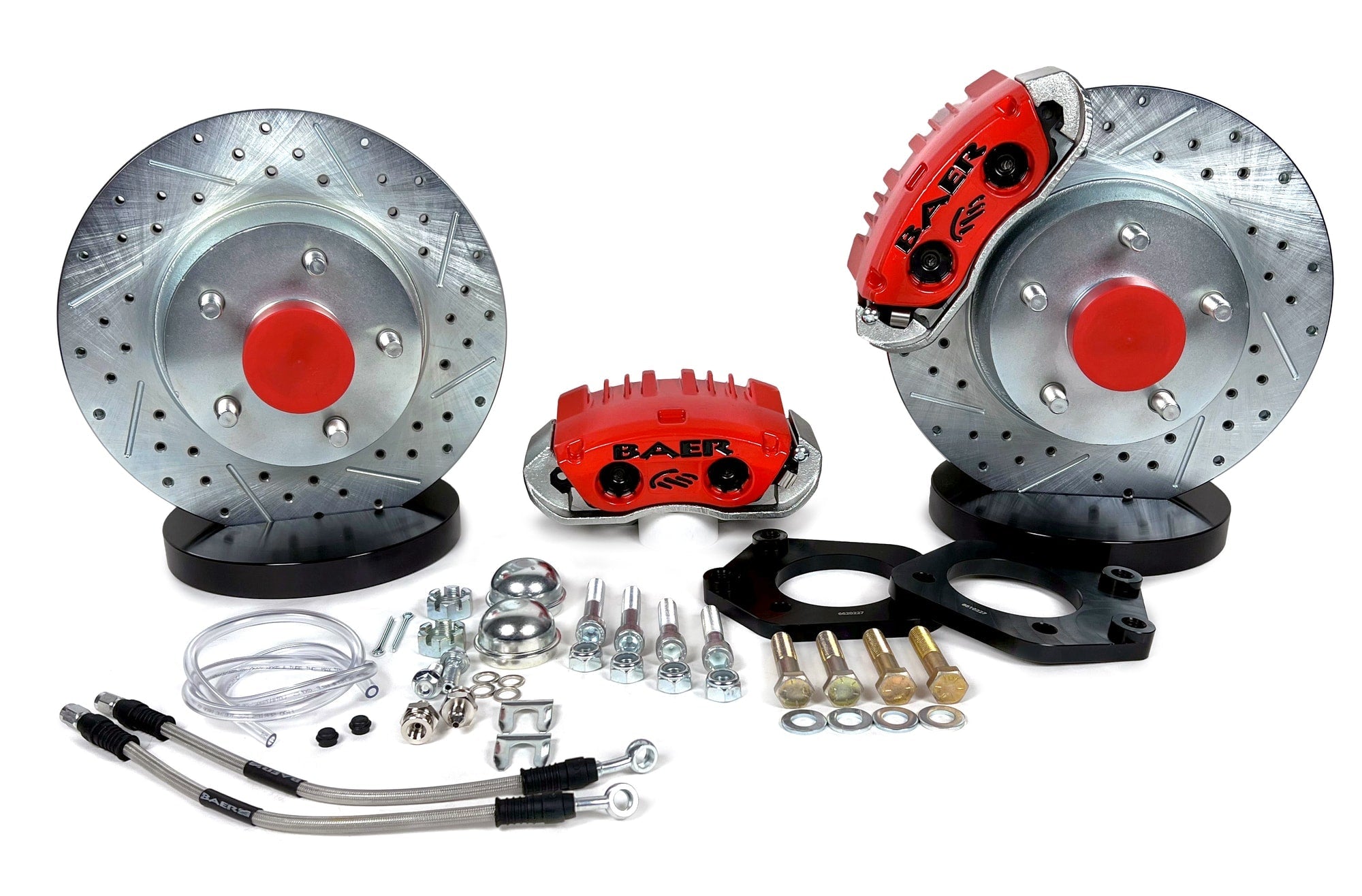

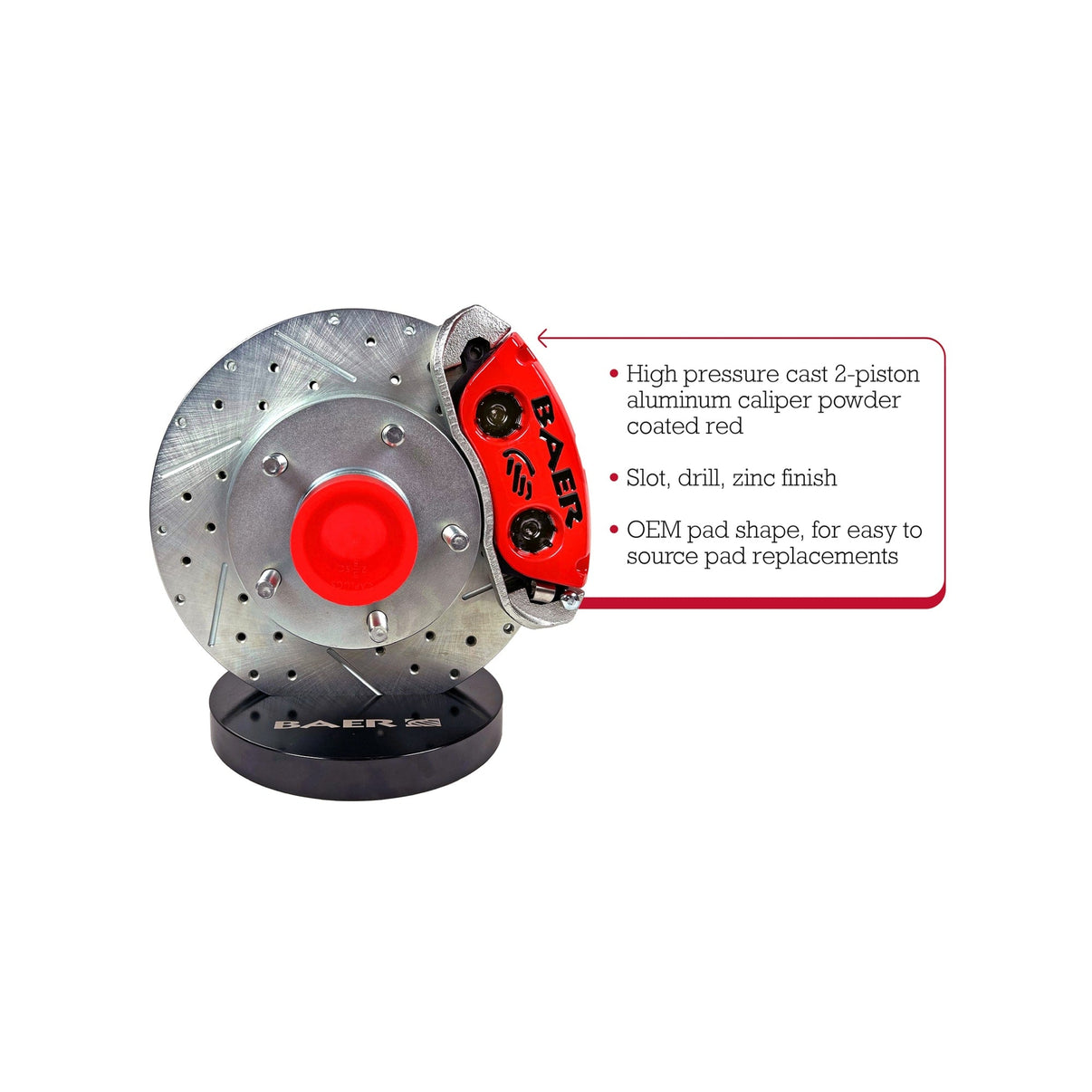

This system features the "Original" Baer 2-piston, pad guided caliper (PGC) mounted to a 11.29", 1-piece slot, drill, zinc plated integral hub rotor. The PGC caliper comes in a red powder coated finish with a black logo, includes dust/weather seal's and uses the popular D412 pad type. The system includes premium bearings with races pre-installed, dust caps, mounting brackets, stainless braided hoses and all necessary hardware. The 11.29" "Classic" system fits select 14" and most 15" or larger wheels. | **IMPORTANT: This system is designed for vehicles with a 15/16” master cylinder and proper pedal ratio. For manual brake setups, a 7/8” master cylinder can be used so less effort is required to apply the brakes. Any master larger than 15/16” will require too much pedal input to generate proper line pressure for your brake system.**
Fits 1970-73 Ford Mustang, 70-71 Fairlane, 70 Falcon, 70-74 Maverick, 70-71 Torino and 1970-73 Mercury Cougar, 70-74 Comet, 70-71 Montego and 70-71 Cyclone (all w/OE Disc or Drum Brake Spindles)

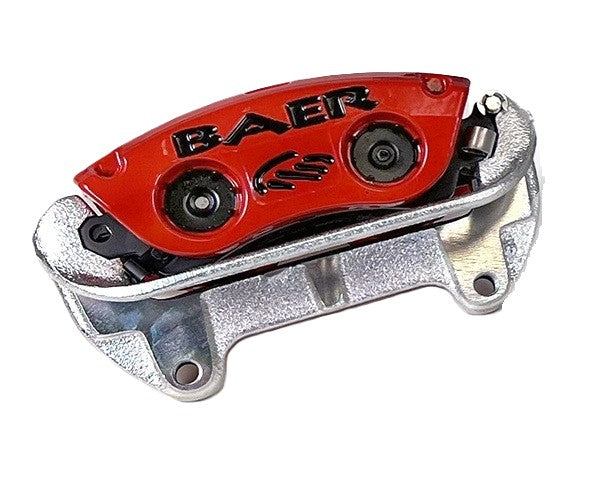

- Aluminum, 2-Piston, Pad Guided Caliper
- Red Powder Coated Caliper w/Black Baer Logo
- Slot, Drill, Zinc Plated Rotor Finish
- Stainless Braided Brake Hoses
- Uses Common FMSI D0412 Brake Pad
- Modern Brakes for Small Wheels at an Economical Price
📖
About this product
Fits 1970-73 Ford Mustang, 70-71 Fairlane, 70 Falcon, 70-74 Maverick, 70-71 Torino and 1970-73 Mercury Cougar, 70-74 Comet, 70-71 Montego and 70-71 Cyclone (all w/OE Disc or Drum Brake Spindles)
📋
Product Specifications
Applications
Ford Fairlane 70 (w/Disc)
Applications
Ford Fairlane 70 (w/Drum)
Applications
Ford Falcon 70 (w/Drum)
Applications
Ford Maverick 70-74 (w/Drum)
Applications
Ford Mustang 70 (w/Disc)
Applications
Ford Mustang 70-73 (w/Drum)
Applications
Ford Mustang 71-73 (w/Disc)
Applications
Ford Torino 70-71 (w/Disc)
Applications
Ford Torino 70-71 (w/Drum)
Applications
Mercury Comet 71-74 (w/Drum)
Applications
Mercury Cougar 70 (w/Disc)
Applications
Mercury Cougar 70-73 (w/Drum)
Applications
Mercury Cougar 71-73 (w/Disc)
Applications
Mercury Cyclone 70 (w/Drum)
Applications
Mercury Cyclone 70-71 (w/Disc)
Applications
Mercury Montego 70-71 (w/Disc)
Applications
Mercury Montego 70-71 (w/Drum)
Automotive Item Grade
Performance
Axle
Front
Box Count
2
Brake Hose DOT Approved
Yes
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Caliper Color
Red
Caliper
2 PGC
Category
Brake
Country
CN
Disc Brake Caliper (Front) Piston Quantity
2
Disc Brake Caliper (Front) Type
Floating
Disc Brake Pad FMSI Number
D0412
Disc Brake Rotor (Front) Construction
Vented
Disc Brake Rotor (Front) Outside Diameter
11.290
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/OE Disc Brake Spindles
Fitment Notes
w/OE Drum Brake Spindles
Friction Material Composition
Ceramic
Grade Type
Performance
Hose Material
Stainless Steel
Hose Material
Steel Braided
HTS Code
8708305090
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
15
Part Type
Disc Brake Upgrade Kit
Product Line
Classic
Product Type
11 Inch Classic Front Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Diameter
11.290
Rotor Thickness
.940
Rotor Type
1-Piece Integral Hub
Solid Or Vented Type Rotor
Vented
Sub Category
Service Kits
Surface Type
Slotted
System Notes
5 Lug
Template
D200A
Title
Classic Series Front Brake Kit
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x4.50
Wheel Stud Size
1/2-20
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
15.5 × 15.5 × 12.25 in
Shipping Dimensions
15.5 × 15.5 × 12.25 in
Weight
31751 g (31.75 kg)
