HolleySKU 300-132bkMade in CN
Product Details
⭐
Key Features
HOLLEY SINGLE PLANE

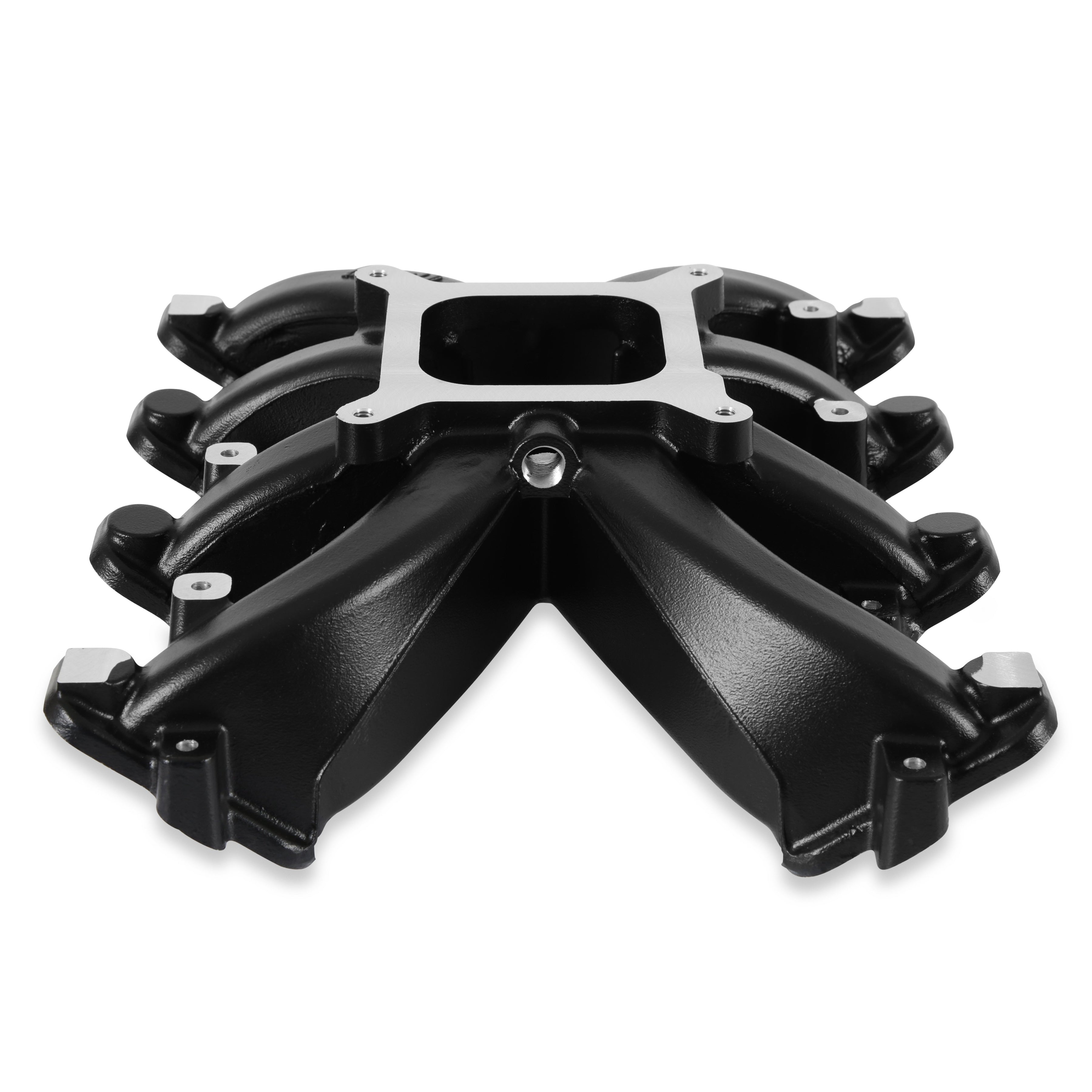

Black Ceramic Coated,Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
Black Ceramic Coated, Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM

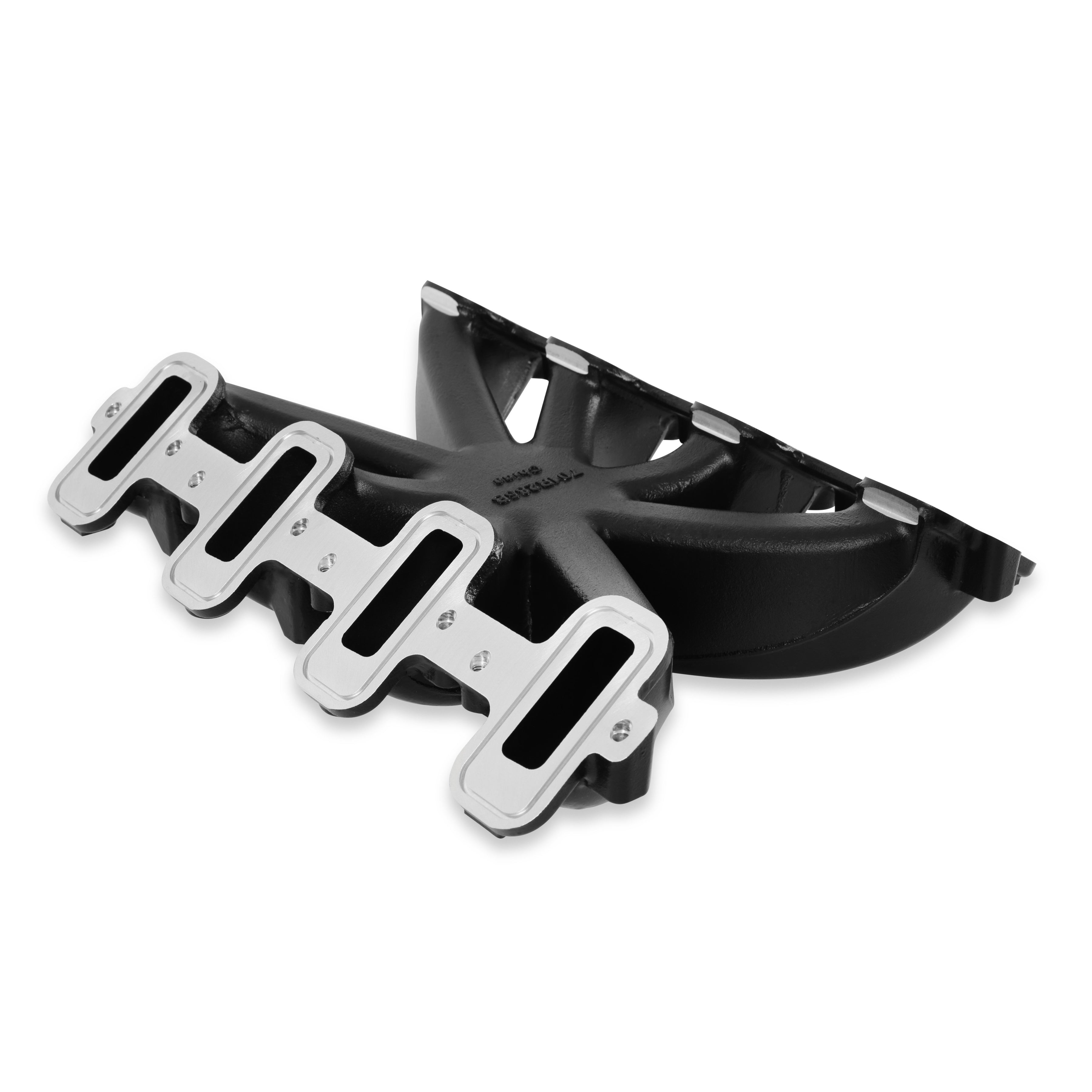

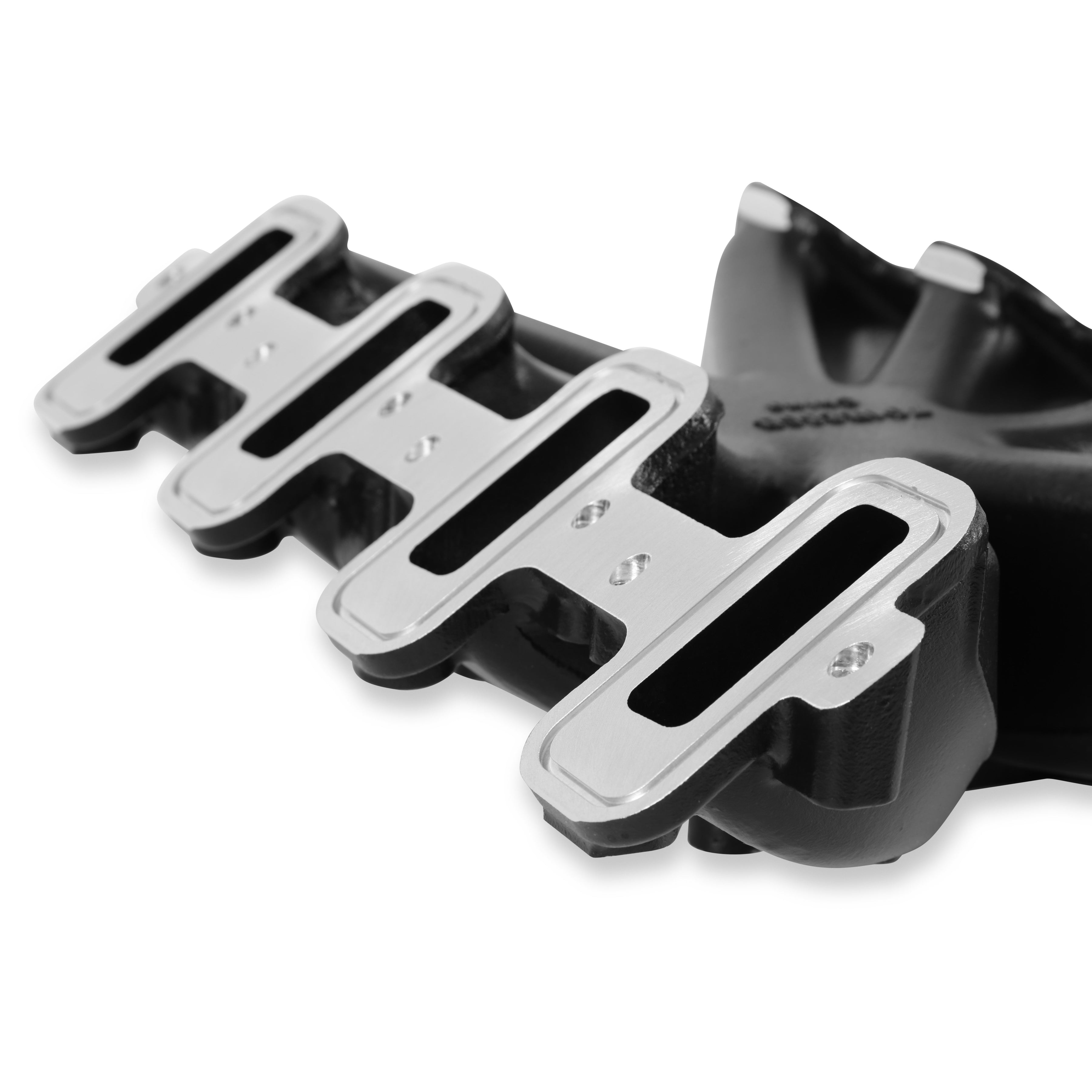

- Port size - 2.659" height x .918" wide
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications

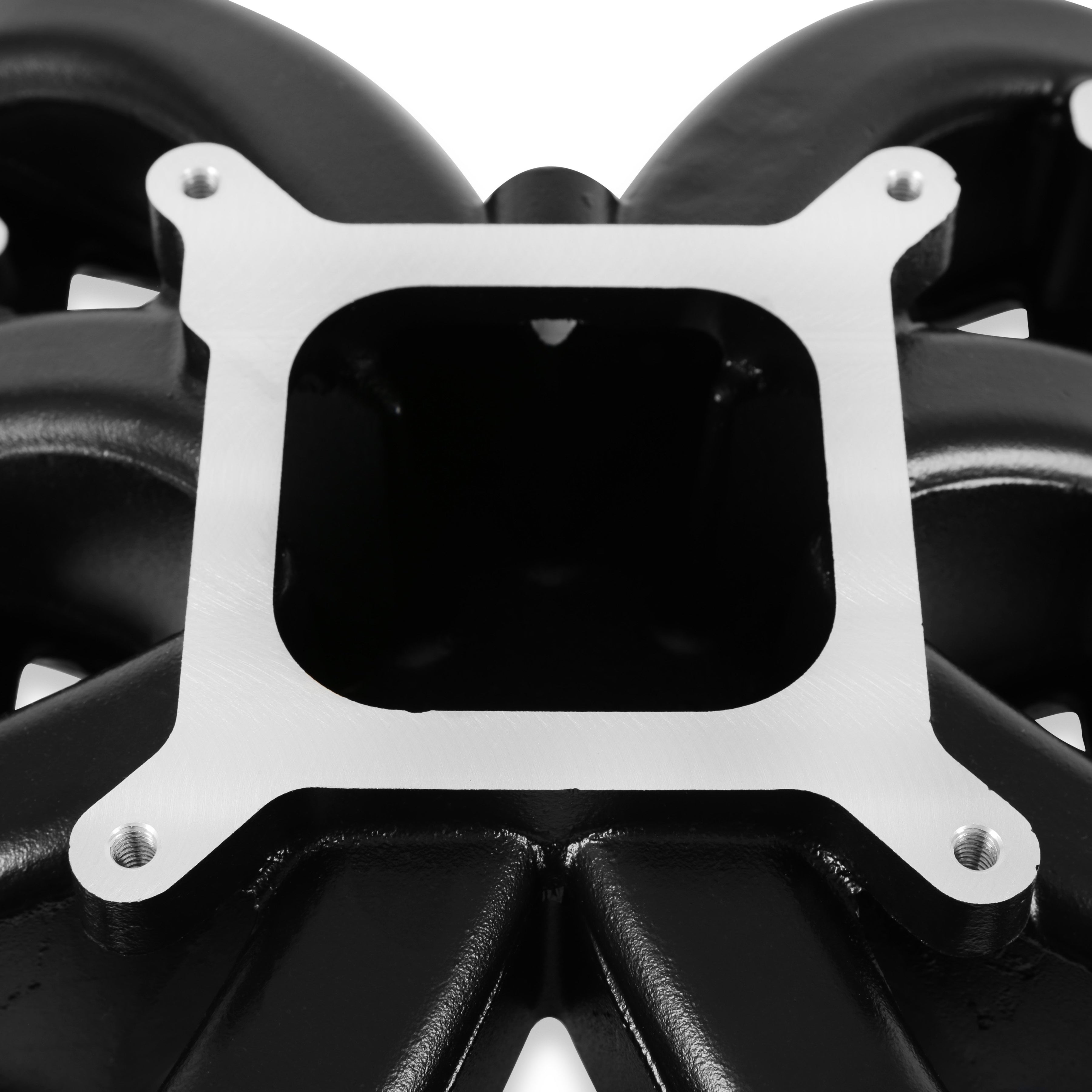

- 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)

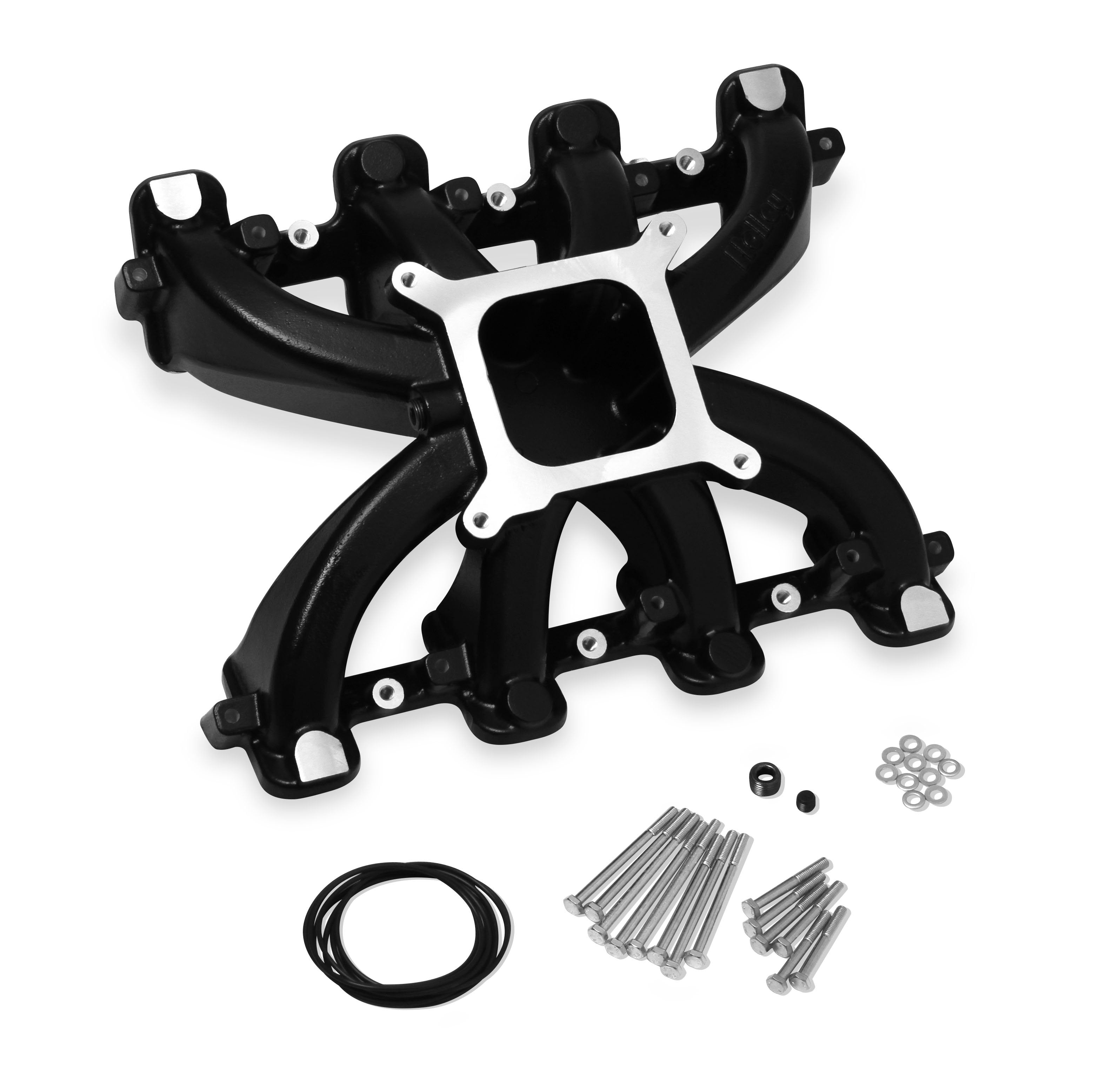

- Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
- 2500-7000 RPM power band
- Weight - 11.5 lbs.
- Minimum carb flange height - fits in vehicles with minimum hood modifications
- Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
📖
About this product
Black Ceramic Coated, Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
📋
Product Specifications
Automotive Item Grade
Performance
Barrels
4
Basic Operating RPM Range
2500-7000
Basic Operating RPM Range
2500-7000 R3
Brand
Holley
California Proposition 65 Chemical Name
4
Carburetor Flange
Square/4150
Carburetor Quantity
1
Carburetor Studs Included
No
Category
Engine
CNC Ported
No
Color
Black
Construction
Cast
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
3
Flange Style
4150 Square Bore
Front Maximum Height
4.95
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carb
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Single Plane
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Rear Maximum Height
4.95
Removable Runners
No
Removable Top/Lid
No
RPM Power Band
2500-7000 RPM
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
3.6
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
23.1 × 14.7 × 7.1 in
Shipping Dimensions
23.1 × 14.7 × 7.1 in
Weight
6604 g (6.6 kg)
