Holley
Product Details
🔧
Vehicle Compatibility
Fits Holley Single Plane Intake - GM LS1/LS2/LS6 - Black.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

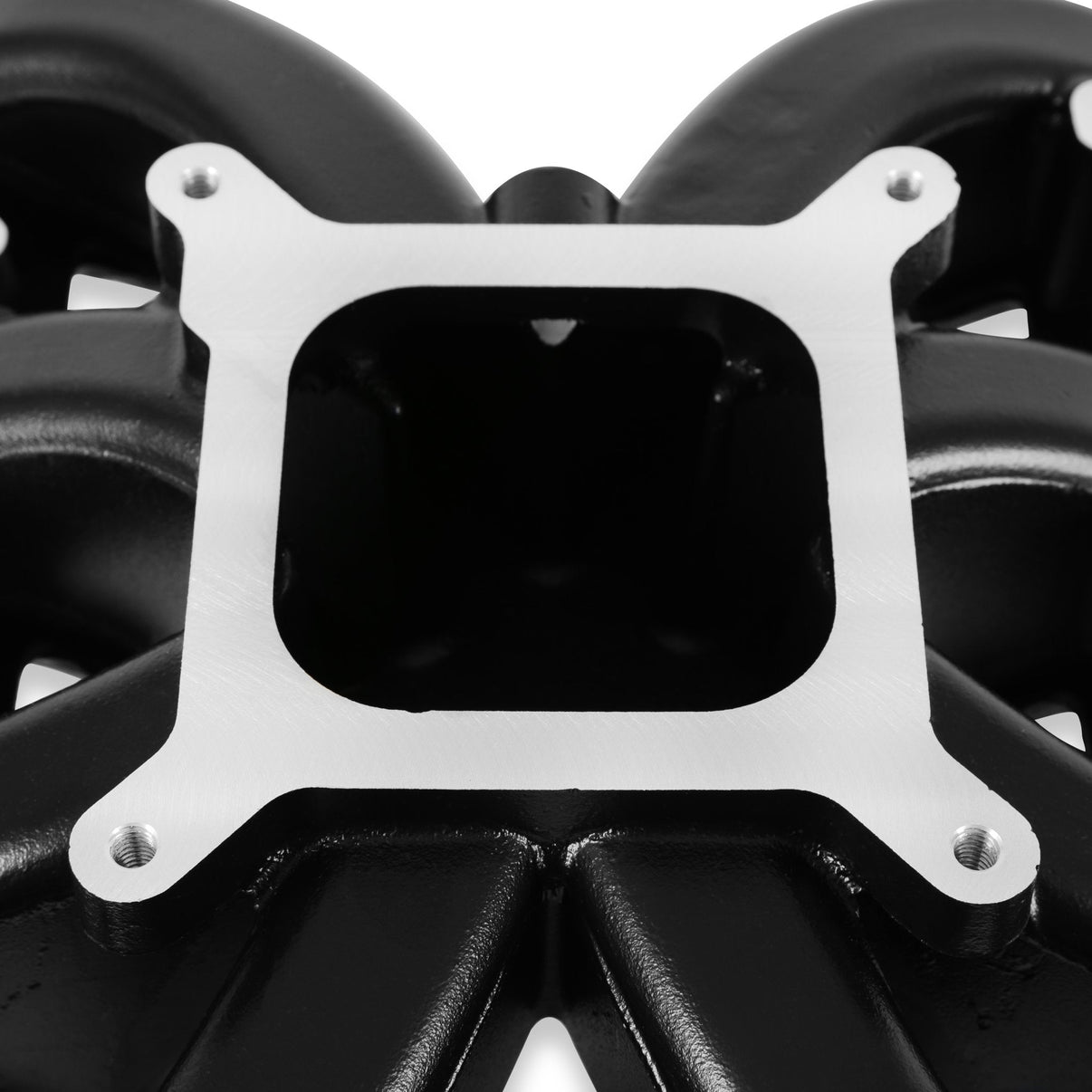

Black Ceramic Coated, Carbureted Single plane intake manifold. Fits all GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads
- 2500-7000 RPM power band
- 4150 Square bore carb mounting flange (accepts up to 1.75" diameter throttle bores)
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 2500-7000 RPM
- Minimum carb flange height - fits in vehicles with minimum hood modifications
- Cast aluminum construction - great manifold for centrifugal blower, turbocharged or NOS power adder applications
- Efficient casting design - lightweight, consistent wall thicknesses, improved casting quality
- Weight - 11.5 lbs.
- Height (front) - 4.95" to the lifter valley cover flange at the engine block front flange
- Port size - 2.659" height x .918" wide
- Includes Viton® intake to cylinder head O-ring gaskets - Viton® is a registered trademark of DuPont Performance Elastomers
📋
Product Specifications
Barrels
4
Basic Operating RPM Range
2500-7000 R3
Brand
Holley
Carburetor Flange
Square/4150
Carburetor Studs Included
No
Construction
Cast
EGR Port
No
Engine
GM LS1/LS2/LS6
Flange Style
4150 Square Bore
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carb
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Single Plane
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Product Type
Intake Manifold
Removable Runners
No
RPM Power Band
2500-7000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Included
No
Warranty
Manufacturer's Limited 90 Day Warranty
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
