Holley Sniper EFI
Product Details
🔧
Vehicle Compatibility
Select your vehicle to verify compatibility:
⭐
Key Features

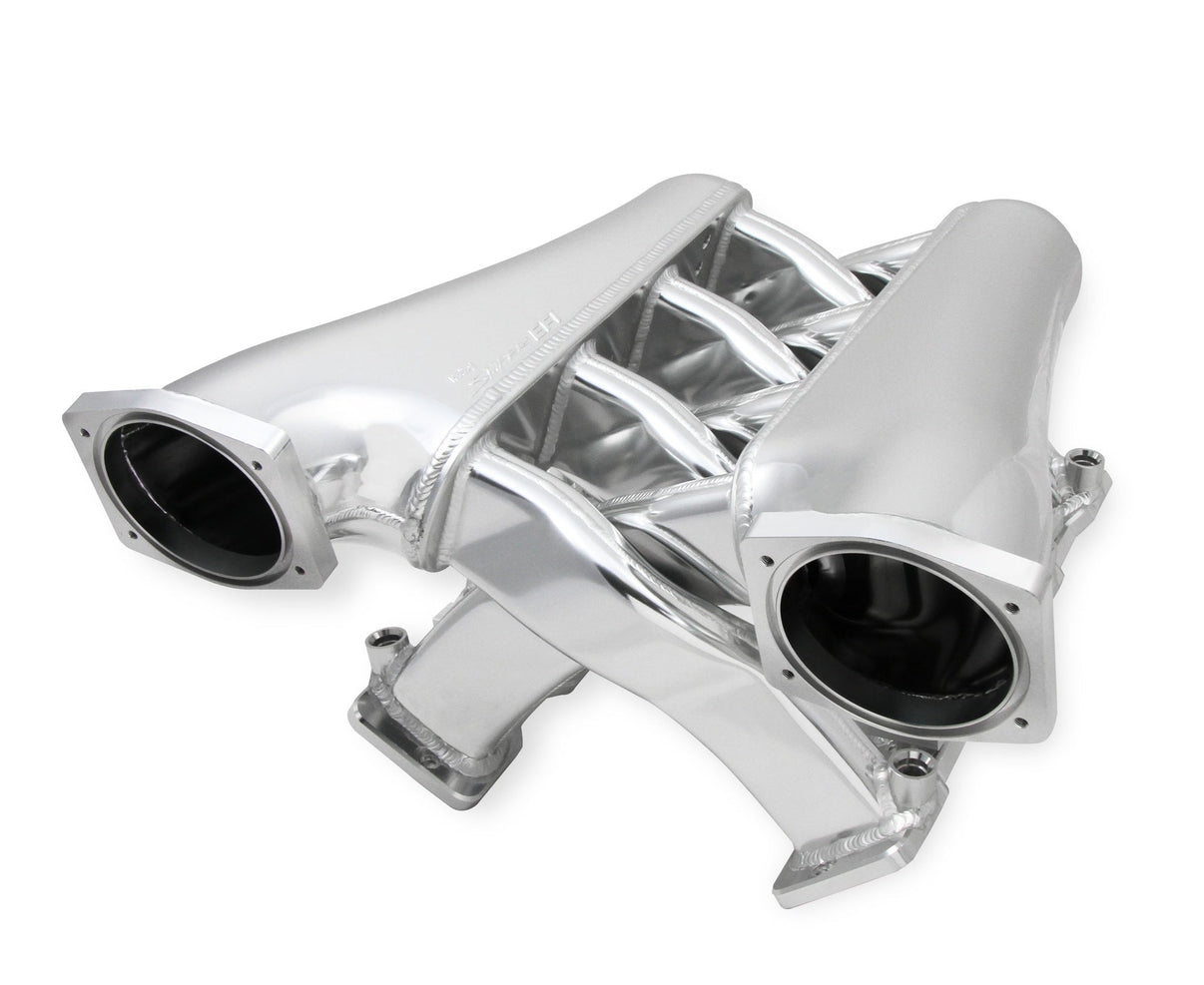

Sniper EFI Fabricated Intake Manifold Dual Plenum 102mm LS1/2/6, Rail Kit - Slvr
Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd!
Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports.
The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports.
Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake.
These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower.
Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd!
Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports.
The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports.
Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake.
These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower.
📋
Product Specifications
Basic Operating RPM Range
1500-6500
Brand
Holley Sniper EFI
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
No
Category
Sniper EFI Intakes
CNC Ported
No
Color
Polished
Construction
Fabricated
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
4
Engine
GM LS1/LS2/LS6
Flange Style
N/A
Front Maximum Height
11.802
Front Width
19.4292 inch
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
LS1/LS6 EV1 Jetronic
Intake Port Gasket(s) Included
Yes
Manifold Type
Fabricated
Material
Aluminum
Nitrous Bung(s) Included
No
Plenum Finish
Polished
Product Type
Intake Manifold
Rear Maximum Height
9.738
Rear Width
13.2844 inch
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
No
Runner Length
4.921" (125mm)
Single Or Dual Plane Type
Single Plane
Style
EFI
Throttle Body Bore Diameter
102
Throttle Body Gasket Included
No
Throttle Body Included
No
Throttle Bore
102mm
Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
