Holley Sniper EFIPart 820241Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features

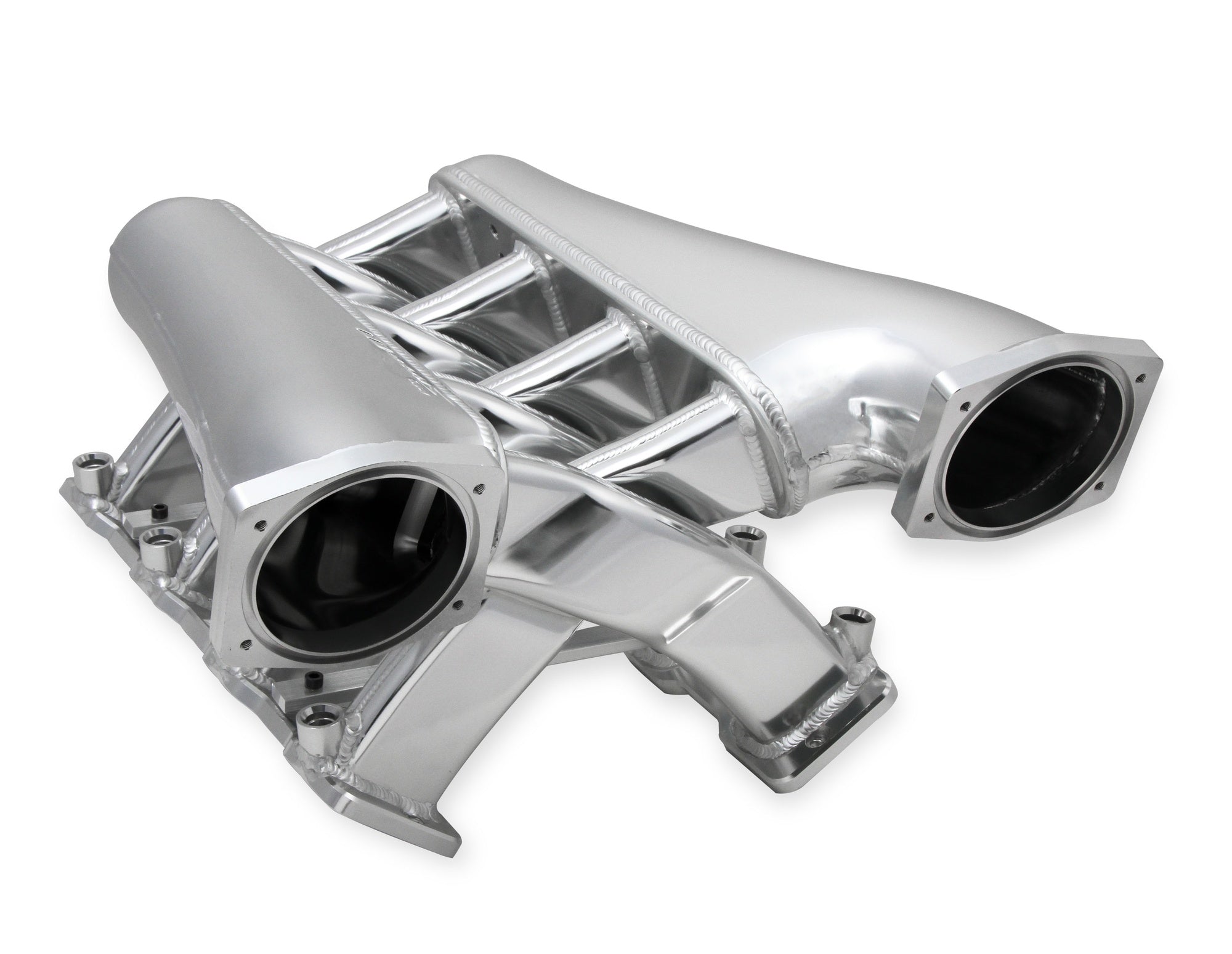

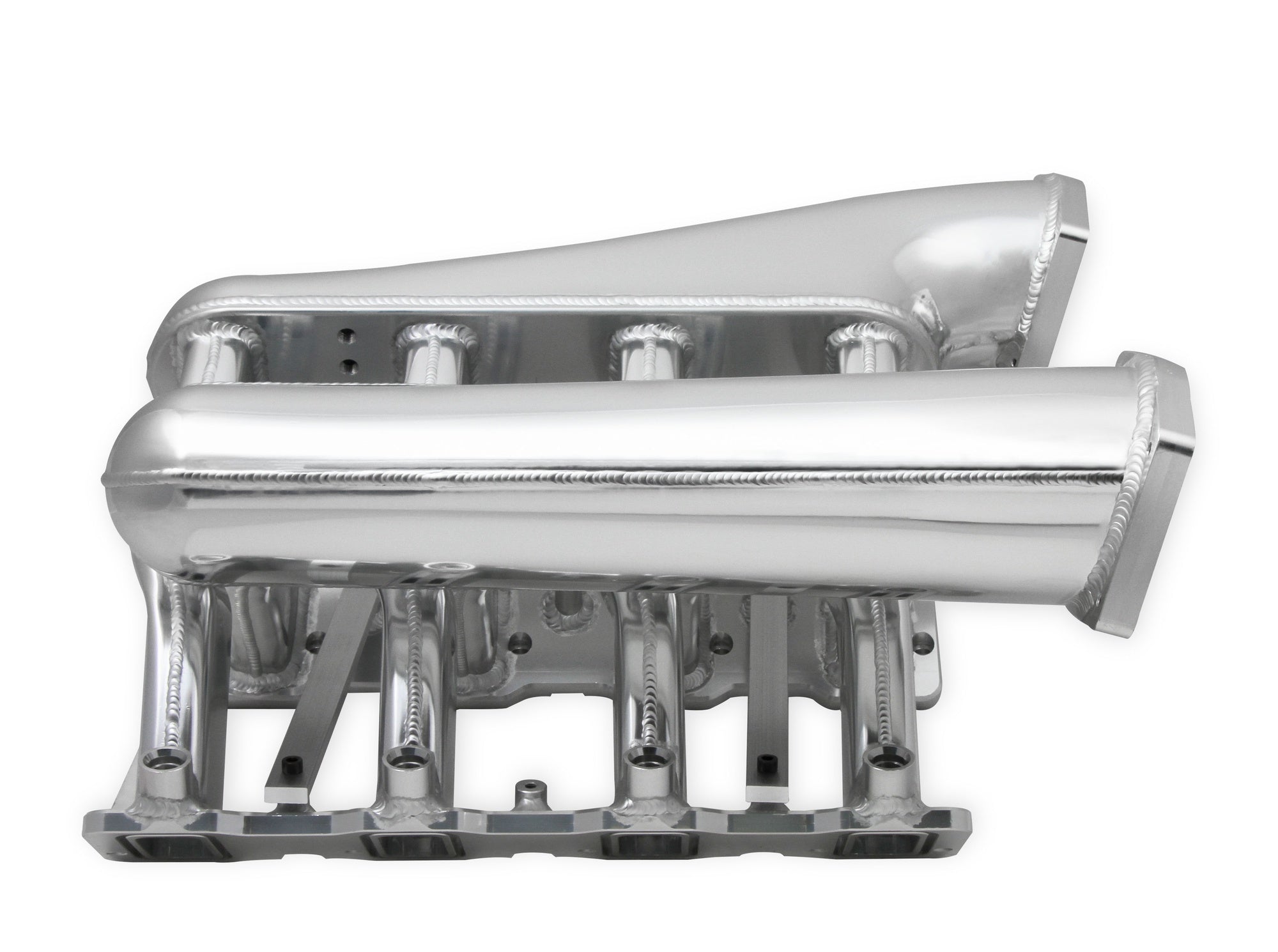

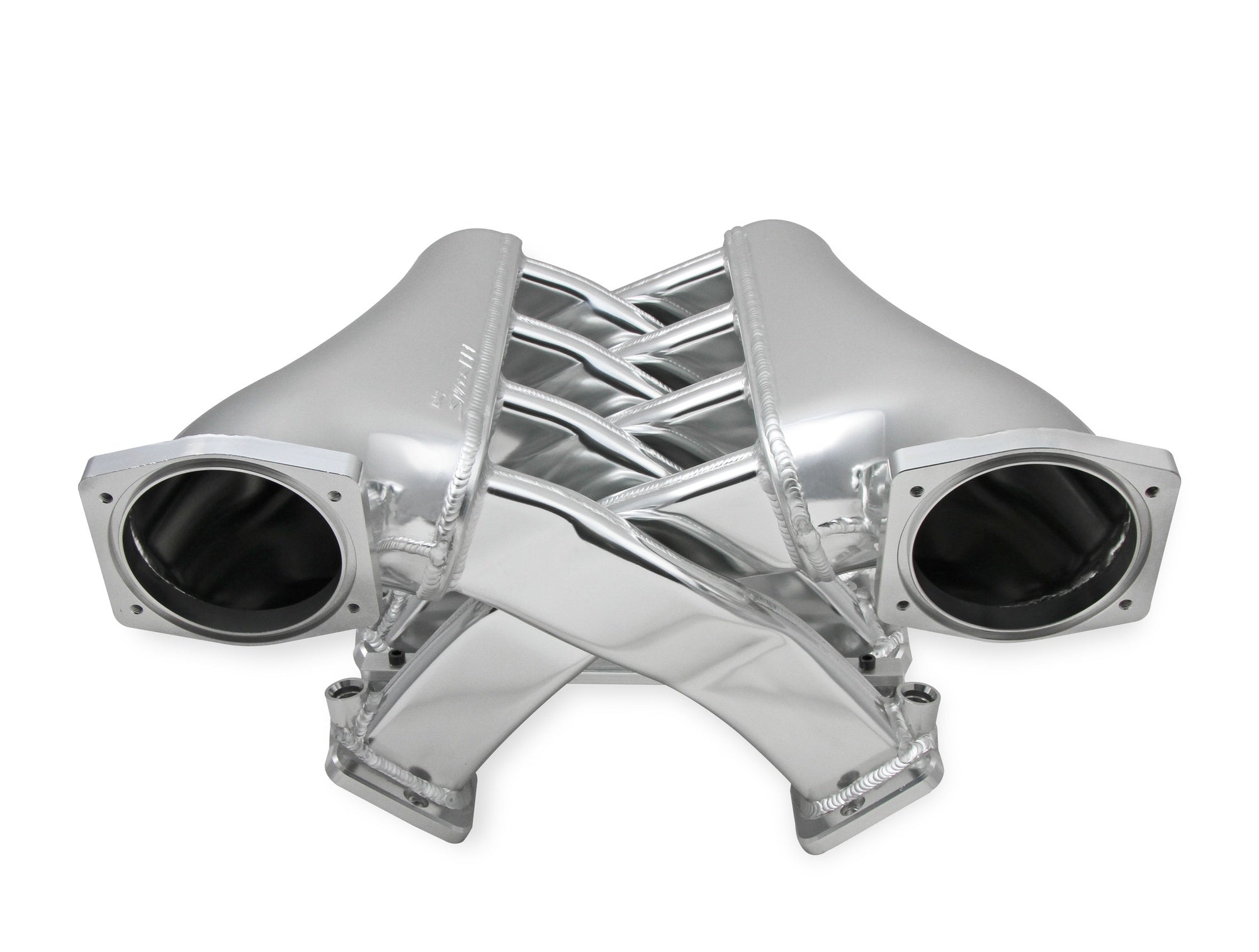

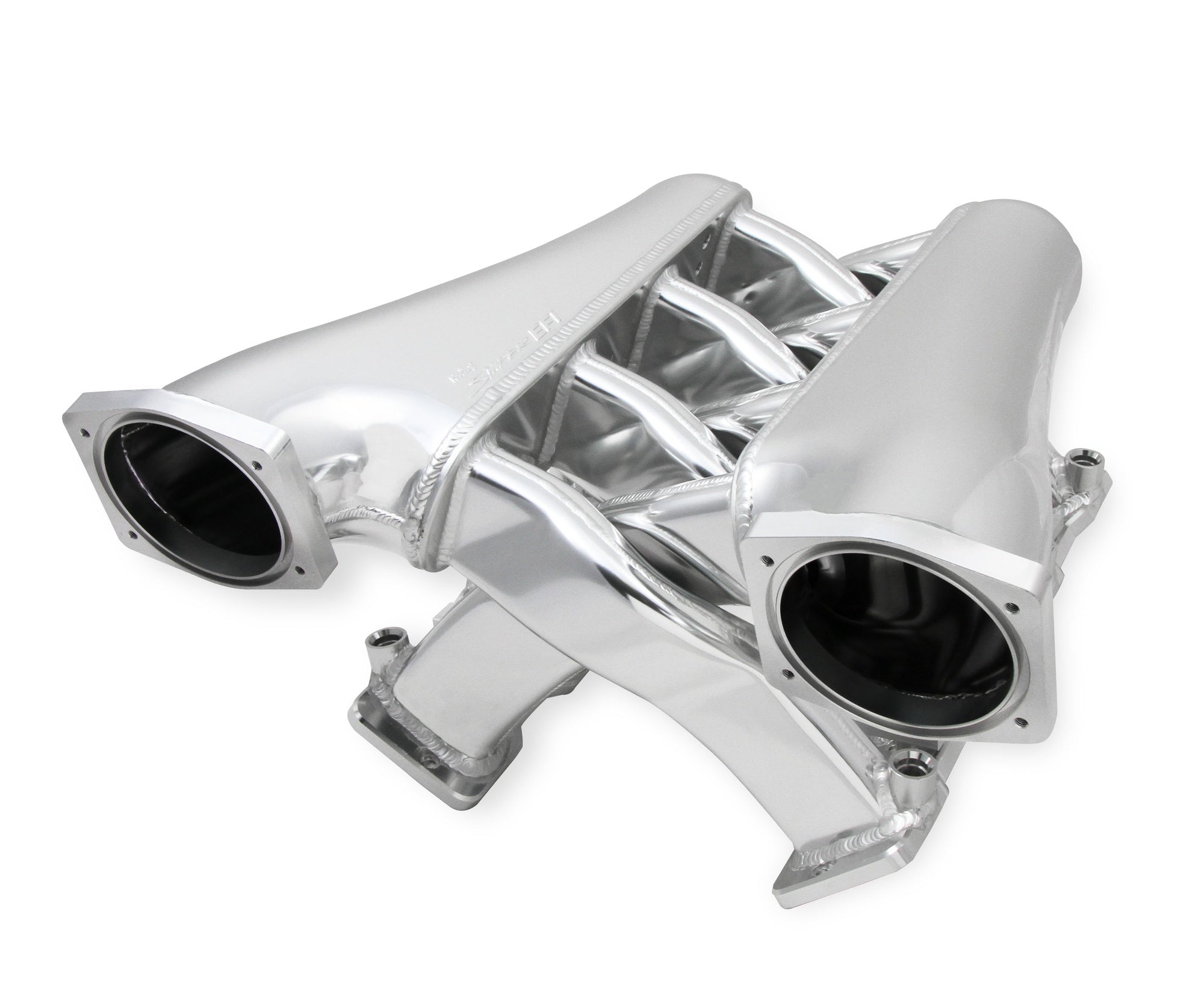

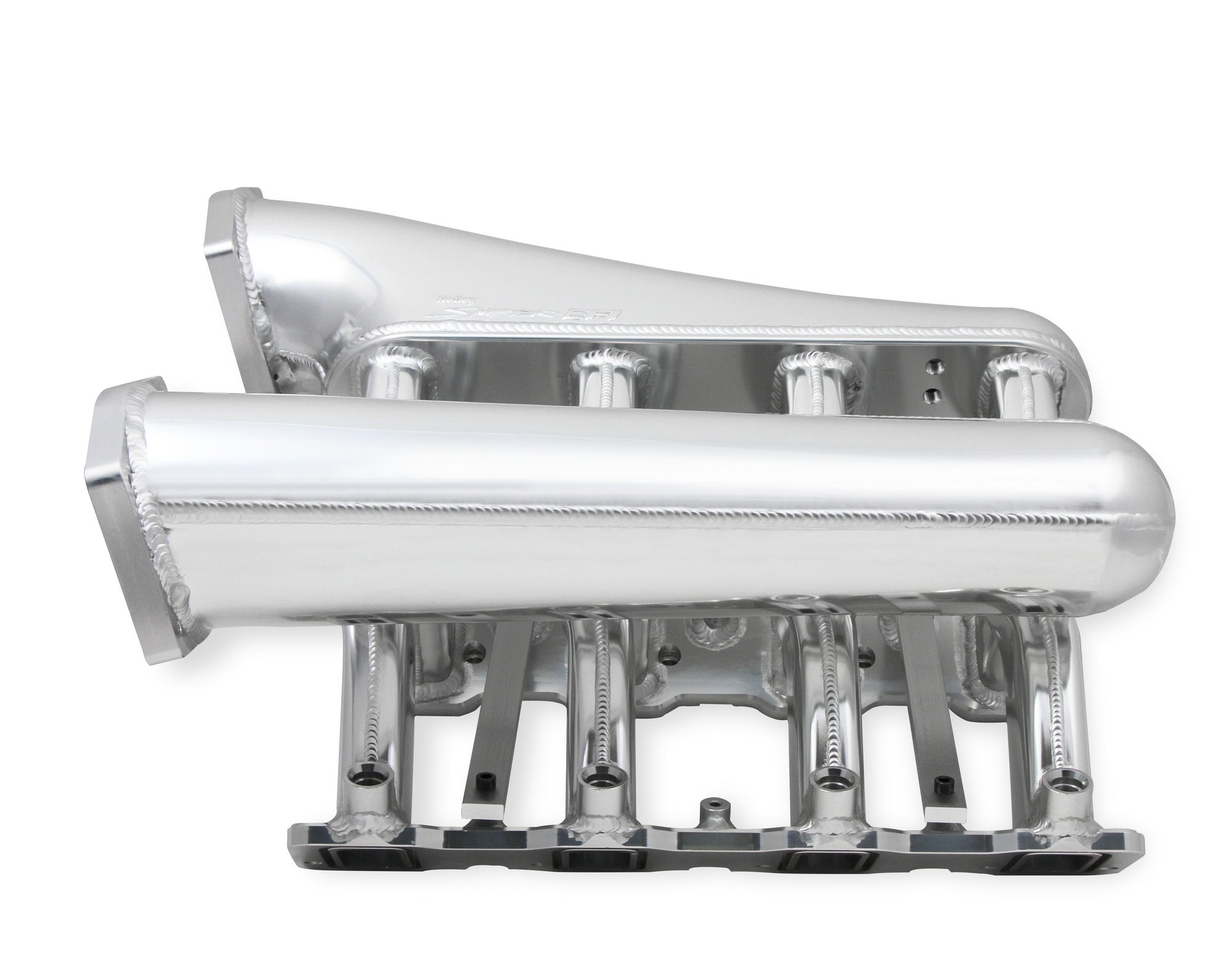

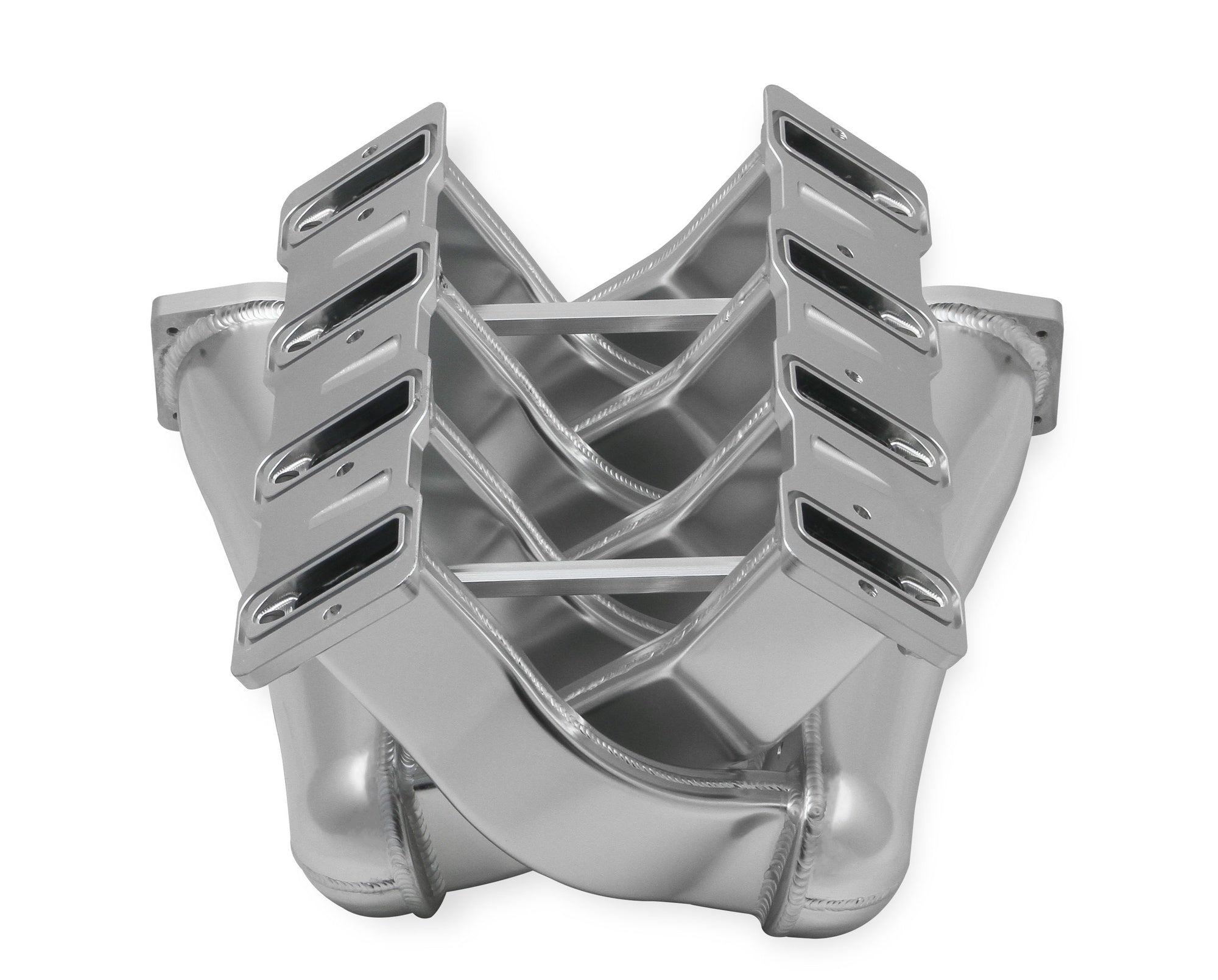

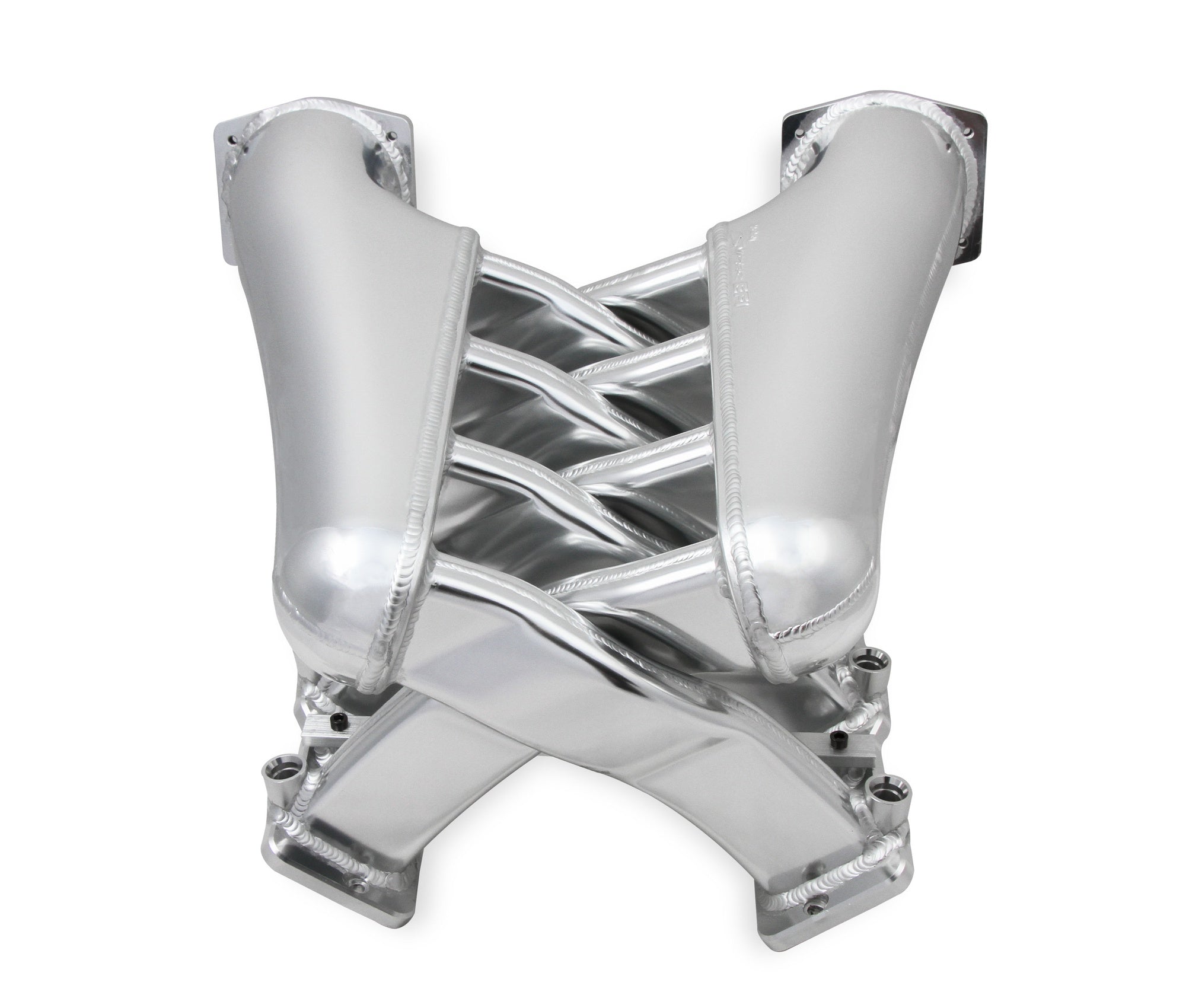

Sniper EFI "Dual Plenum" Intake Manifold 102mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Silver Finish
Holley continues to push the envelope of intake design with its latest offering. The unique look of this intake will surely stand out from the crowd! | Our dual plenum design features extremely long 12-3/4" runners to develop low-end torque making this intake an ideal "street" intake. | Our latest release of fabricated "Dual Plenum" intake manifolds for GM LS1/2/6 and LS3/L92 engines. This unique design of utilizing two plenums solves two common problems experienced with many intakes increased airflow and even dispersion of air to intake ports. | These intake are finished in our familiar silver and black anodized finishes for durability and good looks. Our 3/8" fuel rail kit include a laser engrave Sniper logo and are capable of supporting 750+ horsepower. | The use of one tapered plenum to accommodate one bank of cylinders accomplishes both problems. The entire volume of incoming air is distributed to only four cylinders and the tapered shape of the plenum help increased air velocity directed to each of the intake runner ports.
Sniper EFI "Dual Plenum" Intake Manifold 102mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Silver Finish
- 3mm (1/8") thick T6061 sheet aluminum construction for maximum durability
- Twin 102mm throttle bore openings for increased air flow
- Long Intake runner lengths (12.75 inches) offering low end torque and operating range of 1600-6800 RPM

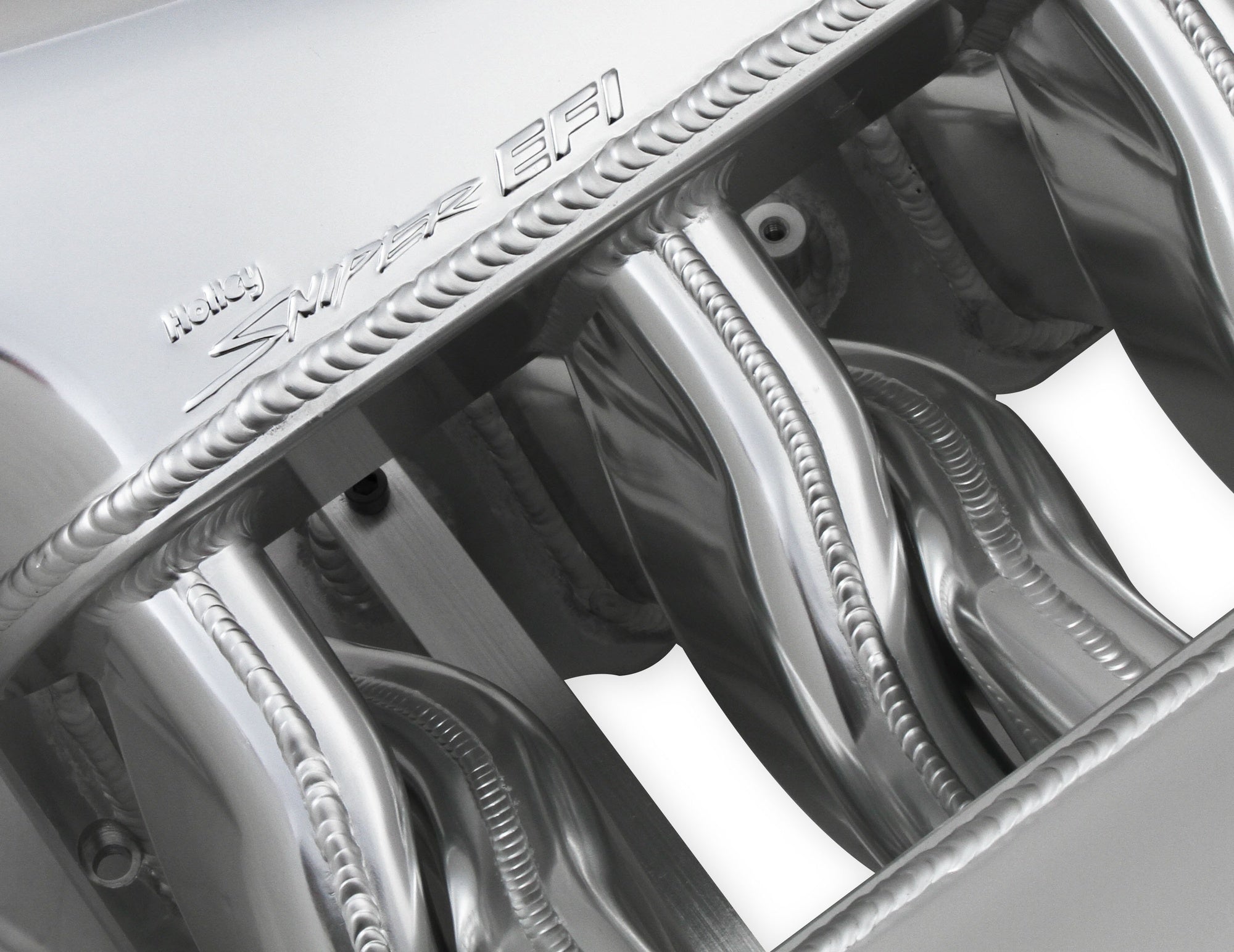

- 100% TIG welded for strength and durability

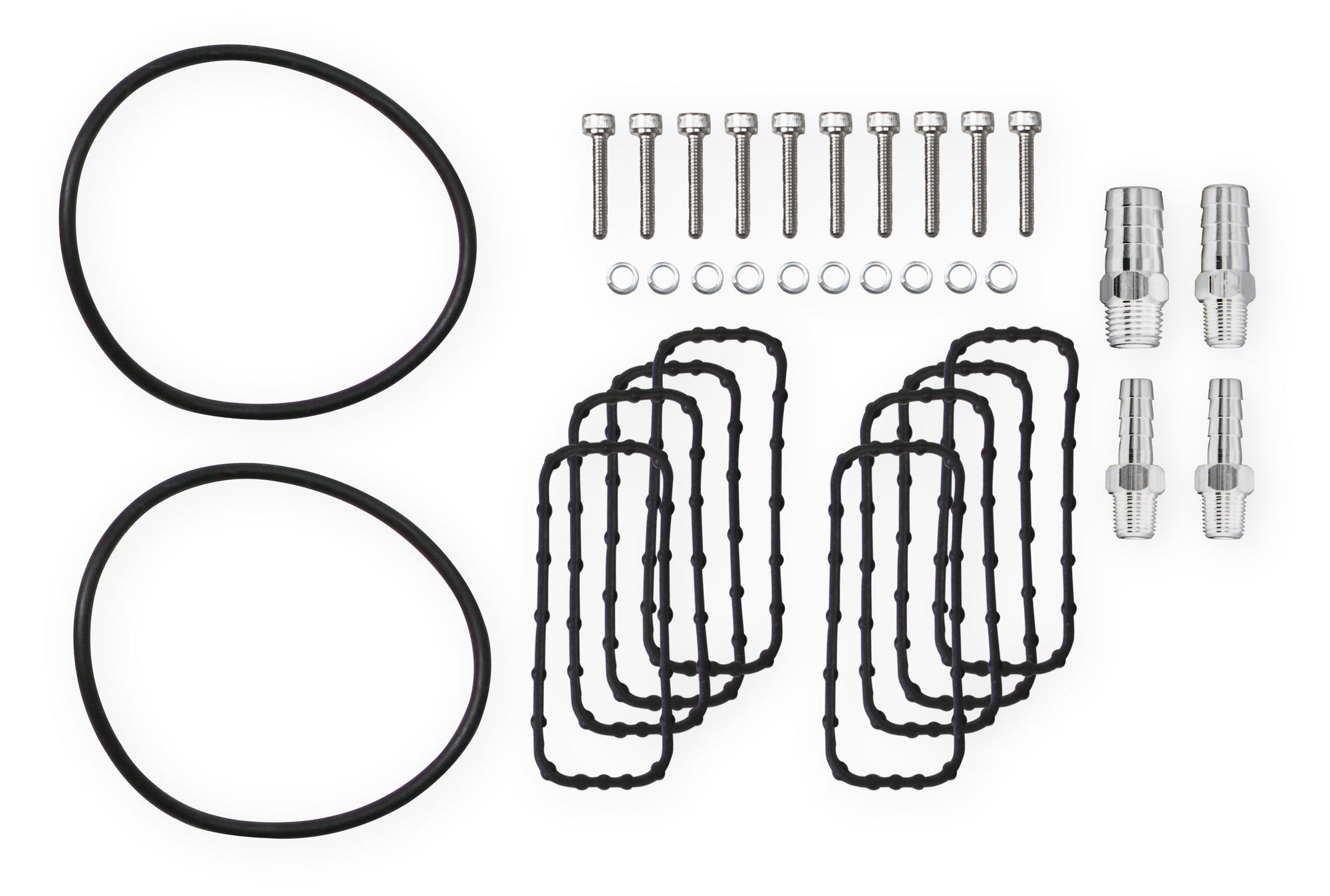

- Product includes all gaskets and hardware for a hassle-free installation

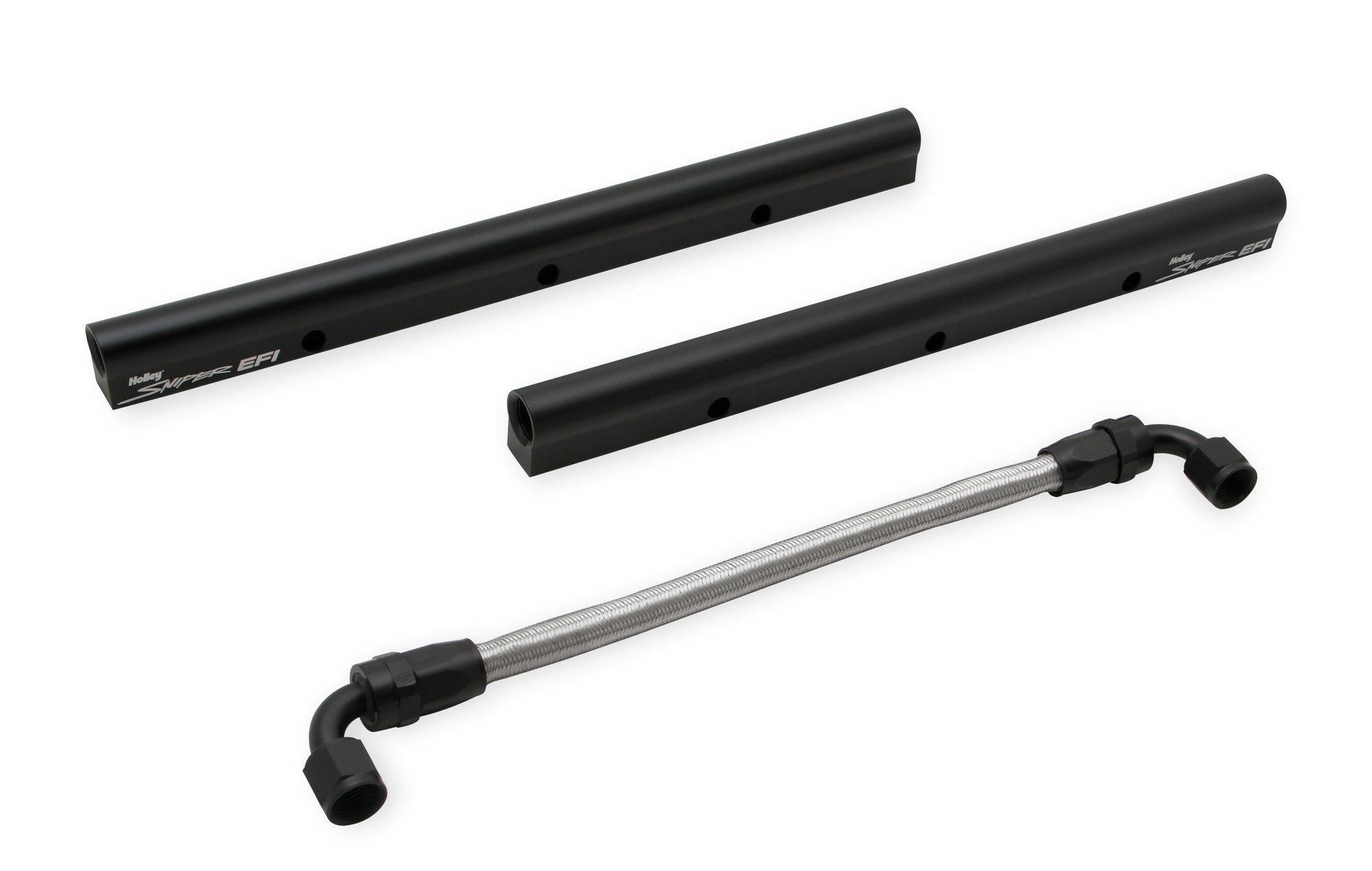

- Includes 3/8" Fuel rail kits (Sniper logo laser engraved)
- Long Intake runner lengths (12.75 inches ) offering low end torque and operating range of 1600-6800 RPM
- Intake runners with tapered top is designed to increase air velocity and more evenly distribute airflow to all 8 cylinders improving performance and throttle response
- Silver finish creates high impact under-hood styling
- Dual plenum design ideal for street max effort engines and boosted applications
📖
About this product
Sniper EFI "Dual Plenum" Intake Manifold 102mm throttle body bore for GM LS1/2/6 engines (Includes installation kit, and fuel rail kit) Silver Finish
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1500-6500
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
No
Category
Sniper EFI Intakes
CNC Ported
No
Color
Polished
Construction
Fabricated
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
4
Flange Style
N/A

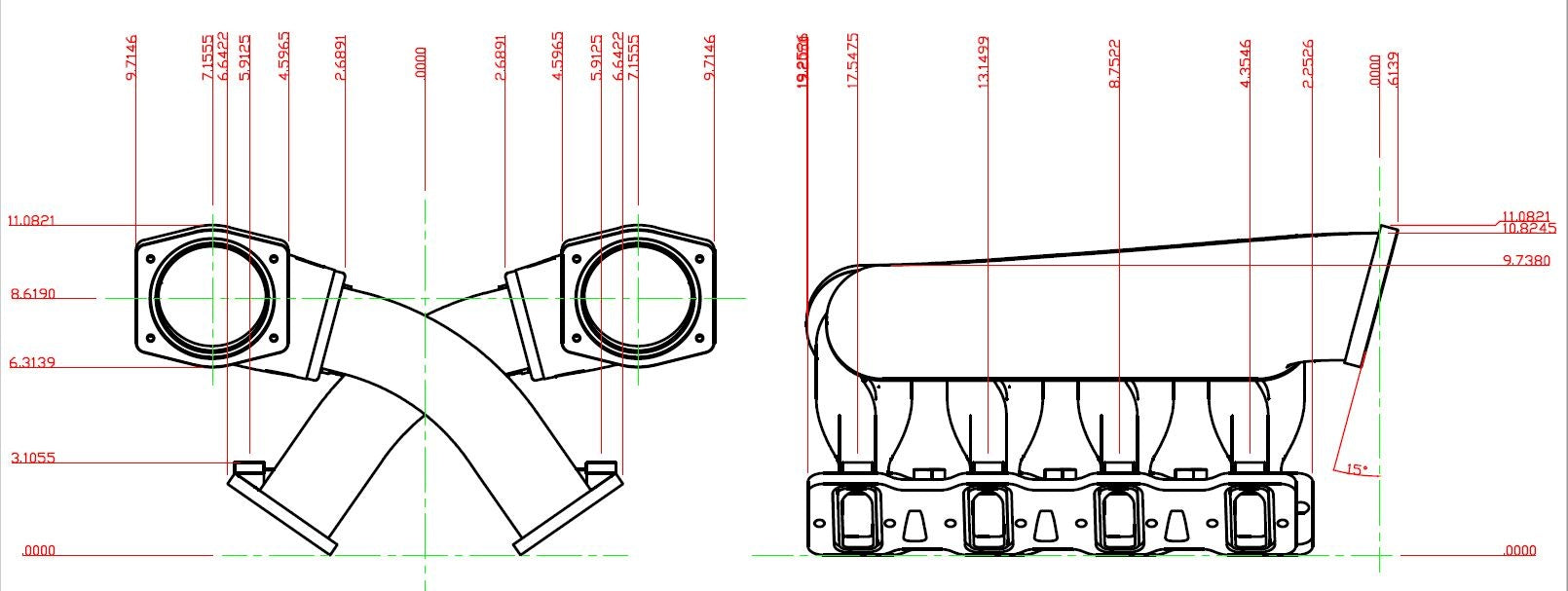

Front Maximum Height
11.802
Front Width
19.4292 inch
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Injector Style Provision
LS1/LS6 EV1 Jetronic
Intake Port Gasket(s) Included
Yes
LS3
L92
Manifold Type
Fabricated
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Polished
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
9.738
Rear Width
13.2844 inch
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
No
Runner Length
4.921" (125mm)
Single Or Dual Plane Type
Single Plane
Style
EFI
Throttle Body Bore Diameter
102
Throttle Body Gasket Included
No
Throttle Body Included
No
Throttle Bore
102mm
Vacuum Ports
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
22.6 × 22.0 × 15.5 in
Shipping Dimensions
22.6 × 22.0 × 15.5 in
Weight
10591 g (10.59 kg)
