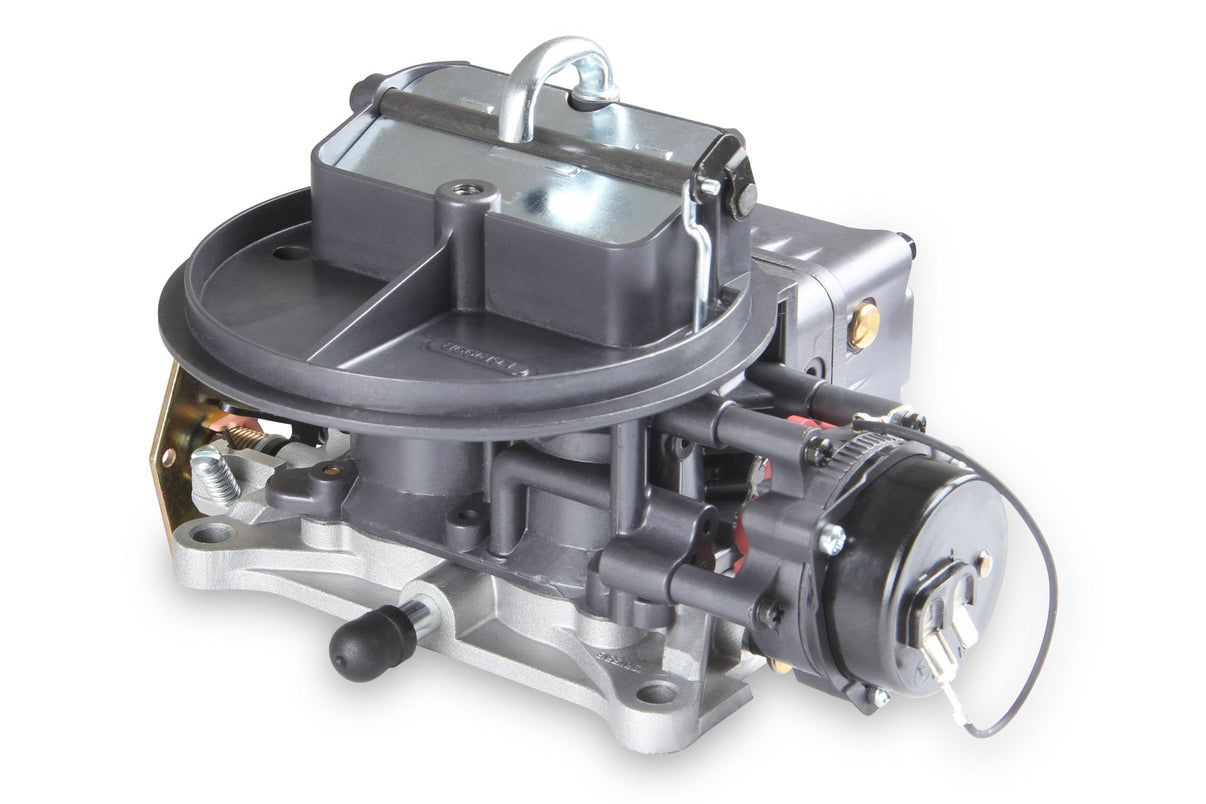

HolleyPart 0-80402-2Made in US
Product Details
⭐
Key Features
500 CFM - 2300 - Hard Core Gray - Gasoline
All Holley Marine Carburetors are designed to meet Coast Guard specifications. A marine carburetors fuel metering system is calibrated to compensate for unique engine loads found on boats. The J-style vent tubes direct fuel/fumes back into the carburetor for safe operation while on rough waters. | The aluminum Holley 0-80402-2 Marine carburetor is designed with a universal calibration good for small cubic inch marine engines where a 2300 model 2BBL with electric choke is required
500 CFM - 2300 - Hard Core Gray - Gasoline
- Hard Core Gray finish for corrosion resistance
- Universal Marine Calibration
- Factory preset electric choke for easy startups
- 30cc Accelerator pump for smooth starts
- Single feed fuel inlet for easy installation
- J-Style Vent Tubes for marine applications
- Meets Coast Guard Specifications
- Power valve blow-out protection
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
📖
About this product
500 CFM - 2300 - Hard Core Gray - Gasoline
📋
Product Specifications
Automotive Item Grade
Performance
Barrel Quantity
2
Barrels
2
Body Color
Hard Coat Gray
Body Color
Hard Core Gray
Body Finish
E-Coated
Body Material
Aluminum
Booster Design
Downleg
Booster
Downleg
Brand
Holley
California Proposition 65 Chemical Name
4
Carburetor Material
Aluminum
Carburetor Use
Marine
Category
Air and Fuel Delivery
CFM Rating
500
Cfm
500
Choke Type
Electric
Choke
Electric
Color
Hard Coat Gray
Condition
New
Cubic Feet Per Minute Rating
500
Emission Code
3
Finish
E-Coated
Flange Shape
Rectangular
Flange Type
2300 2-BBL
Fuel Inlet
Single
Fuel Type
Gasoline
Fuel
Gasoline
Grade Type
Performance
Linkage Attached
Yes
Marine Approved
Yes
Marine Engine Size
Universal
Marine Use
Yes
Material
Aluminum
Mounting Hole Quantity
4
Part Type
Carburetor
Primary Jet Diameter
75
Primary Main Jet Size
75
Primary Main Jet
75
Primary Power Valve
4.5
Primary Pump Nozzle Size
28
Product Type
Marine Carburetor
Secondaries
None
Spacer Included
No
Sub Category
Carburetion
Supercharged Application
No
Supercharger Compatible
No
Throttle Bore Diameter
1.750 inch
Throttle Bore
1.750 inch
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409916000
📐
Dimensions & Shipping
Product Dimensions
12.0 × 11.2 × 7.9 in
Shipping Dimensions
12.0 × 11.2 × 7.9 in
Weight
2200 g (2.2 kg)
