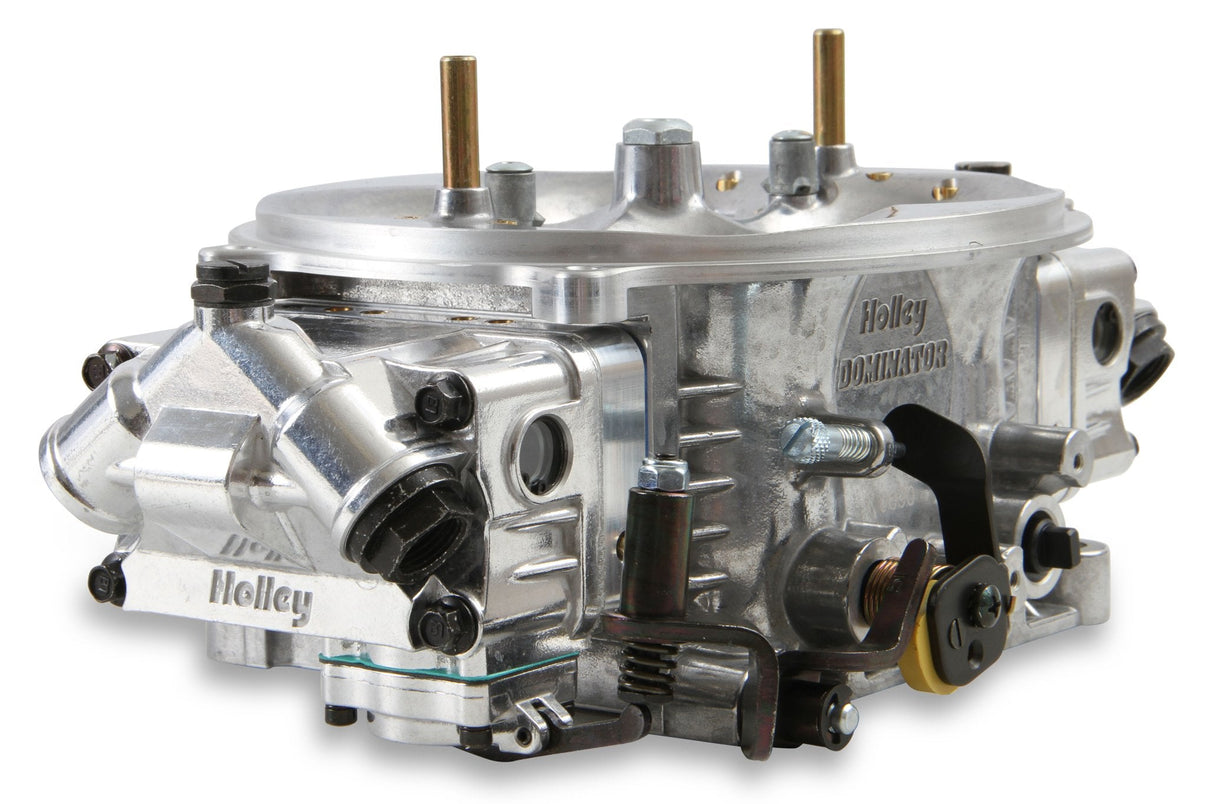

Holley Holley Dominator SP Carburetor
Holley
Search over 60,000 products...
Holley Holley Dominator SP ...
Get notified when this item is back in stock
Press & drag to view
Product Details
Product Specifications
Barrel Quantity
4
Barrels
4
Billet Color
Clear SP Dominator
Body Color
Polished
Brand
Holley
Carburetor Use
Professional Race
CFM
1050
Choke
None
Circuit
2
Cubic Feet Per Minute Rating
1050
Flange Type
Dominator/4500
Fuel Inlet
Dual
Grade Type
Performance
High Speed Air Bleed
32
Idle Air Bleed Size
57
Linkage Attached
Yes
Marine Approved
No
Marine Use
No
Mounting Hole Quantity
4
Needle and Seat Size
120;120
Part Type
Carburetor
Primary Jet Diameter
84
Primary Main Jet
84
Primary Power Valve
5.5
Primary Pump Nozzle Size
35
Product Type
Carburetor
Secondaries
Mechanical
Secondary Main Jet
94
Secondary Pump Nozzle Size
35
Spacer Included
No
Supercharged Application
No
Throttle Bore
2.000 inch
Venturii Size
1.690 inch
Product Description
Key Features
1050 CFM - 4500 - Mechanical Secondaries - Shiny - Gasoline
- All aluminum construction saves 3.8lbs. over original models (28% weight savings)
- Shiny with billet aluminum metering block and black hardware
- Designed for use on Drag race, Pro Street, or any high horsepower engines
- Calibrations optimized for today's race engines and new fuels
- Fully machined from venturi throat to throttle bore for predictable & repeatable performance
- Annular boosters deliver excellent signal and throttle response
- Screw in air bleeds offer precise tuning capabilities
- Metering blocks feature improved durability, true gasket sealing and adjustability ( power valve channel restrictors, intermediate restrictors & idle feed restrictors)
- Dual 50cc accelerator pumps provide the perfect amount of fuel from idle to full throttle
- 4 corner idle allows you to precisely control your idle system
- Clear sight windows on fuel inlet side of bowls for easy and safe fuel level adjustments
- Notched float and jet extension are factory installed
- 5/8-18 inlet threads offer a large variety of plumbing options (uses standard 4500 fuel inlet spacing)
- Factory ready TPS mounting points for use with data acquisition systems (Holley TPS P/N 534-214 available)
- Knurled (hand adjustable) primary and secondary curb idle screws allow for easy idle adjustment without the use of tools
- Contoured hex head squirter screws for streamlined airflow
- Progressive secondary link installed for perfect off the line launches. No linkage parts under the carburetor (1:1 wire link included in kit)
- 100% wet-flow tested by Holley technicians to assure it arrives ready to run!
- Compatible with the Gen 3 Dominator 4-hole billet spacer P/N 17-86
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
Compatibility
Fits Holley Holley Dominator SP Carburetor.
Please refer to manufacturer specifications for complete compatibility information.
