Key Features

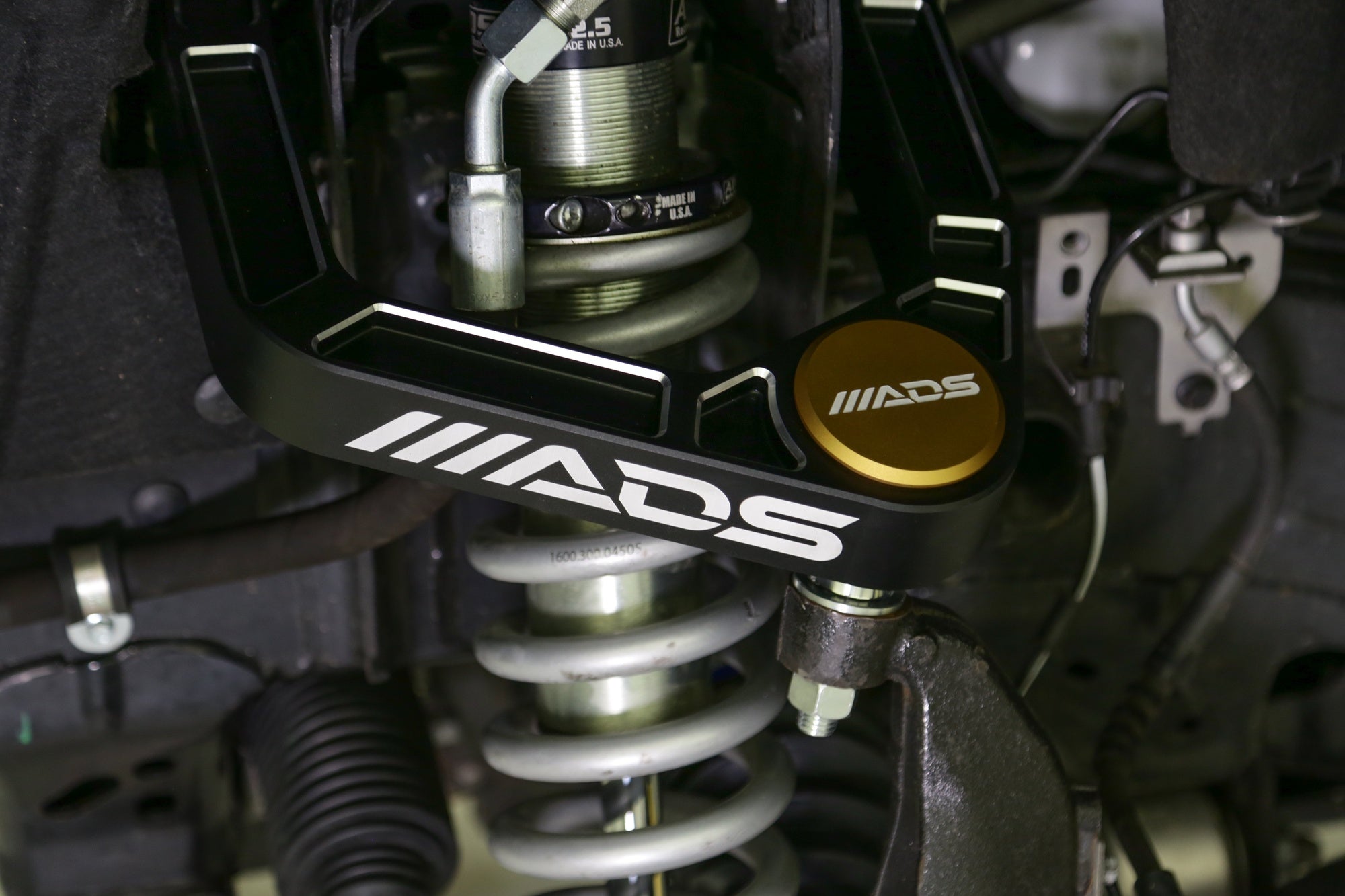

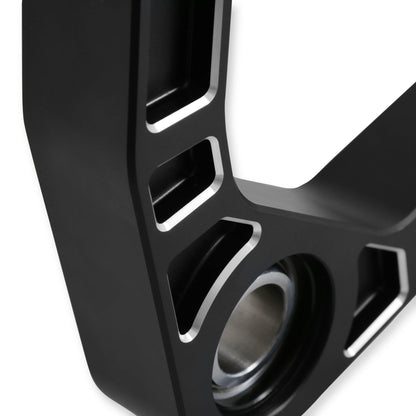

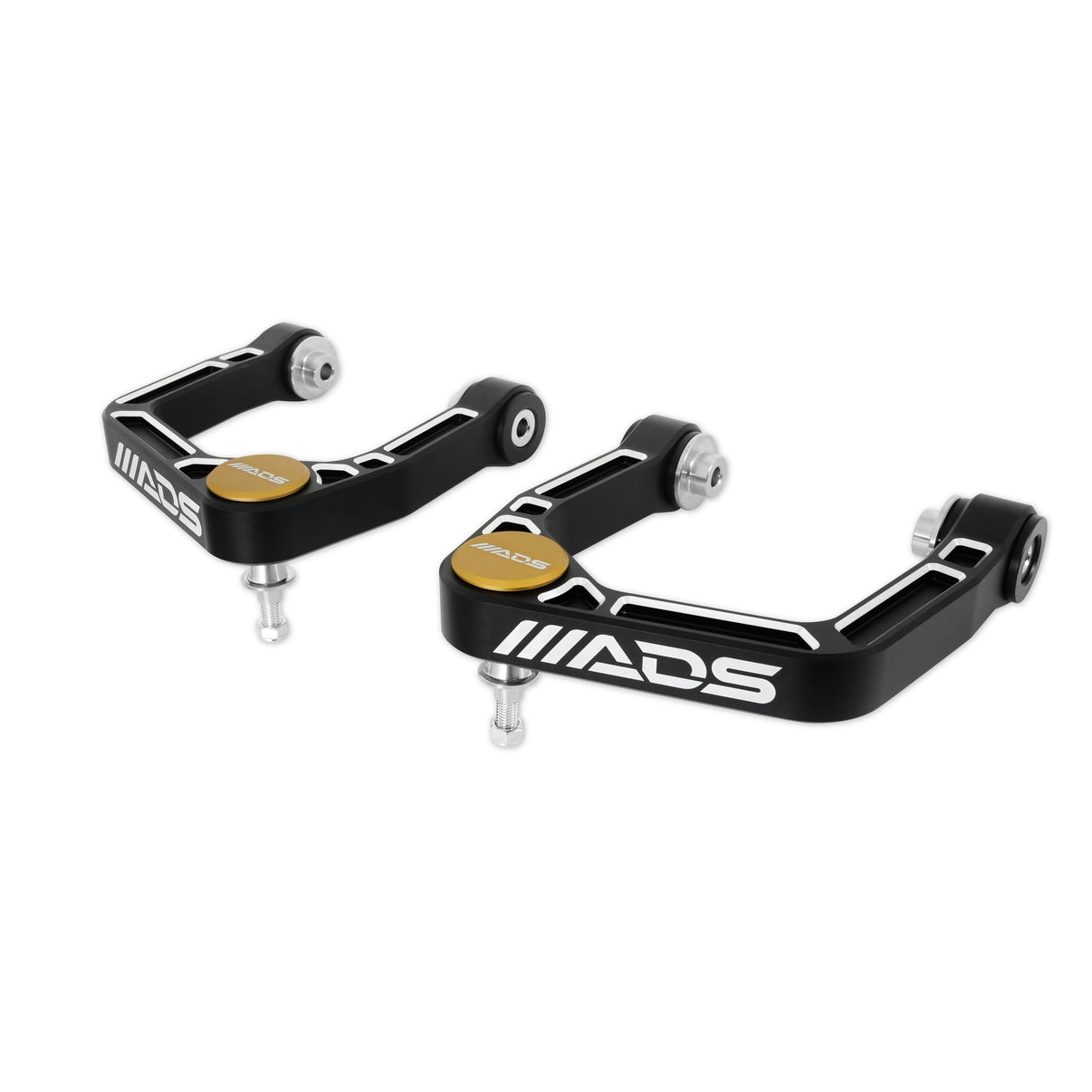

ADS Billet Front Upper Control Arm Kit - Front Upper
Upgrade your GM with our cutting-edge Billet Aluminum Upper Control Arm. Designed to accommodate up to 4" lifts, it corrects camber and caster for a smoother ride. Crafted from CNC machined 6061 billet aluminum, it features a robust 1.25" hardened steel uniball for enhanced strength and articulation. Machined acetal copolymer bushings reduce deflection, improving handling. Stylish and durable, it boasts a black anodized finish with a laser-engraved logo on the control arm, and a striking gold anodized finish on the uniball cover, both protected by clear powder coat for ultimate UV resistance. The O-ring sealed uniball dust cover and included Grade 8 hardware ensure longevity and ease of installation. Plus, it's fully rebuildable, making it a sustainable and long-lasting upgrade for your rig!
Upgrade your GM with our cutting-edge Billet Aluminum Upper Control Arm. Designed to accommodate up to 4" lifts, it corrects camber and caster for a smoother ride. Crafted from CNC machined 6061 billet aluminum, it features a robust 1.25" hardened steel uniball for enhanced strength and articulation. Machined acetal copolymer bushings reduce deflection, improving handling. Stylish and durable, it boasts a black anodized finish with a laser-engraved logo on the control arm, and a striking gold anodized finish on the uniball cover, both protected by clear powder coat for ultimate UV resistance. The O-ring sealed uniball dust cover and included Grade 8 hardware ensure longevity and ease of installation. Plus, it's fully rebuildable, making it a sustainable and long-lasting upgrade for your rig!
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Adjustable Damping
No
Adjustable
No
Attachments Included
No
Ball Joint Included
No
Ball Joint Mounting Type
Press In
Ball Joint Thread Diameter
N/A
Ball Joint Thread Stud Length
N/A
Ball Joint Type
Uniball
Brand
ADS
Bushing Color
Black
Bushing Material
Machined acetal copolymer
Bushings Included
Yes
California Proposition 65
No
Category
Suspension
Control Arm Coating
Anodized & UV Clear Powdercoat
Control Arm Color
Black
Control Arm Construction
Billet
Control Arm Length
Stock
Control Arm Material
6061 Aluminum
Control Arm Maximum Length
N/A
Control Arm Maximum Width
N/A
Contruction
Boxed
Drivetrain
2WD/4WD
Dust Cap Coating
Anodized & UV Clear Powdercoat
Dust Cap Included
Yes
Dust Cap Material
6061 Aluminum
Emission Code
6
End 1 Size
1.125
End 1 Type
Heim Joint
End 2 Size
1.25
End 2 Type
OEM Style Polyurethane Bushings
Grade Type
Performance
Grease Fitting Included
No
Lift Range
0-4
Material
Aluminum
Mounting Bracket Included
No
Mounting Hardware Included
Yes
Mounting Hole Quantity
2
part type
Suspension Control Arm Kit
Position
Front
Pre-Assembled
No
Pre-Greased
No
Product Line
Arizona Desert Shocks Upper Control Arms
Product Type
Upper Control Arm
Quantity
Sold as a pair
Rebuildable
Yes
Reinforced
Yes
Set
Yes
Sub Category
Suspension
Suspension Grade Type
Performance
Suspension Type
Spring
Weight
20.5
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
