Overview

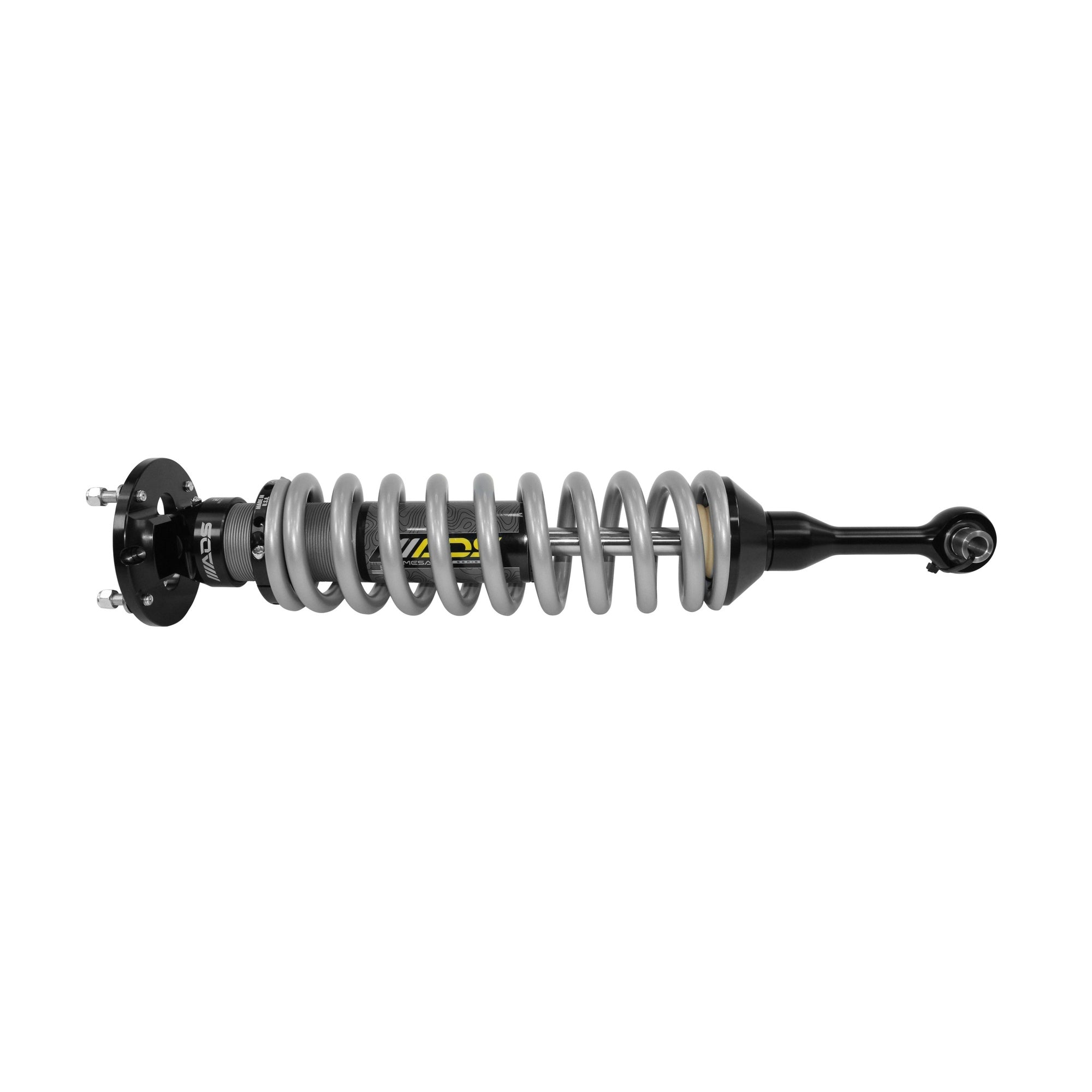

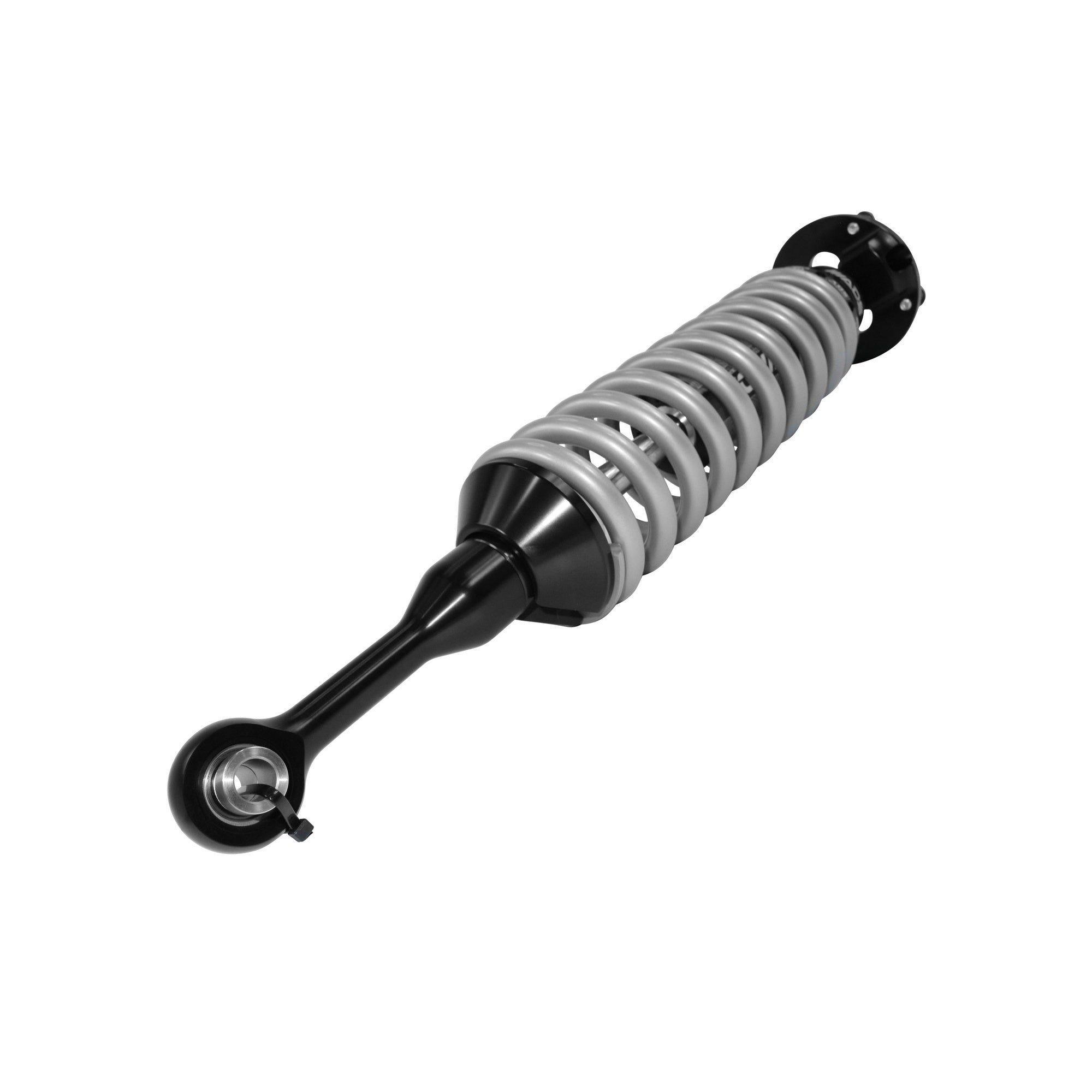

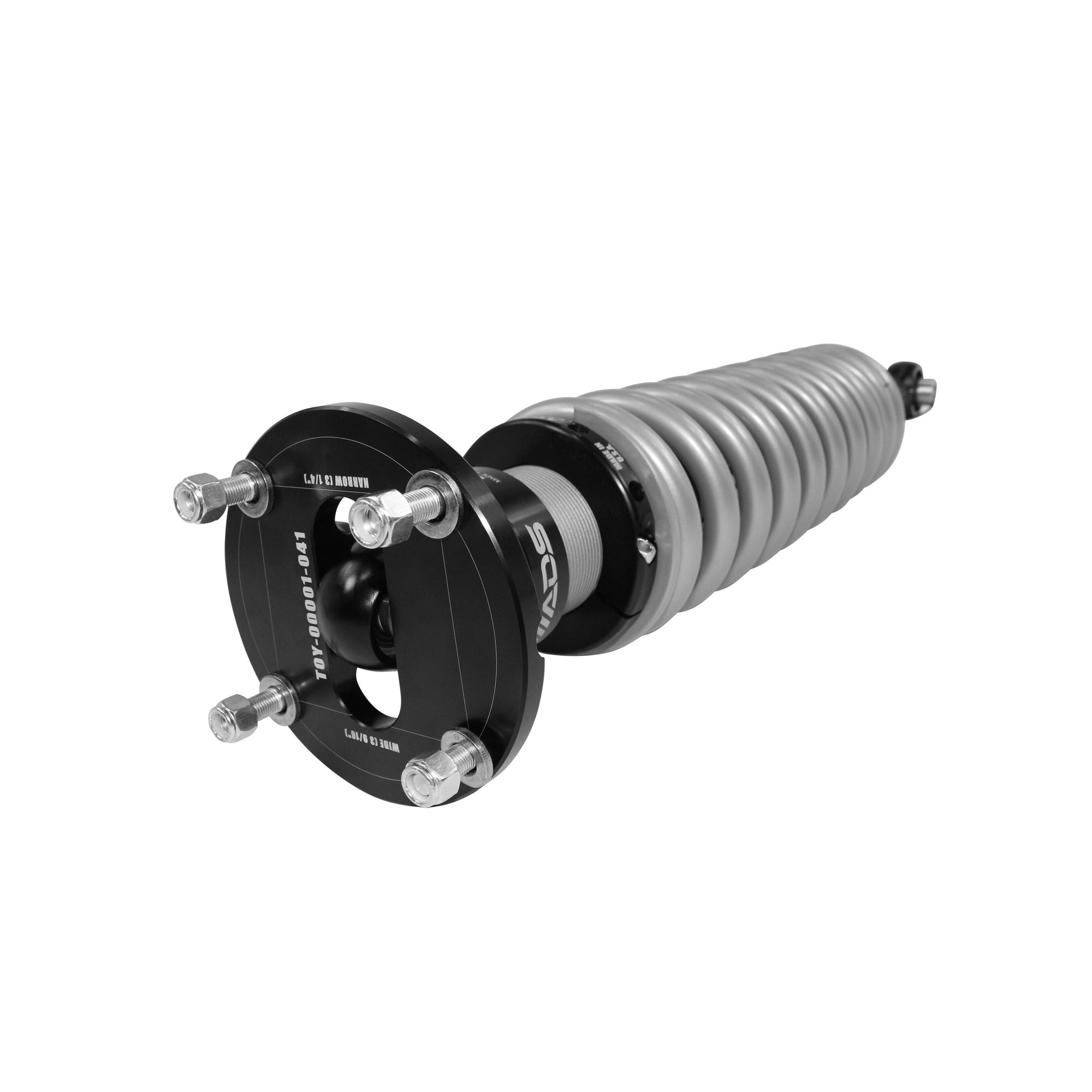

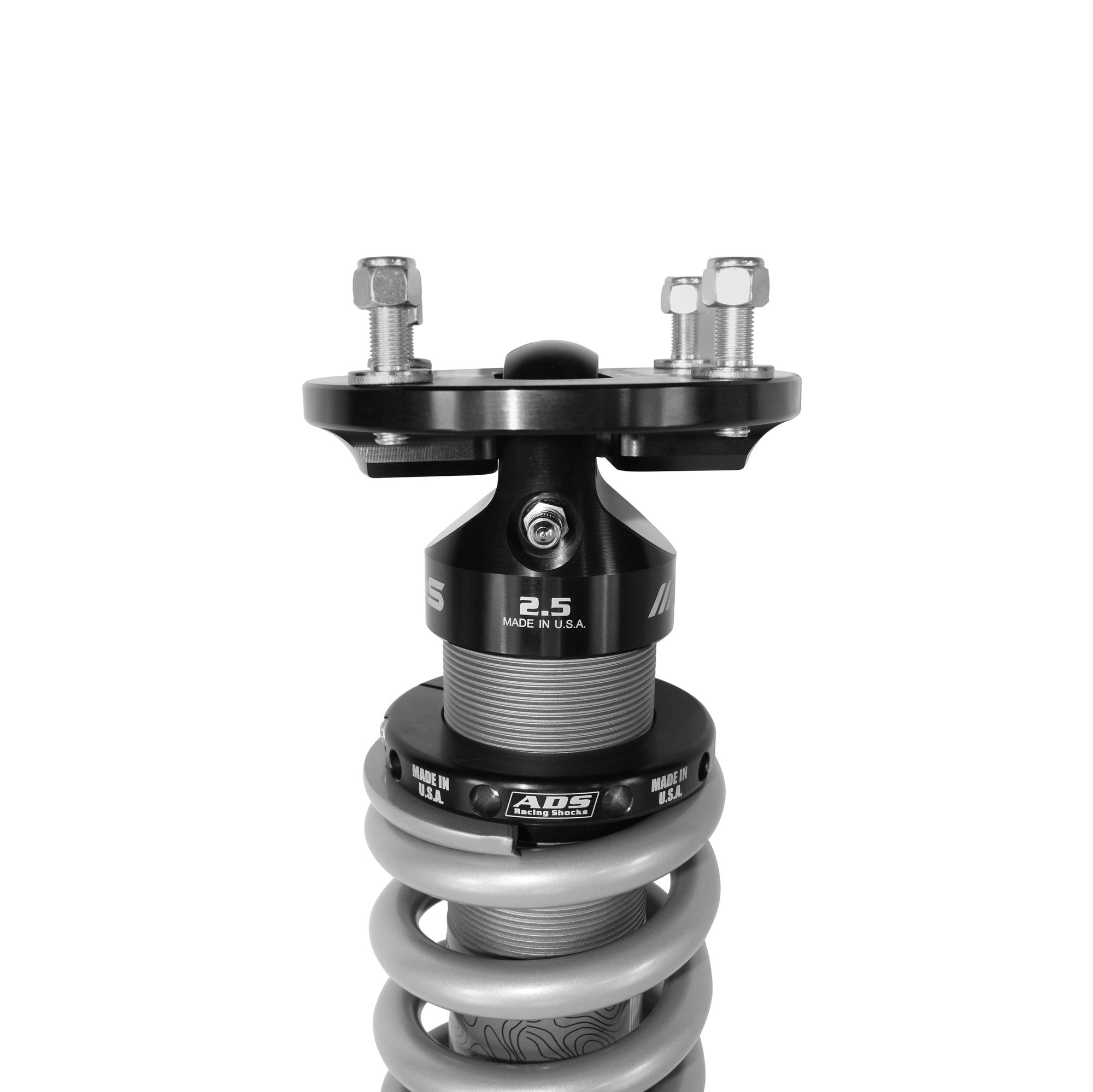

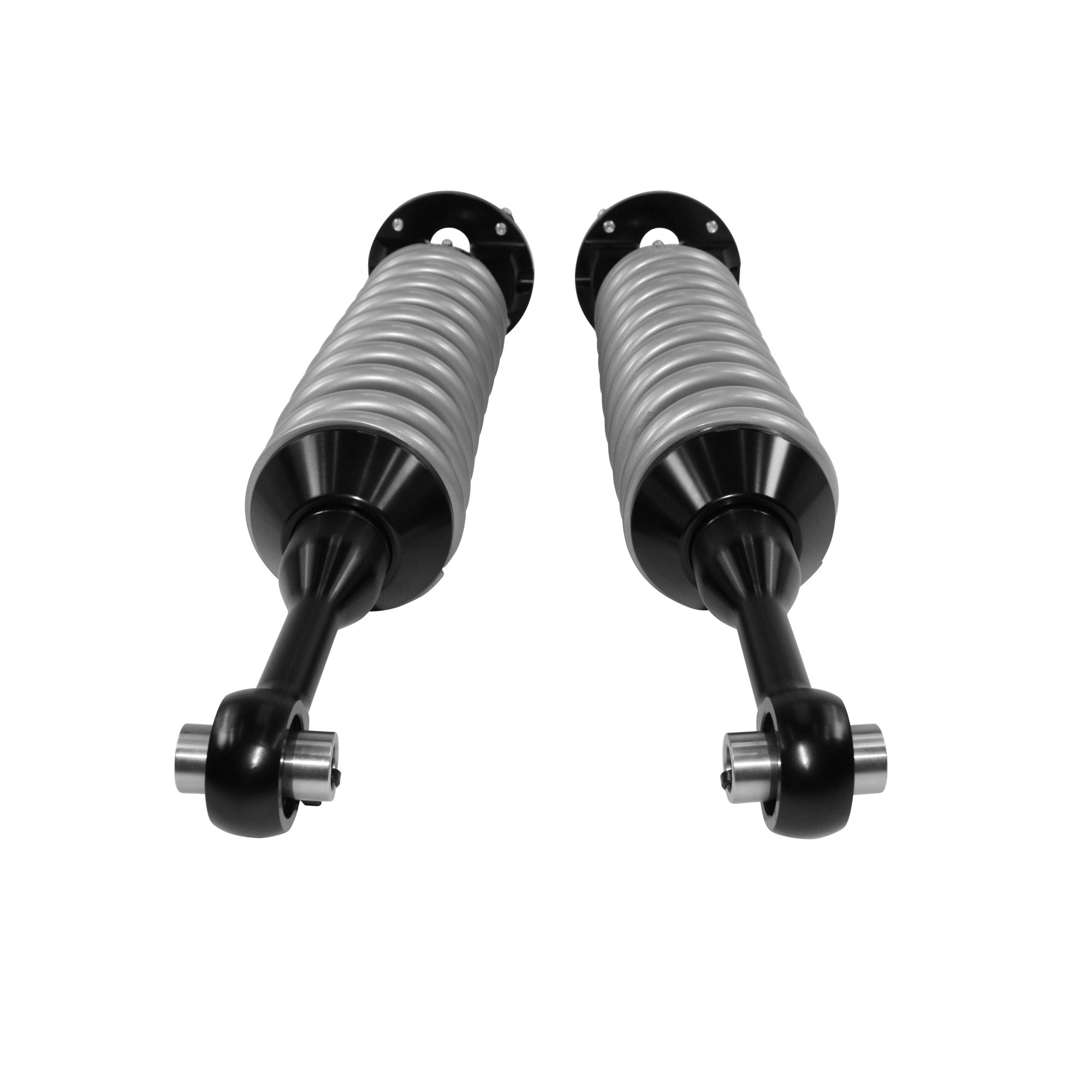

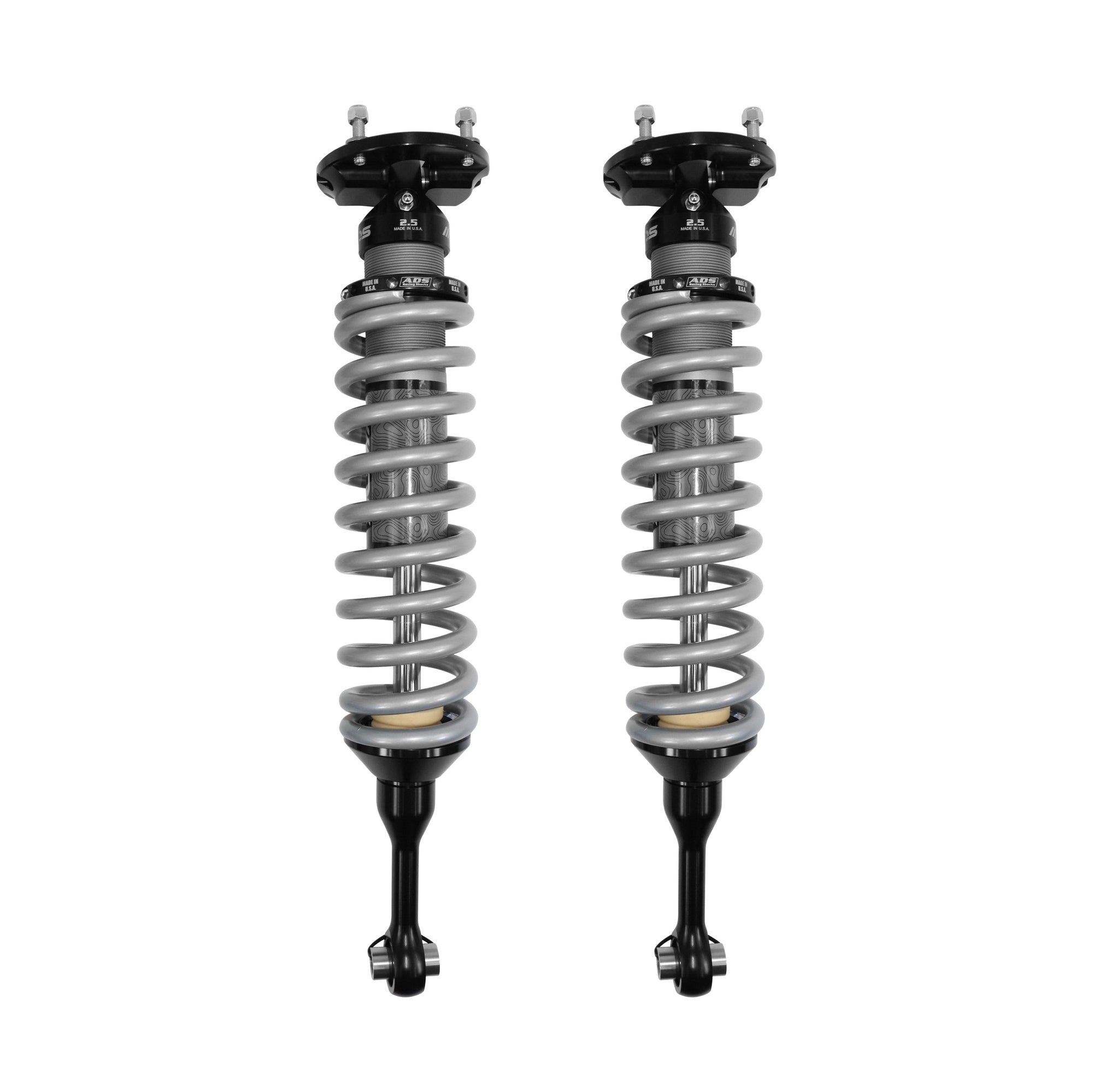

ADS Mesa 2.5" Coilovers - Front
Upgrade your rig with our bolt-on, OEM replacement suspension solutions. These premium shock absorbers are designed for maximum durability and performance, featuring a UV-stable ceramic powder-coated steel shock body and black anodized billet aluminum top and bottom caps. Hard-chrome plated steel shock shafts provide superior corrosion resistance, while spacers machined from 304 stainless steel further enhance durability. Filled with premium full synthetic shock oil, the shock absorber incorporates an internal floating piston (IFP) to ensure consistent damping performance, improved responsiveness, and increased longevity. The large bore 2.50-inch shock body increases fluid capacity, effectively resisting shock fade to boost off-road performance. Fully rebuildable, this shock absorber is the ultimate upgrade for enhancing your vehicle's suspension system.
Upgrade your rig with our bolt-on, OEM replacement suspension solutions. These premium shock absorbers are designed for maximum durability and performance, featuring a UV-stable ceramic powder-coated steel shock body and black anodized billet aluminum top and bottom caps. Hard-chrome plated steel shock shafts provide superior corrosion resistance, while spacers machined from 304 stainless steel further enhance durability. Filled with premium full synthetic shock oil, the shock absorber incorporates an internal floating piston (IFP) to ensure consistent damping performance, improved responsiveness, and increased longevity. The large bore 2.50-inch shock body increases fluid capacity, effectively resisting shock fade to boost off-road performance. Fully rebuildable, this shock absorber is the ultimate upgrade for enhancing your vehicle's suspension system.
📋
Product Specifications
Active or Passive Suspension
Passive
Adjustable Compression
No
Adjustable Rebound
No
Adjustable Reservoir
No
Adjustable Ride Height
Yes
Body Color
Silver
Body Diameter
2.5
Body Material
Steel
Brand
ADS
California Proposition 65
No
Coil Spring Insulator(s) Included
No
Collapsed Length
17.43
Cylinder Diameter
2.5
Damping Type
Oil
Dust Bood Included
No
Dust Shield Included
No
Emission Code
6
Extended Length
23.61
Finish
Ceramic Coated
Grade Type
Performance
Includes Bump Stop
No
Internal Construction Type
Monotube
Internal Rebound Bumper
No
Internal Rebound Spring
No
Lower Mount Type
Eyelet
Mounting Hardware Included
Yes
Remote Reservoir
No
Requires UCA
No
Self-Leveling
No
Shaft Diameter
0.875
Shaft Material
Hard-chrome plated steel
Spring Color
Silver
Spring Finish
Powdercoated
Spring Included
Yes
Spring Material
Steel
Spring Rate
450
Stroke
6.18
Strut Mount Insulator(s) Included
No
Travel Length
6.18
Upper Mount Type
Mounting Plate
Valving Type
Progressive
📐
Dimensions & Shipping
Product Dimensions
32.0 × 10.0 × 10.0 in
Weight
21.772 kg
