FlowtechPart 11510FLT✓ Fits 15 vehiclesMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
15 applicationsCompatible Engines
4.8L L6 292ci3.8L L6 230ci4.1L L6 250ci
Application Notes
with Black Paint Finish1-1/2 inch Tube Diameter, Standard Header, Primary Tube Coll. Size 1.5x2.5 in. Modify Stock Exhaust To Retain Catalytic Converter.
View all 15 vehicle applications
Years
Make / Model
Submodel
Engine
1963–1974
Chevrolet K10 Pickup
4.8L L6 292ci
1963–1969
Chevrolet K10 Pickup
3.8L L6 230ci
1966–1974
Chevrolet K10 Pickup
4.1L L6 250ci
1963–1974
Chevrolet K20 Pickup
4.8L L6 292ci
1963–1965
Chevrolet K20 Pickup
3.8L L6 230ci
1966–1974
Chevrolet K20 Pickup
4.1L L6 250ci
1968–1974
Chevrolet K30 Pickup
4.1L L6 250ci
1968–1974
Chevrolet K30 Pickup
4.8L L6 292ci
1967–1974
GMC K15/K1500 Pickup
4.1L L6 250ci
1967–1974
GMC K15/K1500 Pickup
4.8L L6 292ci
1967–1969
GMC K15/K1500 Pickup
3.8L L6 230ci
1967–1974
GMC K25/K2500 Pickup
4.1L L6 250ci
1967–1974
GMC K25/K2500 Pickup
4.8L L6 292ci
1968–1974
GMC K35/K3500 Pickup
4.1L L6 250ci
1968–1974
GMC K35/K3500 Pickup
4.8L L6 292ci
No applications match your search.
⭐
Key Features
Breaking in an engine with ceramic coated headers WILL result in damage to the coating and will VOID all warranties. Ceramic coated headers require several heat cycles to fully cure before they will withstand extreme heat. Flowtech recommends using cast

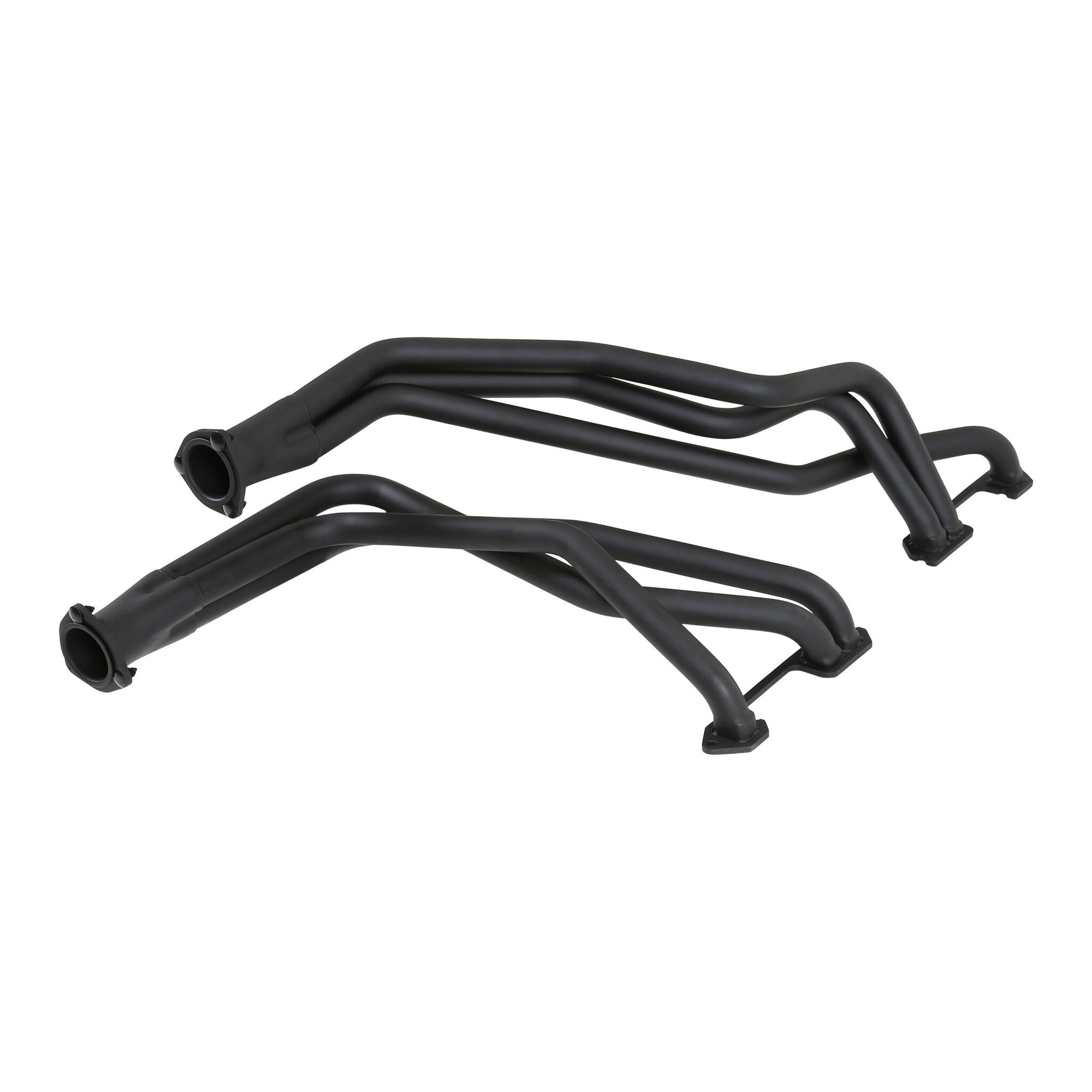

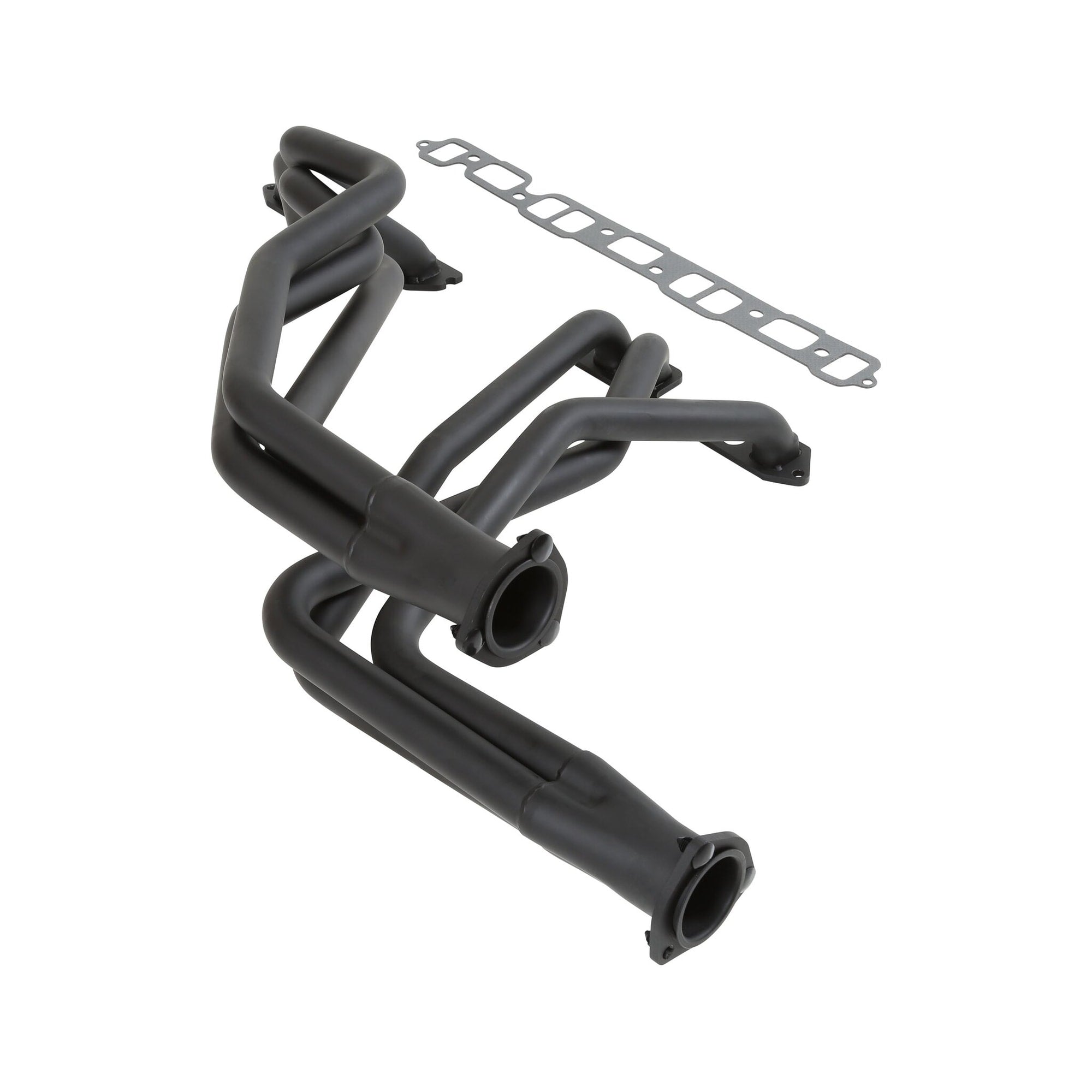

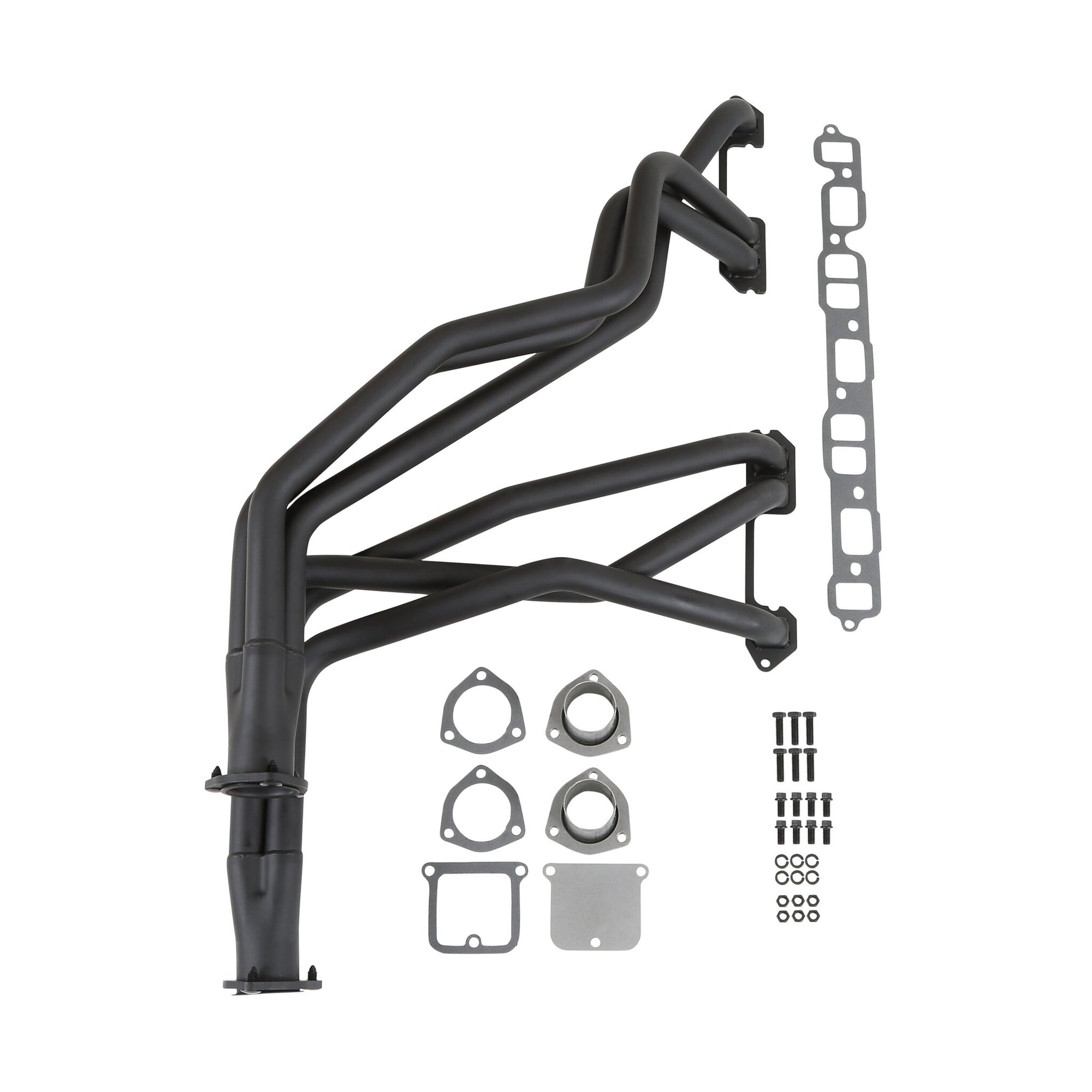

Flowtech headers are the perfect combination of performance and value. Flowtech long tube headers are precision engineered using mandrel bent tubing, formed collectors and 5/16" flanges with sealing rings for a leak-free seal. All mounting hardware and gaskets are included for a simple installation. This header is coated in a high heat resistant black paint for a stealthy appearance.
1963-1974 Chevy/GMC pick-up, 1/2, 3/4, 1-Ton pick-up, 4WD: 292, 230-250 6 Cyl., Tube Size 1.5", Collector Size 2.5"
- Fuel Economy From The Engine
- Leak Test For Max Performance
- Mandrel-Formed Power Plenum
- Leakproof O-Ringed Port Seals

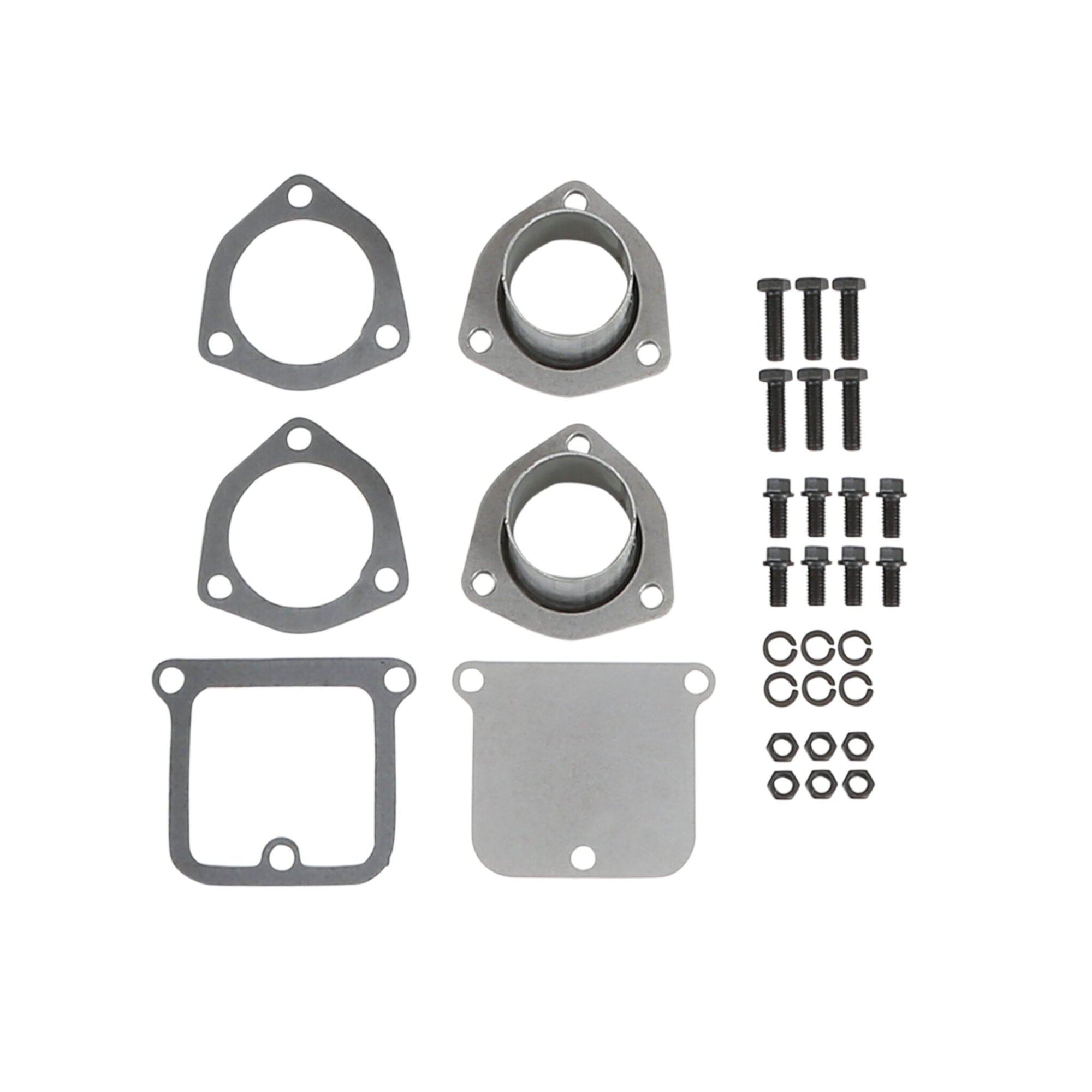

- Include All Mounting Hardware
- Constructed of .049 roll flash mild steel tubing
- Precision engineered for fit, performance and economy
📖
About this product
1963-1974 Chevy/GMC pick-up, 1/2, 3/4, 1-Ton pick-up, 4WD: 292, 230-250 6 Cyl., Tube Size 1.5", Collector Size 2.5"
📋
Product Specifications
Air Injection Tubes
No
Automotive Item Grade
Performance
Bolt Size
3/8-16 x 3/4
Bolts Included
Yes
Brand
Flowtech Exhaust
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
California Proposition 65
Yes
CARB (California) Compliant
No
Catalytic Converter Quantity
0
Category
Exhaust

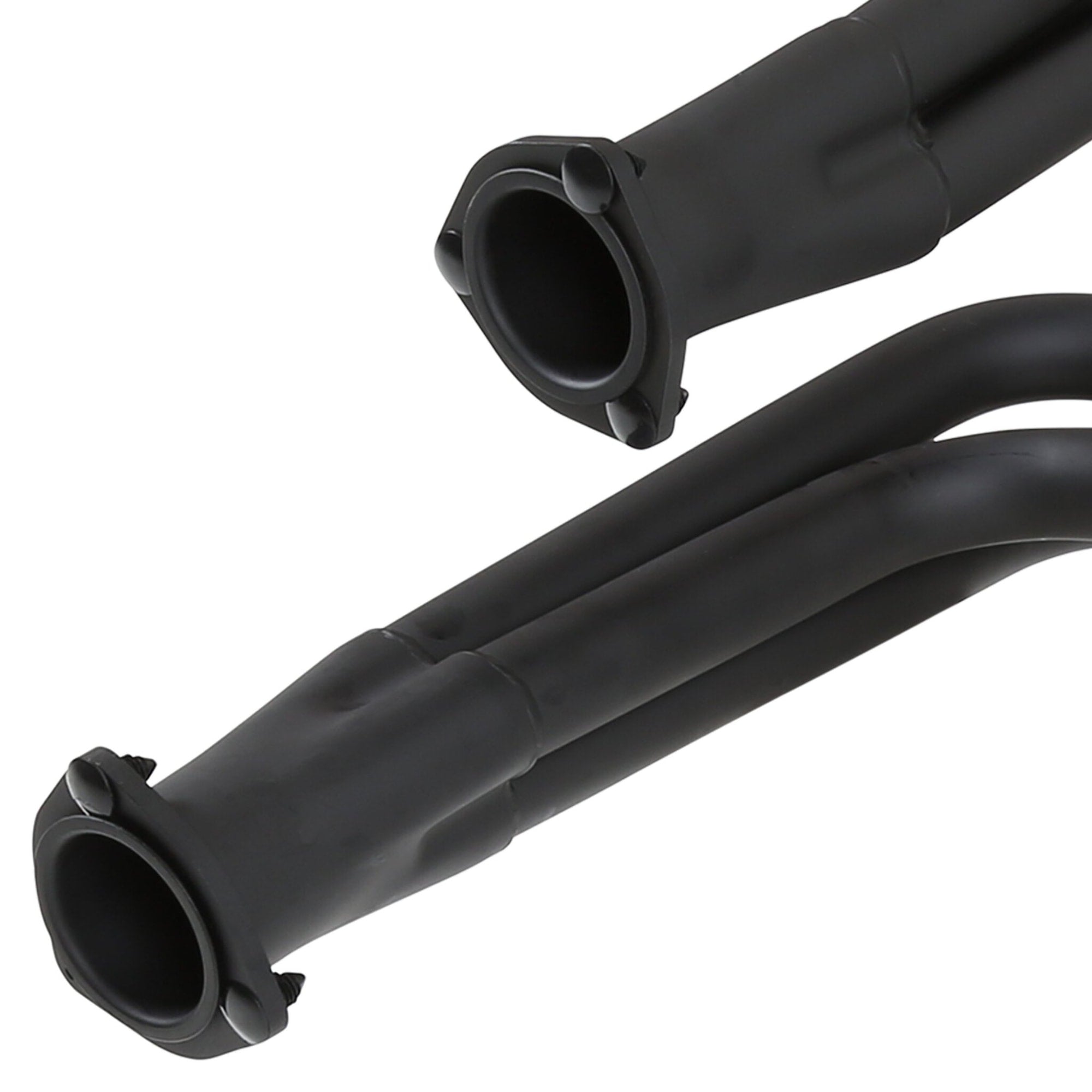

Collector Attachment
3-Bolt Flange
Collector Diameter
2.50
Collector Port Diameter
2.50
Collector Reducer Included
No
Color
Black
Design
Long Tube
Drive
2WD
Drive
4WD
EGT Port
No
Emission Code
4
Finish
Painted
Flange Thickness
0.3125
Flange Thickness
5/16

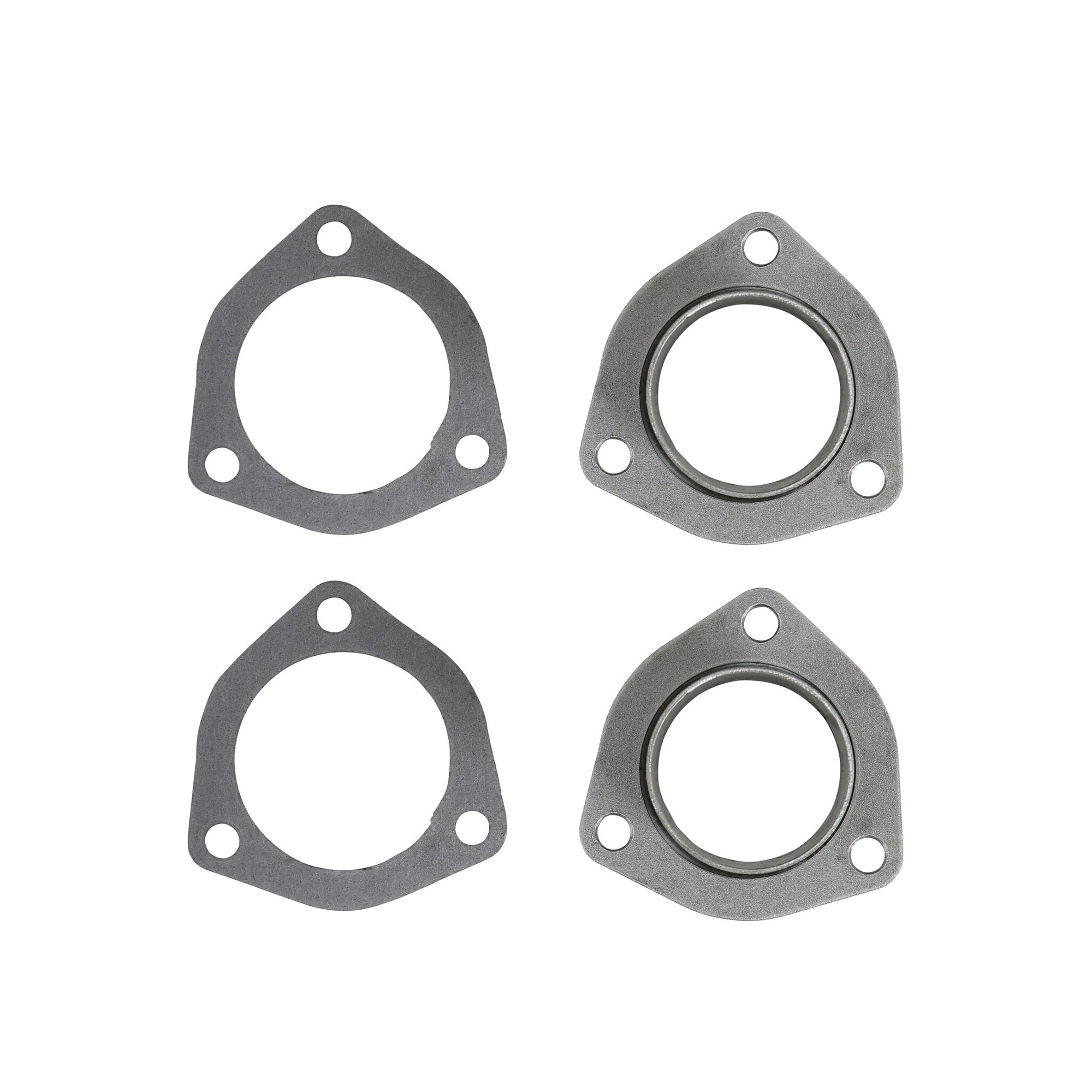

Gasket Or Seal Included
Yes
Header Series
Flowtech
Header Style
Long Tube
Material
Mild Steel
Mounting Hardware Included
Yes
Oxygen Sensor Port
No
Part Type
Exhaust Header

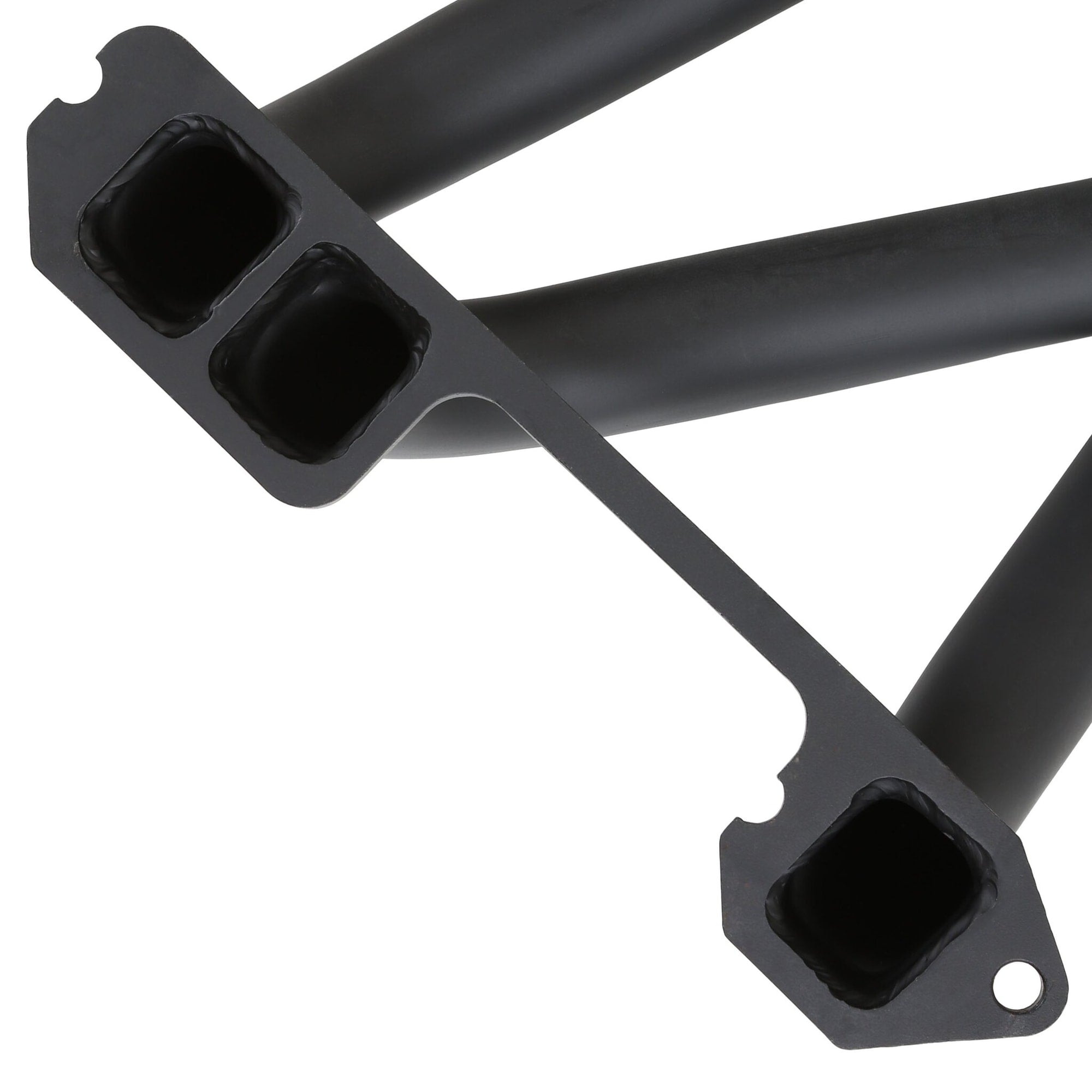

Port Shape
Square
Primary Tubing Diameter
1 1/2
Primary Tubing Diameter
1.50
Product Type
Headers
Prop 65 Yes/No
Yes
Quantity
Sold as a Pair
Sheen Level
Satin
Sub Category
Exhaust Manifolds
Tube Wall Thickness
18
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8708925000
📐
Dimensions & Shipping
Product Dimensions
42.6 × 22.0 × 10.6 in
Shipping Dimensions
42.6 × 22.0 × 10.6 in
Weight
11975 g (11.98 kg)
