FlowtechPart 11587FLT★ Universal fitMade in CN
Product Details
⭐
Key Features

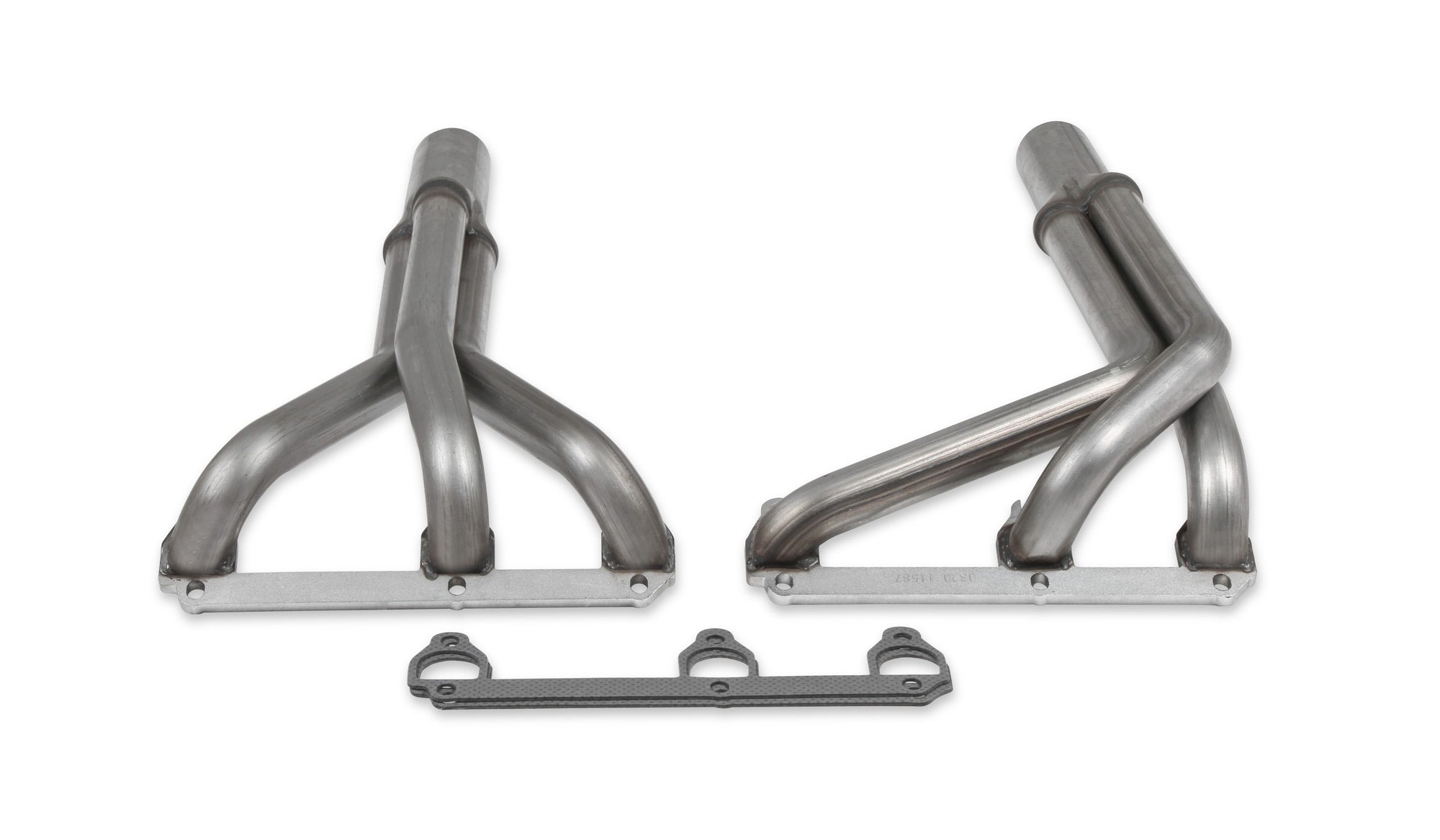

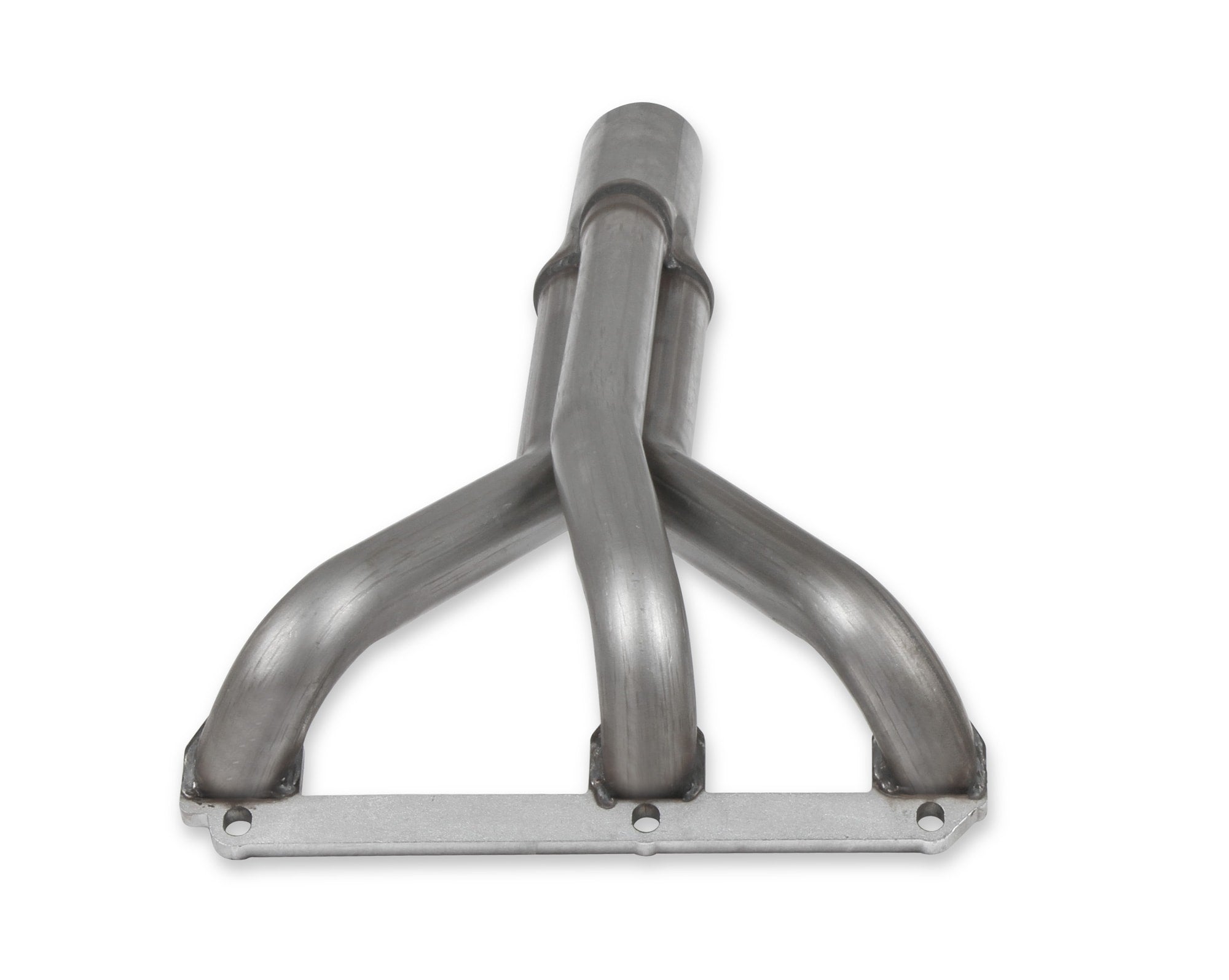

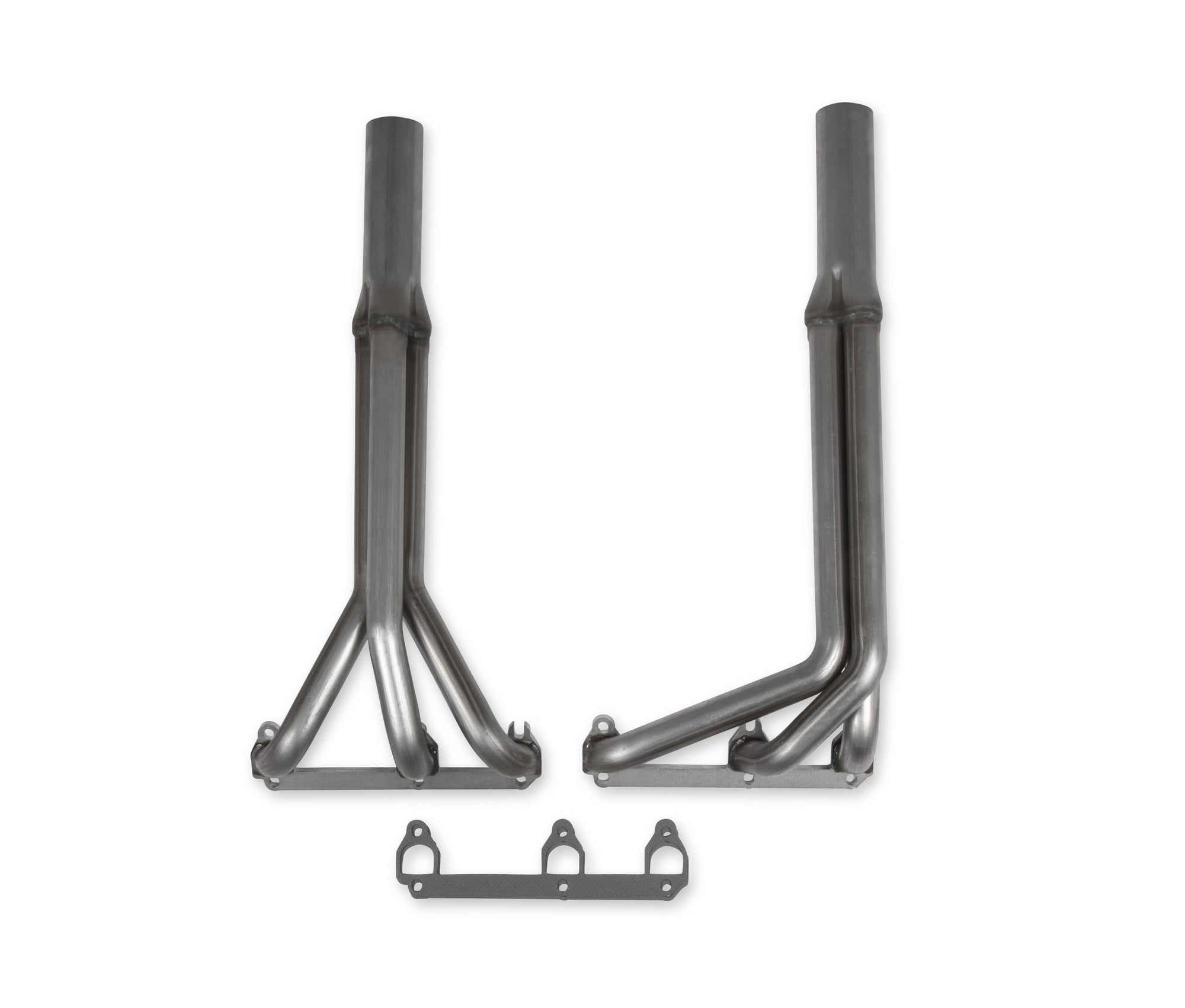

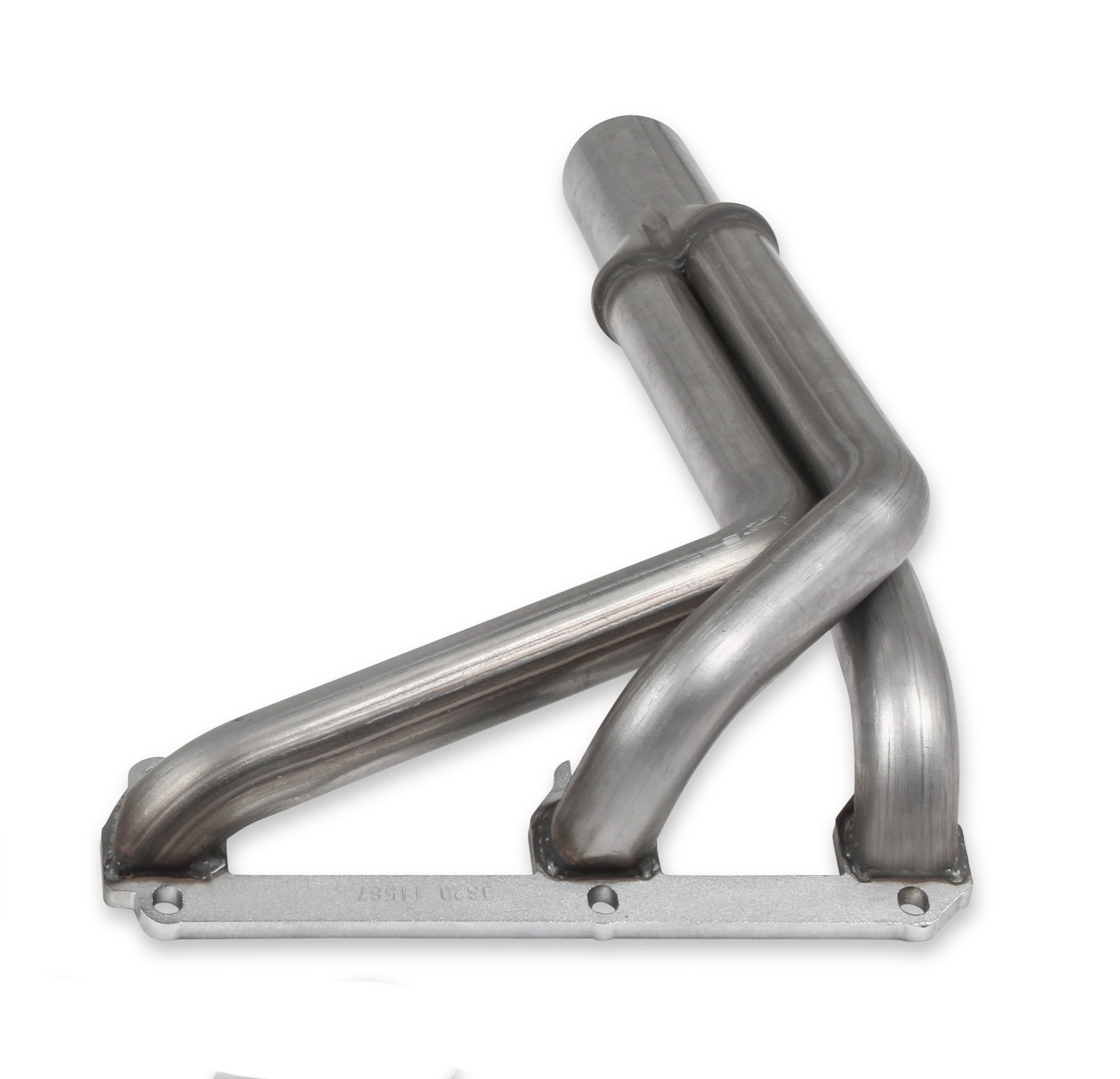

GM 2.8/3.1/3.4L V6, D-Port Upright headers 1-1/2" primary, 20" Long, 27" tall, 2-1/2" x 10" collector - 409SS Natural Finish

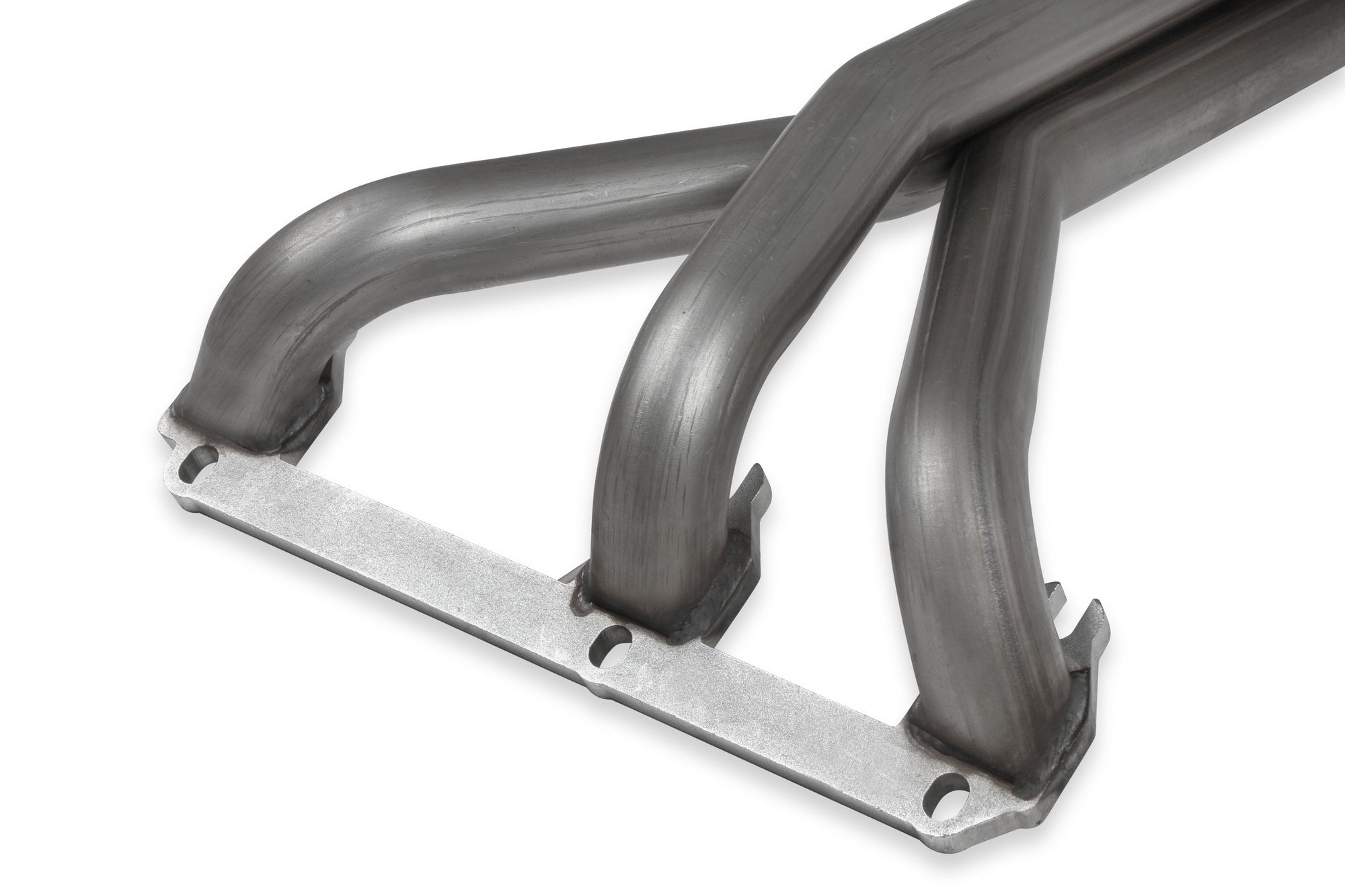

These Flowtech upright derby style headers fit the 2.8L, 3.1L and 3.4L GM V6 engines with both round port or D-port style exhaust ports. 1-1/2 in. and 1-5/8 in. mandrel bent primary tubes provide consistent tubing diameters for smooth flow of the exhaust pulses and increase the cylinder scavenging of the exhaust to improve engine breathing. The headers are constructed from heavy duty 16-gauge 409 stainless steel tubing for increased strength and durability. These headers use a 10 in. long, 2.5 in. collector with 20 in. long primary tubes. The 3/8 in. thick header flange provides a leak-free seal and maximizes strength.
GM 2.8/3.1/3.4L V6, D-Port Upright headers 1-1/2" primary, 20" Long, 27" tall, 2-1/2" x 10" collector - 409SS Natural Finish
- Mandrel bent tubes provide consistent tubing diameters for better exhaust pulse flow and improved performance
- 1-1/2 in. and 1-5/8 in. primary diameters available for increased exhaust flow and improved throttle response
- Heavy duty 16-gauge 409 Stainless Steel used for strength and durability

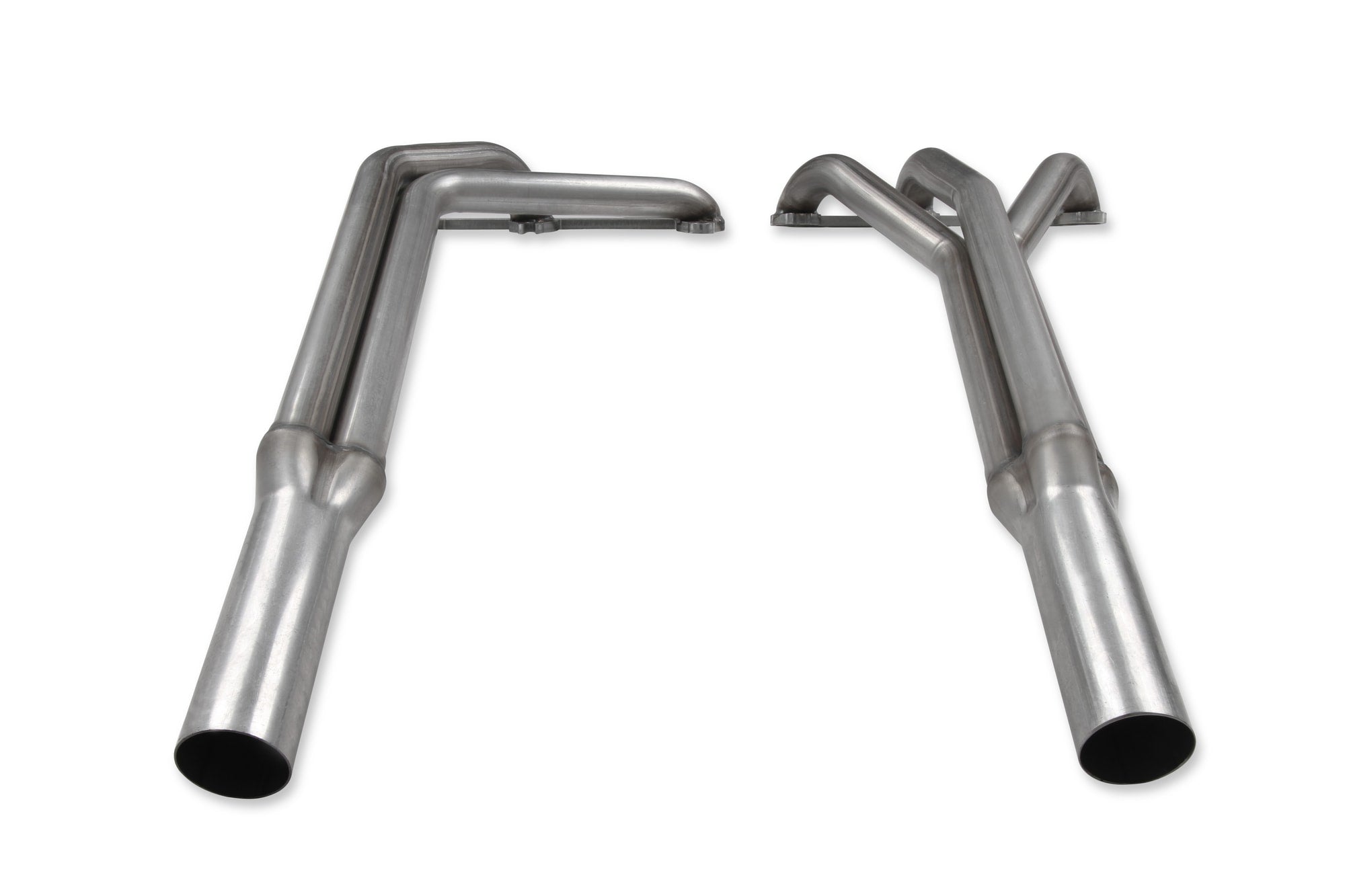

- 10 in. long, 2.5 in. collector improves exhaust flow

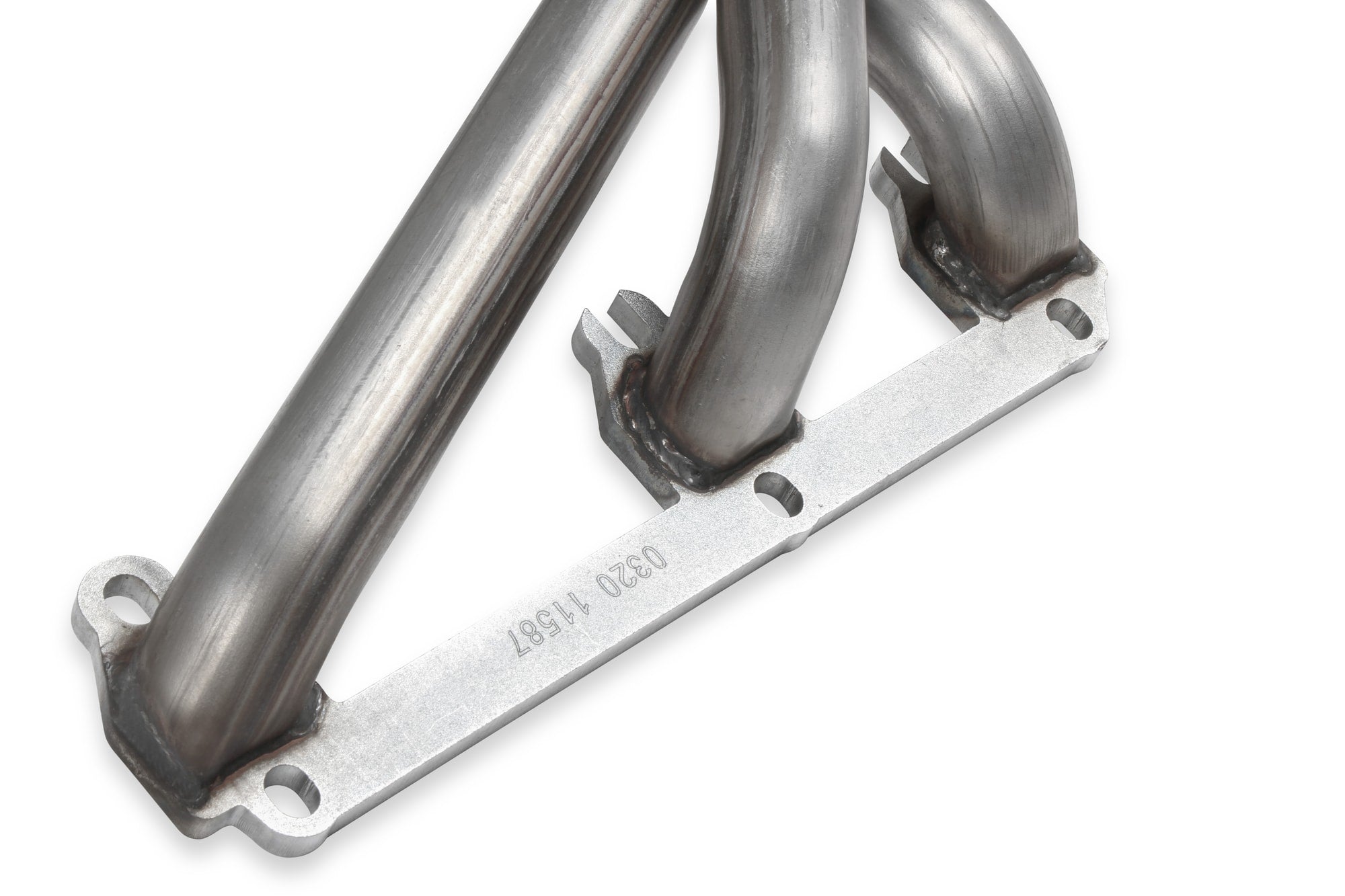

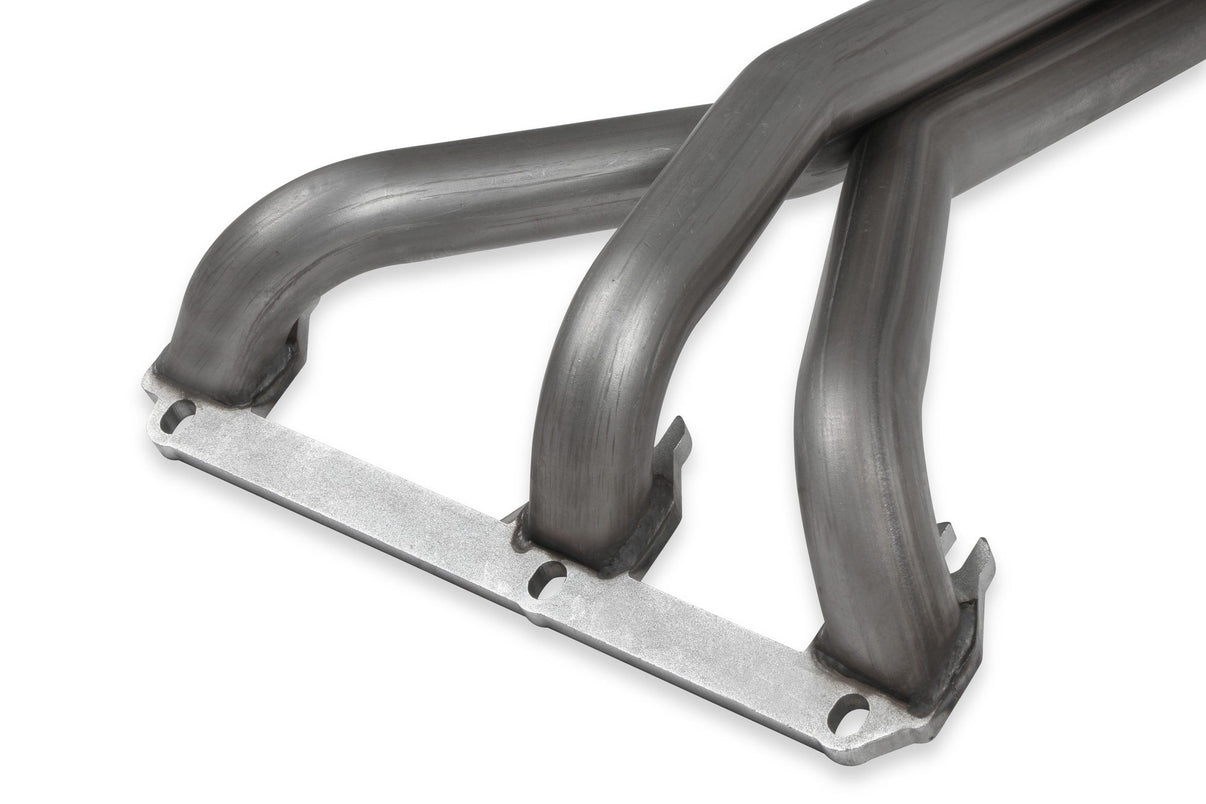

- 3/8 in. thick header flange for a leak-free seal and maximum strength
- Available for both round and D-port exhaust ports

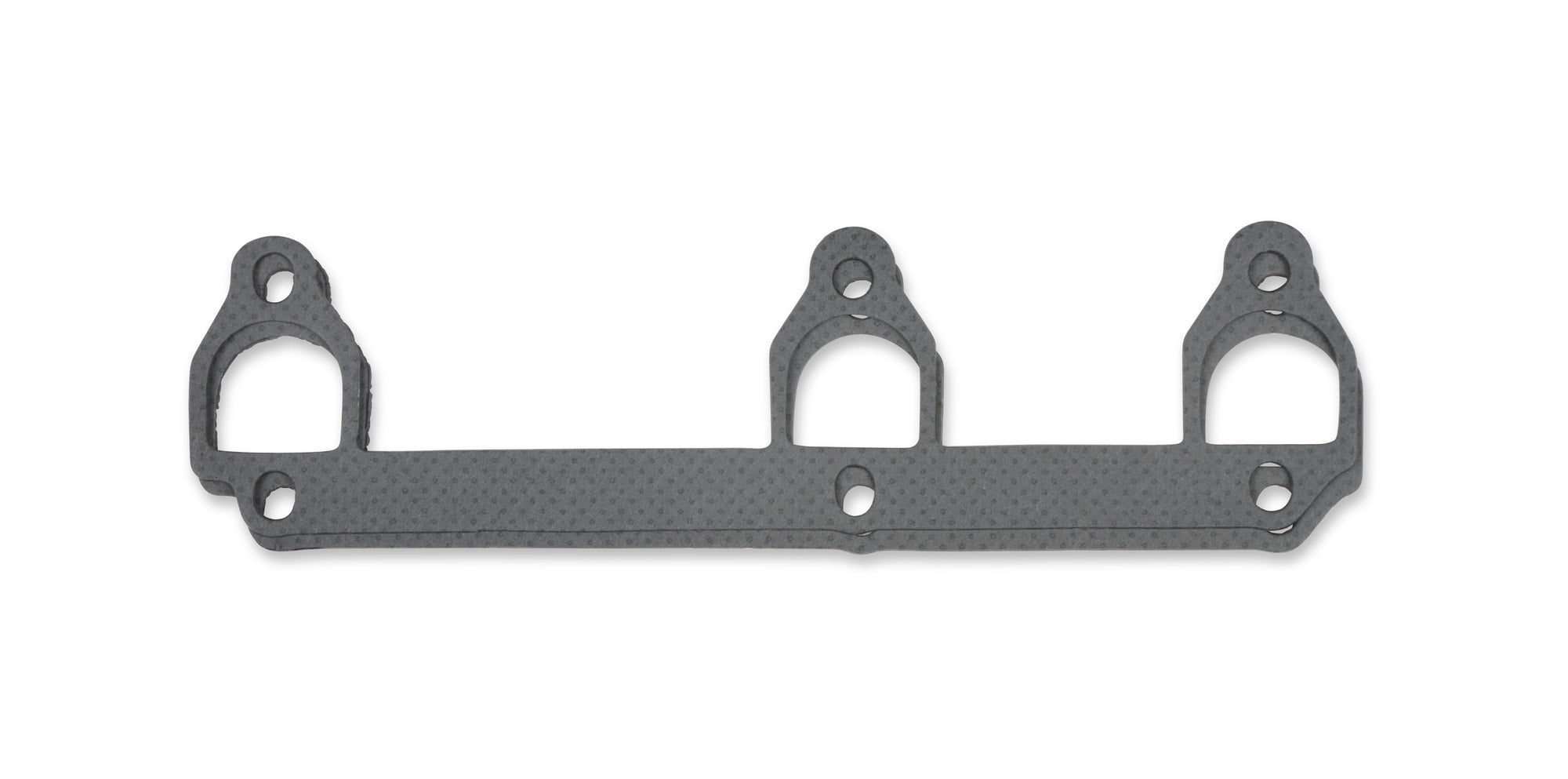

- Header gaskets included
📖
About this product
GM 2.8/3.1/3.4L V6, D-Port Upright headers 1-1/2" primary, 20" Long, 27" tall, 2-1/2" x 10" collector - 409SS Natural Finish
📋
Product Specifications
Air Injection Tubes
No
Automotive Item Grade
Performance
Bolts Included
No
Brand
Flowtech Exhaust
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
California Proposition 65
Yes
CARB (California) Compliant
No
Category
Exhaust
Collector Attachment
Weld-On
Collector Diameter
2.50
Collector Length
10.00
Collector Port Diameter
2.50
Collector Reducer Included
No
Color
Silver
Design
Upright
Drive
2WD
Drive
4WD
EGT Port
No
Emission Code
4
Finish
Natural
Flange Thickness
0.375
Flange Thickness
3/8
Gasket Or Seal Included
Yes
Header Series
Flowtech
Header Style
Upright
Installed Height
27.00
Material
409 Stainless Steel
Mounting Hardware Included
No
Oxygen Sensor Port
No
Part Type
Exhaust Header
Port Shape
D-port
Primary Tube Length
20 inch
Primary Tubing Diameter
1 1/2
Primary Tubing Diameter
1.50
Product Type
Headers
Prop 65 Yes/No
Yes
Quantity
Sold as a pair
Sheen Level
Satin
Sub Category
Exhaust Manifolds
Tube Wall Thickness
16
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8708925000
📐
Dimensions & Shipping
Product Dimensions
31.1 × 13.2 × 10.7 in
Shipping Dimensions
31.1 × 13.2 × 10.7 in
Weight
7870 g (7.87 kg)
