Product Details
⭐
Overview

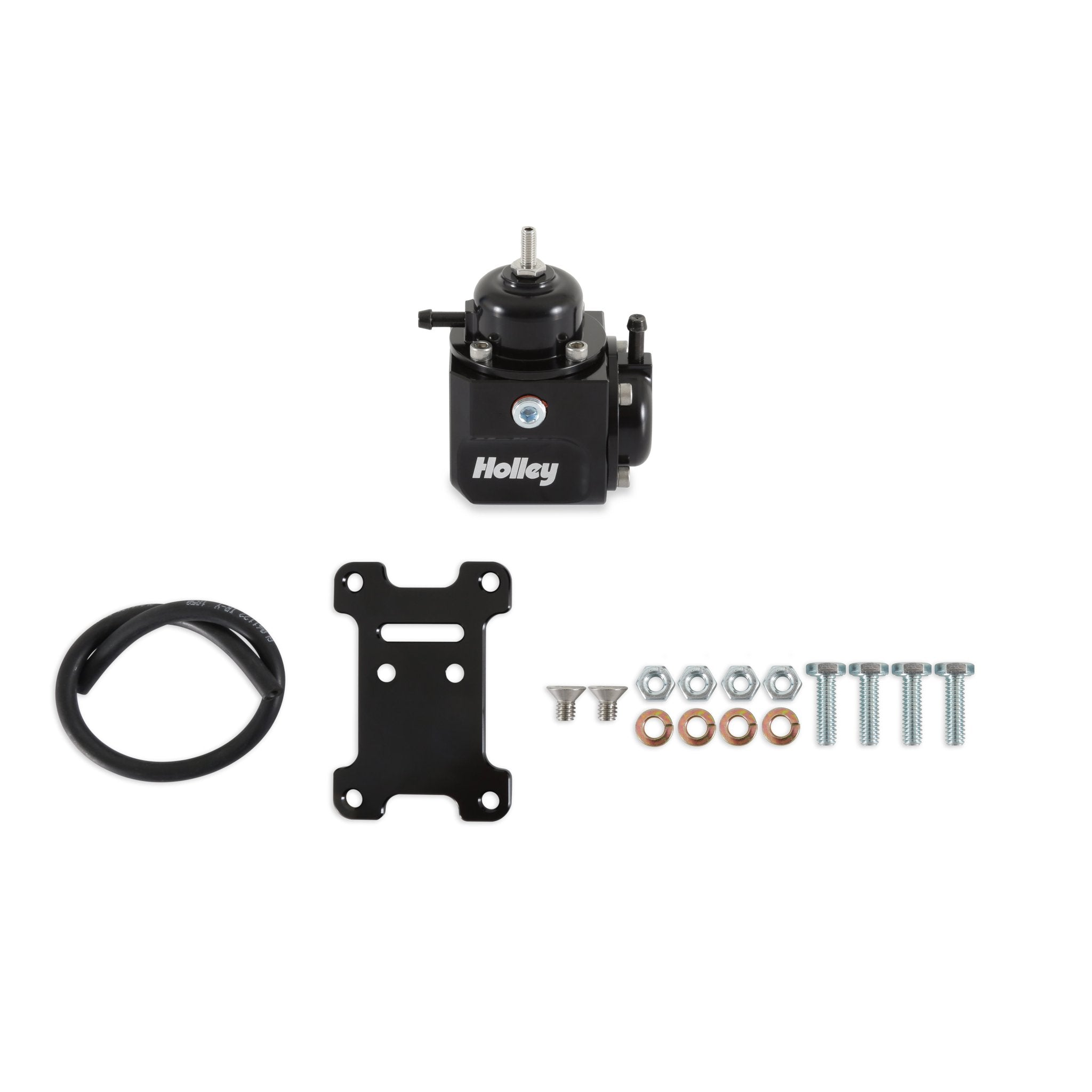

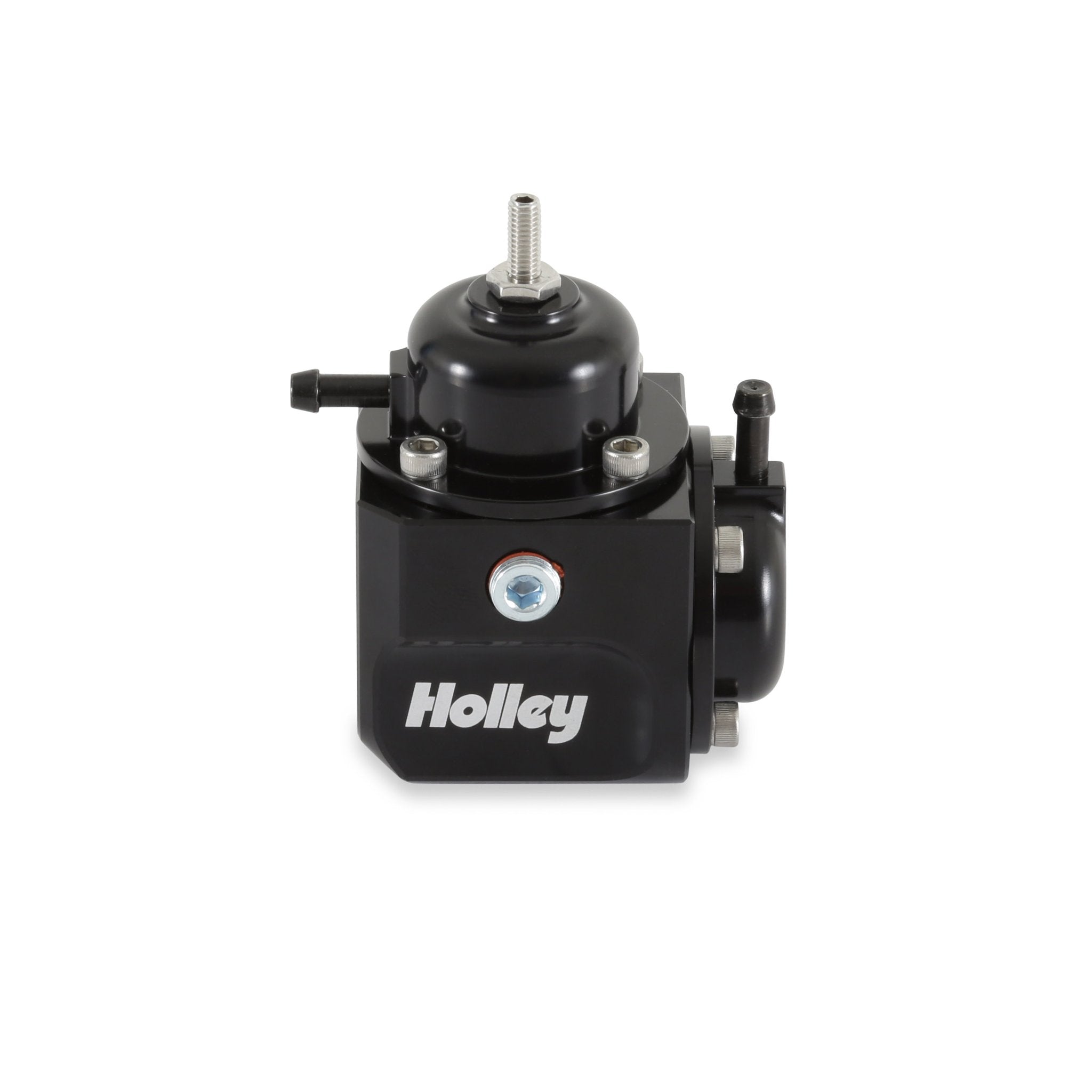

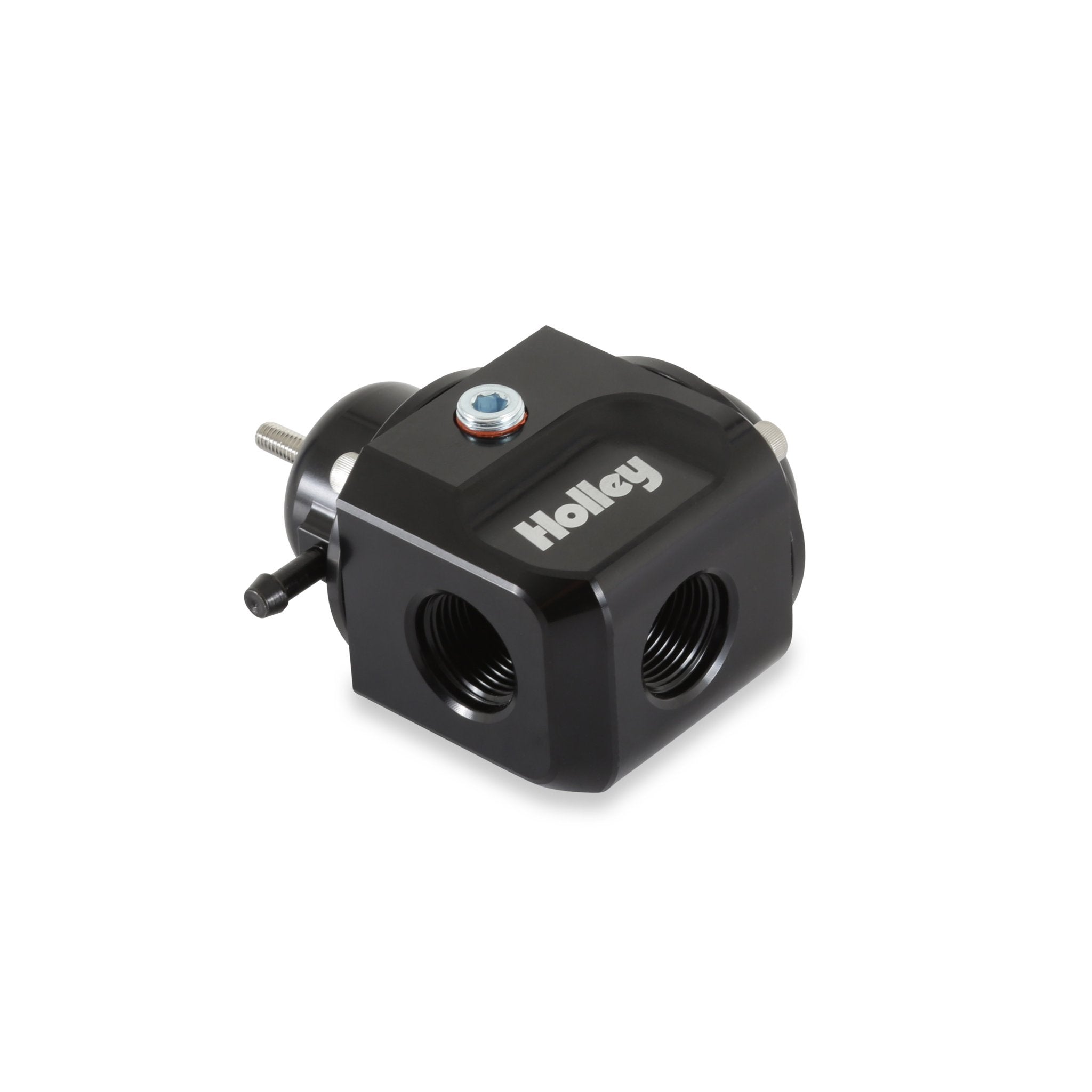

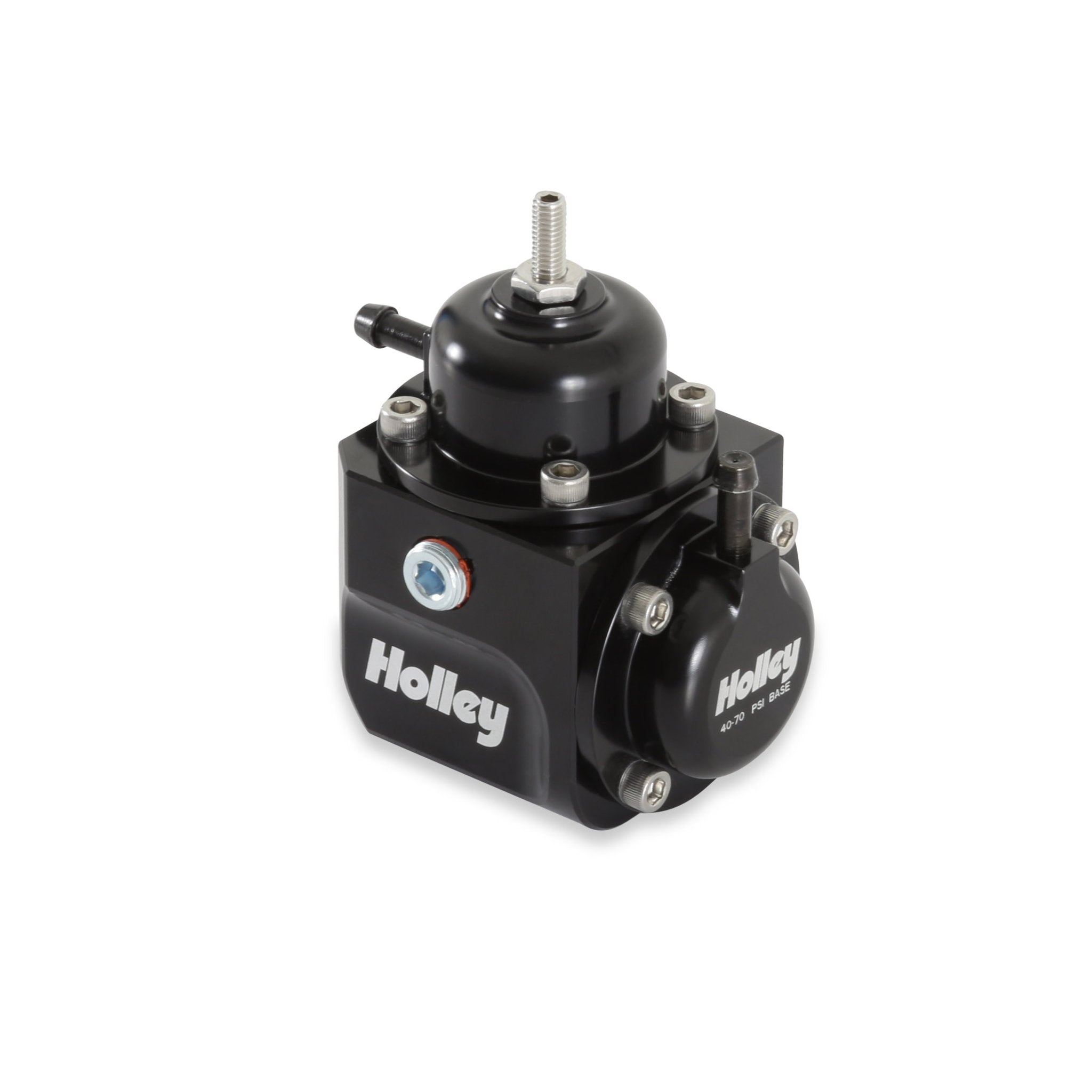

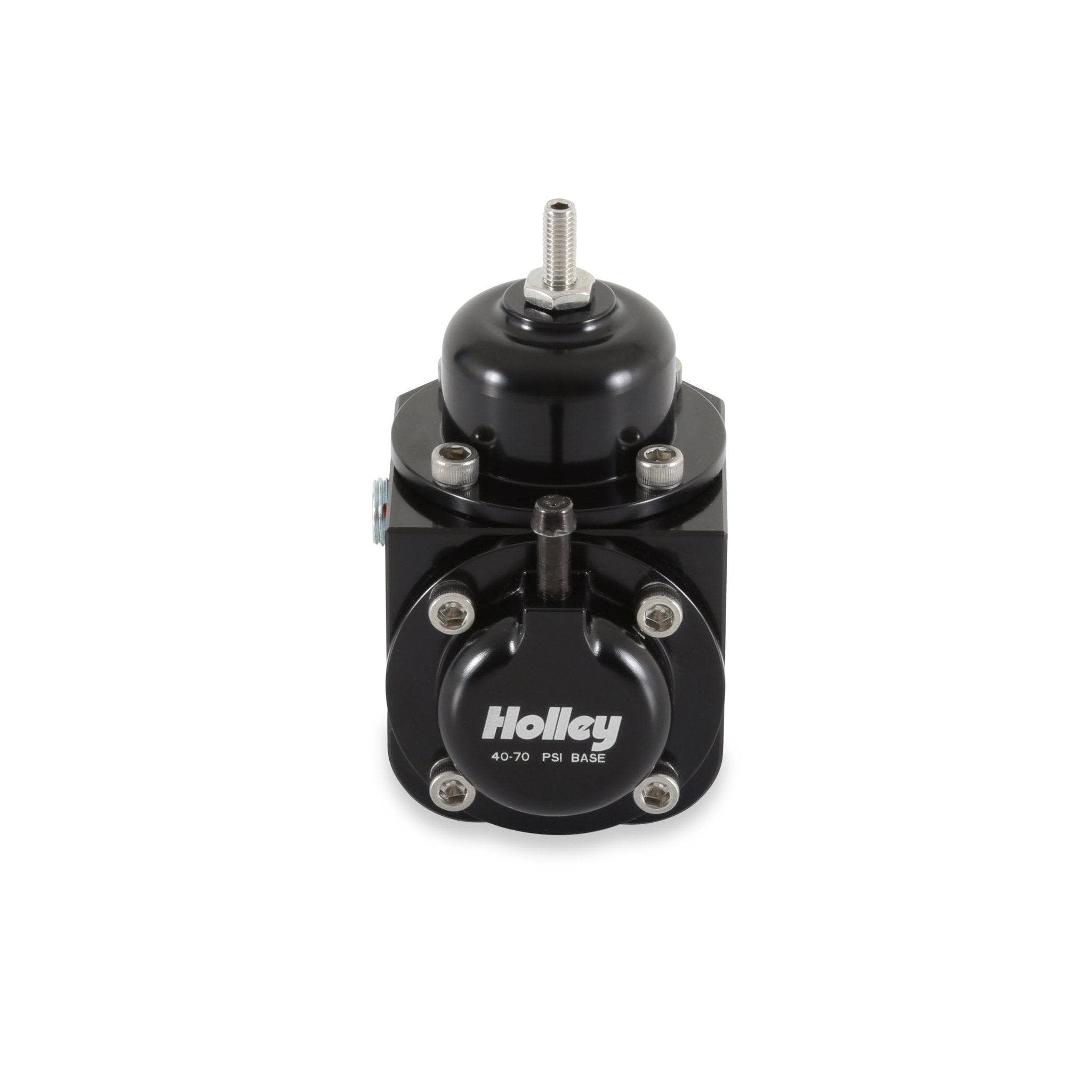

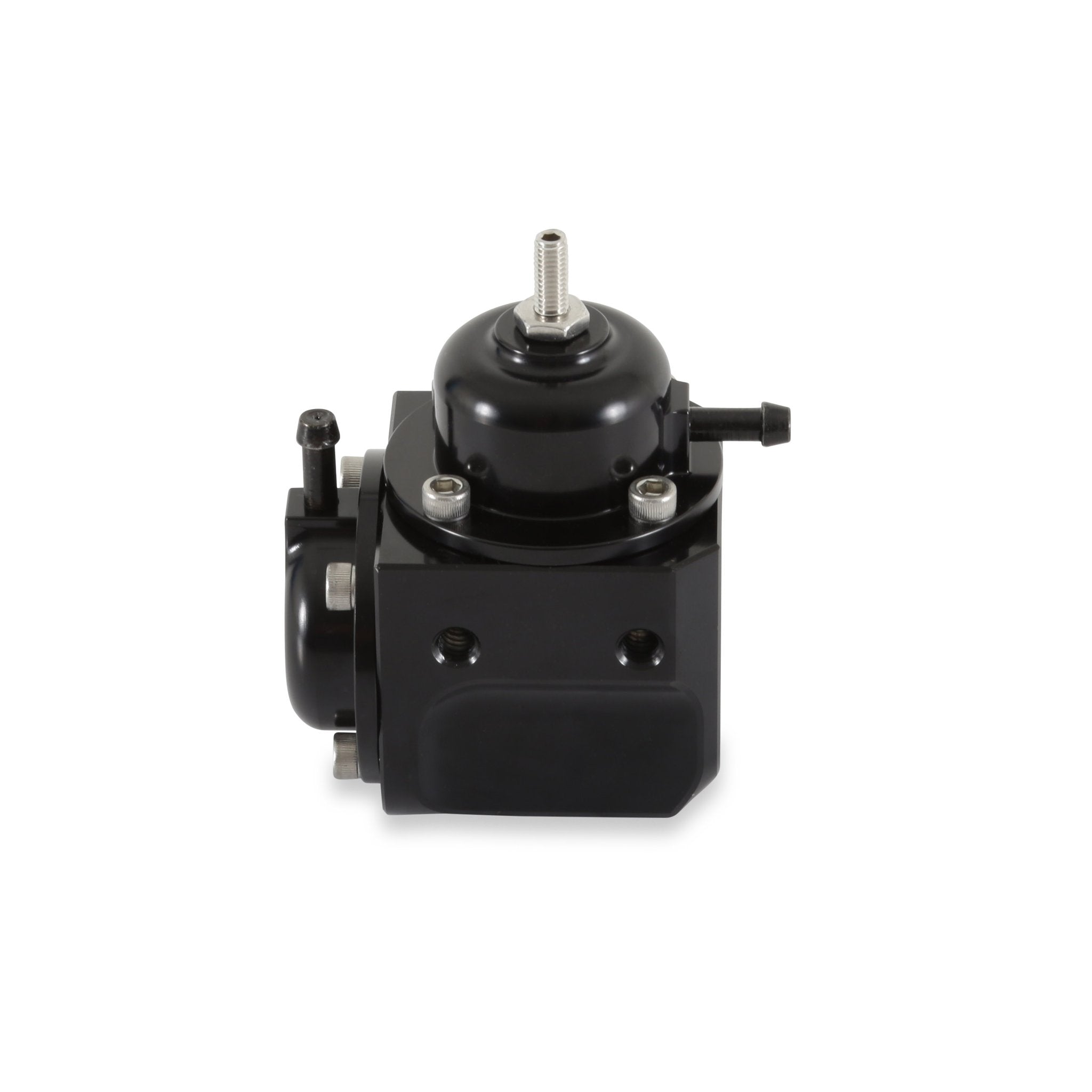

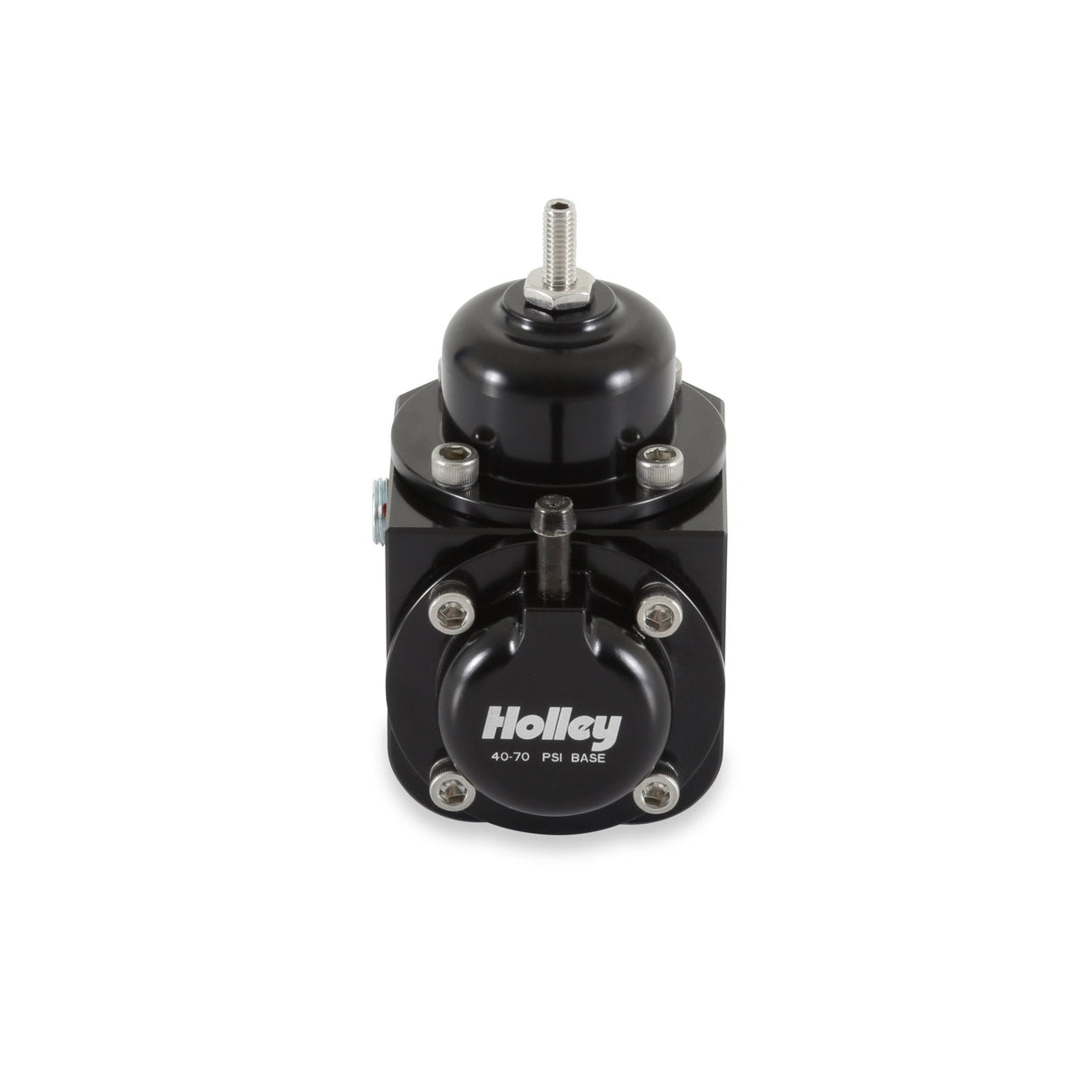

REGULATOR/DAMPER, STANDARD RANGE 40-70PSI
- Engineered to stabilize pressure pulsations caused by the injectors opening, ideal for applications with large fuel injectors and high volume fuel pumps
- Compatible with any fuel -- full anodized billet aluminum construction with stainless steel springs and fluorosilicone diaphragm

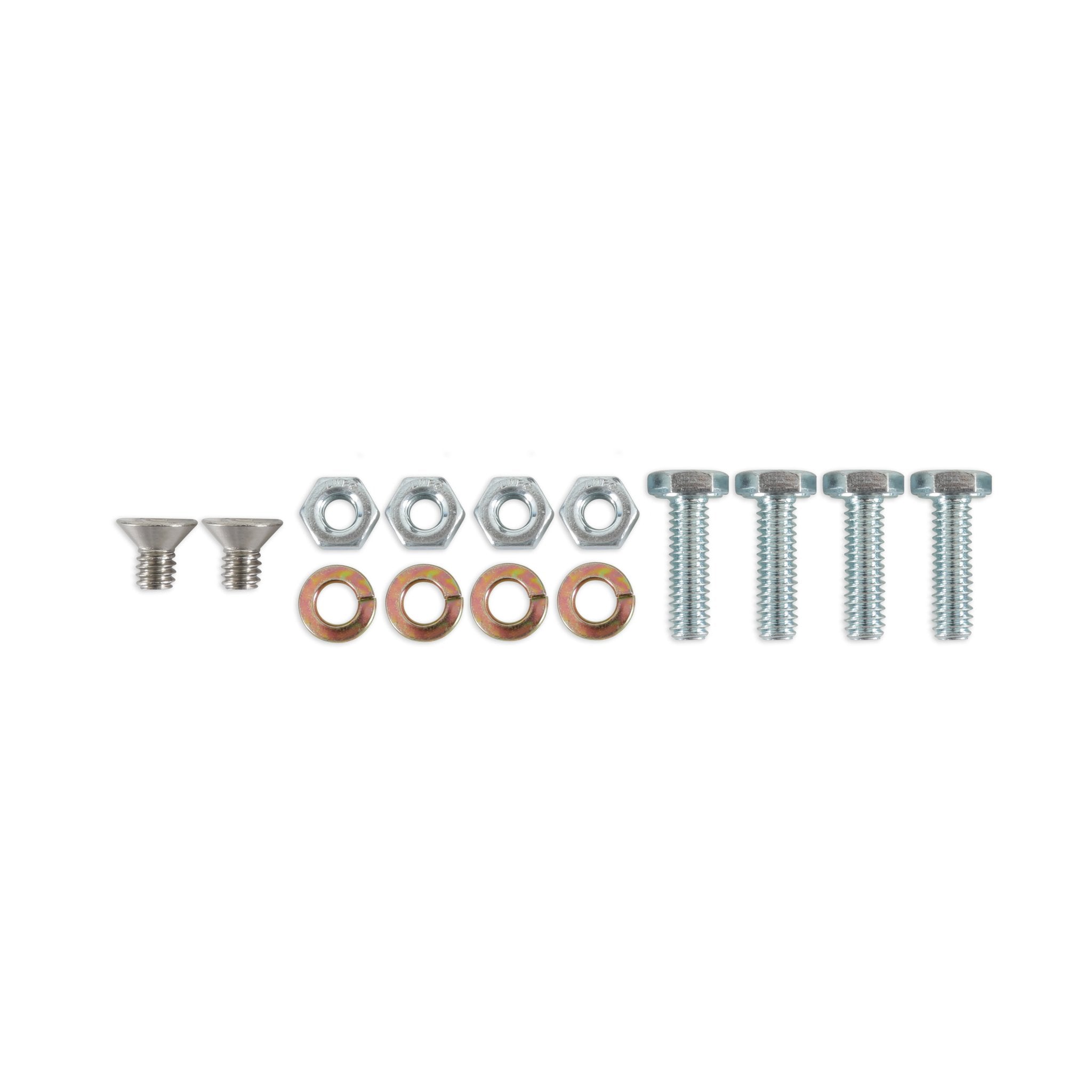

- Fittings included for damper/regulator„s and direct mount dampers
- 1/8" NPT port on body of damper/regulators and in-line dampers for easy installation of mechanical pressure gauge or pressure transducer

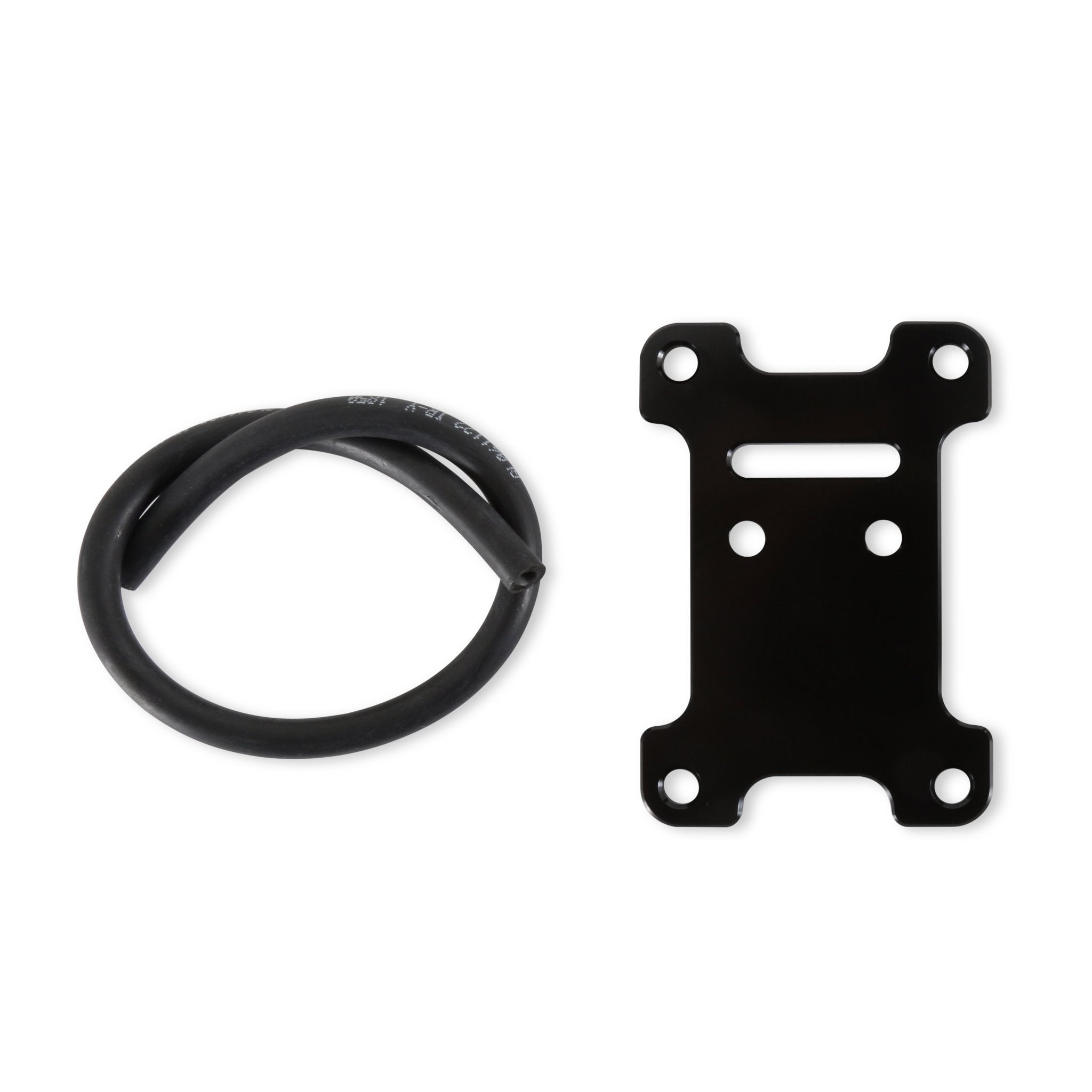

- Vacuum fitting and one foot of hose included with all dampers for vacuum referencing
- Assembled and tested in the USA
📋
Product Specifications
Adjustable
Yes
Brand
Holley
Collection
Suspension & Steering
Collection
Suspension & Steering - Steering Racks & Columns
Fuel Type
Gasoline / Ethanol / Methanol / E85
Gauge Included
No
Gauge Port Included
Yes
Grade Type
Performance
Inlet / Outlet Size
3/4-16 Female O-Ring (AN 8)
Inlet Gender
Female
Inlet Port Diameter
8 AN ORB
Inlet Port Quantity
1
Inlet Type
8 AN ORB
Maximum Pressure
70 PS
Menu
Carburetion
Minimum Pressure
40 PS
Mounting Bracket Included
Yes
Mounting Type
Inline
Outlet Gender
Female
Outlet Port Diameter
8 AN ORB
Outlet Port Quantity
1
Outlet Type
8 AN ORB
Part Type
Fuel Pressure Regulator
Port Quantity
2
Pressure Range
40-70 PSI
Product Type
Fuel Pressure Regulator/ Damper
Rebuildable
Yes
Style
Billet Aluminum
Vacuum Port Quantity
2
