Product Details
Product Specifications
Application
Universal
Average Flow Rating
255 LPH
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Connector Color
Black
Connector Gender
Male
Connector Quantity
1
Fuel Filter Included
Yes
Fuel Sending Unit Included
No
Fuel Tank Pressure Sensor Included
No
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
Grade Type
Performance
Inlet Fitting Thread Size
1/4 IN
Inlet Quantity
One
Inlet Type
NPT
Internal Or External Strainer
External
Lock Ring Included
Yes
Maximum Pressure
60 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
Yes
Negative Ground
Yes
NPT Thread
1/4 NPT
Outlet Fitting Thread Size
1/4 IN
Outlet Quantity
One
Outlet Type
NPT
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Type
Electric
Regulator Included
No
Top Mount Diameter
5 IN
Universal Or Specific Fit
Universal
Voltage
12 2H
Wire Harness Included
Yes
Wire Quantity
2
Product Description
Key Features
255 LPH Drop-In Retrofit EFI Fuel System w/Hydramat
Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
- The easiest way to convert your vehicle to an in-tank, EFI fuel system
- Installs in any fuel tank from 7� to 12� deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed
- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride

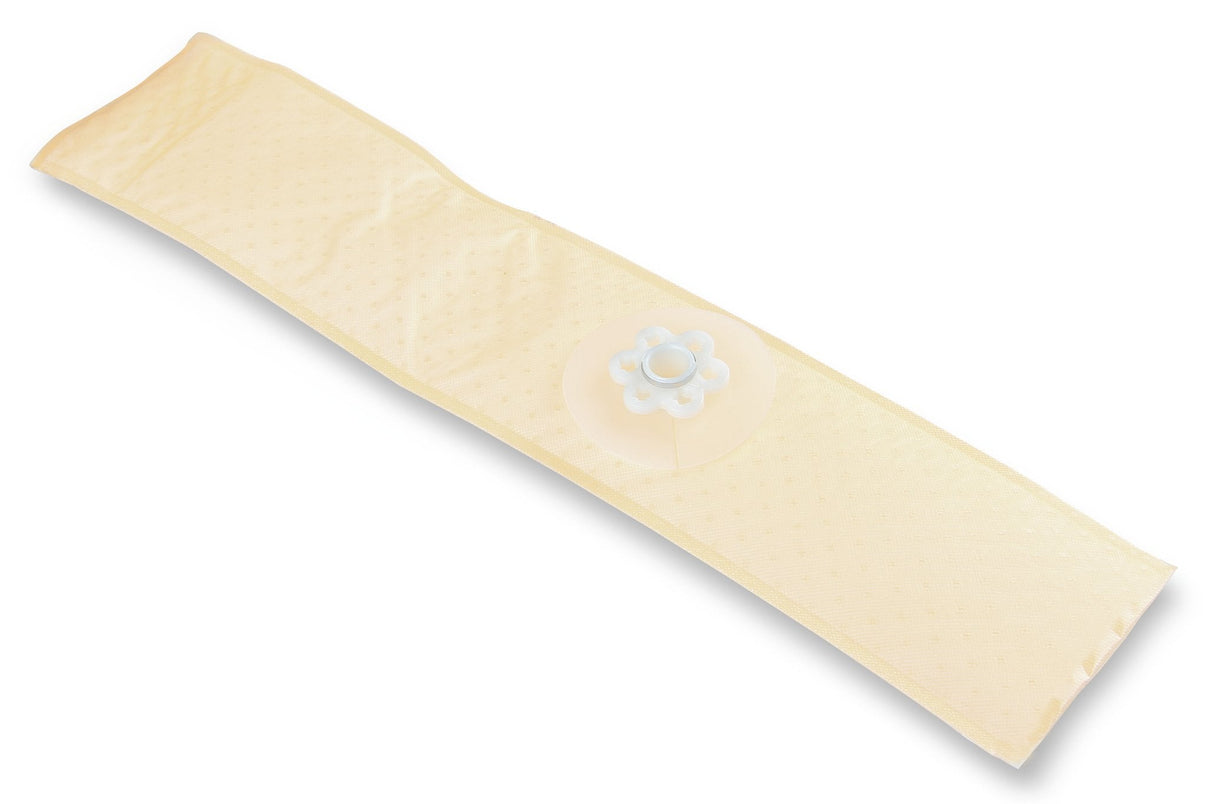

- Includes innovative Holley Hydramat to ensure consistent fuel supply. The 3� x 15� HydraMat mounting flange has 6 clocking pin locations to allow for 360 degree adjustment to clear sending unit levels or any tank floor restrictions
- Black anodized aluminum construction for corrosion resistance and long lasting good looks
- ¼� NPT ports for a wide variety of plumbing options
- Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion
- Optional roll over valve available
- Two different fuel pumps are available to match your requirements - 255LPH or 400LPH for both return and returnless style systems
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
Compatibility
Fits Holley In-Tank Retrofit Fuel Module - 255 LPH.
Please refer to manufacturer specifications for complete compatibility information.
