HolleyPart 12-170Made in CN
Product Details
⭐
Key Features
Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.
Holley's 100 GPH (gallons per hour) fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles It utilizes -8 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. | The pump supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas, Race gas, Diesel or E85. The 12-170 fuel pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels. The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting). | A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included.
Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85
- Designed for high output naturally aspirated and forced induction EFI and carbureted vehicles. The roller vane design pump provides fuel pressure and volume to support up to 900 EFI N/A or 700 EFI Boosted horsepower.
- The 12-170 pump is compatible with Pwm
- Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life)
- The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting)

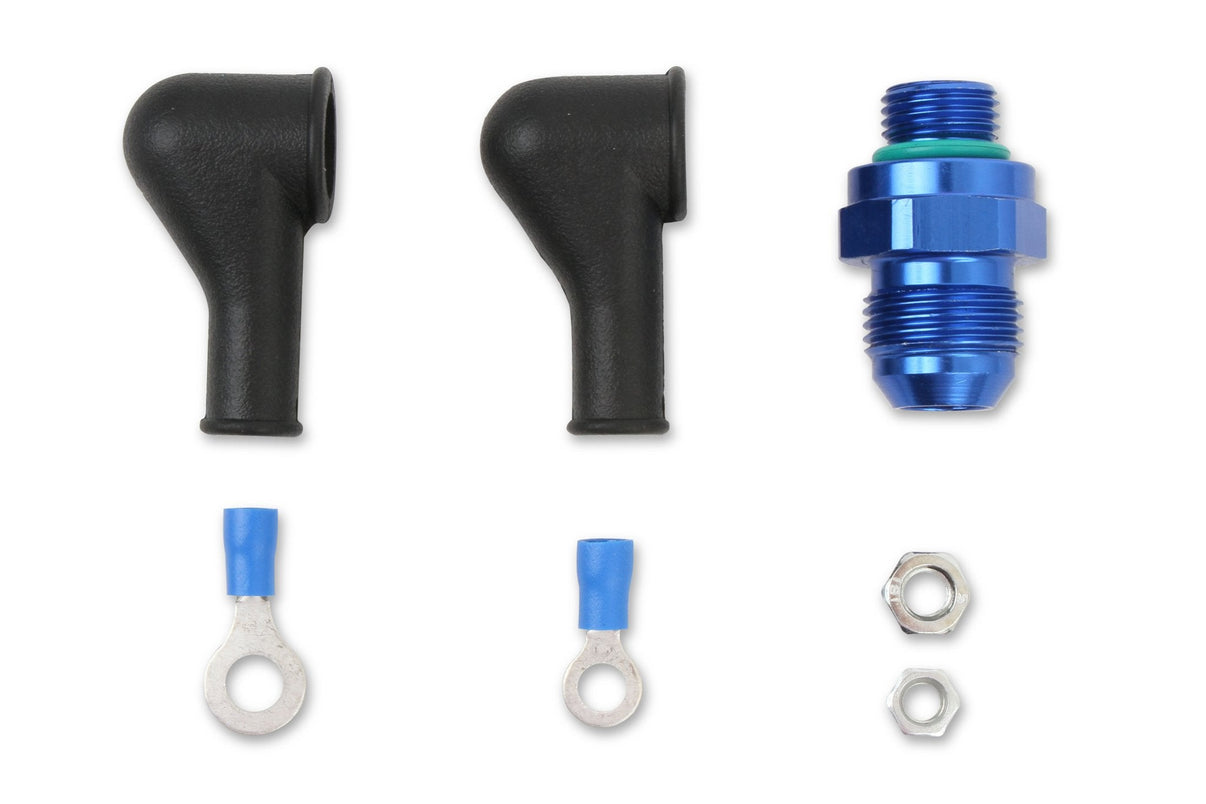

- Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions
📖
About this product
Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85
📋
Product Specifications
Application
Universal
Automotive Item Grade
Performance
Brand
Holley
California Proposition 65 Chemical Name
4
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Forced Induction Hp@43psi
750
Forced Induction Hp@60psi
700
Forced Induction Hp@8psi
800
Free Flow GPH
105
Free Flow LPH
400
Fuel Delivery Type
Carburetor
Fuel Delivery Type
Fuel Injection
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Gasoline / Diesel / E85
Gasket Or Seal Included
No
Gph@43psi
96
Gph@60psi
91
Gph@8psi
105
Grade Type
Performance
Inlet Fitting Thread Size
3/4-16
Inlet Fitting Thread Size
3/4-16 IN
Inlet Size
8 AN O-Ring - 3/4-16 SAE
Inlet Type
8 AN ORB
Internal Or External
External
Lph@43psi
364.7 without check valve
Lph@60psi
343.6 without check valve
Lph@8psi
390
Material
Aluminum
Maximum Flow Rating
100
Maximum Flow Rating
100 GPH
Maximum Pressure
60
Maximum Pressure
60 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
No
Naturally Aspirated Hp@43psi
950
Naturally Aspirated Hp@60psi
900
Naturally Aspirated Hp@8psi
1050
Negative Ground
Yes
Outlet Fitting Thread Size
9/16-18
Outlet Fitting Thread Size
9/16-18 IN
Outlet Quantity
1
Outlet Size
6AN
Outlet Type
6 AN ORB
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Pump Body Color
Black Anodized
Regulator Included
No
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Terminal Quantity
2
Universal Or Specific Fit
Universal
Voltage
12
Voltage
12 2H
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wire Quantity
2
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
5
HS Code
8413309030
📐
Dimensions & Shipping
Product Dimensions
8.0 × 5.2 × 4.0 in
Shipping Dimensions
8.0 × 5.2 × 4.0 in
Weight
1247 g (1.25 kg)
