Product Details
Product Specifications
Application
Universal
Average Flow Rating
900 LPH
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Connector Color
Black
Fuel Filter Included
Yes
Fuel Sending Unit Included
No
Fuel Tank Pressure Sensor Included
No
Fuel Type
E85
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
Grade Type
Performance
Inlet Quantity
One
Inlet Type
8 AN ORB
Internal Or External Strainer
External
Lock Ring Included
Yes
Maximum Pressure
60 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
Yes
Negative Ground
Yes
Outlet Quantity
One
Outlet Type
8 AN ORB
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Type
Electric
Regulator Included
No
Top Mount Diameter
4 IN
Universal Or Specific Fit
Universal
Voltage
12 2H
Wire Harness Included
Yes
Wire Quantity
4
Product Description
Key Features
Dual 450 LPH Drop-In Retrofit EFI Fuel System-E85 Compatible Supports up to 1700 EFI or 2200 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 34 AMP Draw)

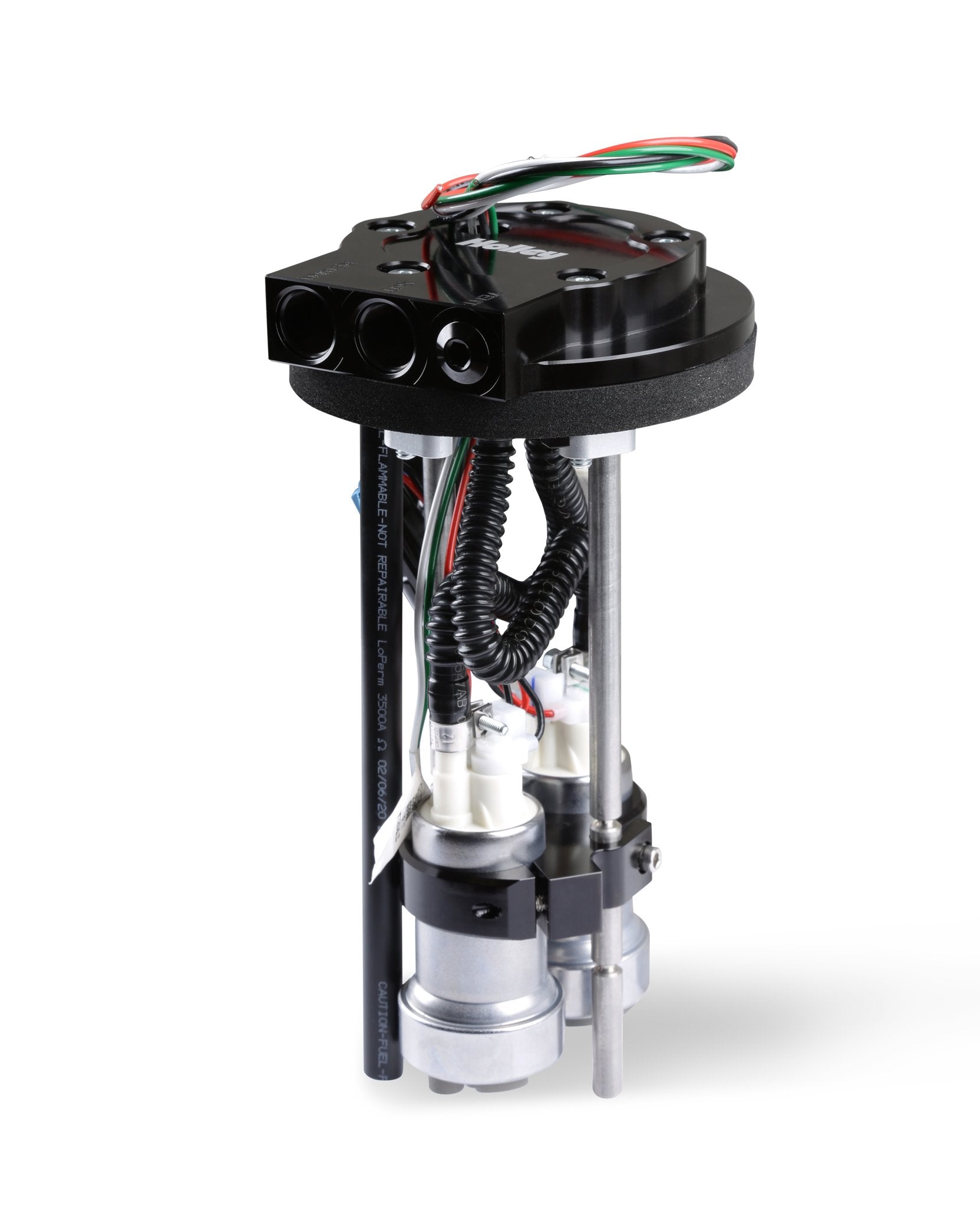

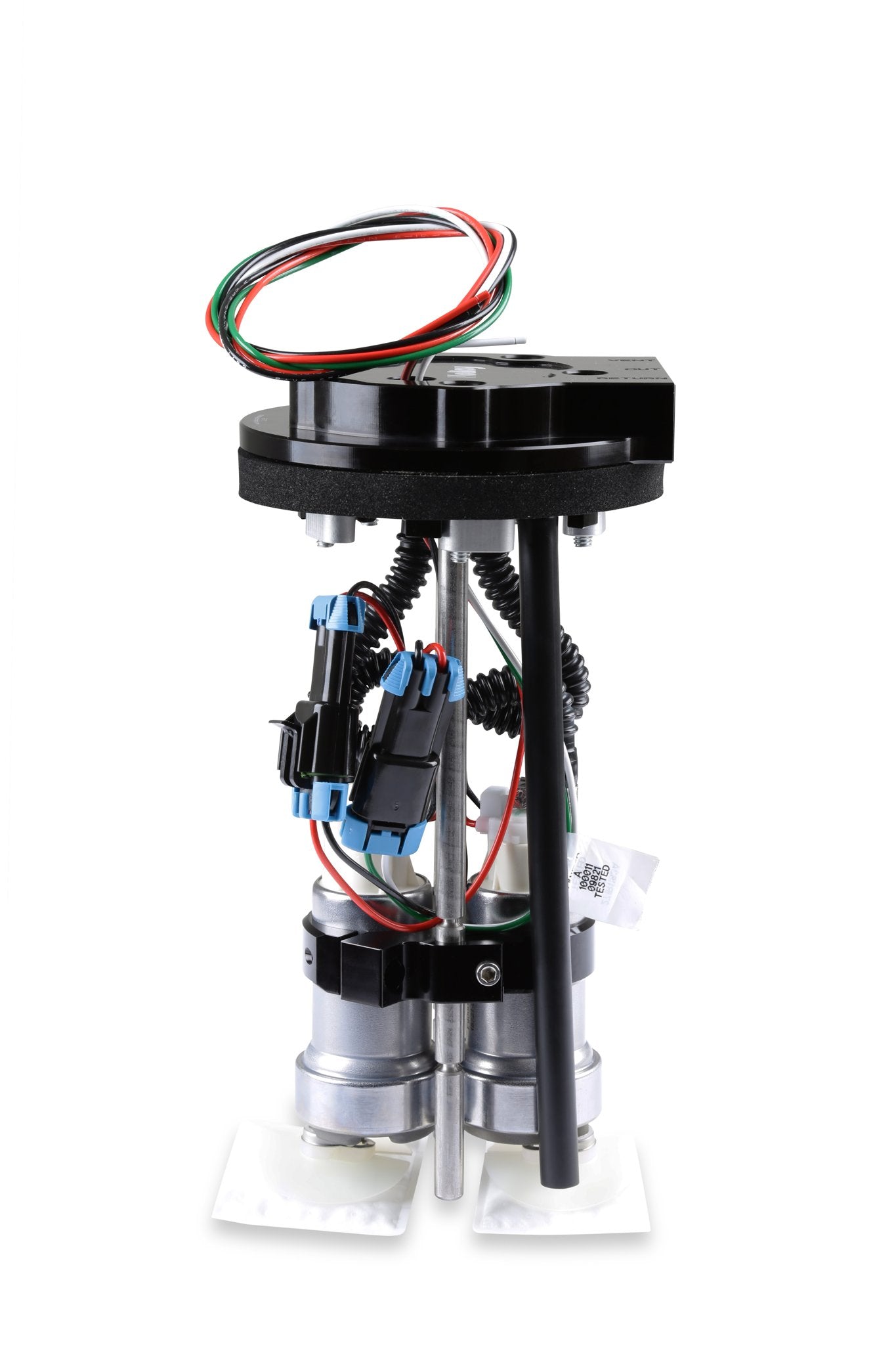

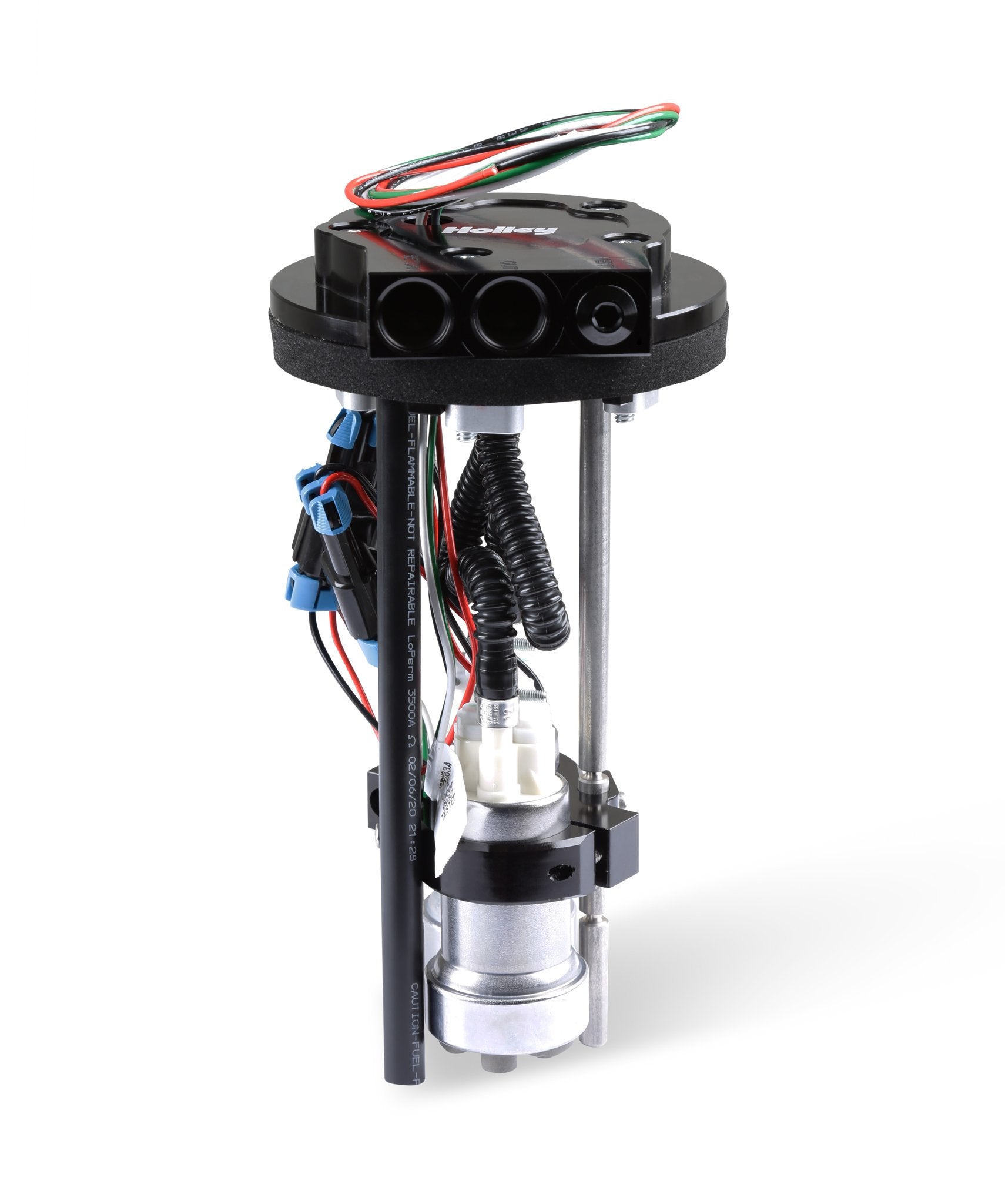

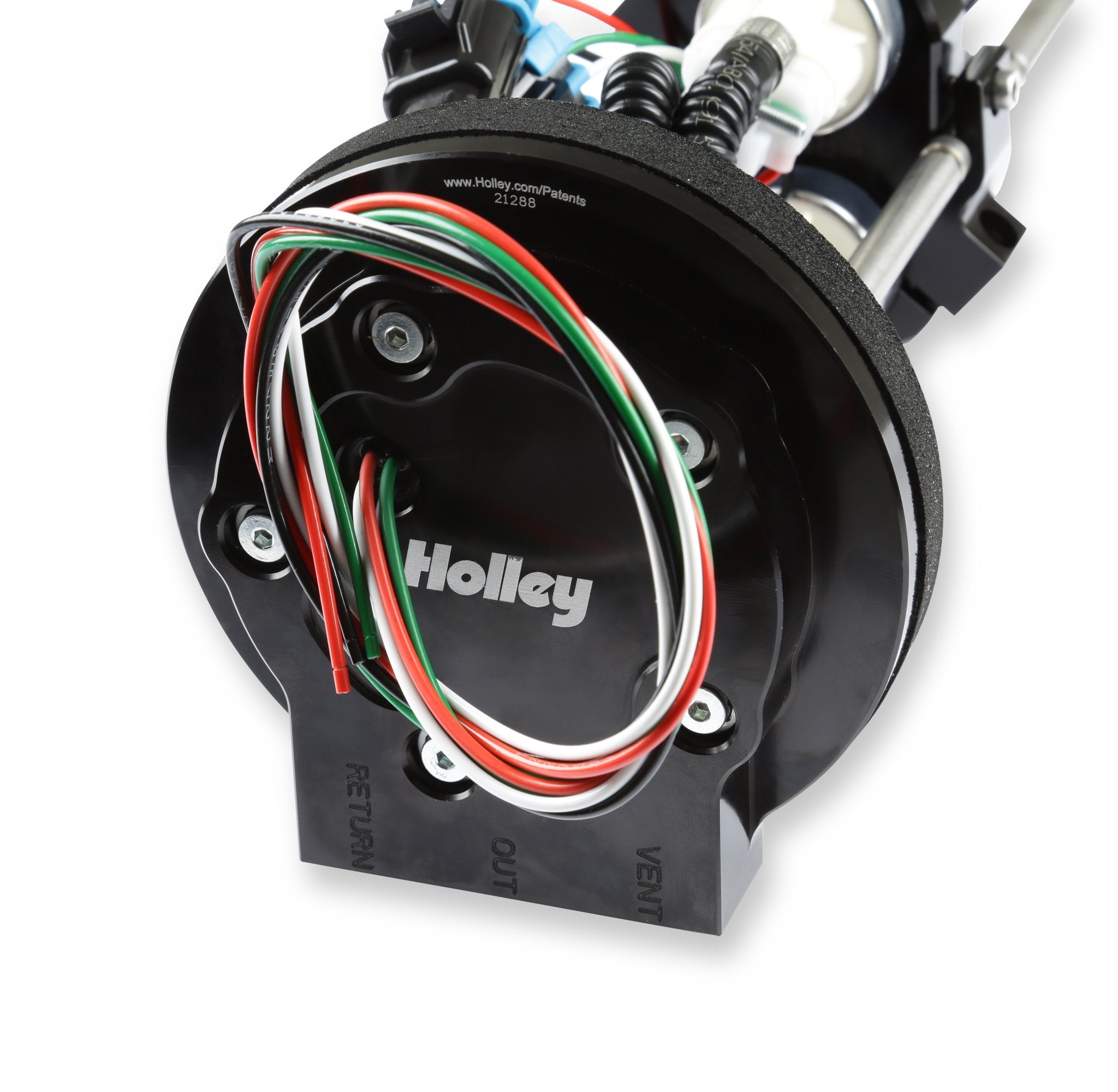

- Billet, anodized, laser etched flanges with 8AN ORB Return/Outlet and 6AN ORB vent
- The innovative clamping system allows you to locate the module nearly anywhere in the tank while retaining your factory fuel level sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Easy install just drill a 4� hole in the top of the tank then use hand tools
- E85 compatible

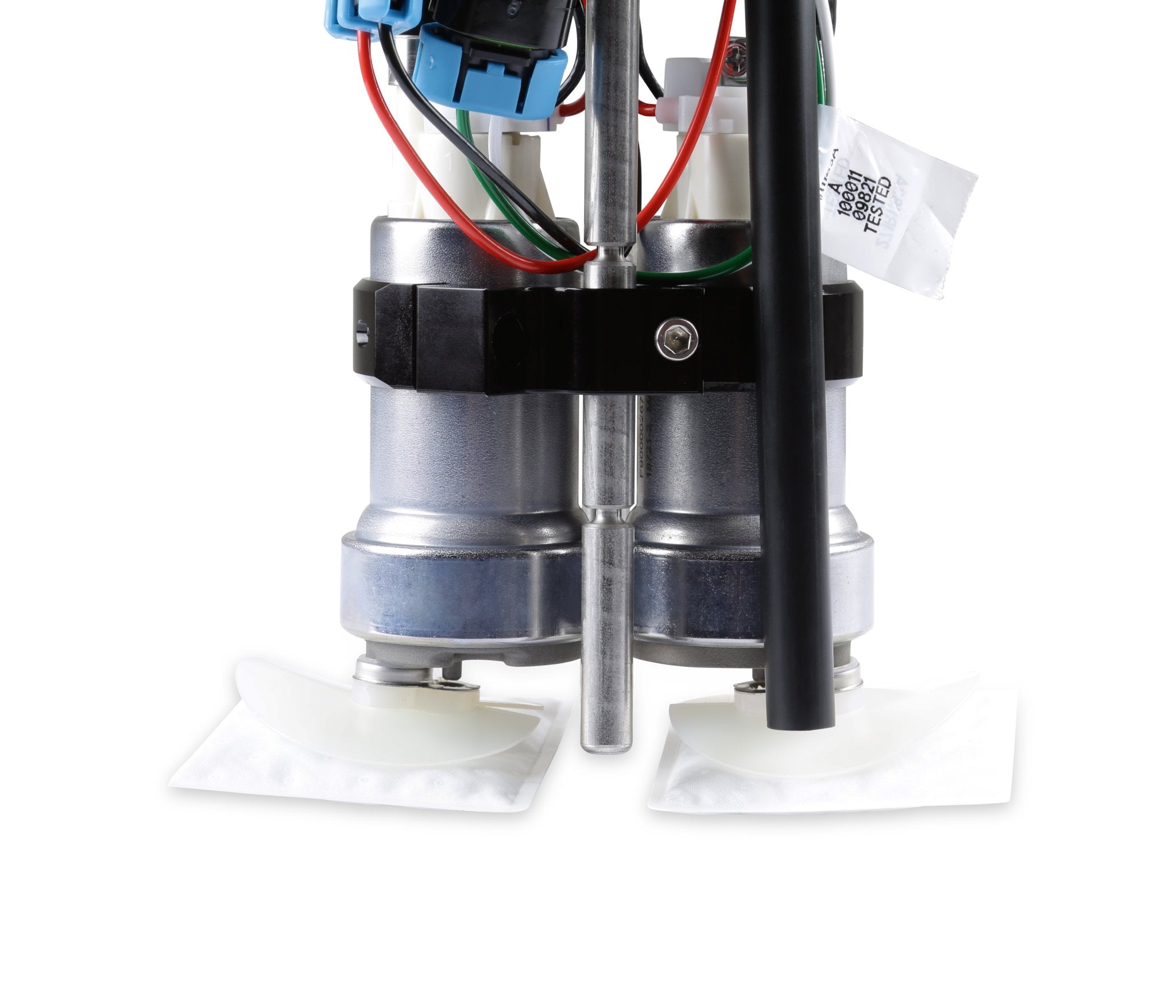

- The dual pump design allows the pumps to be ran together or the second pump can be triggered additionally when you need it (Hobbs switch, Holley EFI auxiliary pump circuit, etc¦)
- Units install in tanks from 7� 12� deep

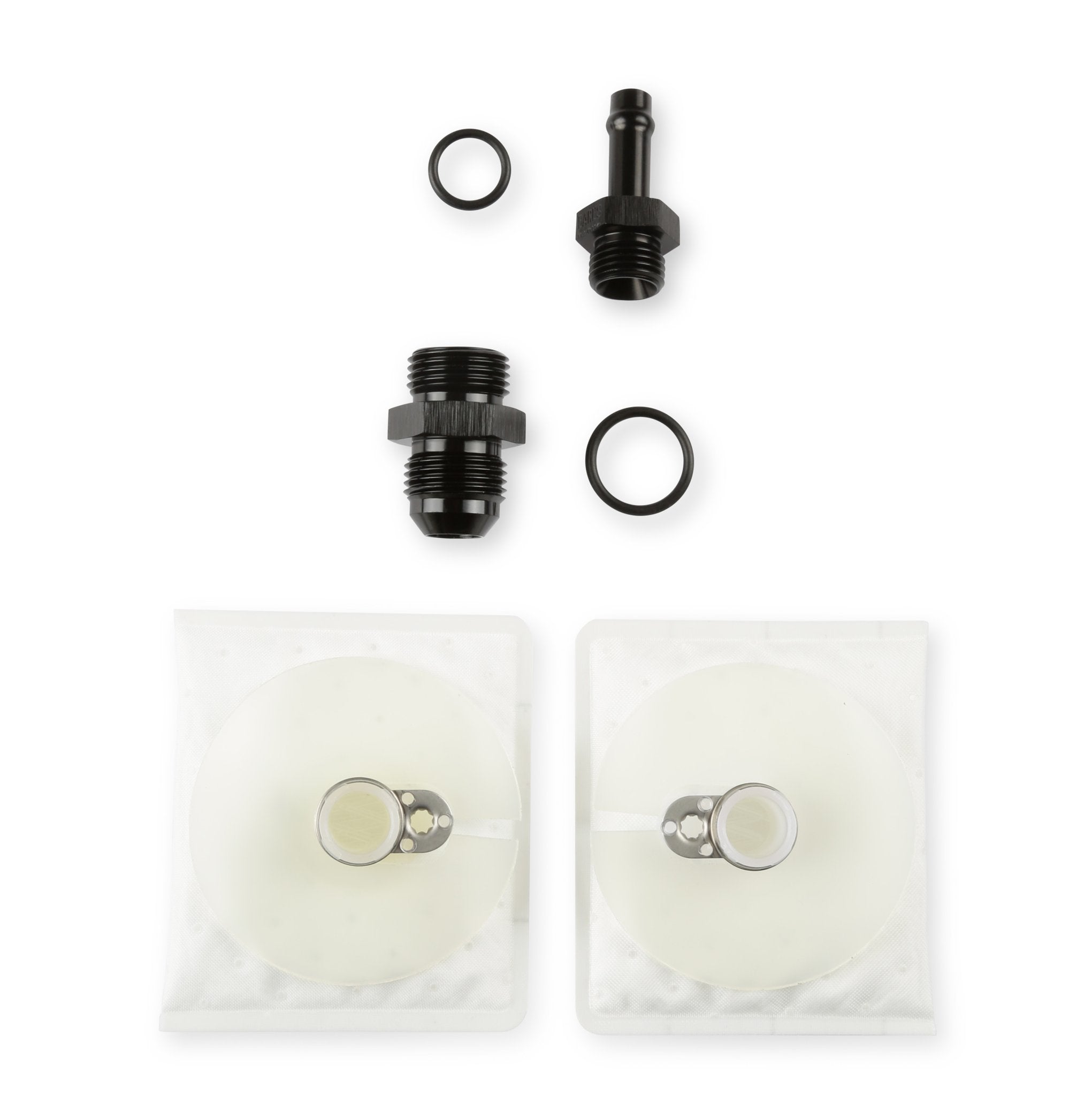

- Filter socks included, Hydramats can be purchased separately
- Easily wire with an MSD High Current Solid State Relay (75643, 75643-HC, 7564, 7564-HC) or dual relay kit (12-759)
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
Compatibility
Fits HOLLEY DUAL 450 LPH IN-TANK RETROFIT FUEL MODULE W/RETURN.
Please refer to manufacturer specifications for complete compatibility information.
