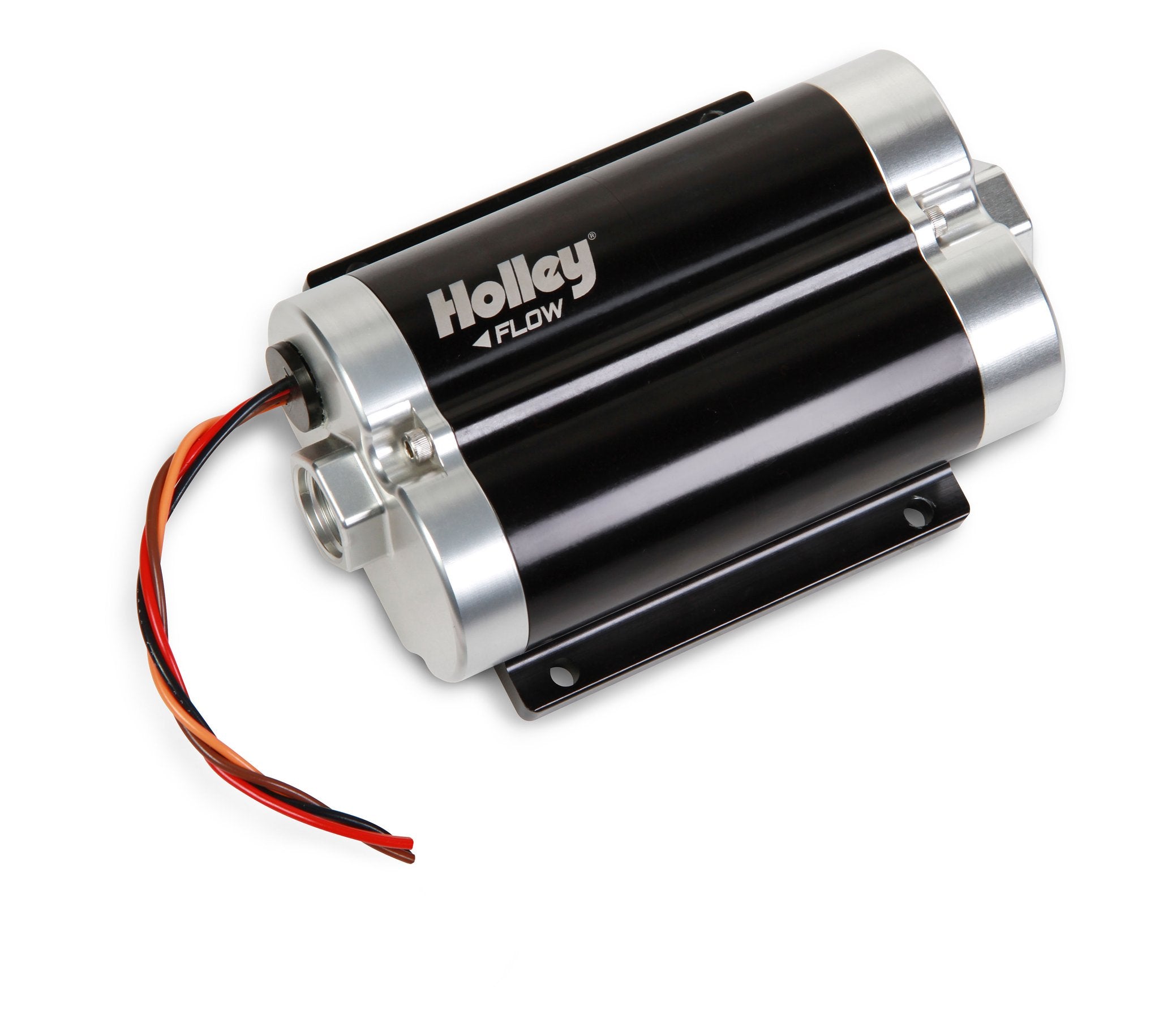

200 GPH Dominator In-Line Billet Fuel Pump
Holley
Search over 60,000 products...
200 GPH Dominator In-Line B...
Get notified when this item is back in stock
Press & drag to view
Product Details
Compatibility
Fits 200 GPH Dominator In-Line Billet Fuel Pump.
Please refer to manufacturer specifications for complete compatibility information.
Product Specifications
Application
Universal
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Forced Induction HP@43PSI
1400
Forced Induction HP@60PSI
1200
Forced Induction HP@8PSI
1600
Fuel Delivery Type
Carburetor
Fuel Delivery Type
Fuel Injection
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Diesel
Fuel Type
E85
Fuel Type
Gasoline
Gasket Or Seal Included
No

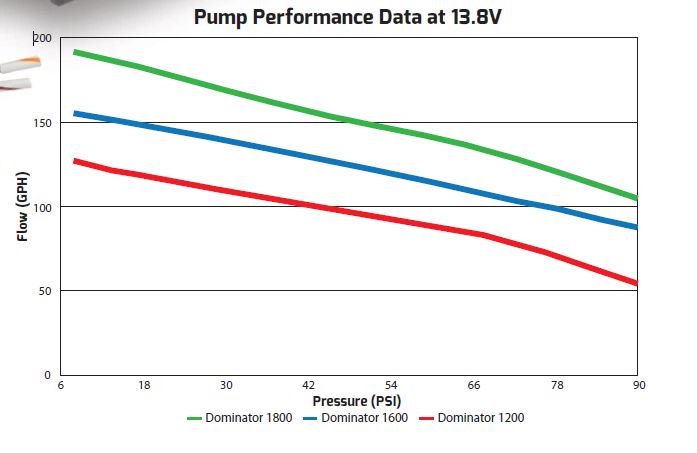

GPH@43PSI
156
GPH@60PSI
140
GPH@8PSI
200
Grade Type
Performance
Inlet Fitting Thread Size
7/8-14 IN
Inlet Size
10 AN O-Ring - 7/8-14 SAE
Inlet Type
10 AN ORB
LPH@43PSI
590
LPH@60PSI
530
LPH@8PSI
720
Maximum Flow Rating
200 GPH
Maximum Pressure
80 PS
Menu
Fuel Pumps and Related Components
Naturally Aspirated HP@43PSI
1800
Naturally Aspirated HP@60PSI
1600
Naturally Aspirated HP@8PSI
2100
Negative Ground
Yes
Outlet Fitting Thread Size
7/8-14 IN
Outlet Quantity
1
Outlet Size
10 AN O-Ring - 7/8-14 SAE
Outlet Type
10 AN ORB
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Pump Body Color
Black Anodized
Regulator Included
No
Universal Or Specific Fit
Universal
Voltage
12-18.5 2H
Wire Quantity
4
Product Description
Key Features
Carb or EFI Applications
Supports up to 1800 EFI or 2100 Carb HP
Compatible with Pump Gas*, Race Gas, Diesel or E85
- Billet aluminum construction for durability and good looks
- 10 AN O-ring inlet/outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.66� Long x 5� Wide x 2.5� Tall) for easy installation on frame rails or other tight areas
- Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
- Patent pending dual pump technology
- Proven durability beyond 3,000 hours in gasoline or diesel fuels
- Weighs only 5.1 lbs.
- Current draw at 43 PSI and 13.5 VDC is 17.2 Amps
- Not designed for use on aircraft of any type.
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
