Holley

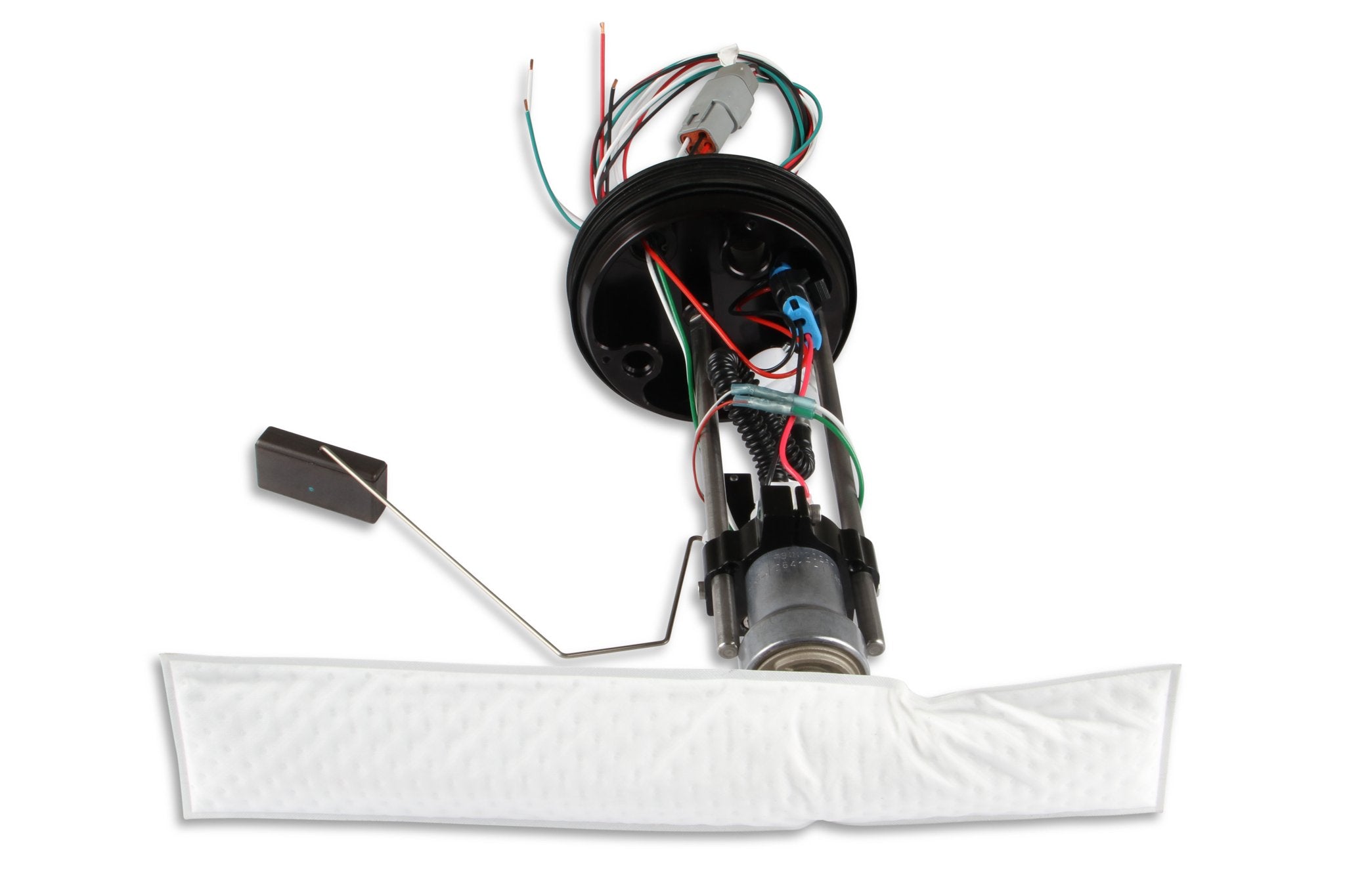

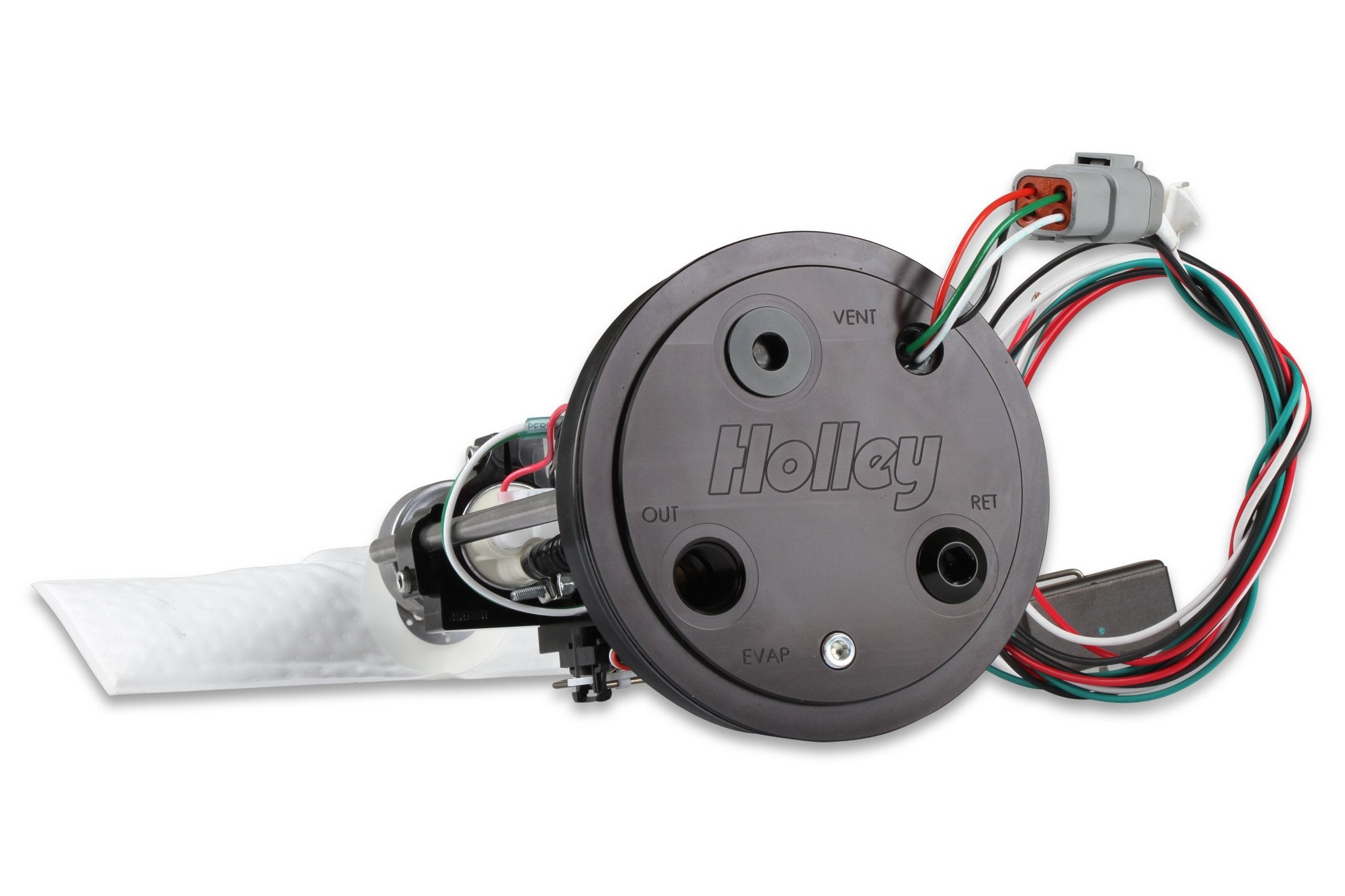

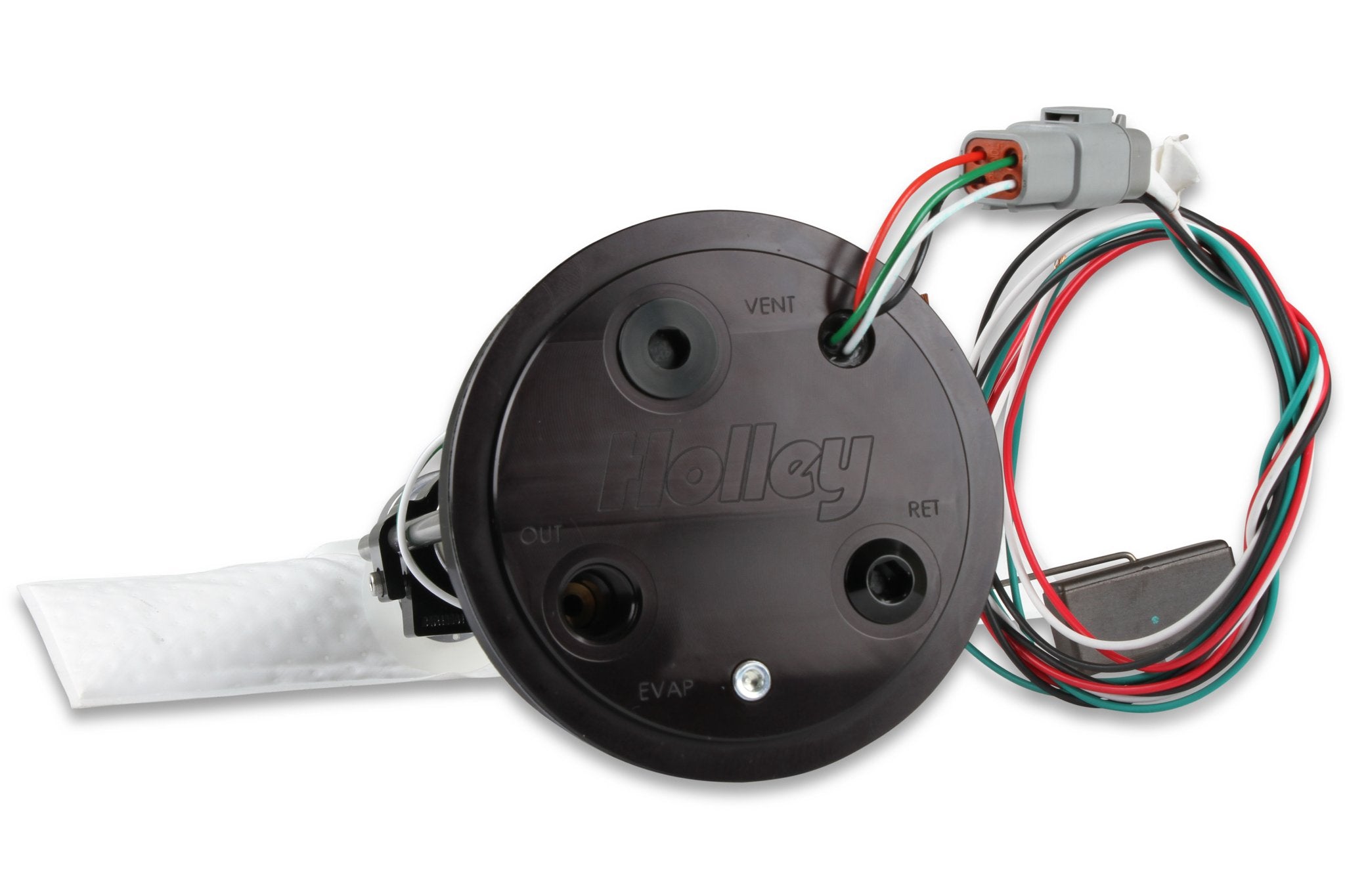

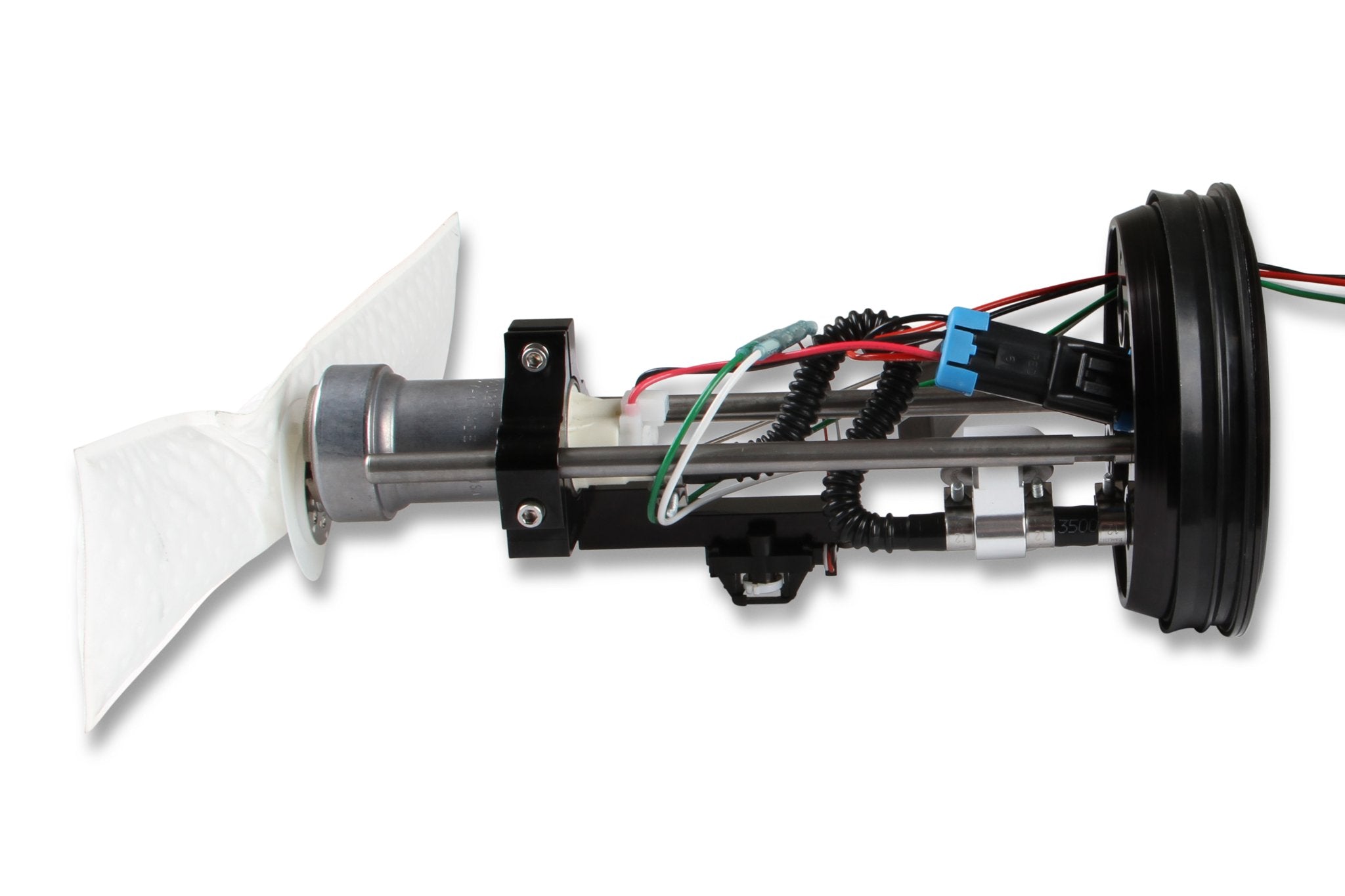

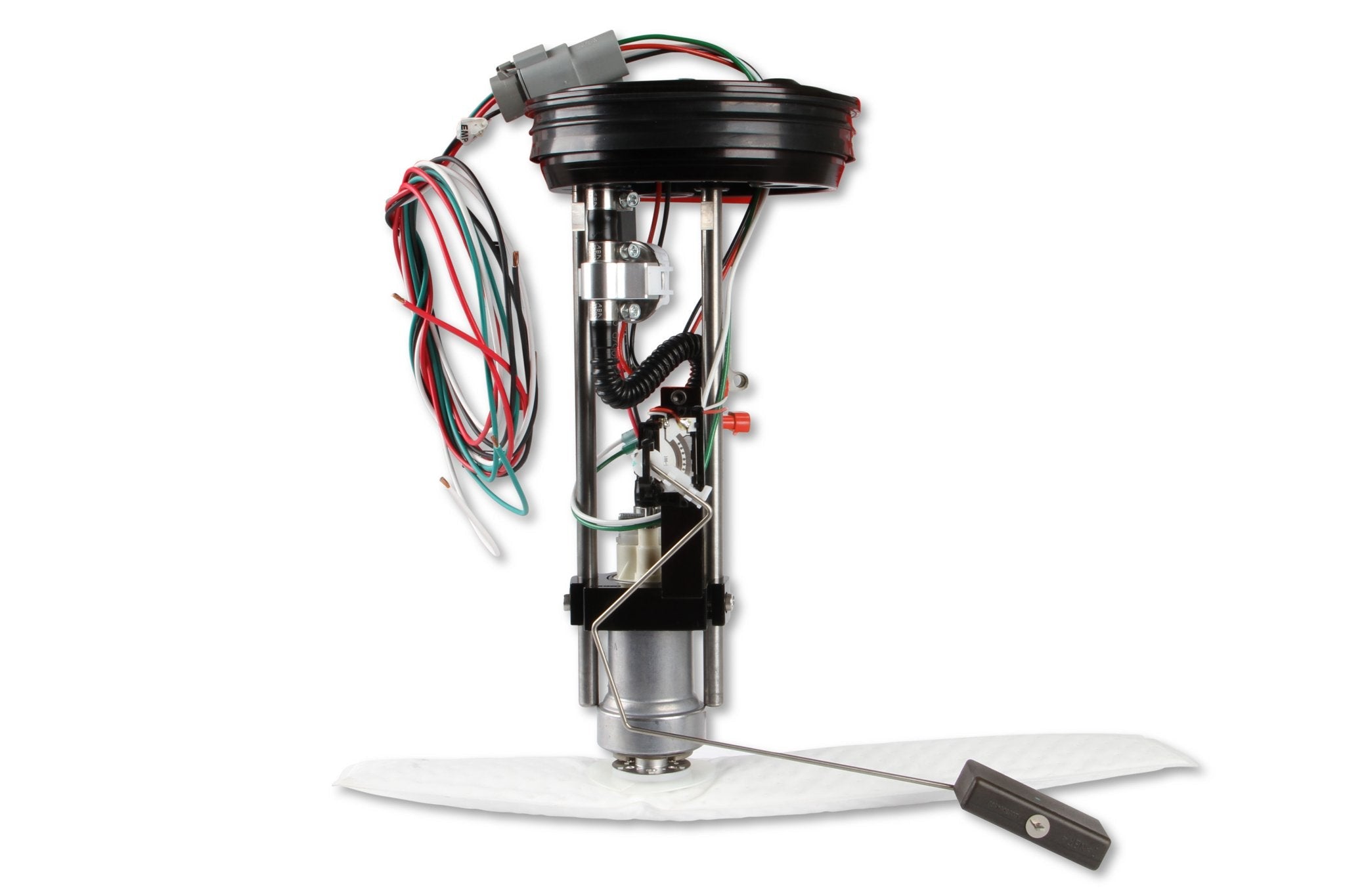

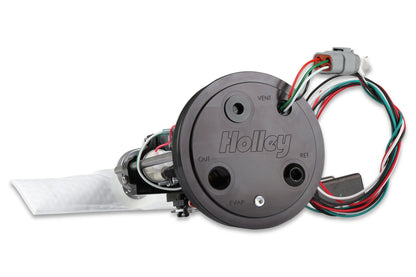

Holley 450 LPH Pump Module - Returnless

4.5' (1201 reviews)
£546.77 GBP inc VAT
Shipping calculated at checkout.
SKU: 12-324
1998-2004 Dodge Truck 450 LPH Pump Module System - Returnless with 220-20 OHM Fuel Sending Unit High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks Billet Aluminum Flange, Clamp & Fuel Level Sender Black Anodized Finish Choose from 255 or 450 LPH (liters per hour) Pump Adjustable for Tank Depth Choose from Return Style or Returnless Fuel Module Provisions for EVAP (Evaporative Emission Control System) See the Installation Notes Inlets & Outlet Ports: -8 AN O-Ring Boss New Fuel Level Sender Included Optional Fill Vent Built Into Billet Aluminum Top See the Installation Notes Includes Hydramat® - 3�...

In Stock

UK warehouse: 0

US warehouse: 8

Delivery ETA:Sep 25 - Sep 27
Ships from US warehouse. Order before 16:00 for the fastest dispatch.

Shipping from US Warehouse?
Duties & VAT all paid by us and included in the price (no extra fees).

You may also require

Holley 12-324 primary image
£455.64 GBP

Product Specifications

Application
1998-2004 Dodge Trucks
Average Flow Rating
450 LPH
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Connector Color
Gray
Connector Quantity
1
Forced Induction HP@60PSI
750
Fuel Filter Included
Yes
Fuel Sending Unit Included
Yes
Fuel Sending Unit Ohms
220-20 Ohms
Fuel System
EFI
Fuel Tank Pressure Sensor Included
No
Fuel Type
E85
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
GPH@60PSI
100
Grade Type
Performance
Inlet Quantity
One
Inlet Type
8 AN ORB
Internal Or External Strainer
External
Lock Ring Included
No
Menu
Fuel Pumps and Related Components
Naturally Aspirated HP@60PSI
1000
Outlet Quantity
One
Outlet Size
8 AN
Outlet Type
8 AN ORB
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Body Color
Silver
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty
220 82
Returnless
Yes
Universal Or Specific Fit
Specific
Voltage
12 2H
Wire Harness Included
Yes
Wire Quantity
4
Application
1998-2004 Dodge Trucks
Average Flow Rating
450 LPH
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Connector Color
Gray
Connector Quantity
1
Forced Induction HP@60PSI
750
Fuel Filter Included
Yes
Fuel Sending Unit Included
Yes
Fuel Sending Unit Ohms
220-20 Ohms
Fuel System
EFI
Fuel Tank Pressure Sensor Included
No
Fuel Type
E85
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
GPH@60PSI
100
Grade Type
Performance
Inlet Quantity
One
Inlet Type
8 AN ORB
Internal Or External Strainer
External
Lock Ring Included
No
Menu
Fuel Pumps and Related Components
Naturally Aspirated HP@60PSI
1000
Outlet Quantity
One
Outlet Size
8 AN
Outlet Type
8 AN ORB
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Body Color
Silver
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty
220 82
Returnless
Yes
Universal Or Specific Fit
Specific
Voltage
12 2H
Wire Harness Included
Yes
Wire Quantity
4

Payment and security

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Klarna
  • Maestro
  • Mastercard
  • Shop Pay
  • Union Pay
  • Visa
View details
  • Holley 12-324 primary image
  • Holley 12-324 image 2
  • Holley 12-324 image 3
  • Holley 12-324 image 4
  • Holley 12-324 image 5
  • Holley 12-324 image 6
1 / 1
Press & drag to view

Holley 450 LPH Pump Module - Returnless

Holley

Product Details

Compatibility

Fits Holley 450 LPH Pump Module - Returnless.

Please refer to manufacturer specifications for complete compatibility information.

Product Specifications
Application
1998-2004 Dodge Trucks
Average Flow Rating
450 LPH
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Connector Color
Gray
Connector Quantity
1
Forced Induction HP@60PSI
750
Fuel Filter Included
Yes
Fuel Sending Unit Included
Yes
Fuel Sending Unit Ohms
220-20 Ohms
Fuel System
EFI
Fuel Tank Pressure Sensor Included
No
Fuel Type
E85
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
GPH@60PSI
100
Grade Type
Performance
Inlet Quantity
One
Inlet Type
8 AN ORB
Internal Or External Strainer
External
Lock Ring Included
No
Menu
Fuel Pumps and Related Components
Naturally Aspirated HP@60PSI
1000
Outlet Quantity
One
Outlet Size
8 AN
Outlet Type
8 AN ORB
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Body Color
Silver
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty
220 82
Returnless
Yes
Universal Or Specific Fit
Specific
Voltage
12 2H
Wire Harness Included
Yes
Wire Quantity
4

Product Description

Key Features
1998-2004 Dodge Truck 450 LPH Pump Module System - Returnless with 220-20 OHM Fuel Sending Unit
  • High Performance In-Tank EFI Fuel Pump Modules for 1991-2004 Dodge Trucks
  • Billet Aluminum Flange, Clamp & Fuel Level Sender
  • Black Anodized Finish
  • Choose from 255 or 450 LPH (liters per hour) Pump
  • Adjustable for Tank Depth
  • Choose from Return Style or Returnless Fuel Module
  • Provisions for EVAP (Evaporative Emission Control System) See the Installation Notes
  • Inlets & Outlet Ports: -8 AN O-Ring Boss
  • New Fuel Level Sender Included
  • Optional Fill Vent Built Into Billet Aluminum Top See the Installation Notes
  • Includes Hydramat® - 3� x 15�
  • Fits in Stock Factory Fuel Tanks
  • Ideal for Use In Gen III Hemi Engine Swaps
Package Contents

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
