HOLLEY PUMP MODULE SYSTEM -...
Get notified when this item is back in stock
Press & drag to view
Holley
Product Details
🔧
Vehicle Compatibility
Fits HOLLEY PUMP MODULE SYSTEM - Single 340 LPH.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

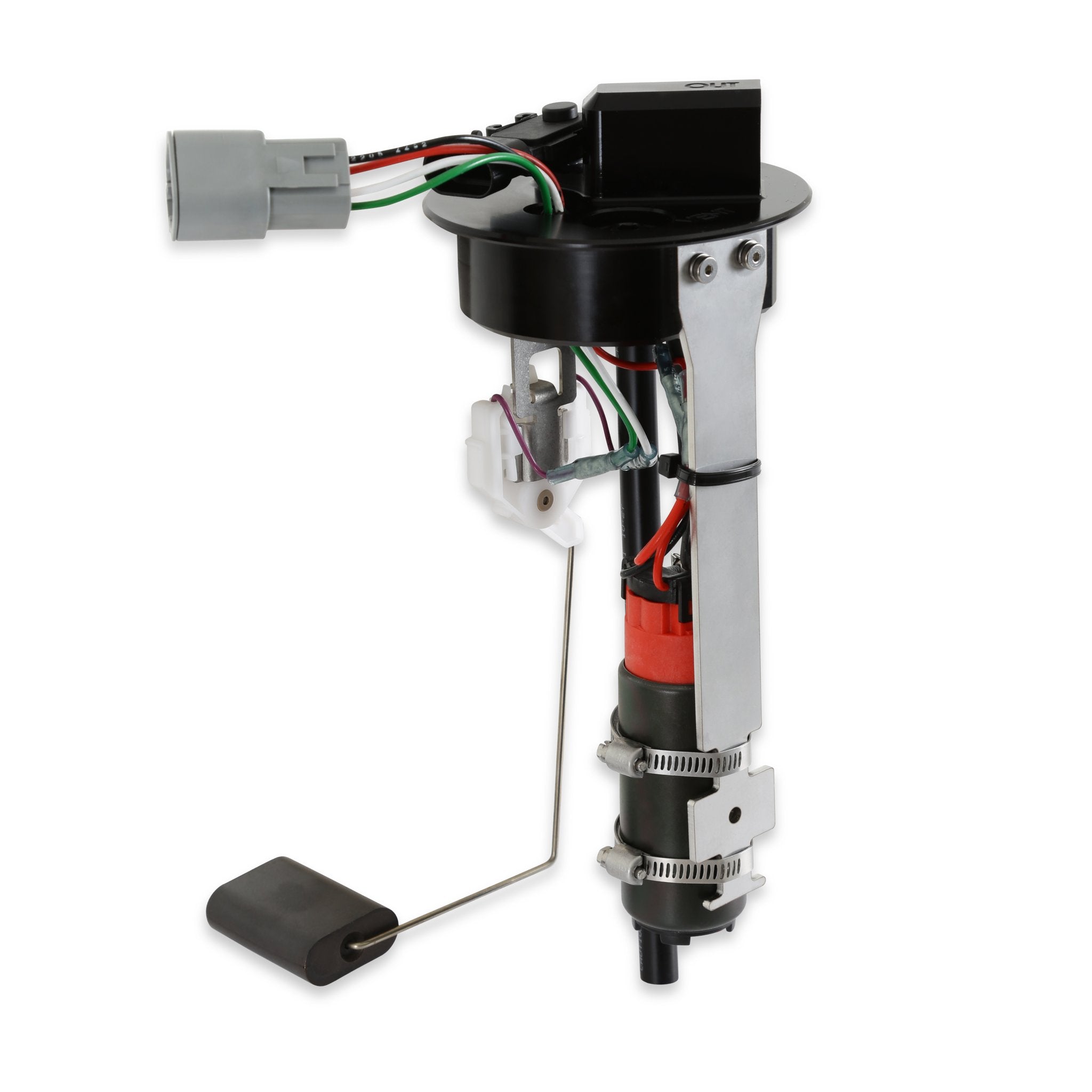

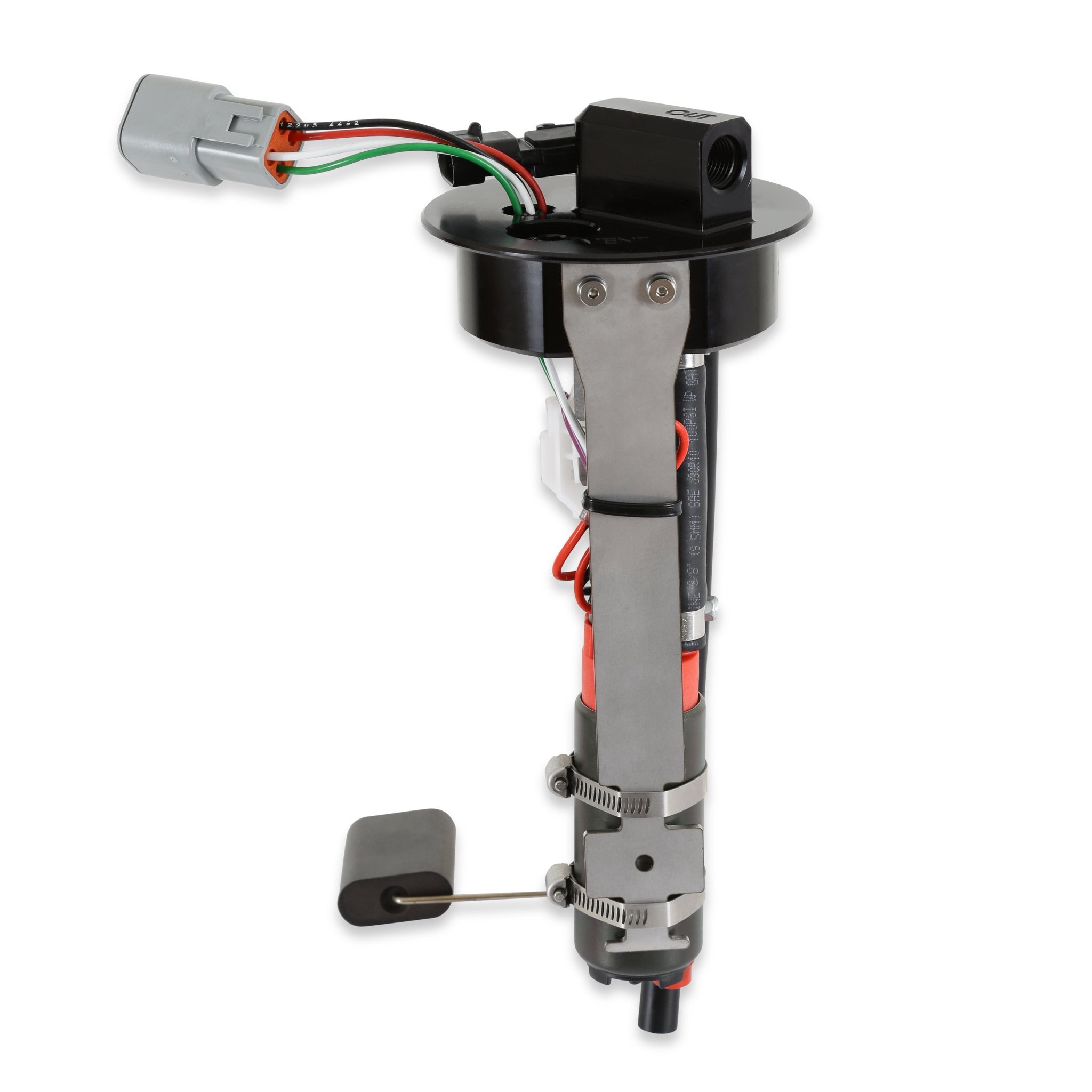

Fits 1998-2002 Camaro / Firebird - Single 340 LPH Pump Module

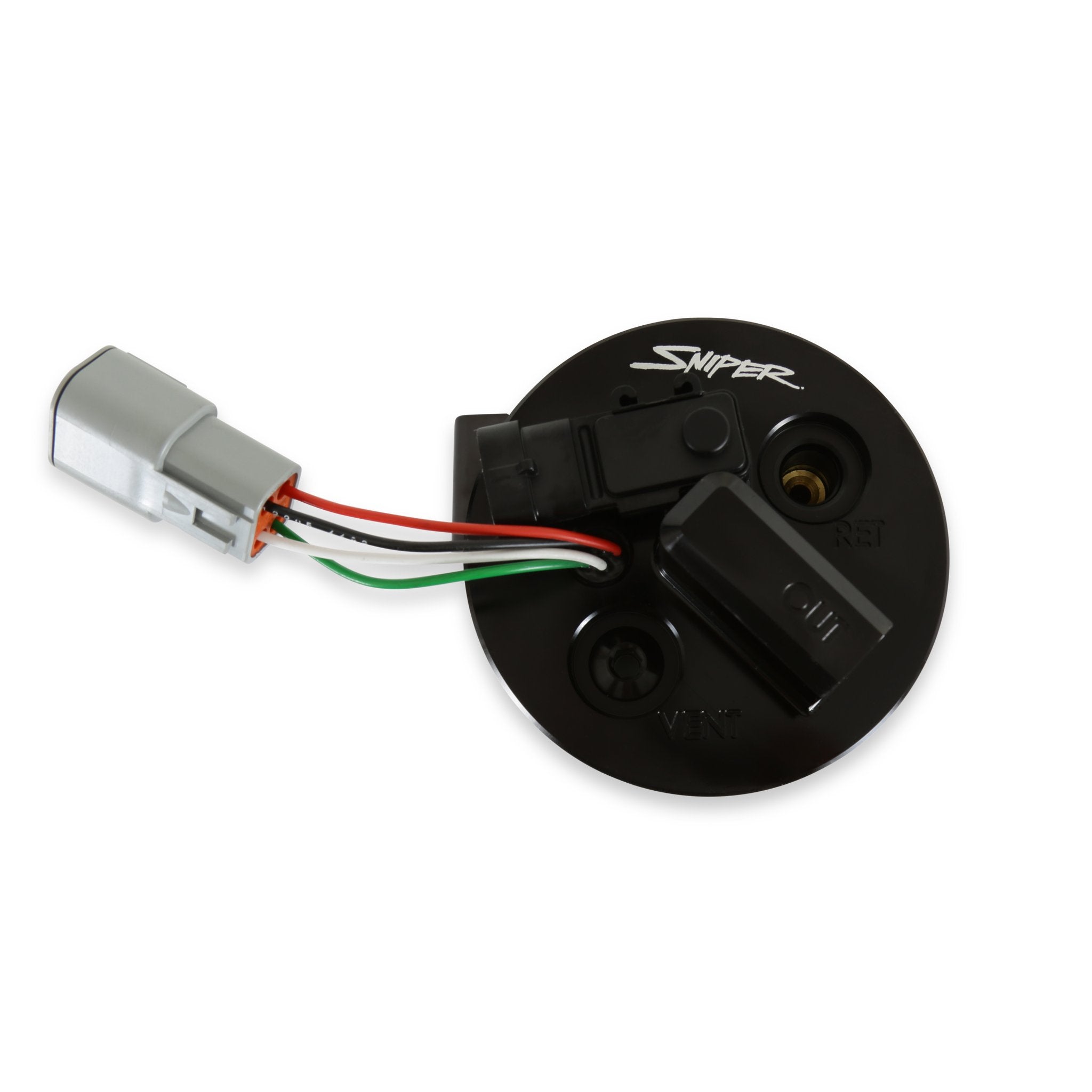

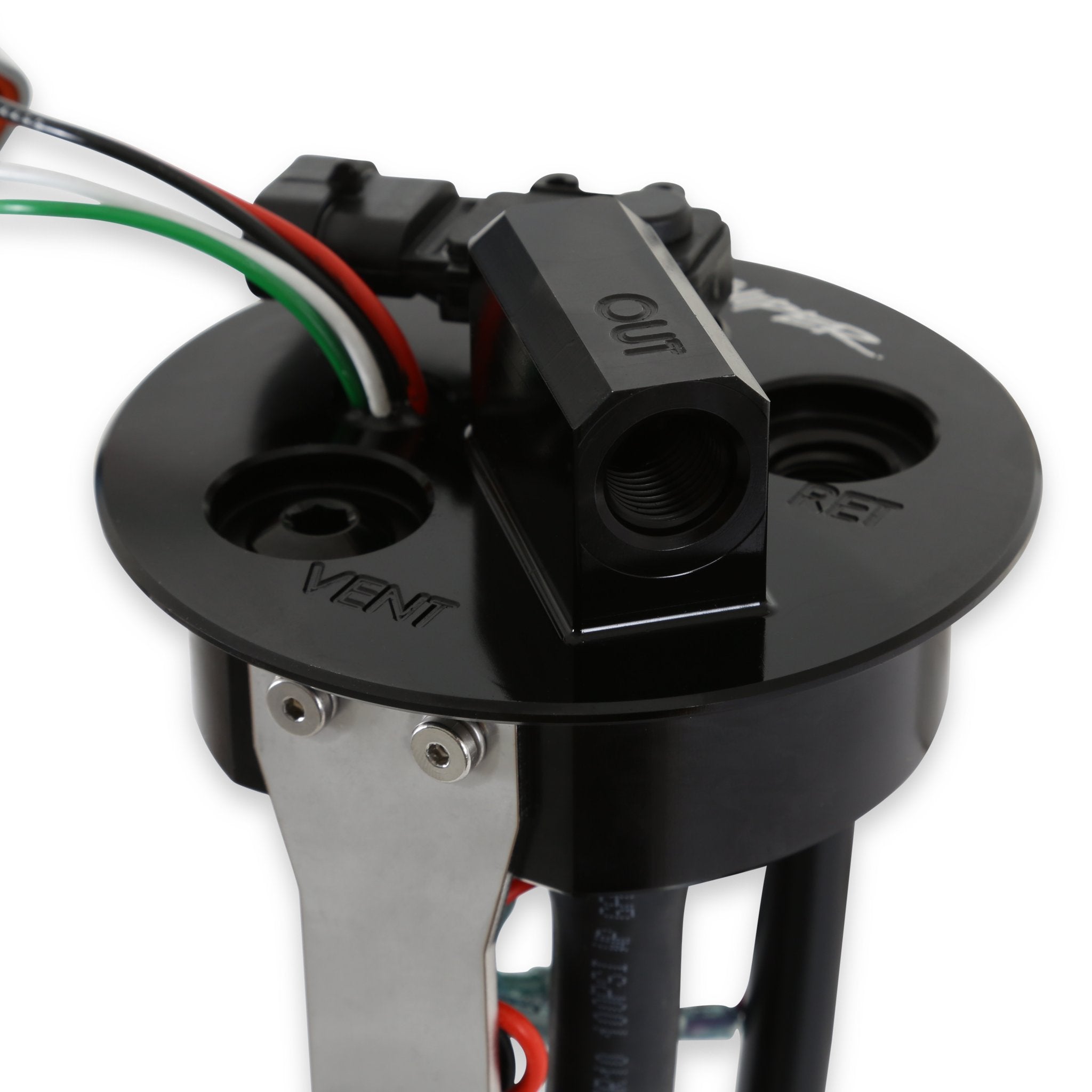

- Anodized and laser-etched billet 6061-T6 flange with 6AN ORB ports for feed, return, and vent
- All SKUs compatible with Gasoline AND E85
- Comes pre-installed with new pre-calibrated fuel level and tank pressure sensors

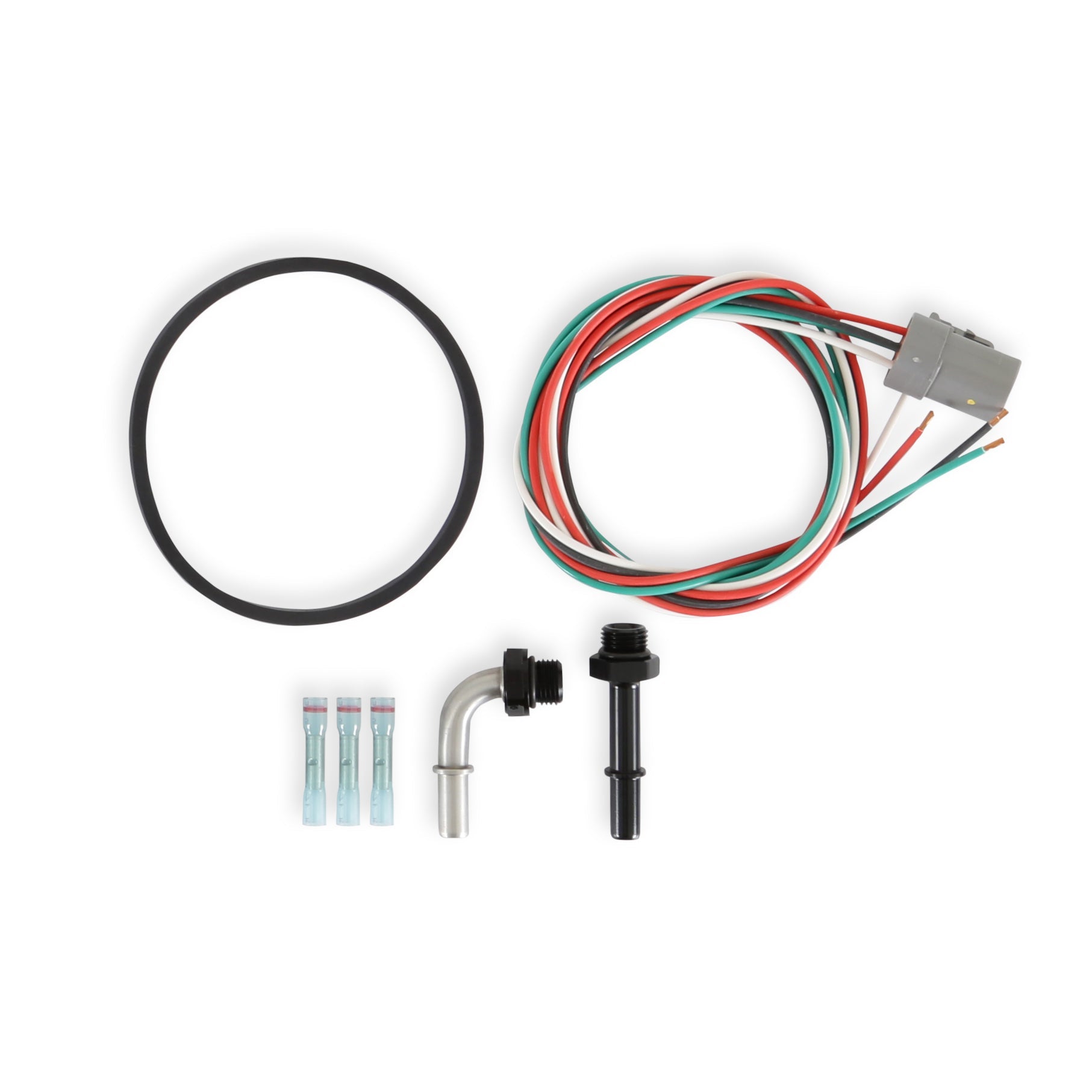

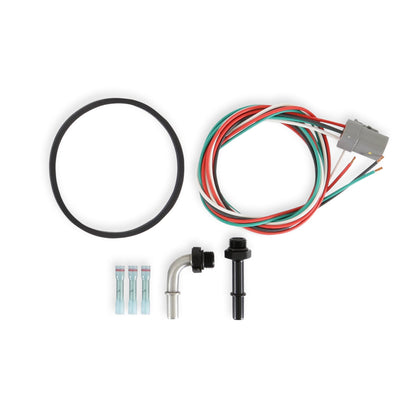

- Includes new gasket to complete installation

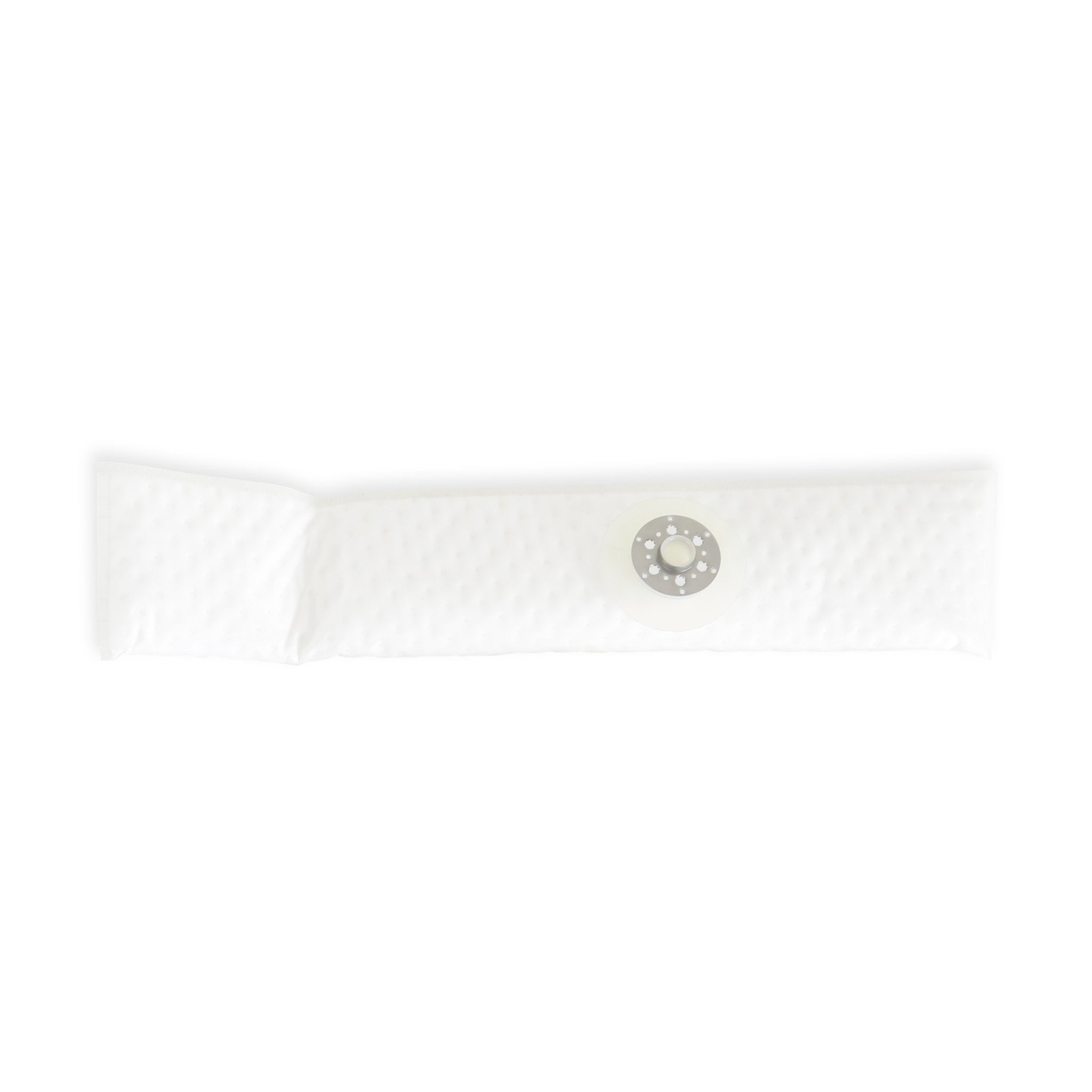

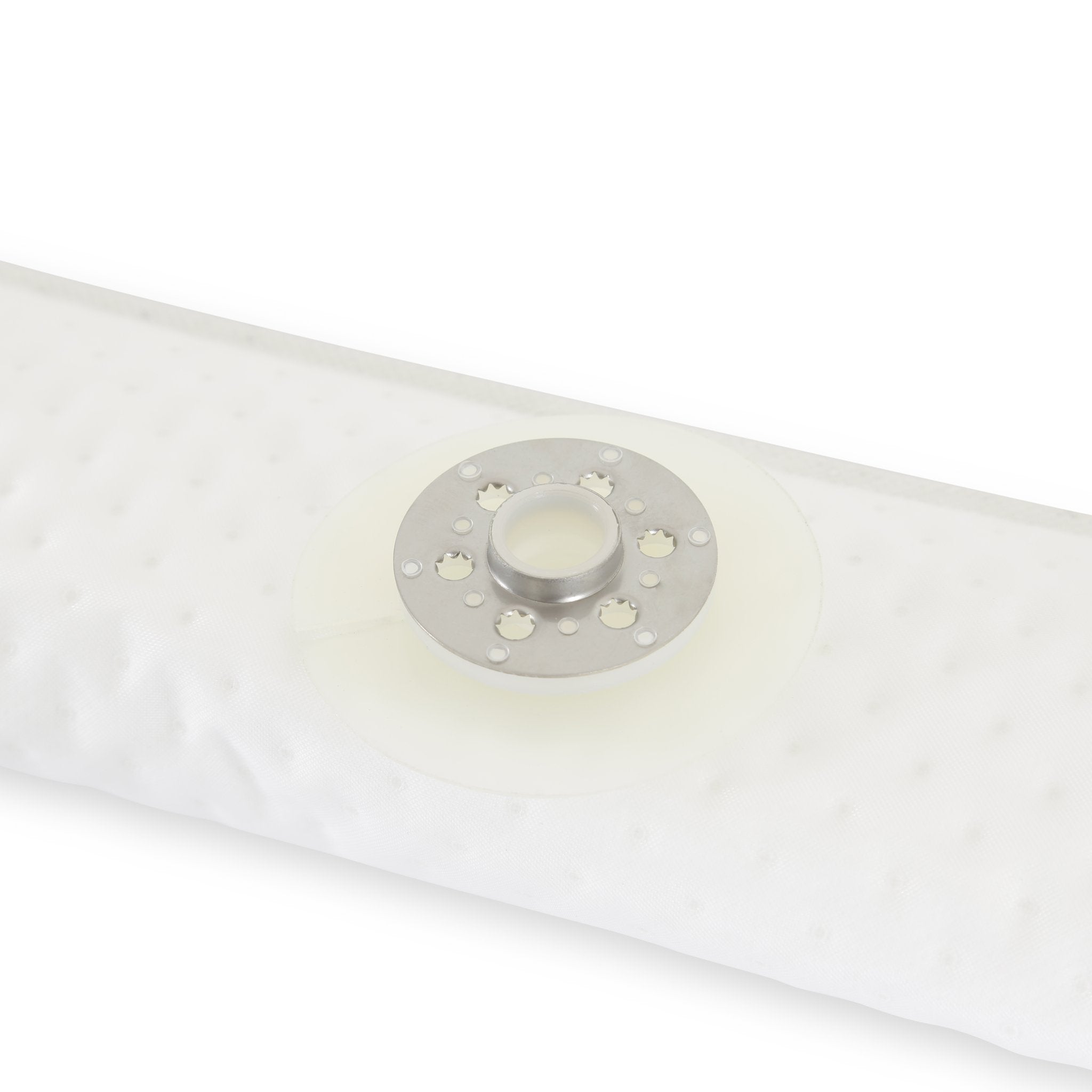

- 3 x 11-inch HydraMat is included for each pump
- Fits factory plastic tank used in LS1 98-02 Camaro / Firebird or an earlier 4th Gen F-body with fuel tank upgrade
- Fittings included allowing connection to the factory 3/8 quick connect feed and return lines
- Flanges have been designed to be compatible with feed and return line sizes up to -8AN
- Step-down butt connectors included to wire level sensor
- Can be connected to factory EVAP system (w/ use of 12-874 and 935056ERL - sold separately)
- Kit includes vehicle pigtail harness - All connectors used are DTM style
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Average Flow Rating
340 LPH
Brand
Holley
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Injection (EFI)
Connector Color
Gray
Connector Gender
Female
Connector Quantity
1
Fuel Filter Included
Yes
Fuel Sending Unit Included
Yes
Fuel System
EFI
Fuel Tank Pressure Sensor Included
No
Fuel Type
Gasoline/E85 Compatible
Gasket Or Seal Included
Yes
Grade Type
Performance
Inlet Quantity
One
Inlet Size
6 AN ORB
Inlet Type
6 AN ORB
Internal Or External Strainer
External
Lock Ring Included
No
Maximum Pressure
60 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
Yes
Negative Ground
Yes
Outlet Quantity
One
Outlet Size
6 AN ORB
Outlet Type
6 AN ORB
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Pump Type
Electric
Regulator Included
No
Resistance Ohms Empty
33 82
Single or Dual Pump
Single
Universal Or Specific Fit
Specific
Voltage
12 2H
Wire Quantity
4
📦

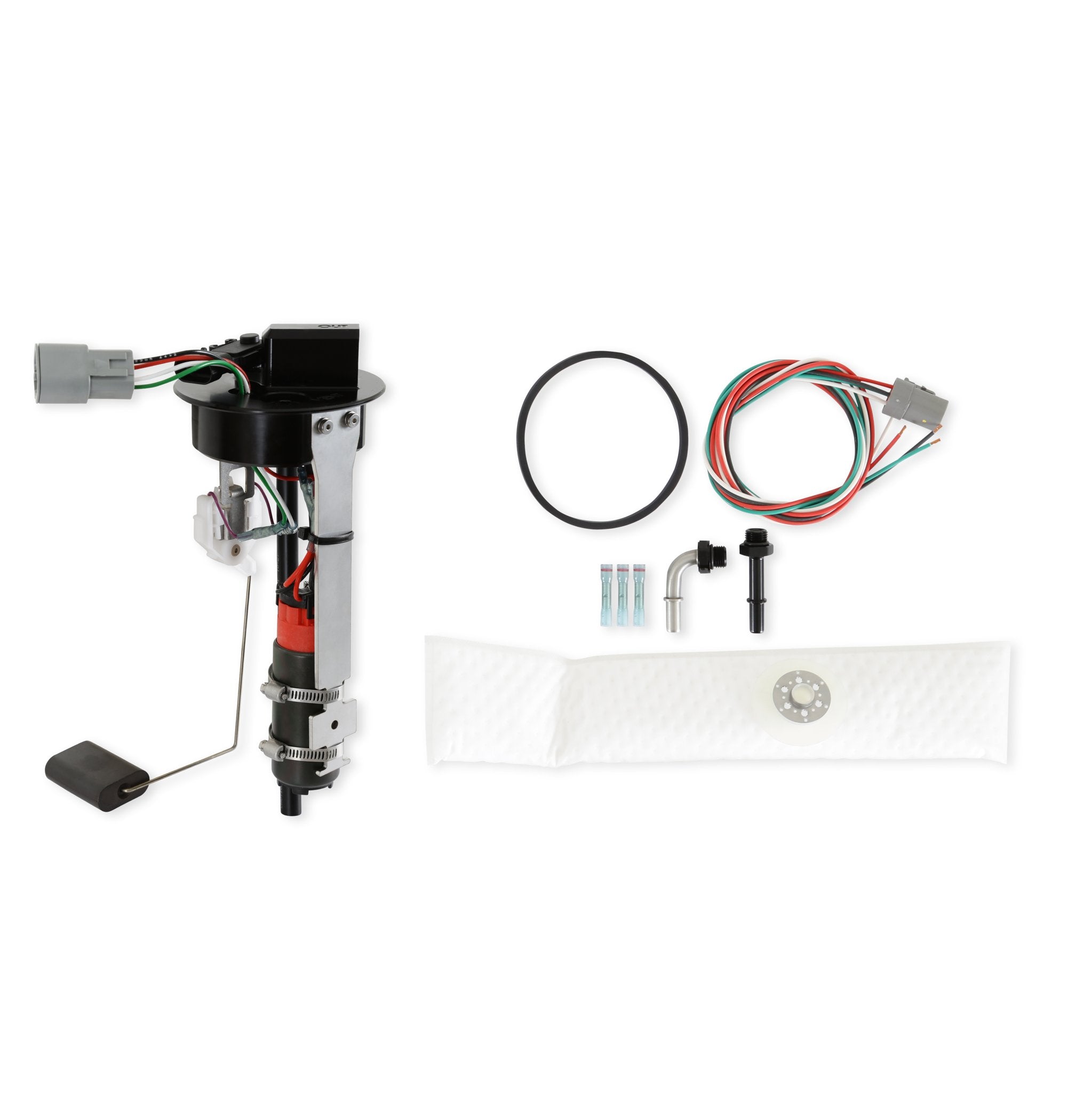

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
