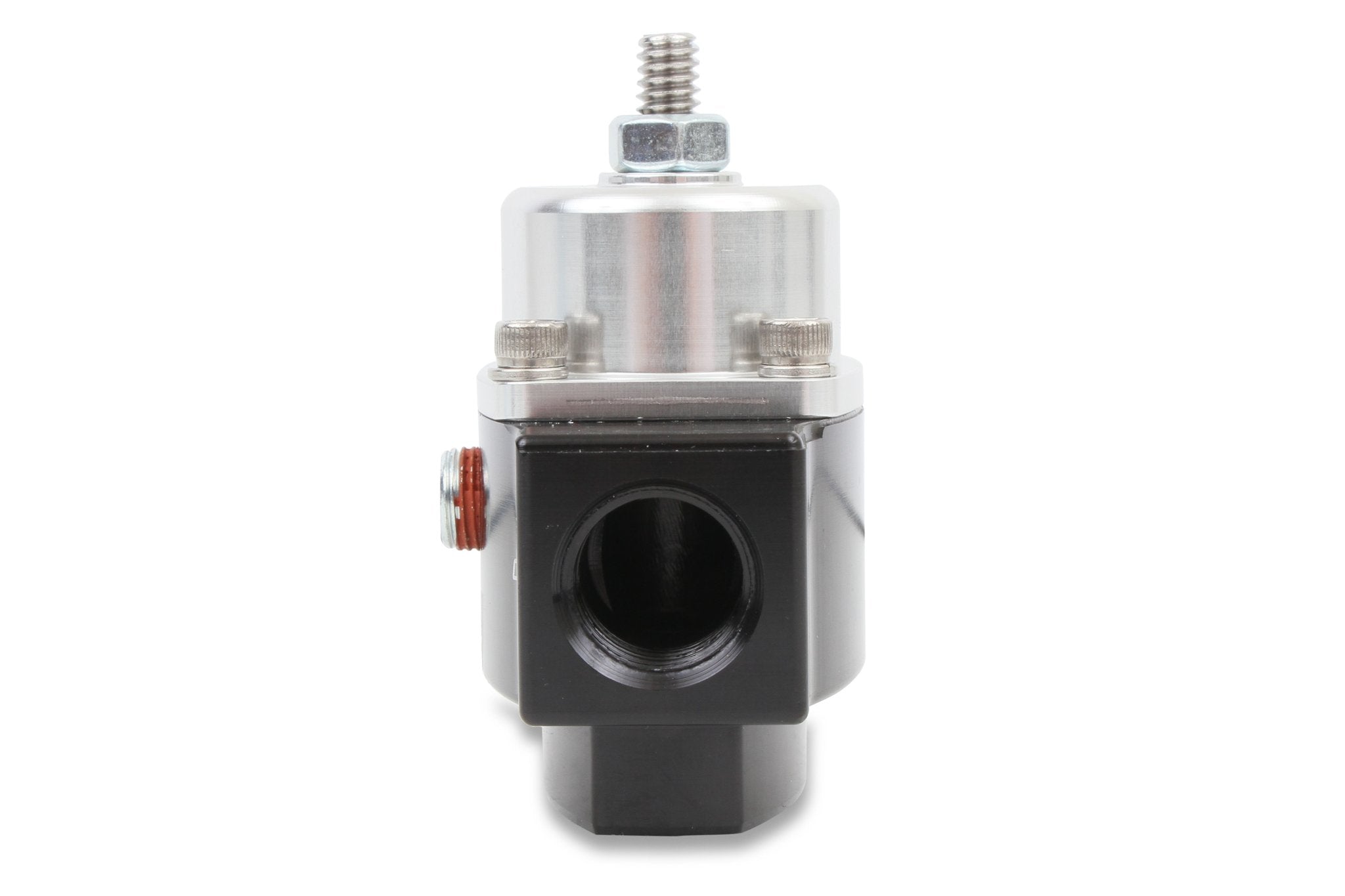

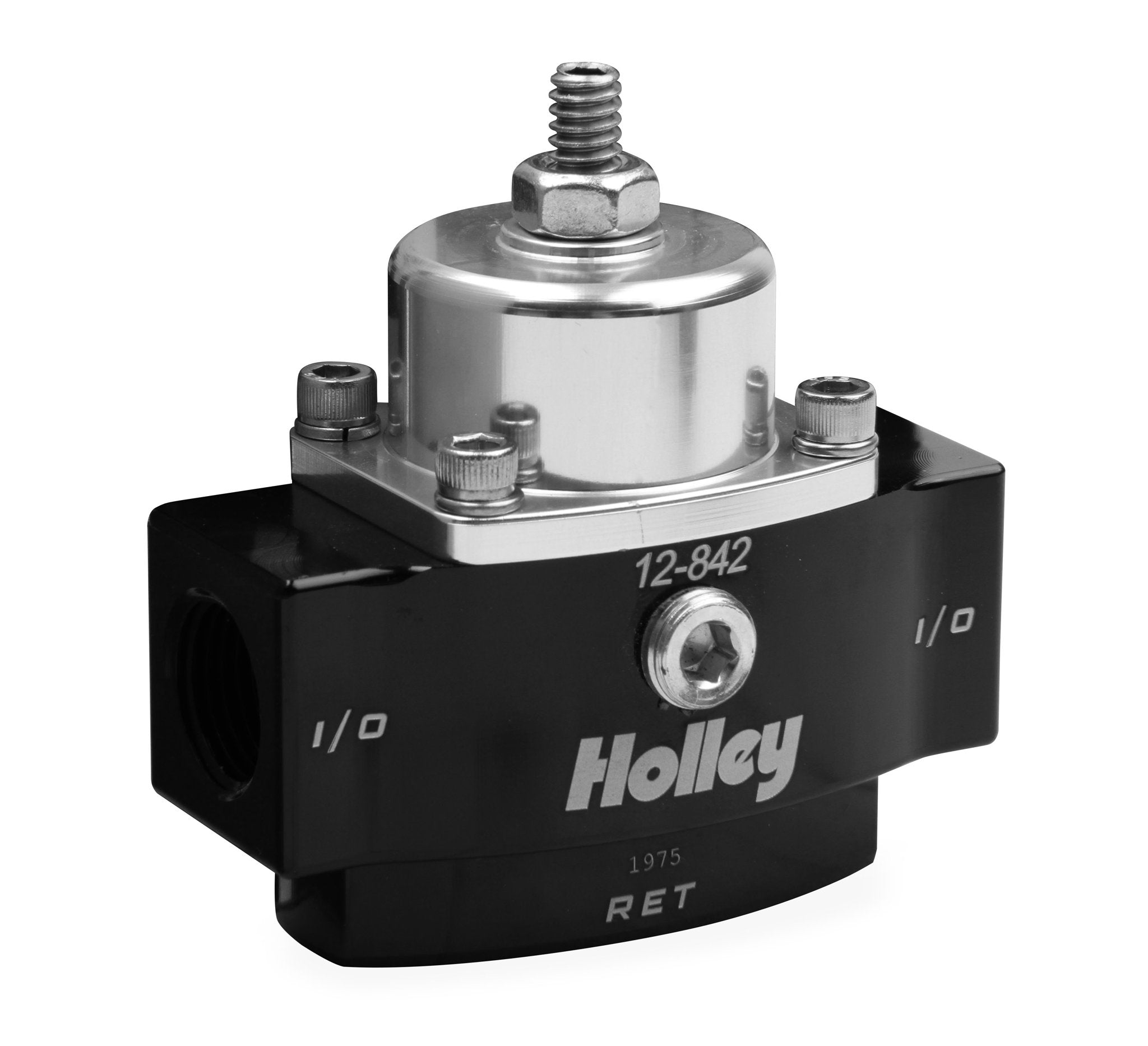

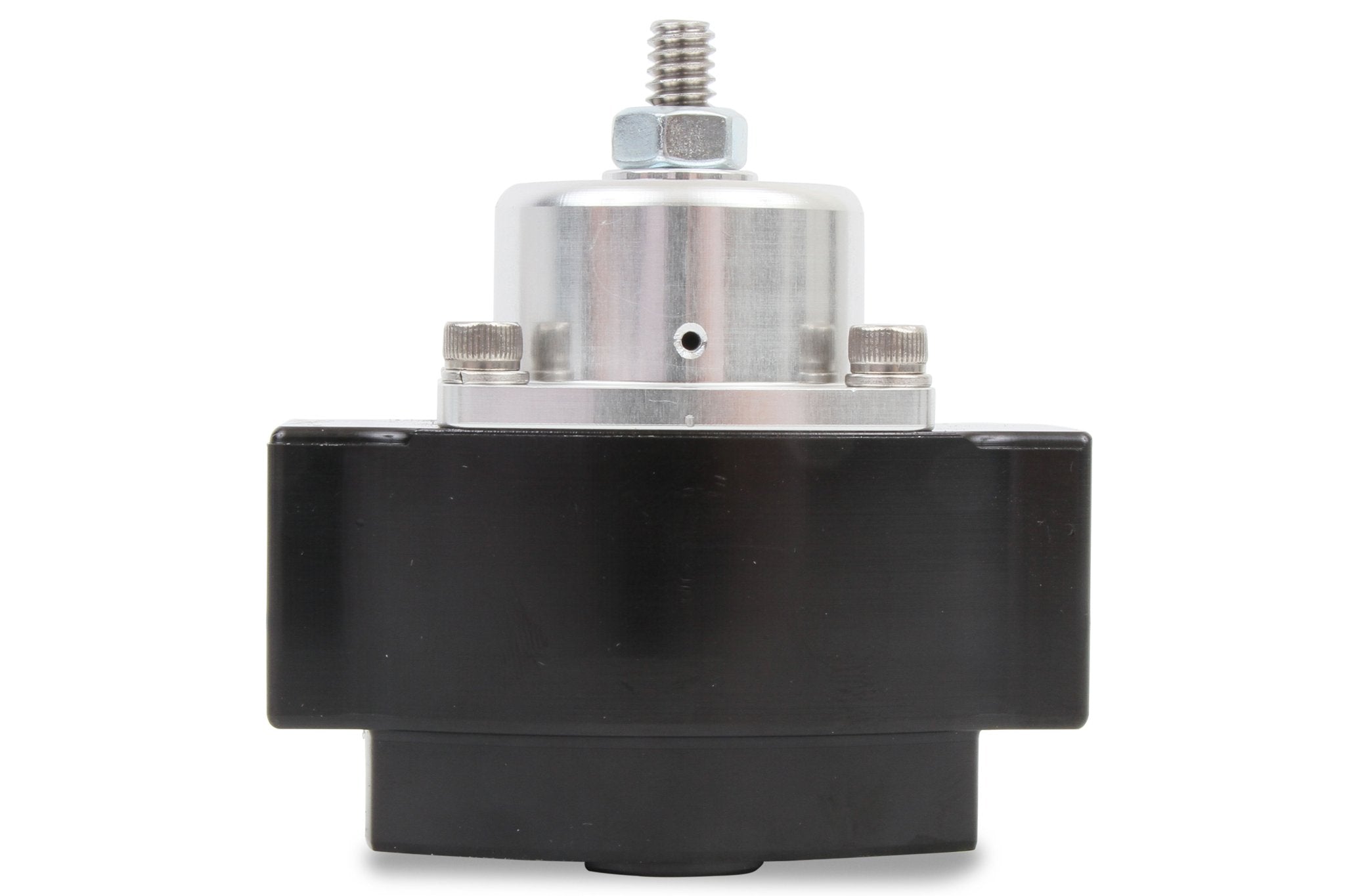

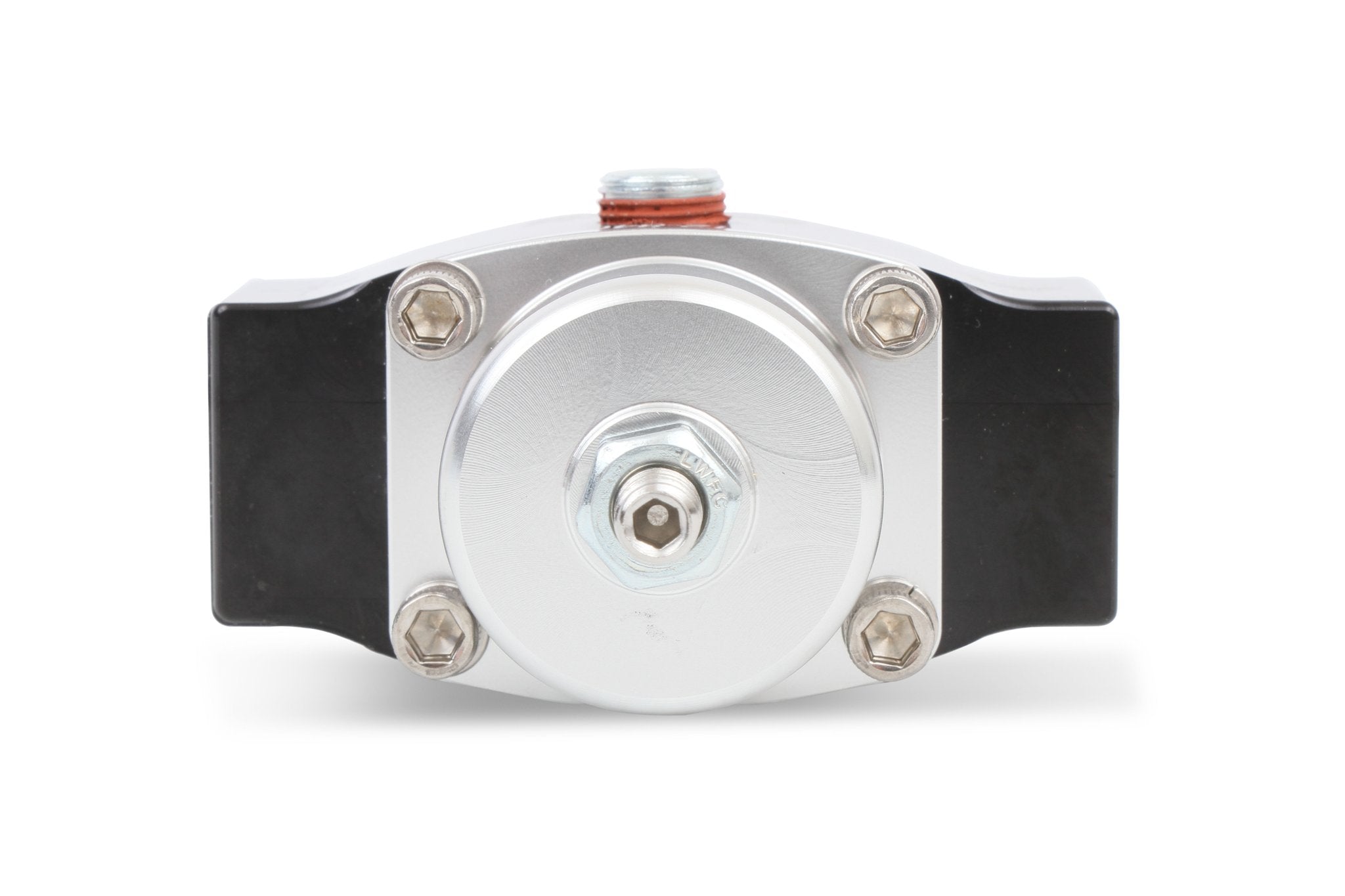

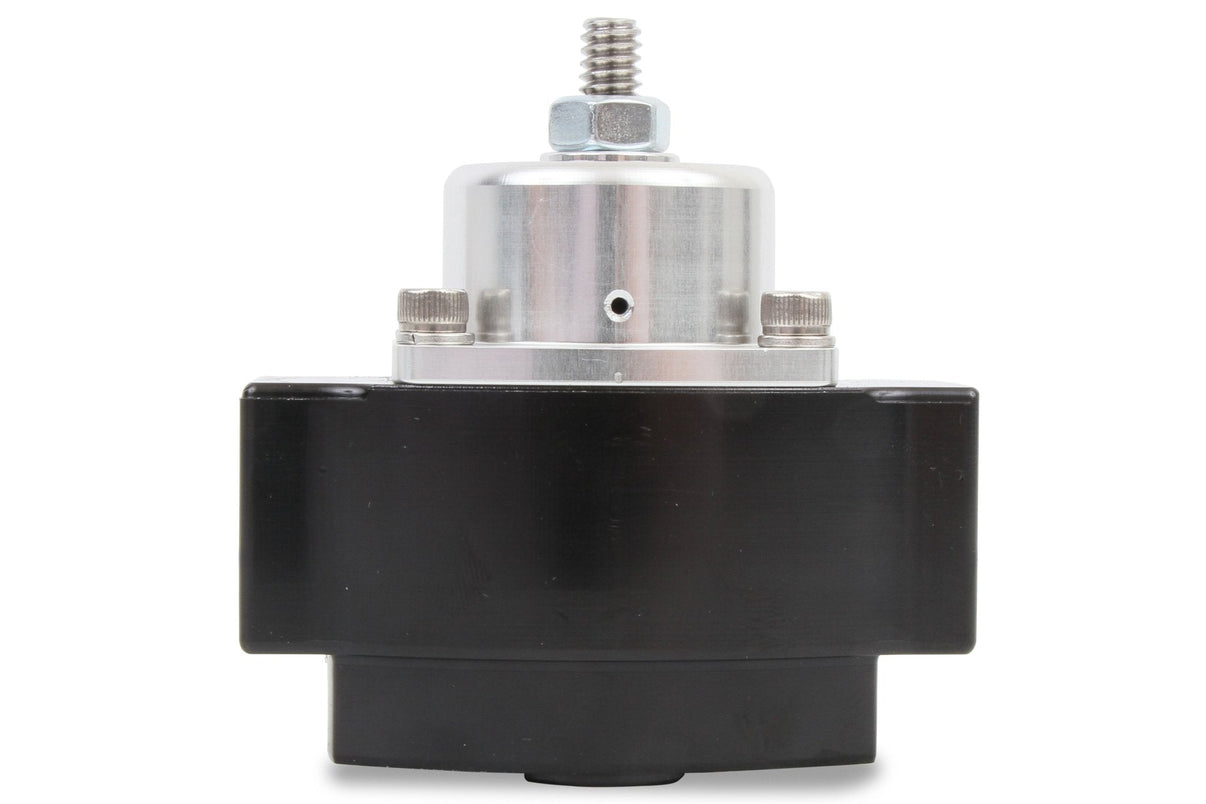

HP Billet Carbureted By Pass w/ Idle Bleed Fuel Pressure Regulator
Holley
Search over 60,000 products...
HP Billet Carbureted By Pas...
Get notified when this item is back in stock
Press & drag to view
Product Details
Compatibility
Fits HP Billet Carbureted By Pass w/ Idle Bleed Fuel Pressure Regulator.
Please refer to manufacturer specifications for complete compatibility information.
Product Specifications
Adjustable
Yes
Brand
Holley
Fuel System
Carbureted
Fuel Type
Gasoline/Alcohol
Gauge Included
No
Gauge Port Included
Yes
Grade Type
Performance
Inlet Gender
Female
Inlet Port Diameter
3/8 IN
Inlet Port Quantity
1
Inlet Size
3/8 inch NPT
Inlet Type
NPT
Maximum Pressure
9 PS
Menu
Carburetion
Minimum Pressure
4.5 PS
Mounting Bracket Included
Yes
Mounting Type
Inline
Outlet Gender
Female
Outlet Port Diameter
3/8 IN
Outlet Port Quantity
2
Outlet Size
3/8 inch NPT
Outlet Type
NPT
Part Type
Fuel Pressure Regulator
Port Quantity
2
Pressure Range
4.5-9 PSI
Product Type
Fuel Pressure Regulator
Rebuildable
Yes
Return Size
3/8 inch NPT
Style
Bypass
Product Description
Key Features
Street/Strip Carbureted Applications
Two Port
Adjustable from 4.5 to 9 PSI with Idle bleed
- Adjustable from 4.5-9 psi for precise fuel pressure adjustments
- Constructed of billet aluminum with a black anodized base and clear anodize top for good looks
- Utilizes a idle bleed for precise control of idle pressure
- Used in systems with a return line back to tank

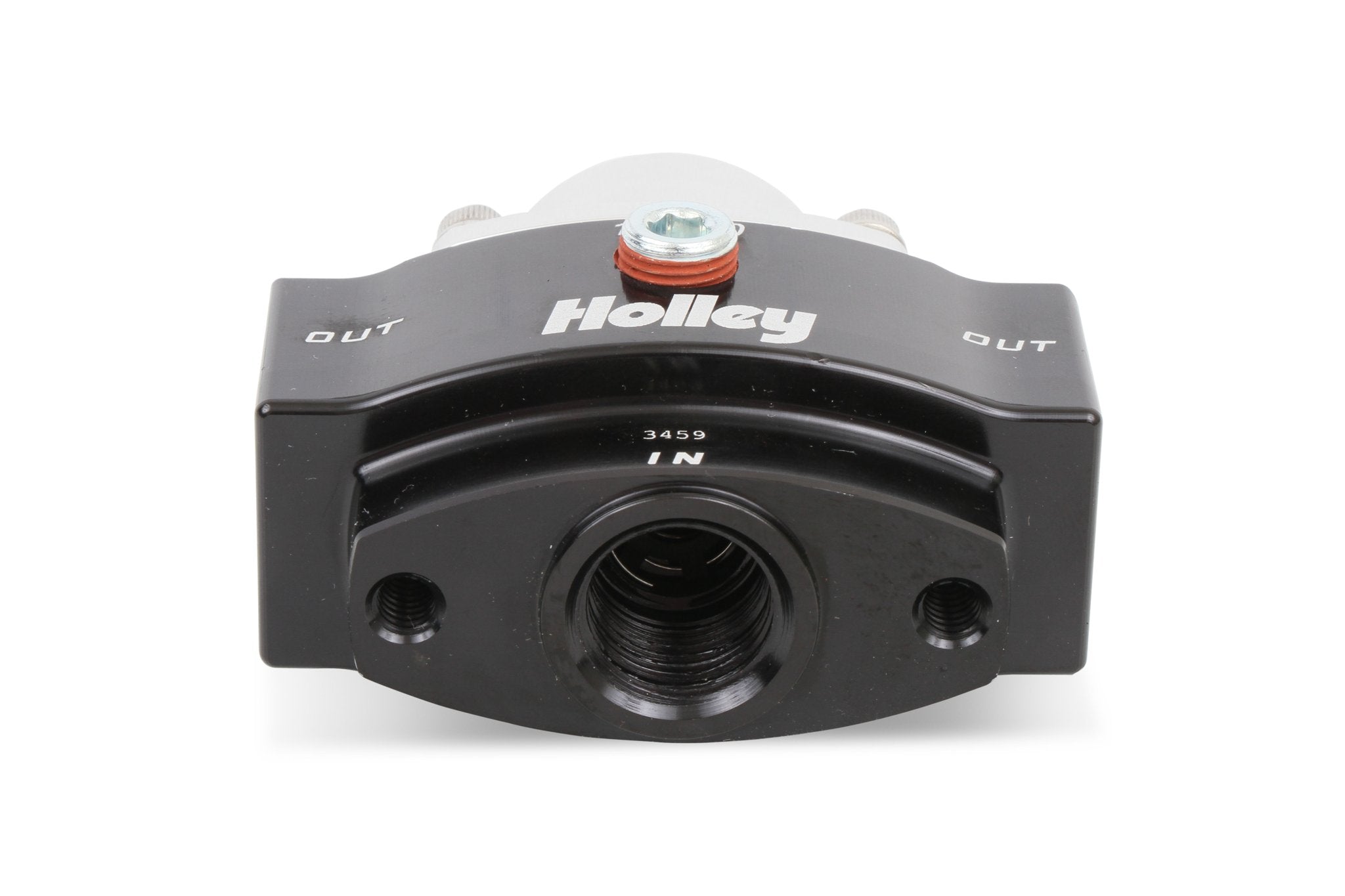

- One 3/8" NPT inlet, one 3/8" NPT outlet and one 3/8" NPT return (or bypass)
- 1/8" NPT gauge port
- Comparable and interchangeable with popular Holley® 12-803BP regulator

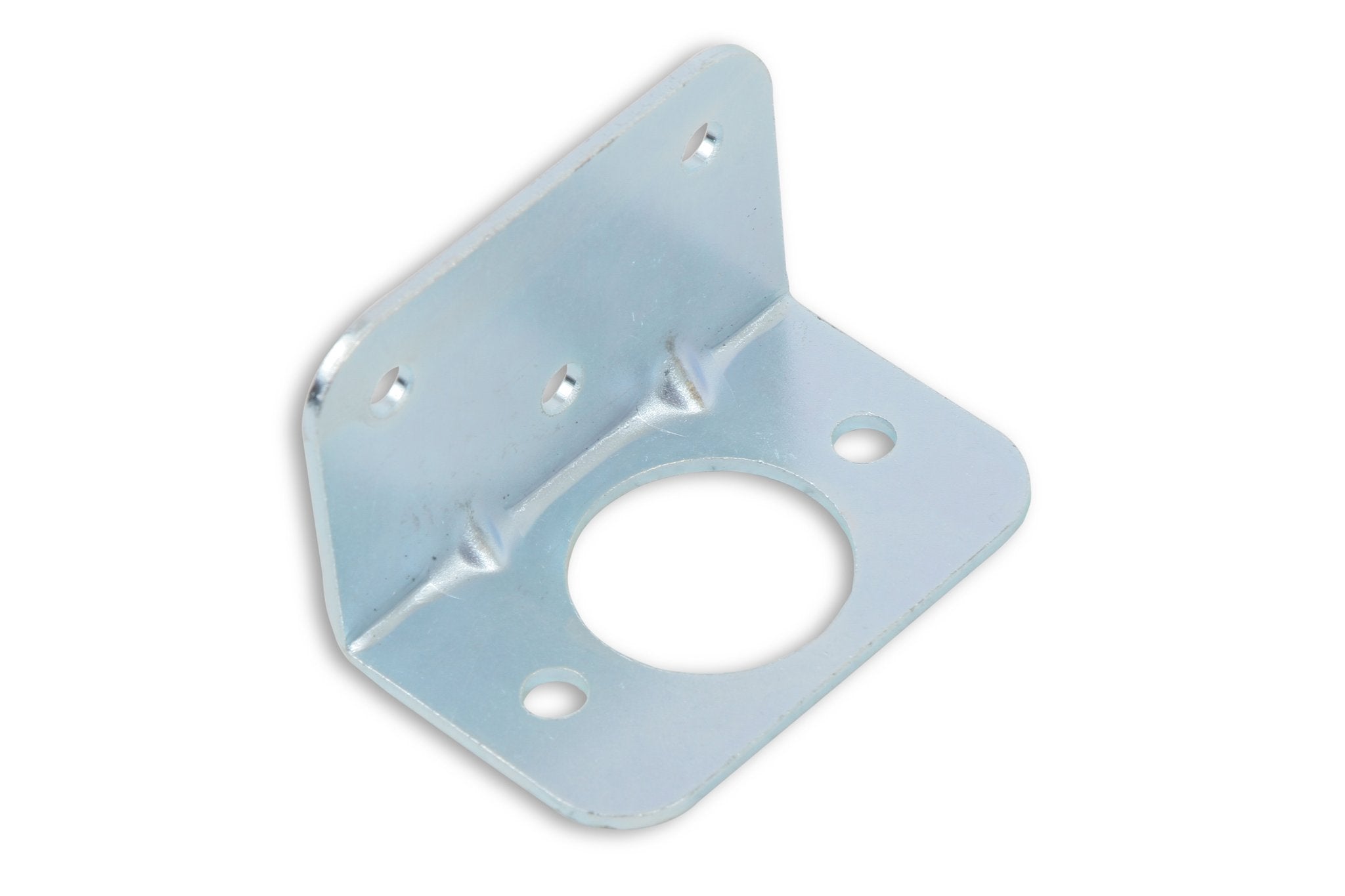

- Mounting bracket included
Package Contents

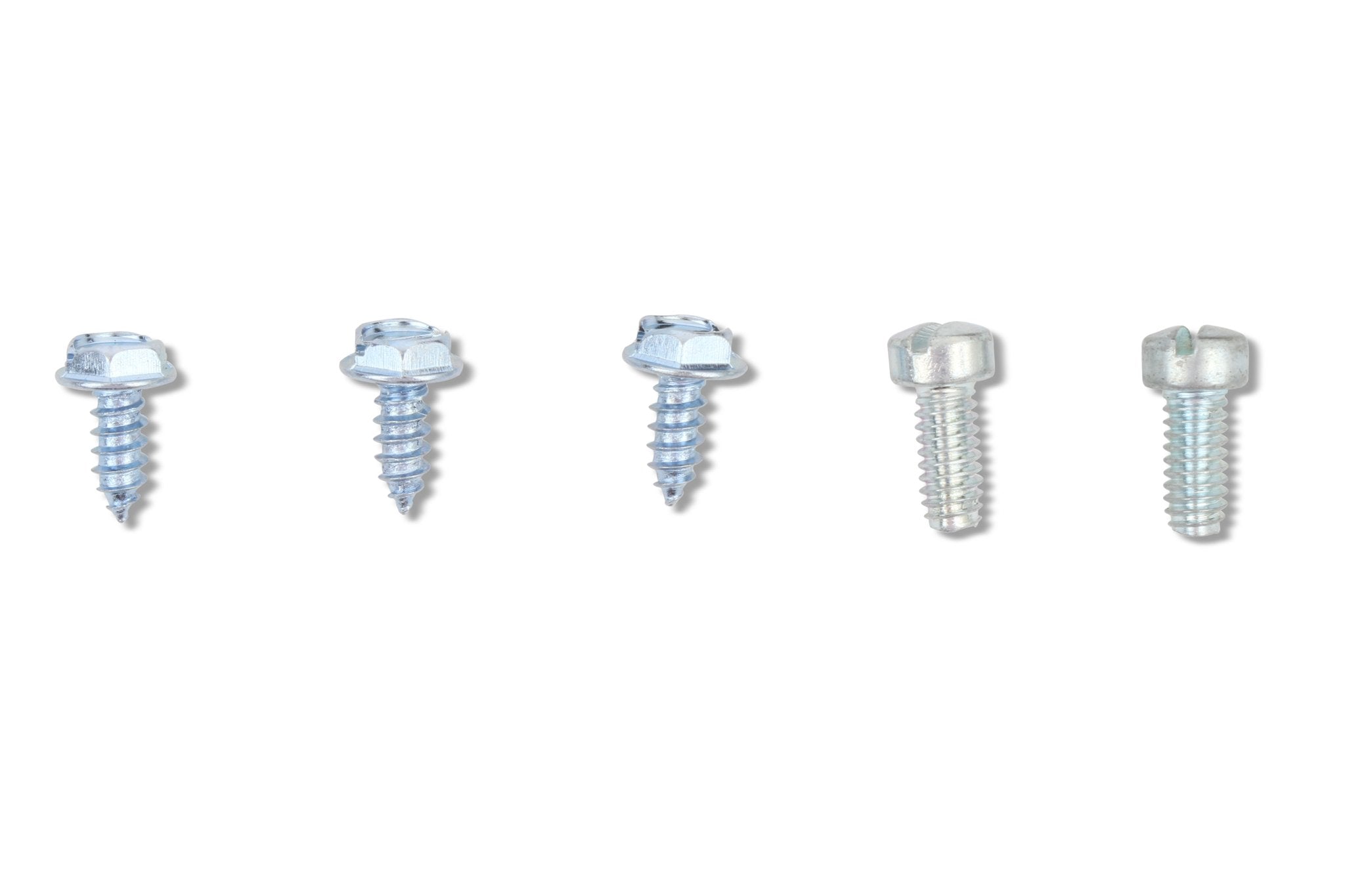

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
