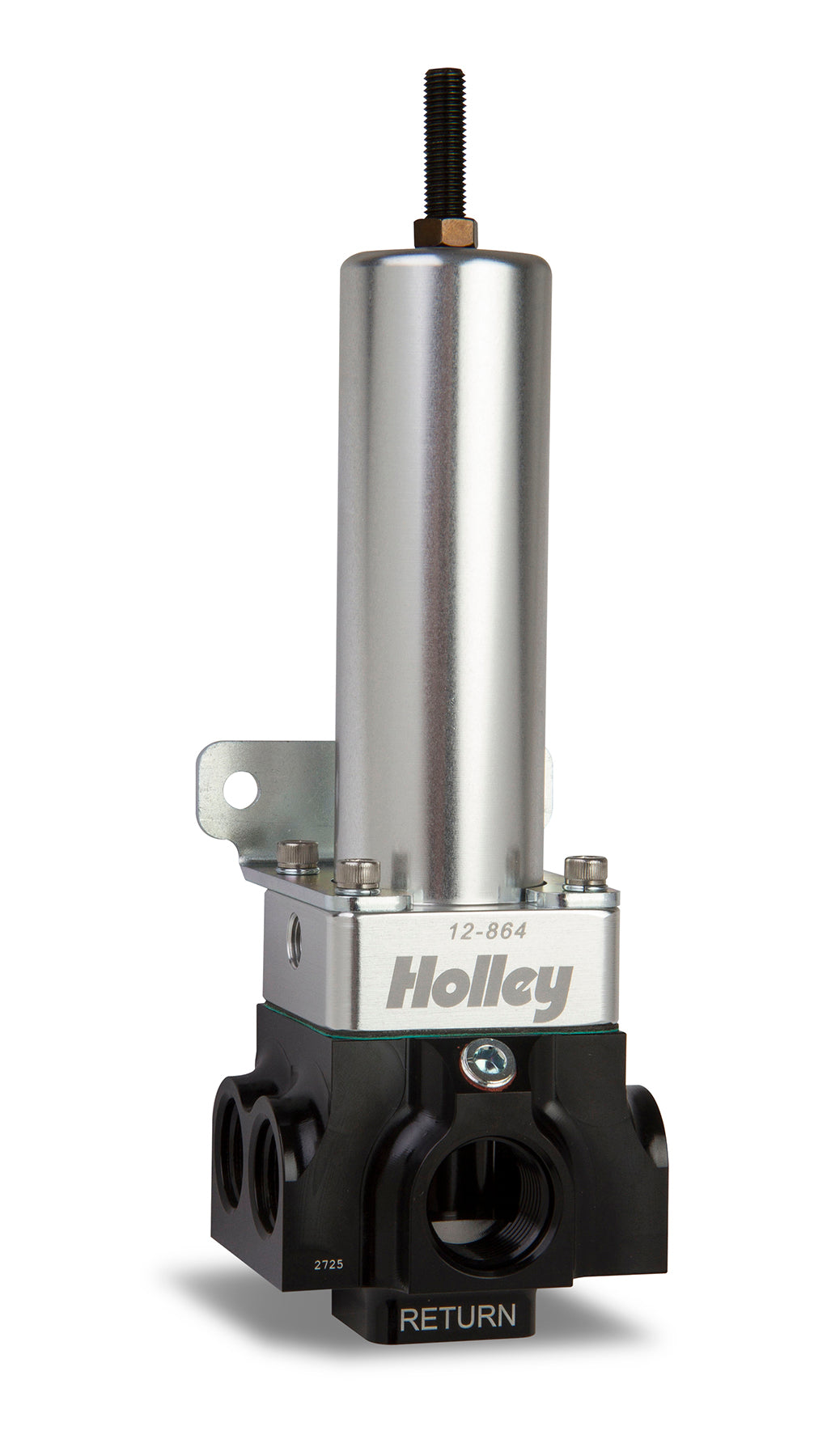

Holley EFIPart 12-864Made in US
Product Details
⭐
Key Features
Regulator is compatible with Diesel #1 and Diesel #2. Always use a fuel pressure gauge to monitor any changes during adjustment. Pictured is 12-851 showing similiar installation.
The Holley VR Series billet fuel pressure regulators are part of the VR1 and VR2 Series brushless fuel systems product line. These regulators can support 3000+ horsepower engines that require high volumes of fuel flow. Both EFI and carbureted versions can be referenced on a 1:1 ratio. They are precision machined from 6061-T6 billet aluminum for strength and durability and feature a black bright dip anodized body and a clear bright dip anodized top for corrosion resistance and good looks. Offered in 2 port and 4 port versions for carbureted or EFI pressures, Holley has the regulator to cover your needs!
Adjustable 40 to 100 PSI Boost Reference 1:1
- 4 port design
- Billet material
- Adjustable
- Return style
- 40-100 PSI pressure range
- (1) 10 AN and (4) 8 AN O-ring inlet/outlet size
- 10 AN O-ring return size
- 1/8" NPT gauge port with 1/8" NPT vaccum/boost reference port
- Designed for use with the Holley VR1 and VR2 Series Brushless in-line fuel pumps
- Compatible with gasoline, methanol, and E85
- Includes a -4 AN fitting if being used in a boosted application
📖
About this product
Adjustable 40 to 100 PSI Boost Reference 1:1
📋
Product Specifications
Adjustable
Yes
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Color
Black Anodized
Country
US
Emission Code
4
Emission Code
5
Fuel Pressure Range
40-100
Fuel System Type
EFI
Fuel System
EFI
Fuel Type
Diesel
Gauge Port
Yes
Grade Type
Performance
HTS Code
8413919010
Inlet Port Diameter
-10AN
Inlet Quantity
One
Inlet Type
ORB
Material
Aluminum
Maximum Pressure Reading
100
Maximum Pressure Reading
100 PS
Mounting Hardware Included
No
Mounting Type
Bolt On
Outlet Port Diameter
-8AN
Outlet Quantity
4
Outlet Type
ORB
Part Type
Fuel Injection Pressure Regulator
Port Quantity
7
Pressure Range
40-100 PSI
Product Type
Fuel Pressure Regulator
Prop 65 Yes/No
No
Return Size
8 AN O-Ring
Style
EFI
Sub Category
Fuel Injection System and Related Components
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8413919010
📐
Dimensions & Shipping
Product Dimensions
10.7 × 4.6 × 4.2 in
Shipping Dimensions
10.7 × 4.6 × 4.2 in
Weight
839 g (0.84 kg)
