HolleyPart 12-890Made in US
Product Details
⭐
Key Features
*Pump gas compatible for intermittent or under 90 degree ambient temperature use Pump gas use recommendations: • This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 d

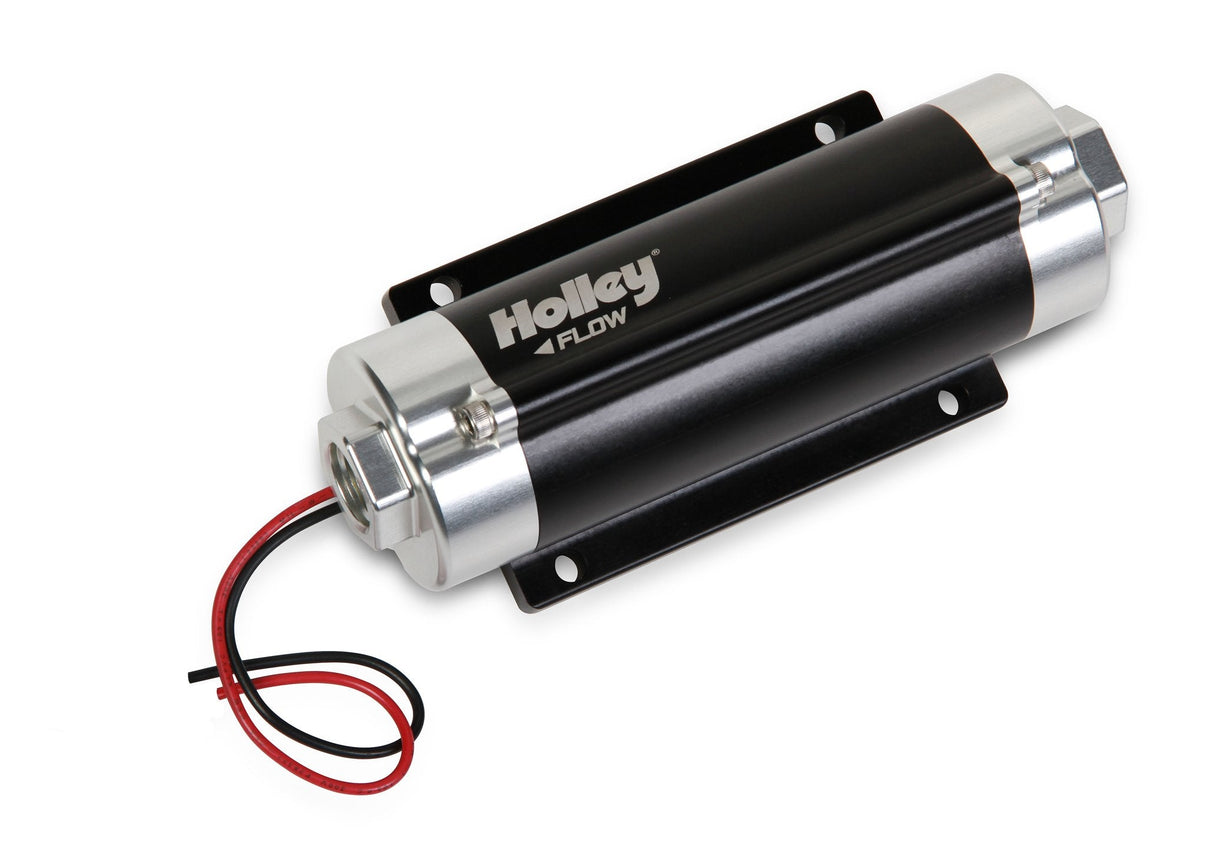

Holley's HP™ In-Line Billet Fuel Pumps are designed to be the perfect companion to your carbureted or fuel injected race car, off-road truck, or any engine needing fuel! The HP™ fuel pumps feature OEM gerotor technology which yields lightweight, quiet operation and 100,000+ mile durability in a cost-effective, attractive package. HP™ fuel pumps are Race gas, E-85, and diesel compatible and can be used in racing applications with 18.5 volt charging systems up to 80 psi.
Carb or EFI Applications Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85
- Billet aluminum construction for durability & good looks
- -8 an o-ring inlet/outlet for high flow and superior sealing
- Excellent for use with carbureted or EFI applications
- Fully submersible in-tank for custom applications, space savings and less plumbing
- Compatible with 12v to 18.5v systems for street or race use
- Compact (7.5” long x 3” wide x 2.75” tall) for easy installation on frame rails or other tight areas
- Proven durability beyond 3,000 hours in gasoline or diesel fuels
- Weighs only 3.1 lbs.
- Current draw at 43 psi and 13.5 vdc is 8.6 amps
- Not designed for use on aircraft of any type.
📖
About this product
Carb or EFI Applications Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85
📋
Product Specifications
Application
Universal
Automotive Item Grade
Performance
Average Current Draw
8.6
Brand
Holley
California Proposition 65 Chemical Name
20
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Forced Induction Hp@43psi
700
Forced Induction Hp@60psi
600
Forced Induction Hp@8psi
800
Free Flow GPH
105
Fuel Delivery Type
Carburetor
Fuel Delivery Type
Fuel Injection
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Diesel
Fuel Type
E85
Fuel Type
Gasoline
Gasket Or Seal Included
No
Gph@43psi
76
Gph@60psi
70
Gph@8psi
100
Grade Type
Performance
Inlet Fitting Thread Size
3/4-16
Inlet Fitting Thread Size
3/4-16 IN
Inlet Size
8 AN O-Ring - 3/4-16 SAE
Inlet Type
8 AN ORB
Internal Or External
Internal External
Lph@43psi
287
Lph@60psi
265
Lph@8psi
363
Material
Aluminum
Maximum Flow Rating
105
Maximum Flow Rating
105 GPH
Maximum Pressure
80
Maximum Pressure
80 PS
Menu
Fuel Pumps and Related Components
Mounting Hardware Included
No
Naturally Aspirated Hp@43psi
900
Naturally Aspirated Hp@60psi
800
Naturally Aspirated Hp@8psi
1050
Negative Ground
Yes
Outlet Quantity
3/4-16
Outlet Quantity
3/4-16 IN
Outlet Size
8 AN O-Ring - 3/4-16 SAE
Outlet Type
8 AN ORB
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Pump Body Color
Black Anodized
Regulator Included
No
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Terminal Quantity
2
Universal Or Specific Fit
Universal
Voltage
12-18.5
Voltage
12-18.5 2H
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wire Quantity
2
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
14.9 × 7.3 × 3.1 in
Shipping Dimensions
14.9 × 7.3 × 3.1 in
Weight
1429 g (1.43 kg)
