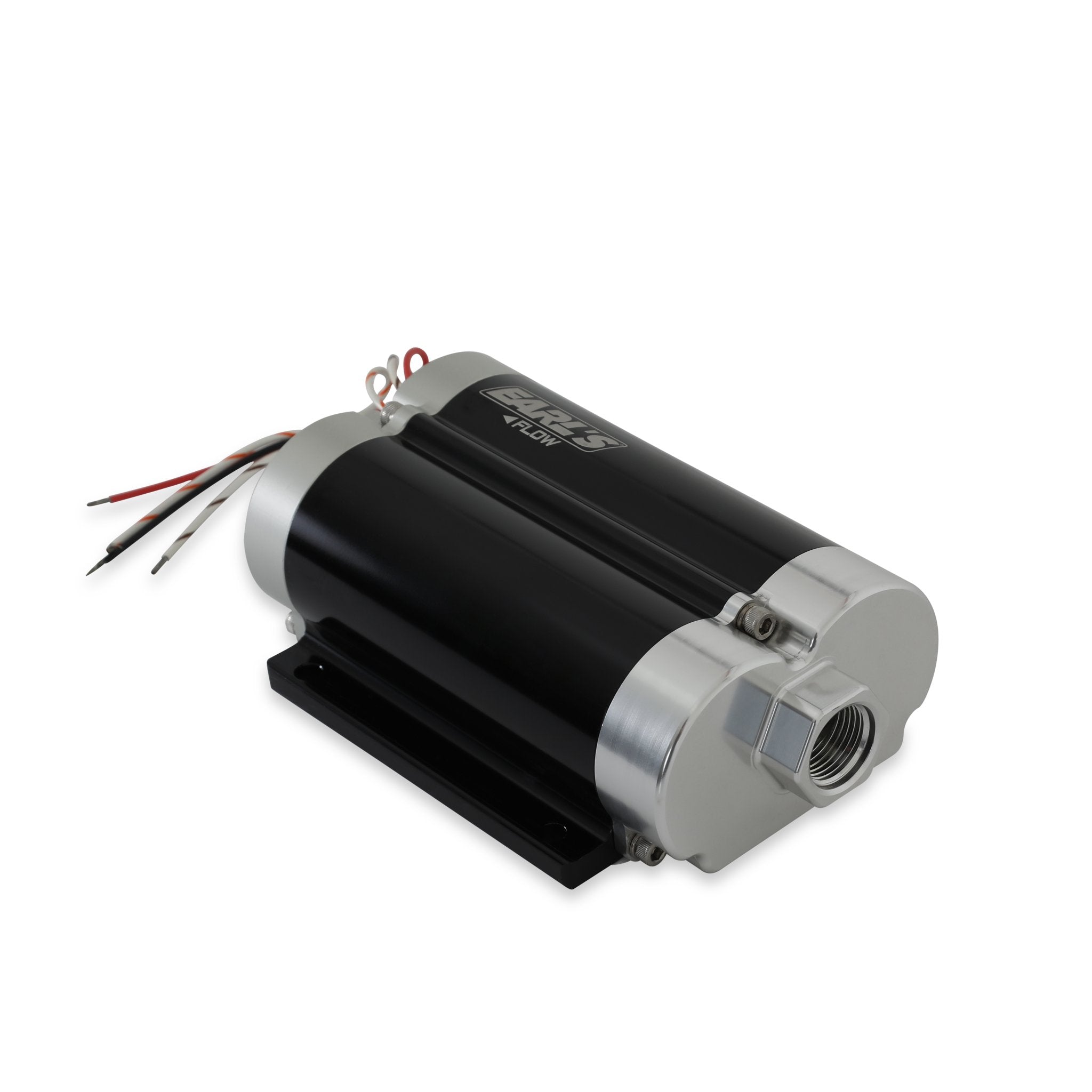

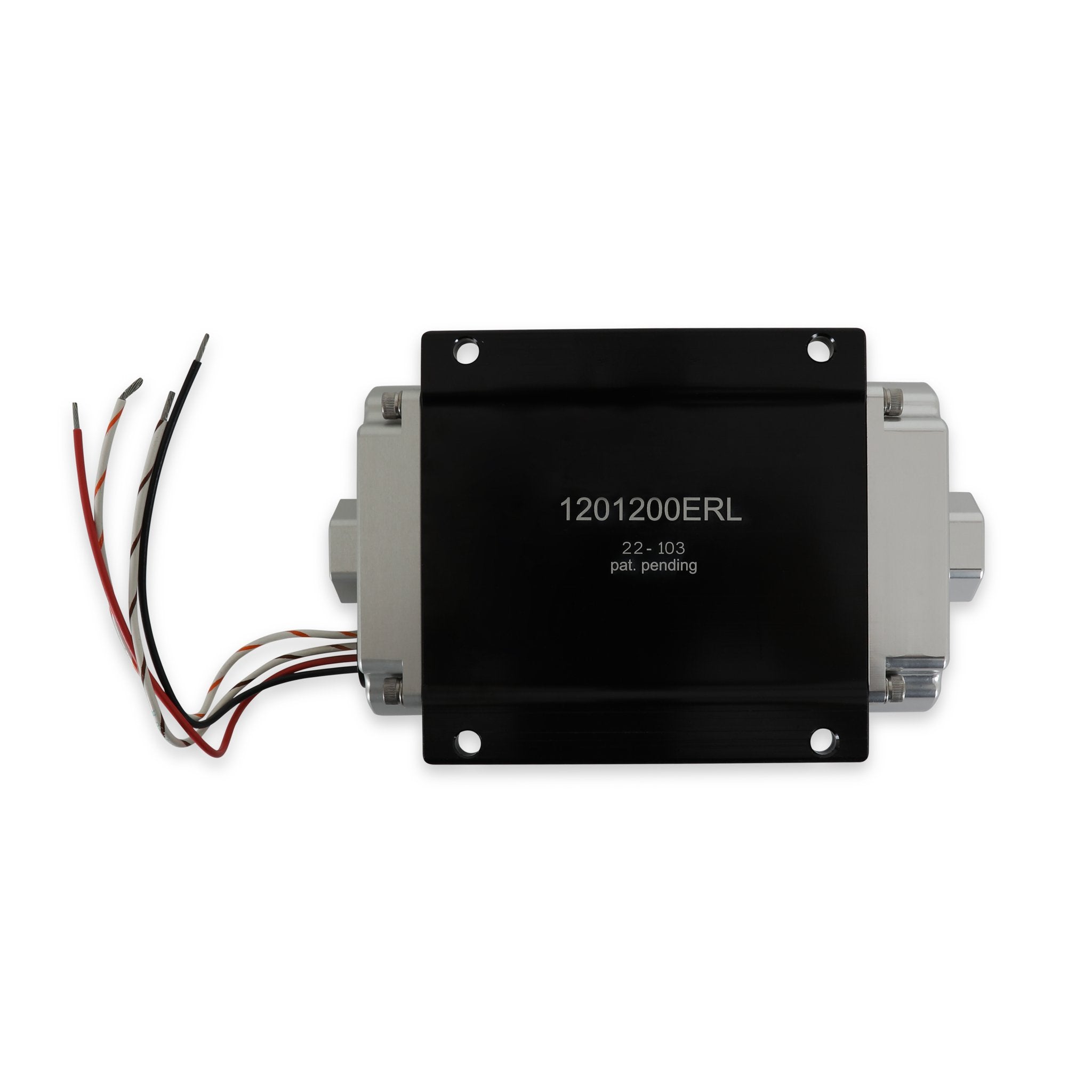

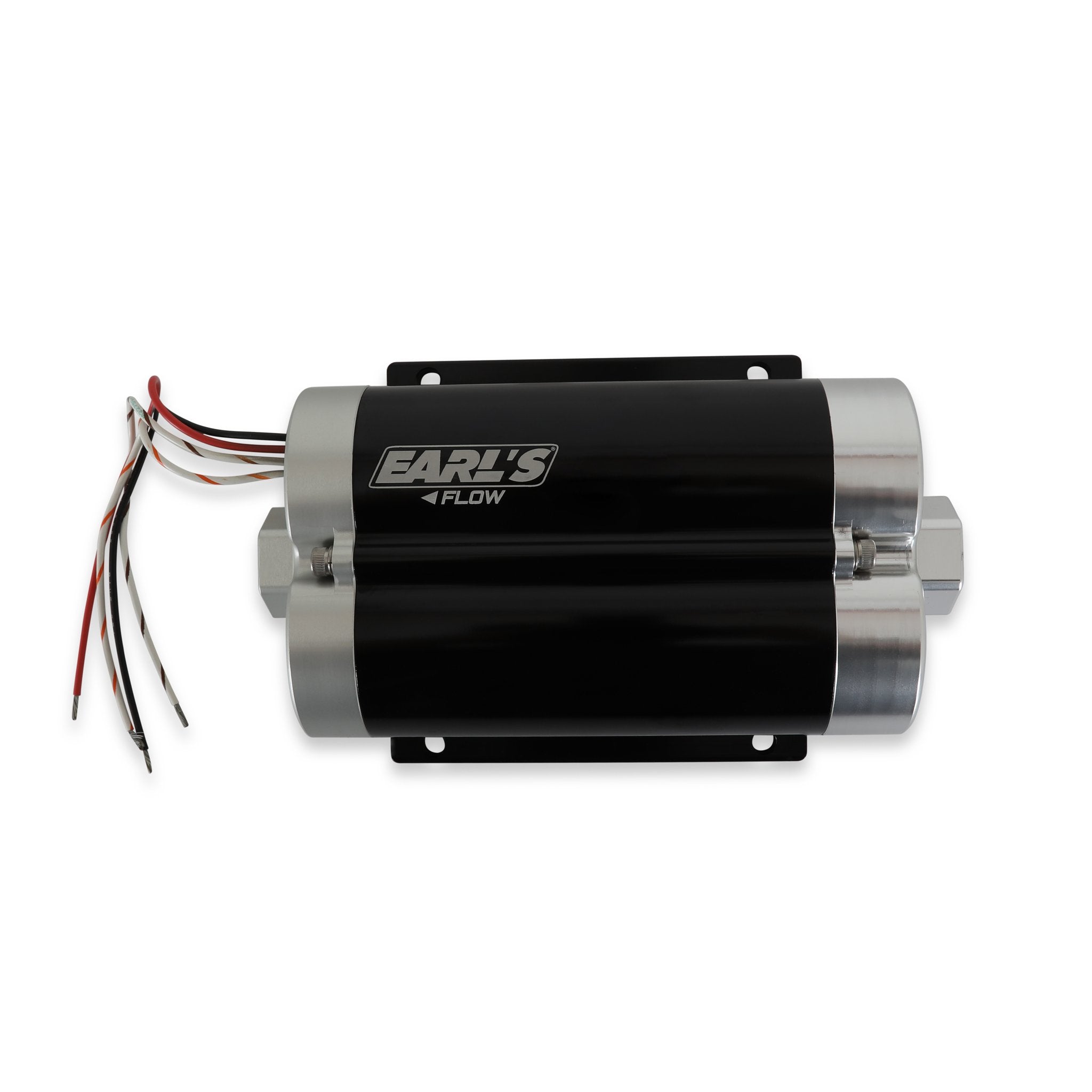

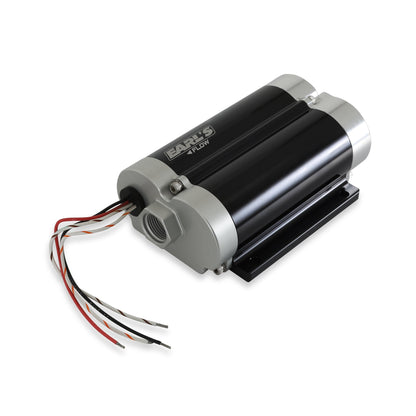

Earl's 130 GPH Dual In-Line Billet Fuel Pump

Regular price £601.99 GBP inc VAT
Shipping calculated at checkout.
SKU: 1201200erl

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


View details
Earl's PerformancePart 1201200erlMade in US

Product Details

Key Features

These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel! This pump is not designed to use a standard conical seat style union in the inlet or outlet

Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Earl's Dual in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. Holley engineers have designed 12-1200 to feature improved hot fuel handling capabilities. It was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is available for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 1201800 Dual Fuel Pump. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features!

Street/Strip Carb or EFI Applications Supports up to 1200 EFI or 1460 Carb HP Compatible with Pump Gas and Race Gas

  • Improved hot fuel handling
  • Billet aluminum construction for durability and good looks
  • 10 AN O-ring inlet/outlet for high flow and superior sealing
  • Excellent for use with carbureted or EFI applications
  • Fully submersible in-tank for custom applications, space savings and less plumbing
  • Compatible with 12v to 18.5v systems for street or race use
  • Compact (7.66 Long x 5 Wide x 2.5 Tall) for easy installation on frame rails or other tight areas
  • Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
  • Patent pending dual pump technology
  • Proven durability beyond 3,000 hours in gasoline
  • Weighs only 5.1 lbs.
  • Max Current draw is 20 Amps
  • Not designed for use on aircraft of any type.
📖

About this product

Street/Strip Carb or EFI Applications Supports up to 1200 EFI or 1460 Carb HP Compatible with Pump Gas and Race Gas

🎬

Product Videos

📋

Product Specifications

Application
Universal
Automotive Item Grade
Performance
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Forced Induction Hp@43psi
900
Forced Induction Hp@60psi
800
Forced Induction Hp@8psi
1100
Free Flow GPH
130
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Gasoline
Gasket Or Seal Included
No
Gph@43psi
100
Gph@60psi
88
Gph@8psi
130
Inlet Size
10 AN O-Ring - 7/8-14 SAE
Lph@43psi
378
Lph@60psi
333
Lph@8psi
480
Material
Aluminum
Mounting Hardware Included
No
Naturally Aspirated Hp@43psi
1200
Naturally Aspirated Hp@60psi
1000
Naturally Aspirated Hp@8psi
1460
Outlet Size
10 AN O-Ring - 7/8-14 SAE
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Prop 65 Yes/No
Yes
Pump Body Color
Black Anodized
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Terminal Quantity
2
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wiring Harness Included
No
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8413301000
📐

Dimensions & Shipping

Product Dimensions
11.2 × 7.1 × 3.1 in
Shipping Dimensions
11.2 × 7.1 × 3.1 in
Weight
1996 g (2.0 kg)
