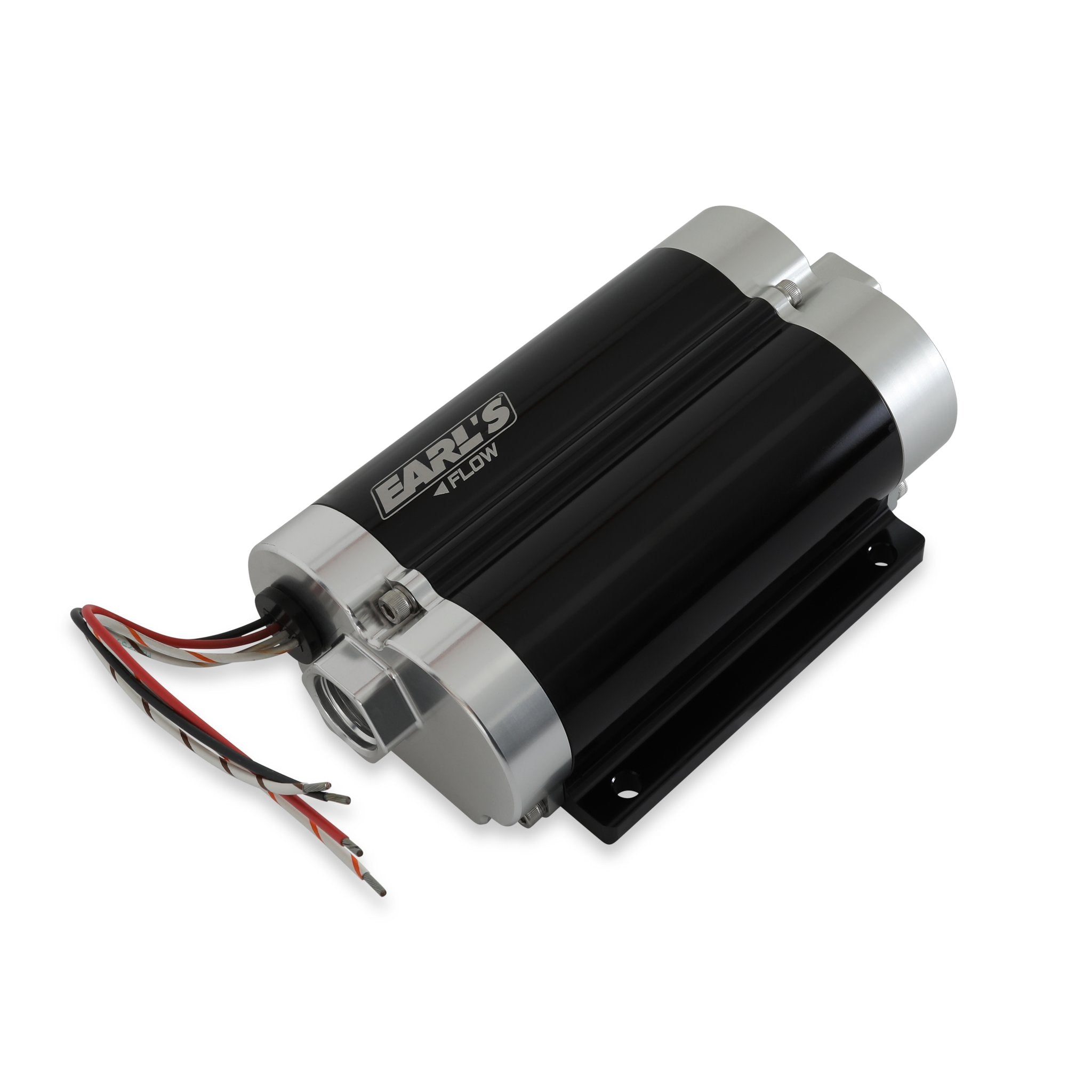

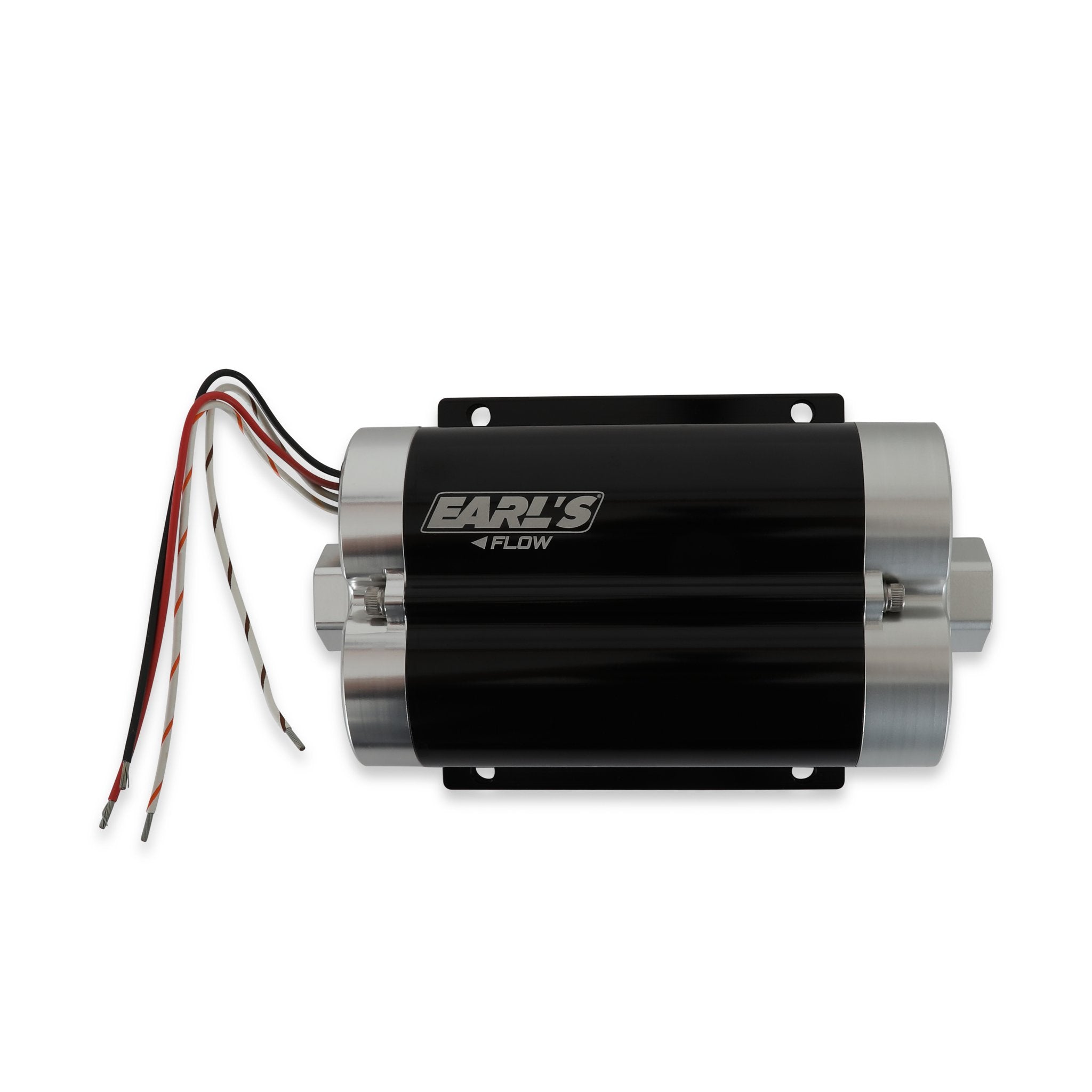

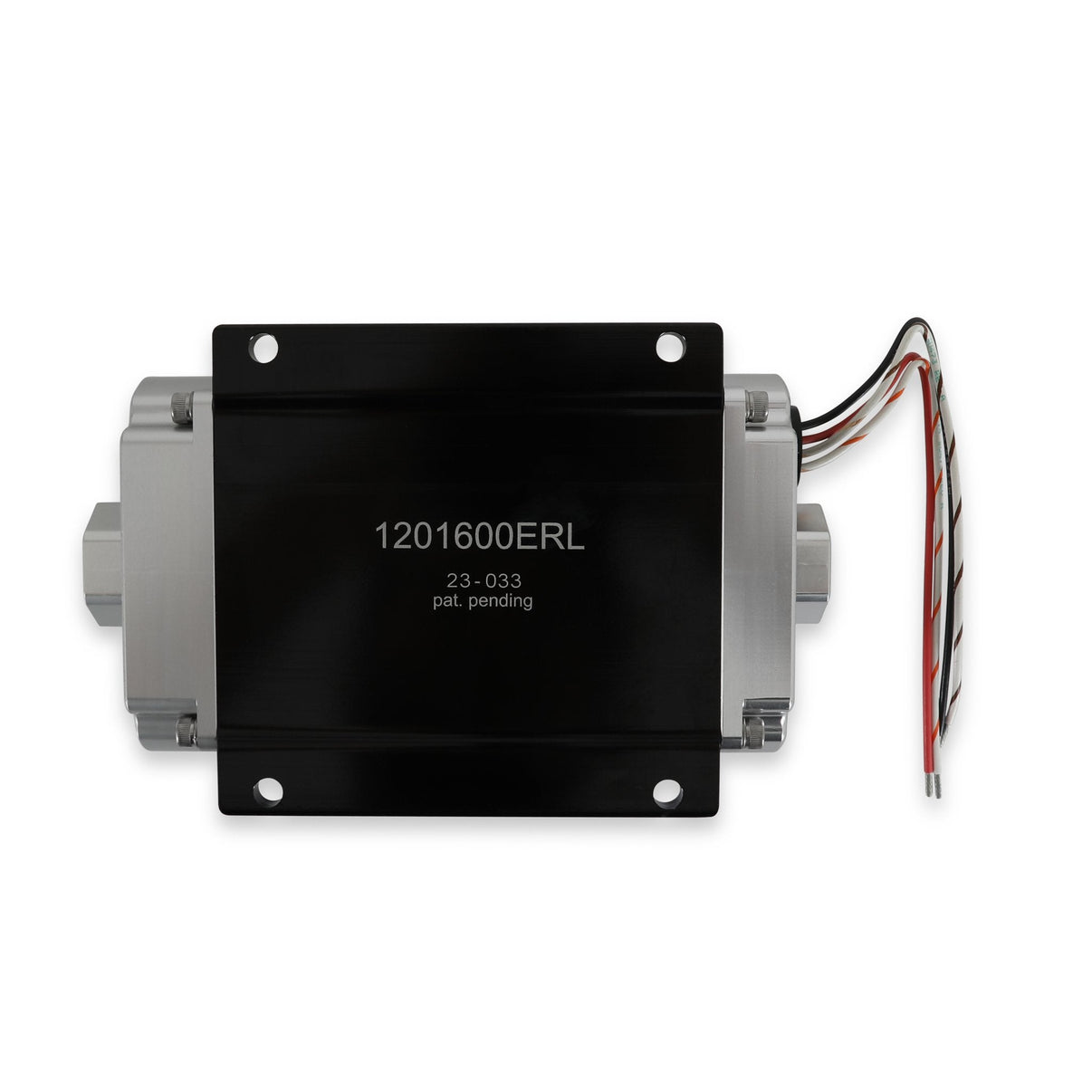

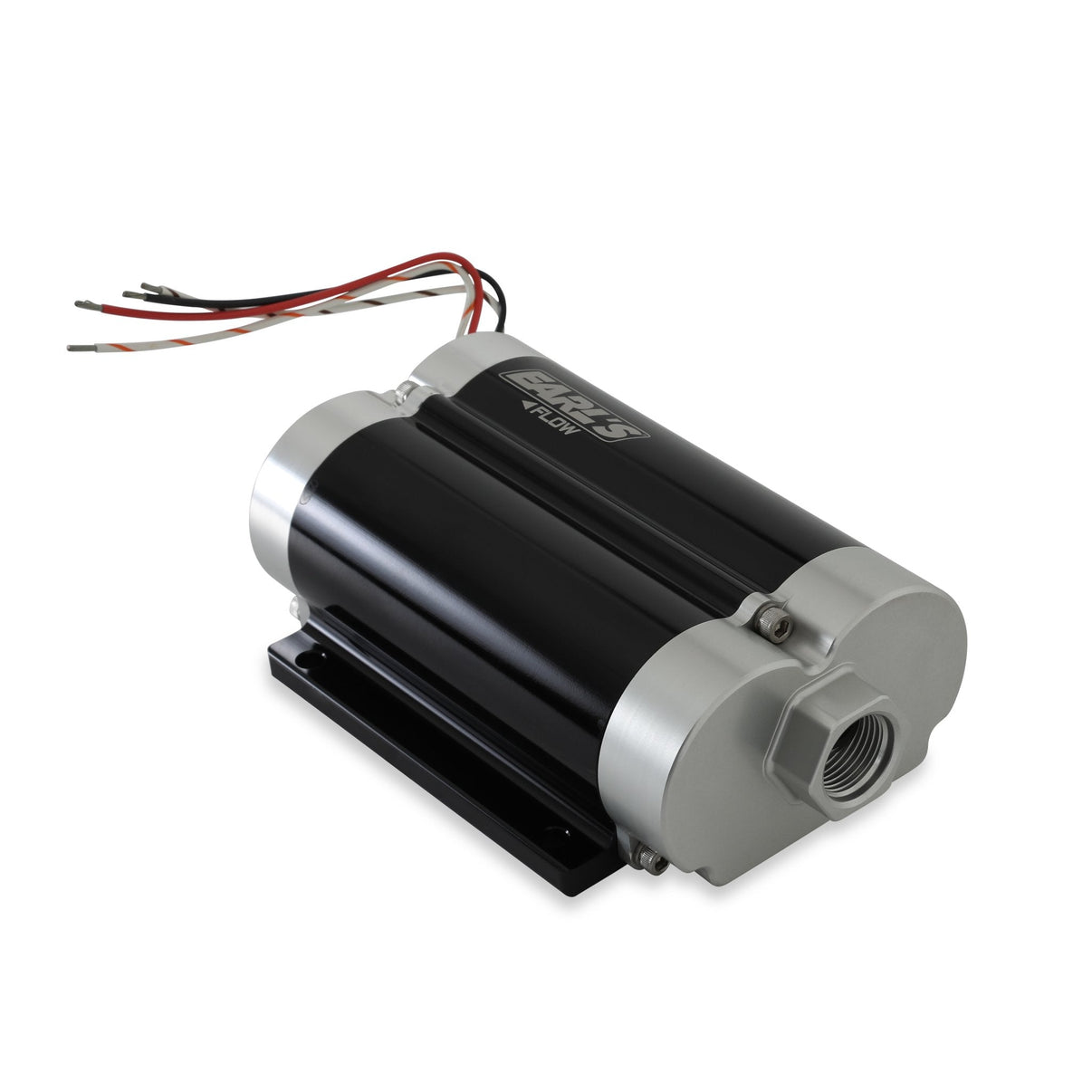

Earl's 160 GPH Dual In-Line Billet Fuel Pump

Regular price £665.99 GBP inc VAT
Shipping calculated at checkout.
SKU: 1201600erl

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


View details
Earl's PerformancePart 1201600erlMade in US

Product Details

Key Features

These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel! This pump is not designed to use a standard conical seat style union in the inlet or outlet

Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Earl's Dual in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. Holley engineers have designed 1201600ERL to feature improved hot fuel handling capabilities. It was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is available for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Earl's has still got you covered with the 1201800ERL Dual Fuel Pump. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features!

Street/Strip Carb or EFI Applications Supports up to 1600 EFI or 1800 Carb HP Compatible with Pump Gas and Race Gas

  • Improved hot fuel handling
  • Billet aluminum construction for durability and good looks
  • 10 AN O-ring inlet/outlet for high flow and superior sealing
  • Excellent for use with carbureted or EFI applications
  • Fully submersible in-tank for custom applications, space savings and less plumbing
  • Compatible with 12v to 18.5v systems for street or race use
  • Compact (7.66 Long x 5 Wide x 2.5 Tall) for easy installation on frame rails or other tight areas
  • Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost
  • Patent pending dual pump technology
  • Proven durability beyond 3,000 hours in gasoline
  • Weighs only 5.1 lbs.
  • Max Current draw is 28 Amps
  • Not designed for use on aircraft of any type.
📖

About this product

Street/Strip Carb or EFI Applications Supports up to 1600 EFI or 1800 Carb HP Compatible with Pump Gas and Race Gas

🎬

Product Videos

📋

Product Specifications

Application
Universal
Automotive Item Grade
Performance
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Color
Silver
Emission Code
5
Finish
Anodized
Forced Induction Hp@43psi
1150
Forced Induction Hp@60psi
1050
Forced Induction Hp@8psi
1430
Free Flow GPH
160
Fuel Sending Unit Included
No
Fuel System
Carbureted
Fuel System
EFI
Fuel Type
Gasoline
Gasket Or Seal Included
No
Gph@43psi
127
Gph@60psi
113
Gph@8psi
155
Inlet Size
10 AN O-Ring - 7/8-14 SAE
Internal Or External
External
Lph@43psi
480
Lph@60psi
427
Lph@8psi
587
Material
Aluminum
Mounting Hardware Included
No
Naturally Aspirated Hp@43psi
1600
Naturally Aspirated Hp@60psi
1330
Naturally Aspirated Hp@8psi
1800
Outlet Size
10 AN O-Ring - 7/8-14 SAE
Part Type
Electric Fuel Pump
Product Type
Fuel Pump
Prop 65 Yes/No
Yes
Pump Body Color
Black Anodized
Strainer Included
No
Terminal Quantity
2
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wiring Harness Included
No
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8413301000
📐

Dimensions & Shipping

Product Dimensions
7.2 × 6.9 × 3.1 in
Shipping Dimensions
7.2 × 6.9 × 3.1 in
Weight
1973 g (1.97 kg)
