Holley Sniper EFIPart 19-150Made in TW
Product Details
⭐
Key Features
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

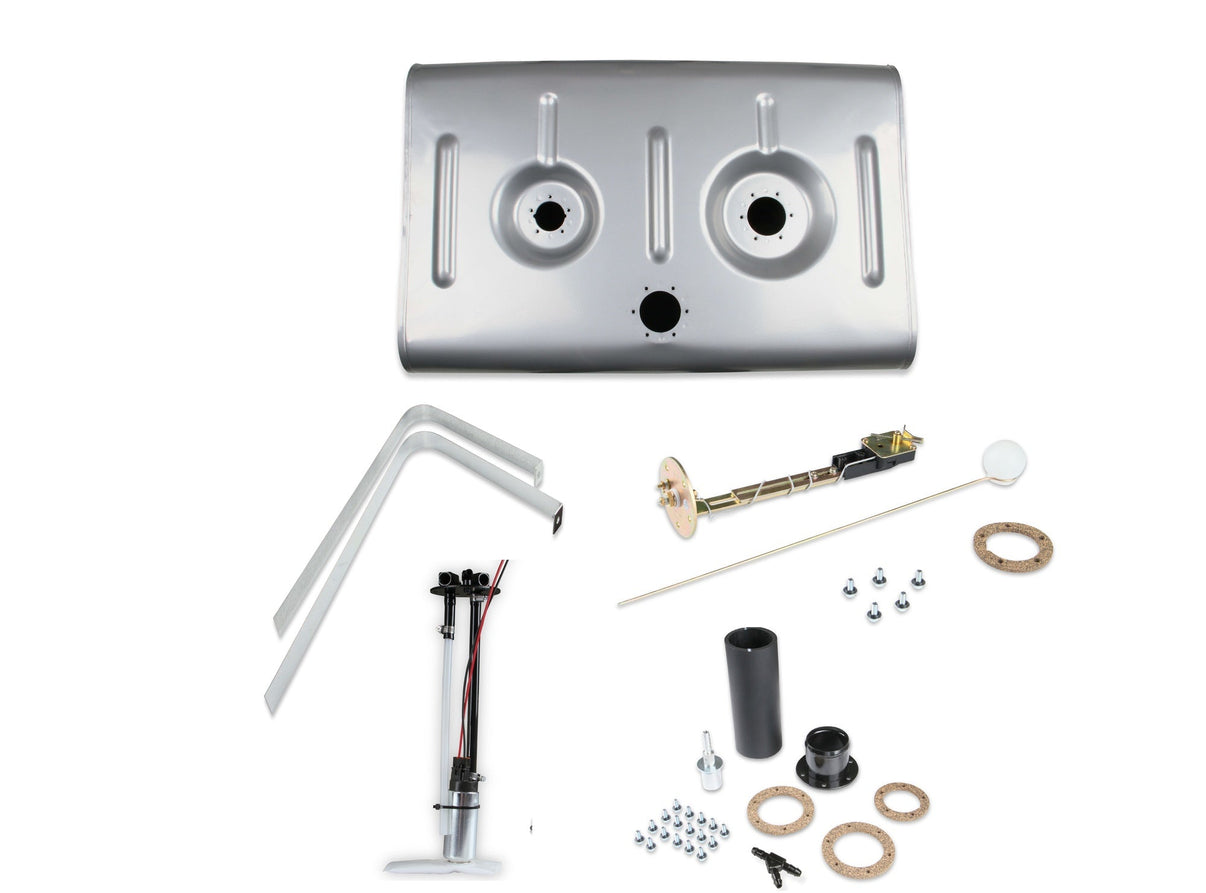

Holley and Sniper will help you to complete your EFI swap with our new EFI Conversion Fuel Tanks. The kit includes the tank, a 255 lph fuel pump, internal baffling, a fuel level sender, and the filler neck. The tank is powder coated for corrosion resistance and great looks. These tank kits are a complete solution for your EFI project! | Supports up to 550 EFI (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw) | Size: 27-3/4" x 17-3/4" x 8-1/2" | ***Two straps 42" length by 1 3/8" width | ***Gas cap and filler neck not included | These universal tanks are perfect for your next classic truck EFI conversion project.
UNIVERSAL EFI GAS TANK KIT WITH 0-90 GM SENDER
- Tanks are coated galvanized steel then powder coated silver for total corrosion protection
- 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
- Sender has ¼” NPT Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Fuel Sender for 0-90 ohm fuel gauge
- Fuel pump and sender are recessed in the tank to provide an easy installation with no modification to your car
- EFI style tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Includes universal mounting straps
📖
About this product
UNIVERSAL EFI GAS TANK KIT WITH 0-90 GM SENDER
📋
Product Specifications
Application
Universal
Attached Sump
Yes
Automotive Item Grade
Performance
Baffled Sump
Yes
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Color
Silver
Drain Plug
No
Emission Code
3
Filler Neck Attached
No
Finish
Powdercoated
Free Flow LPH
255
Fuel Sending Unit Ohms
0-90 Ohms
Fuel System Compatibility
Electronic Fuel Injection
Fuel System Type
Gasoline
Fuel Tank Coating
Powder Coated
Gallon Capacity
16
Grade Type
Performance
Lock Ring Included
Yes
Material
Steel
Maximum Flow Rating
255 LPH
Mounting Straps Included
Yes
New Straps Included
Yes
O-Ring Included
Yes
Part Type
Fuel Tank and Pump Assembly Combination
Product Type
Fuel Tank
Prop 65 Yes/No
Yes
Resistance Ohms Empty
0 82
Resistance Ohms Full
90 82
Sending Unit Included
Yes
Sub Category
Fuel Pumps and Related Components
Tank Capacity
16 GA
Tank Color
Gray
Tank Material
Steel
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
TW
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
23.0 × 22.0 × 10.5 in
Shipping Dimensions
23.0 × 22.0 × 10.5 in
Weight
13925 g (13.93 kg)
