Holley Sniper EFIPart 19-158✓ Fits 36 vehiclesMade in TW
Product Details
⚙️
Vehicle Fitment & Compatibility
36 applicationsCompatible Engines
5.7L V8 350ci5.0L V8 307ci4.1L L6 250ci6.6L V8 402ci6.6L V8 400ci7.5L V8 455ci
Application Notes
LS Swap
View all 36 vehicle applications
Years
Make / Model
Submodel
Engine
1970–1973
Chevrolet Camaro
5.7L V8 350ci
1970–1973
Chevrolet Camaro
5.7L V8 350ci
1970–1973
Chevrolet Camaro
5.7L V8 350ci
1970–1973
Chevrolet Camaro
5.0L V8 307ci
1970–1973
Chevrolet Camaro
4.1L L6 250ci
1970–1973
Chevrolet Camaro
4.1L L6 250ci
1970–1973
Chevrolet Camaro
5.0L V8 307ci
1970–1973
Chevrolet Camaro
1970–1973
Chevrolet Camaro
1970–1973
Chevrolet Camaro
1970–1972
Chevrolet Camaro
1970–1972
Chevrolet Camaro
5.7L V8 350ci
1970–1972
Chevrolet Camaro
6.6L V8 402ci
1971–1972
Chevrolet Camaro
6.6L V8 402ci
1972
Chevrolet Camaro
6.6L V8 402ci
1973
Chevrolet Camaro
5.7L V8 350ci
1973
Chevrolet Camaro
5.0L V8 307ci
1973
Chevrolet Camaro
1970–1973
Pontiac Firebird
4.1L L6 250ci
1970–1973
Pontiac Firebird
5.7L V8 350ci
1970–1973
Pontiac Firebird
5.7L V8 350ci
1970–1973
Pontiac Firebird
6.6L V8 400ci
1970–1973
Pontiac Firebird
6.6L V8 400ci
1970–1973
Pontiac Firebird
1970–1973
Pontiac Firebird
5.7L V8 350ci
1970–1973
Pontiac Firebird
1970–1973
Pontiac Firebird
1970–1973
Pontiac Firebird
6.6L V8 400ci
1970–1973
Pontiac Firebird
4.1L L6 250ci
1970–1973
Pontiac Firebird
6.6L V8 400ci
1970–1973
Pontiac Firebird
5.7L V8 350ci
1970–1973
Pontiac Firebird
1971–1973
Pontiac Firebird
7.5L V8 455ci
1971–1973
Pontiac Firebird
7.5L V8 455ci
1971–1973
Pontiac Firebird
7.5L V8 455ci
1971–1973
Pontiac Firebird
7.5L V8 455ci
No applications match your search.
⭐
Key Features
When installing sending units, please remember to rotate the unit until the mounting holes align with the flange holes in the tank.

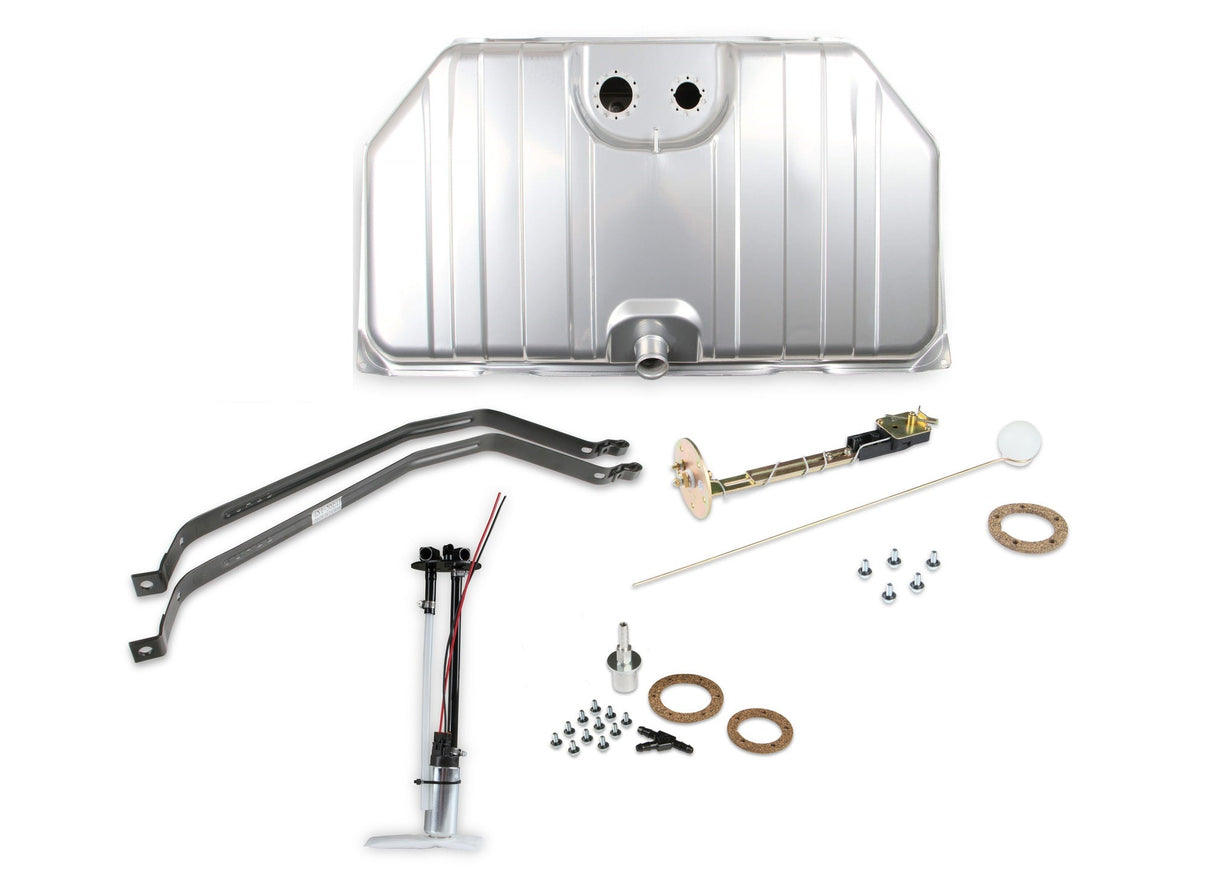

Each tank is a direct fit for your application with no body modifications necessary. The kit includes the tank, a 255 lph fuel pump, a fuel level sender, new tank straps, and the filler neck. The tank is powder coated for corrosion resistance and great looks. This model has notched front corners for additional tire and exhaust clearance. The 255 lph fuel pump supports up to 550 hp (@ 60 PSI at 13.5 Volts / 10.4 AMP Draw).
EFI (Electronic Fuel Injection) Fuel tank system with notched front corners and 255 lph (liters per hour) fuel pump module for 1970-1973 Camaro and Firebird models
- Fuel Tank is coated galvanized steel then powder coated silver for total corrosion protection
- Tank includes a 2 piece filler neck design that connects with supplied 2" ID (inside diameter) rubber hose
- 255 lph fuel pump with hanger assembly gives you the fuel you need with in-tank quietness
- Sender features 1/4" NPT (National Pipe Tapered) threaded Supply and Return line ports for easy fuel line connection and a barbed vent fitting
- Fuel level sender included with the correct Ohm range for your factory gauges
- Fuel pump and sender are recessed in the tank to provide an easy installation and no modification to vehicle
- Internal tank baffling includes a large 4.3 liter internal fuel tray to prevent fuel pump starvation
- Fits and looks like an OE tank when installed
- New tank straps included
- Notched front corners for installing mini-tubs to gain wider tire and exhaust clearance
📖
About this product
EFI (Electronic Fuel Injection) Fuel tank system with notched front corners and 255 lph (liters per hour) fuel pump module for 1970-1973 Camaro and Firebird models
📋
Product Specifications
Application
1970-1973 Chevrolet Camaro/Pontiac Firebird
Attached Sump
Yes
Automotive Item Grade
Performance
Baffled Sump
Yes
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Color
Silver
Drain Plug
No
Emission Code
4
Filler Neck Attached
No
Finish
Powdercoated
Free Flow LPH
255
Fuel Sending Unit Ohms
0-90 Ohms
Fuel System Compatibility
Electronic Fuel Injection
Fuel System Type
Gasoline
Fuel Tank Coating
Powder Coated
Gallon Capacity
18
Grade Type
Performance
Lock Ring Included
Yes
Material
Steel
Maximum Flow Rating
255 LPH
Mounting Straps Included
Yes
New Straps Included
Yes
O-Ring Included
Yes
Part Type
Fuel Tank and Pump Assembly Combination
Product Type
Fuel Tank
Prop 65 Yes/No
Yes
Resistance Ohms Empty
0 82
Resistance Ohms Full
90 82
Sending Unit Included
Yes
Sub Category
Fuel Pumps and Related Components
Tank Capacity
18 GA
Tank Color
Gray
Tank Material
Steel
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
TW
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8413301000
📐
Dimensions & Shipping
Product Dimensions
46.2 × 26.7 × 10.0 in
Shipping Dimensions
46.2 × 26.7 × 10.0 in
Weight
13857 g (13.86 kg)
