Holley Sniper EFIPart 19-350Made in US
Product Details
⭐
Key Features

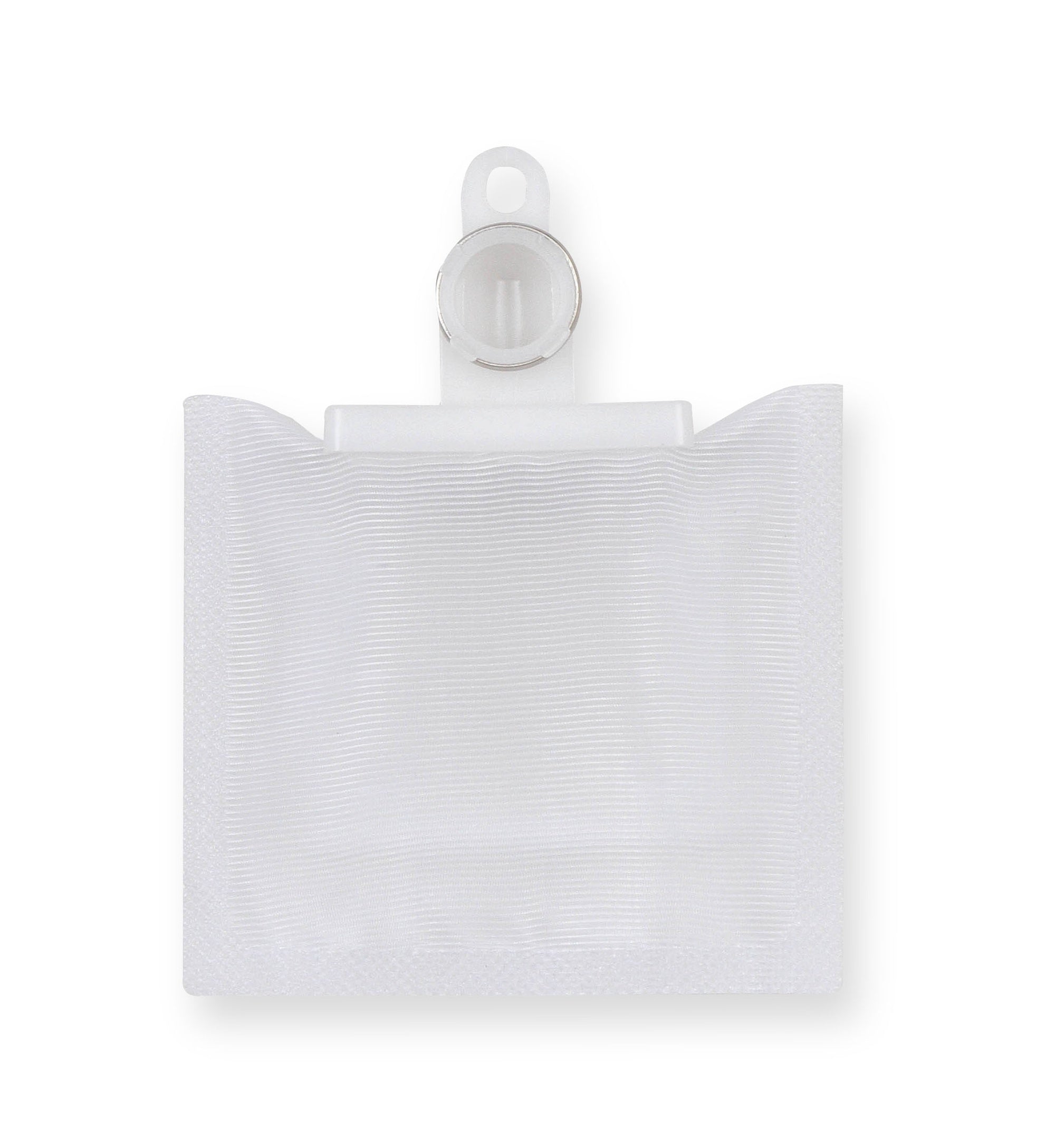

It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. | Strainer Service Part - Walbro 125-147 | Fuel pump only service part - Holley 19-341

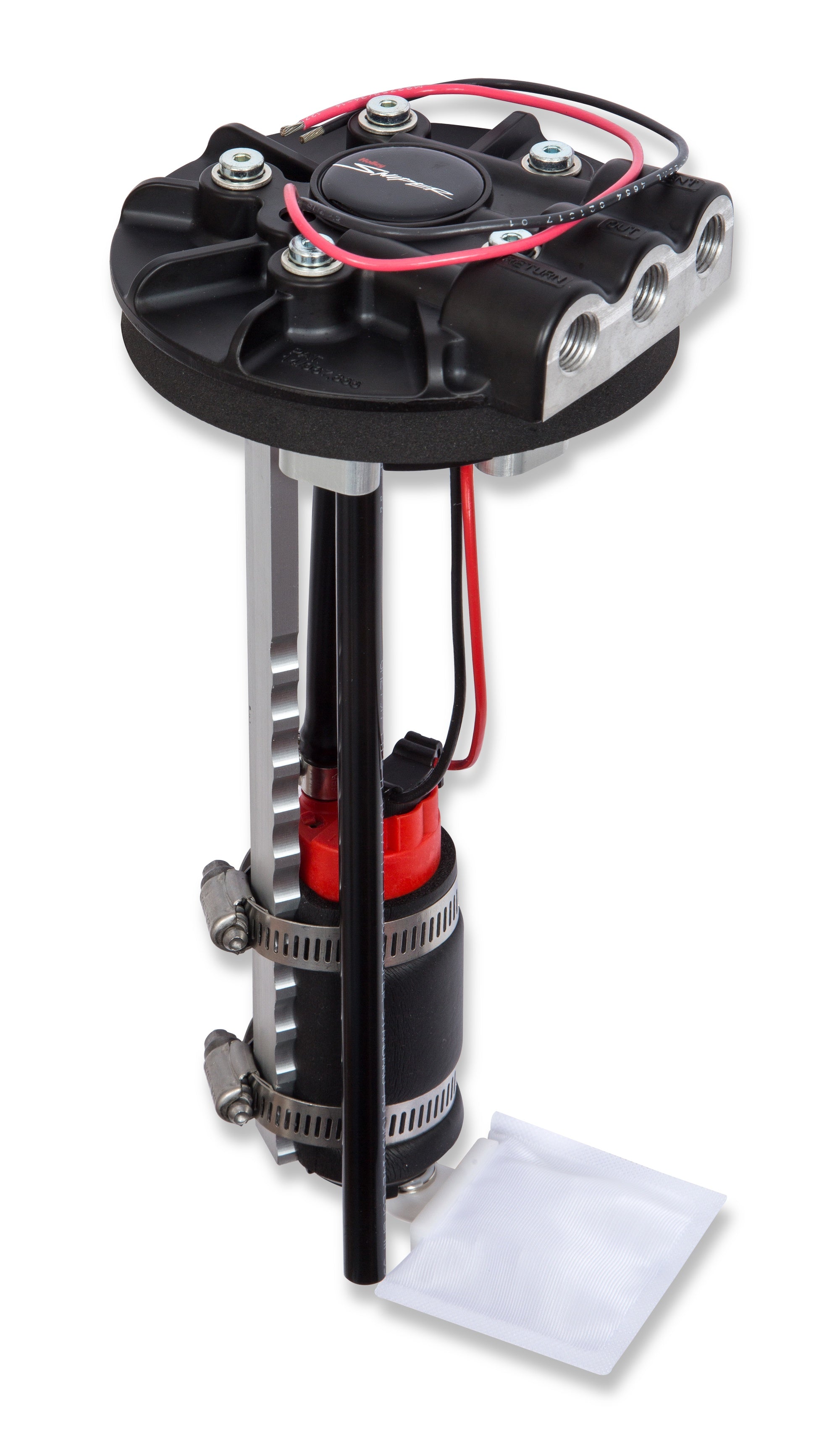

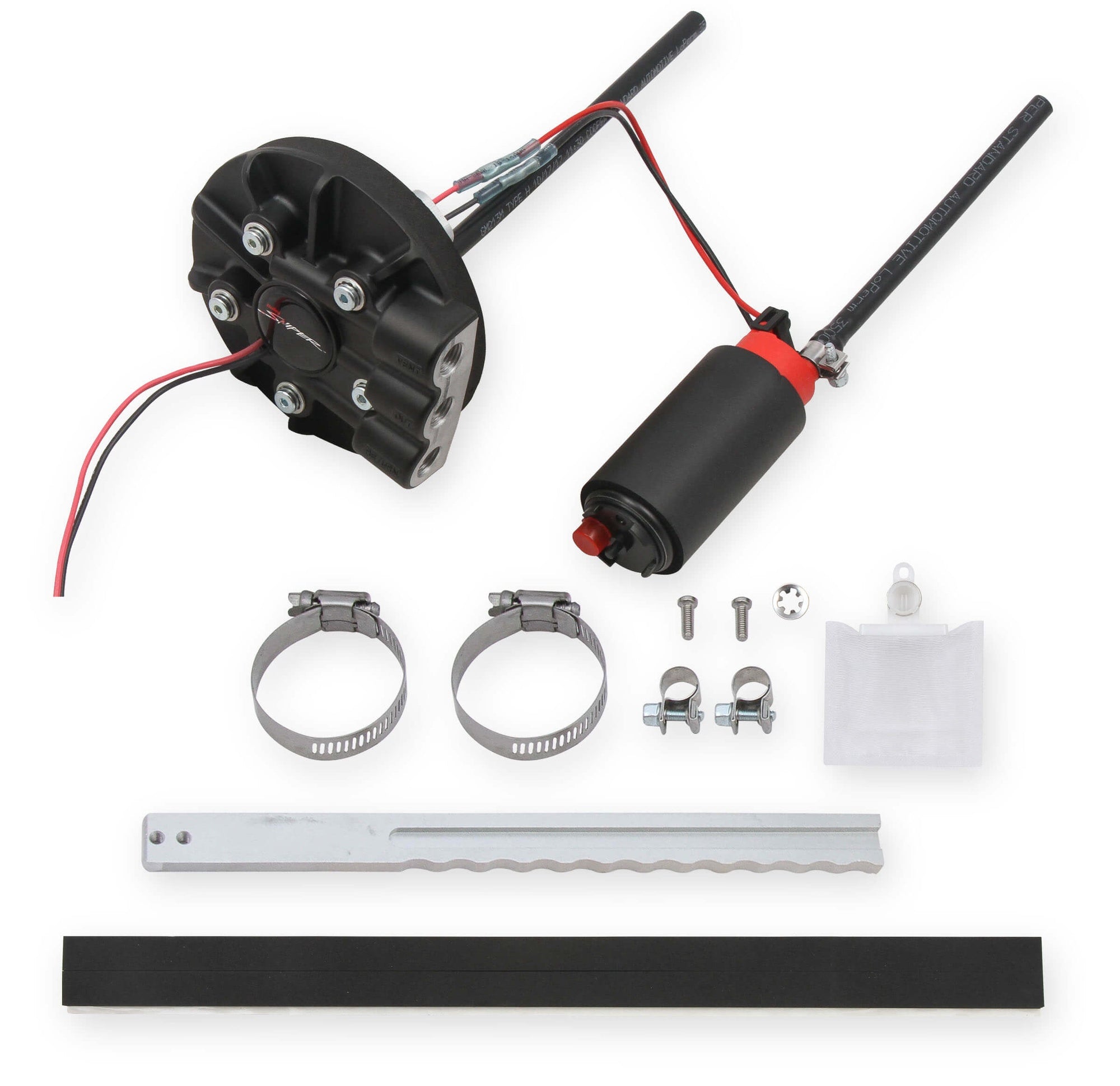

Holley is pleased to announce the release of Sniper Diecast Retrofit Fuel Pump Modules, which support up to 700 EFI horsepower or 900 carbureted horsepower and making it attainable to upgrade to EFI. Available in return and returnless versions, they convert your factory tank or fuel cell to an in-tank EFI fuel system. They're easy to install with basic hand tools and require no welding or additional fabrication. | Sniper Diecast Retrofit Fuel Pump Modules include a diecast pump-hanger bracket to control pump vibration in a low-profile design that's perfect wherever space is at a premium. They fit any fuel-tank depth from 7 to 12 inches and protrude only 1.275 inch above the tank mounting surface to accommodate numerous applications. You can locate the 5 inch diameter module beside your existing sending unit anywhere in the tank and rotate it a full 360 degrees to work flawlessly with various plumbing and wiring configurations. Once the module is installed, all you need to do is connect your power-source/ground and fuel lines. | Supports up to 700 EFI or 900 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) While many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc.
Return System - E85 Compatible
- The easiest way to convert your vehicle to an in-tank, EFI fuel system
- Installs in any fuel tank from 7” to 12” deep to fit a wide variety of applications
- The low profile 5 inch diameter design is only 1.275 inches thick above the tank mounting surface for added clearance when needed

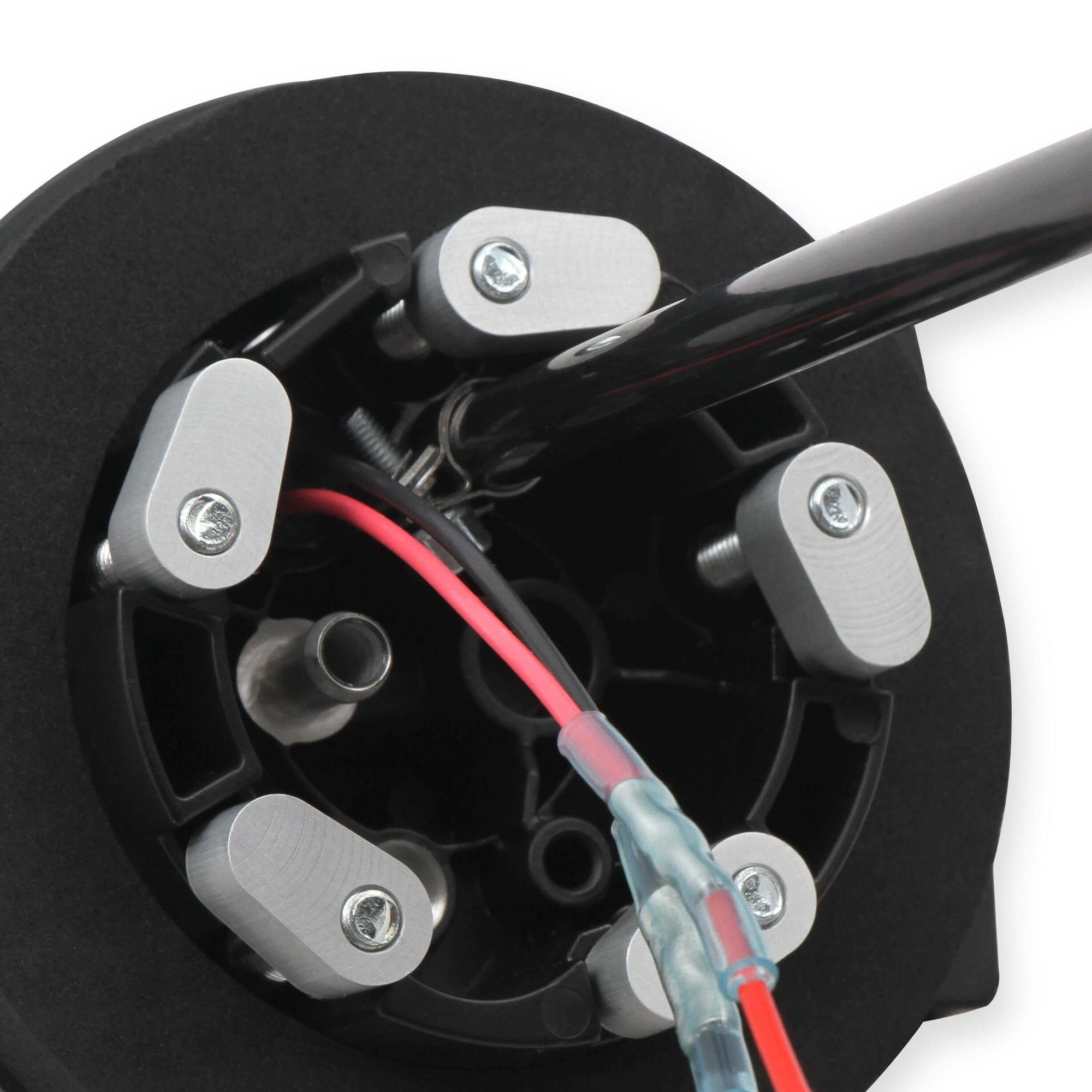

- The innovative clamping system allows you to locate the module anywhere in the tank beside your existing sending unit
- The clamping system allows you to rotate the unit 360 degrees for easier clocking of the plumbing and wiring locations under your ride
- Die cast aluminum construction for corrosion resistance and long lasting good looks

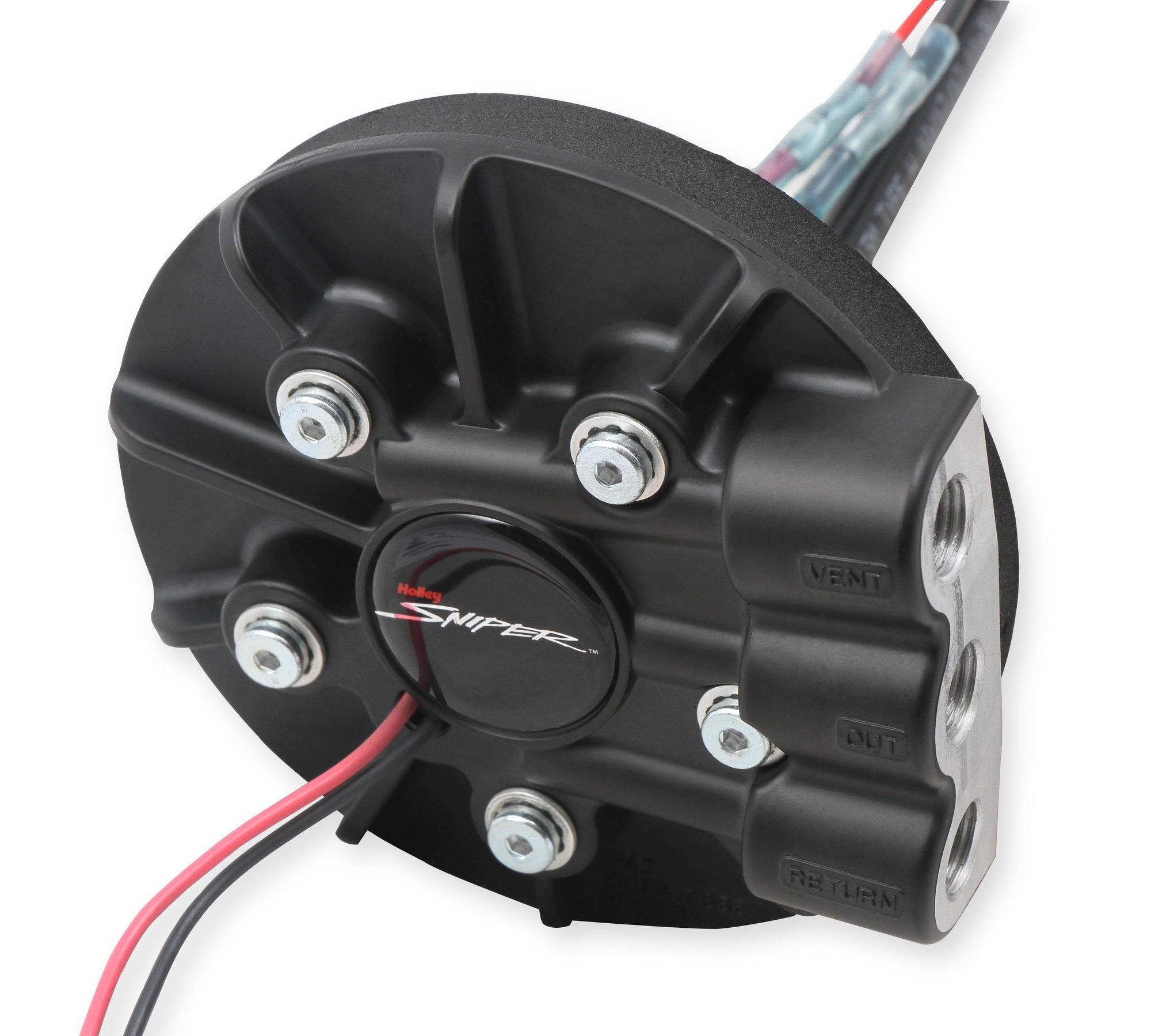

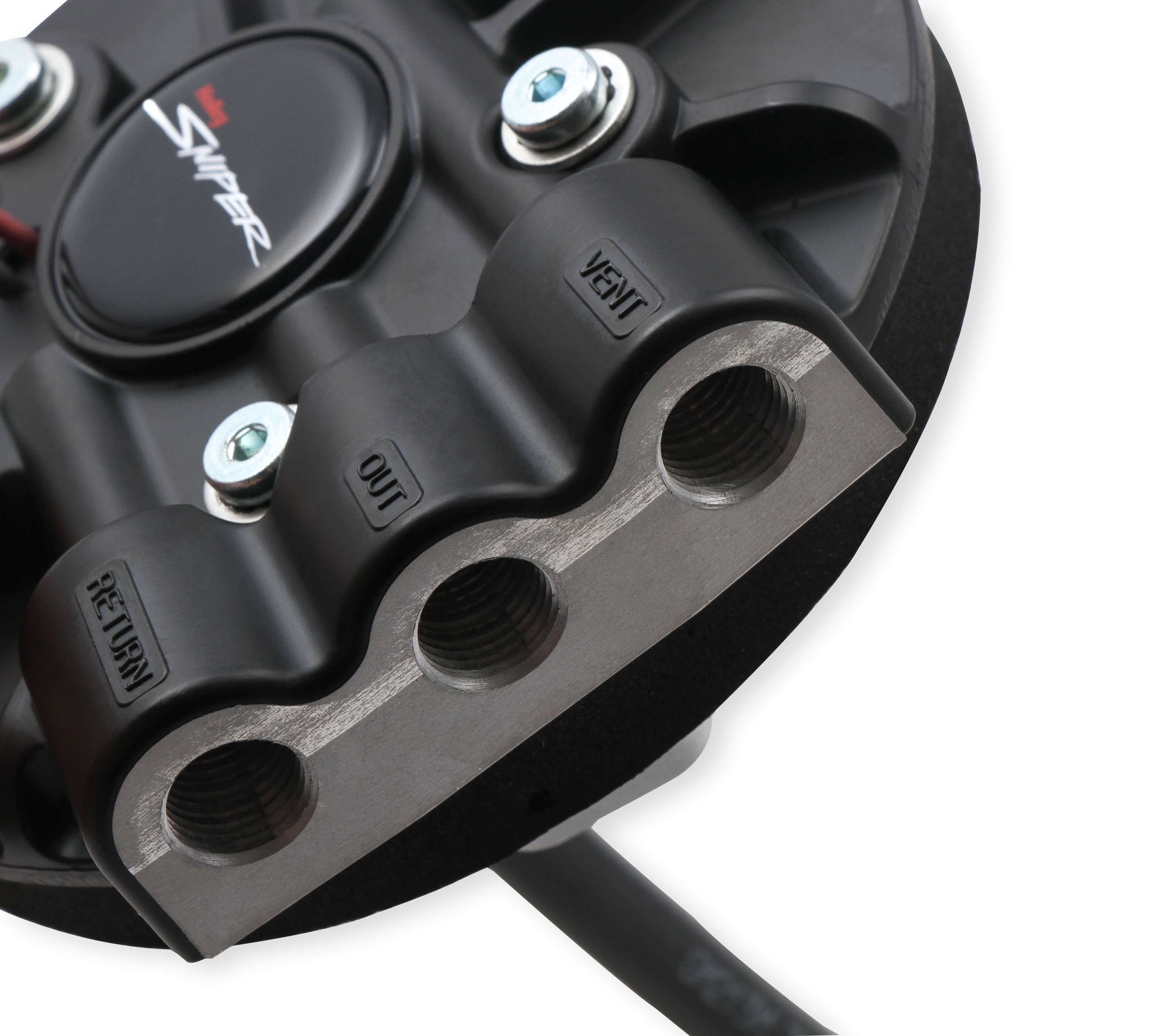

- ¼” NPT ports for a wide variety of plumbing options
- Ideal for Terminator EFI, Sniper EFI, MSD Atomic EFI or any TBI of EFI conversion

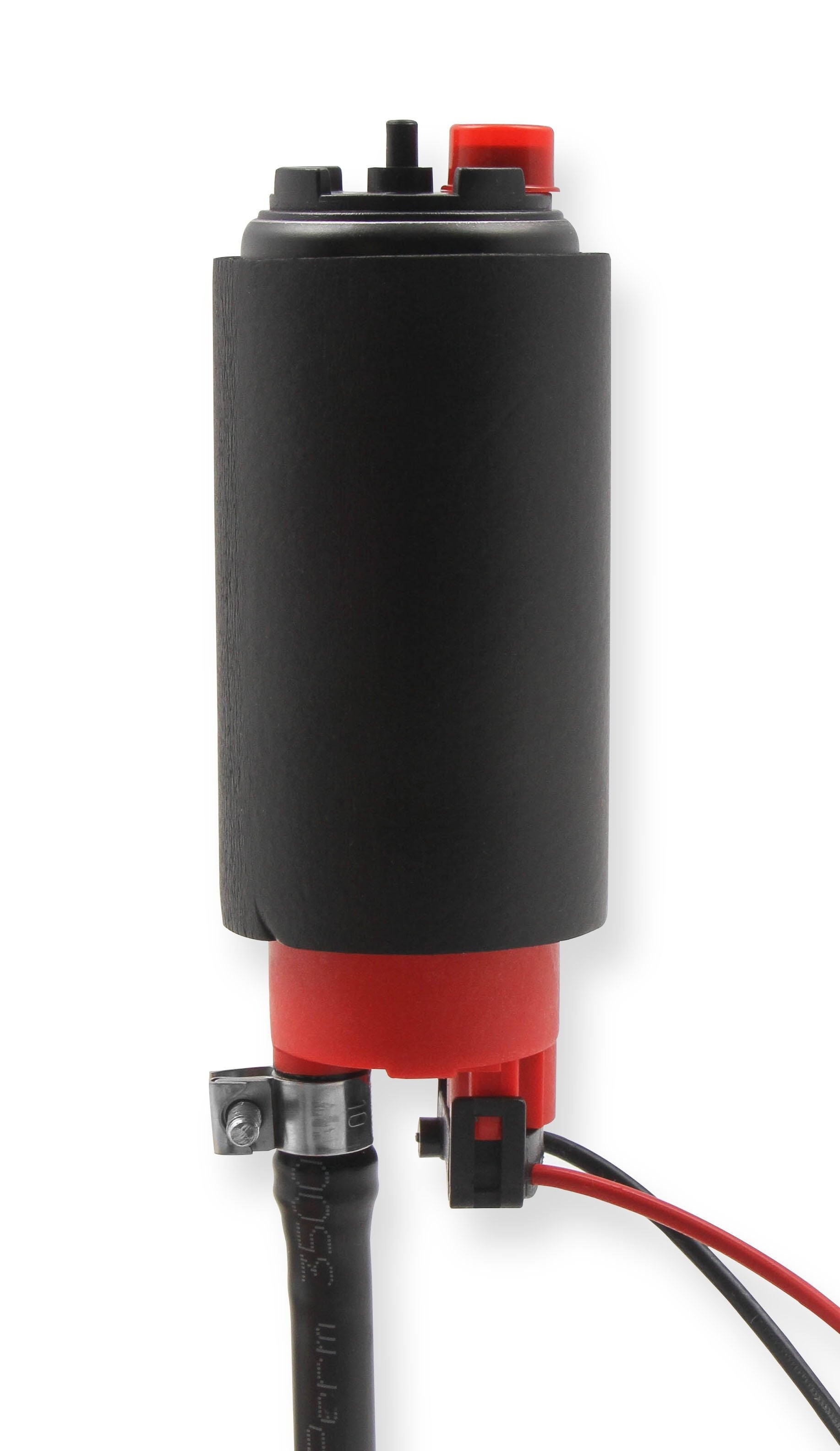

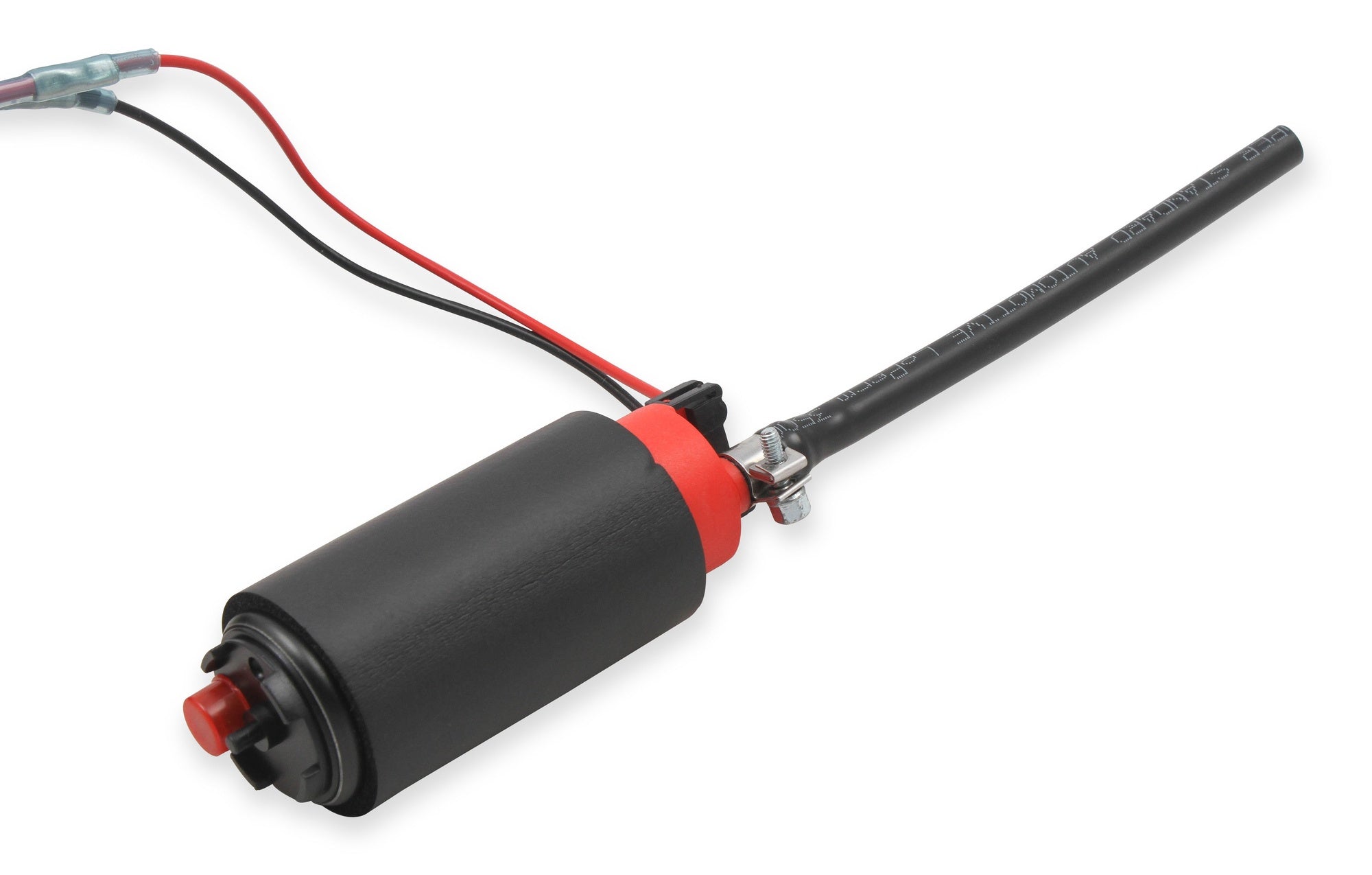

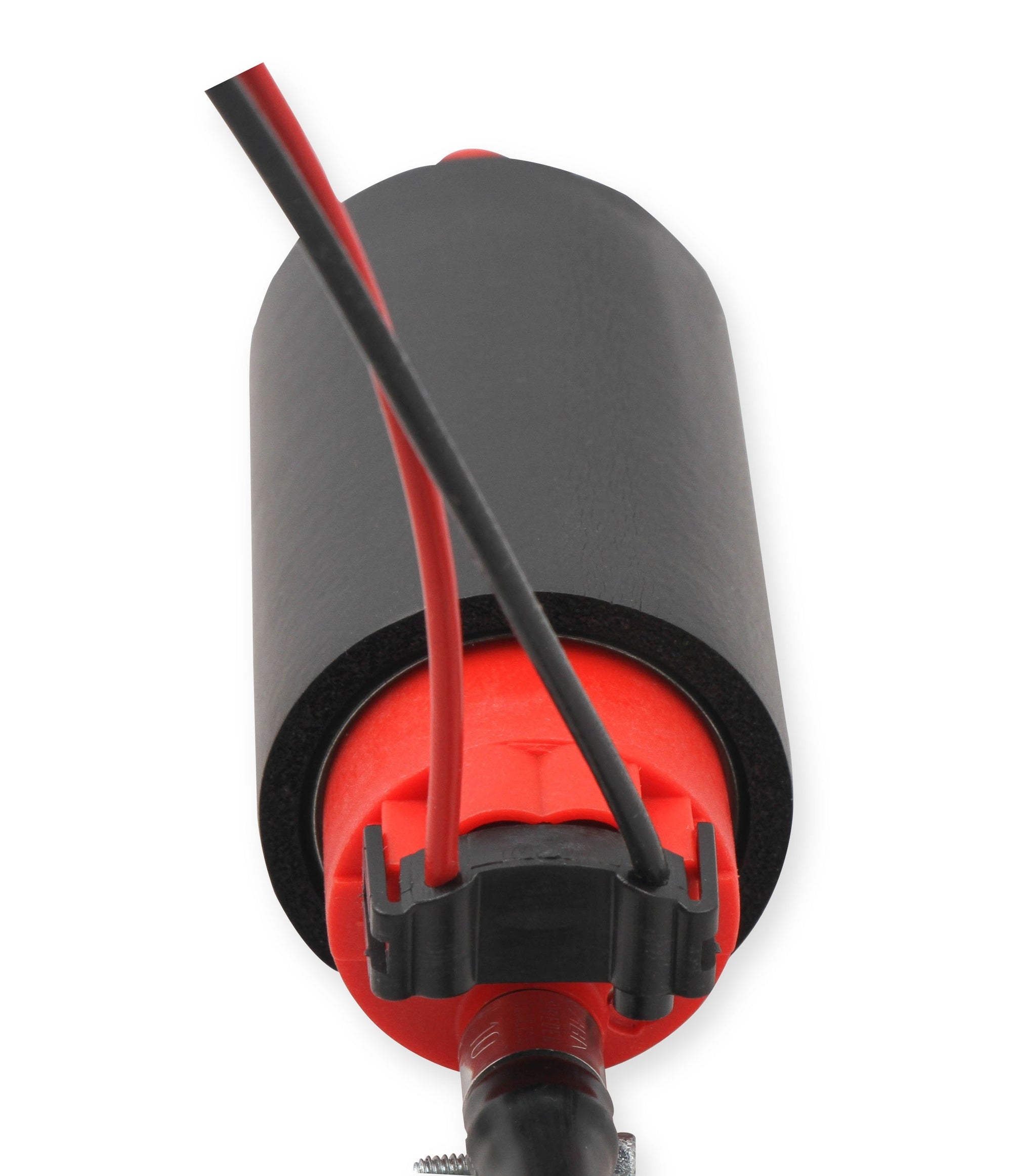

- 340 LPH pump that is E85 compatible for both return and returnless style systems
📖
About this product
Return System - E85 Compatible
📋
Product Specifications
Application
Universal
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Emission Code
3
Free Flow LPH
340
Fuel Sending Unit Included
No
Fuel System Type
Gasoline/E85 Compatible
Fuel Tank Pressure Sensor Included
No
Fuel Type
E85
Gasket Or Seal Included
Yes
Material
Die Cast Aluminum
Minimum Fuel Tank Depth
7 inches
NPT Thread
1/4 NPT
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump Module
Prop 65 Yes/No
Yes
Strainer Included
No
Sub Category
Fuel Pumps and Related Components
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
14.35 × 6.45 × 6.3 in
Shipping Dimensions
14.35 × 6.45 × 6.3 in
Weight
1572 g (1.57 kg)
