AEM ElectronicsPart 30-5602Made in US
Product Details
⭐
Key Features

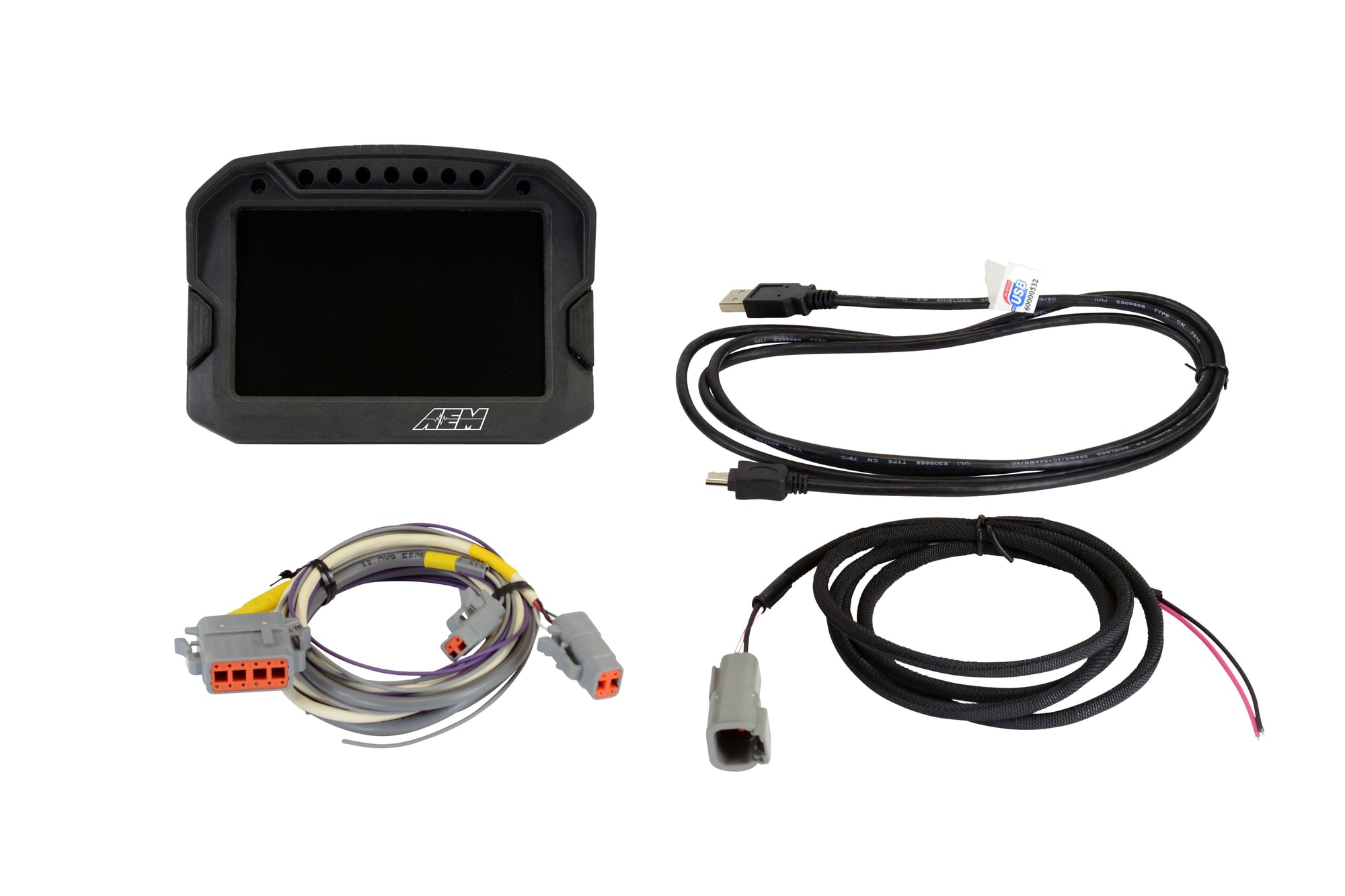

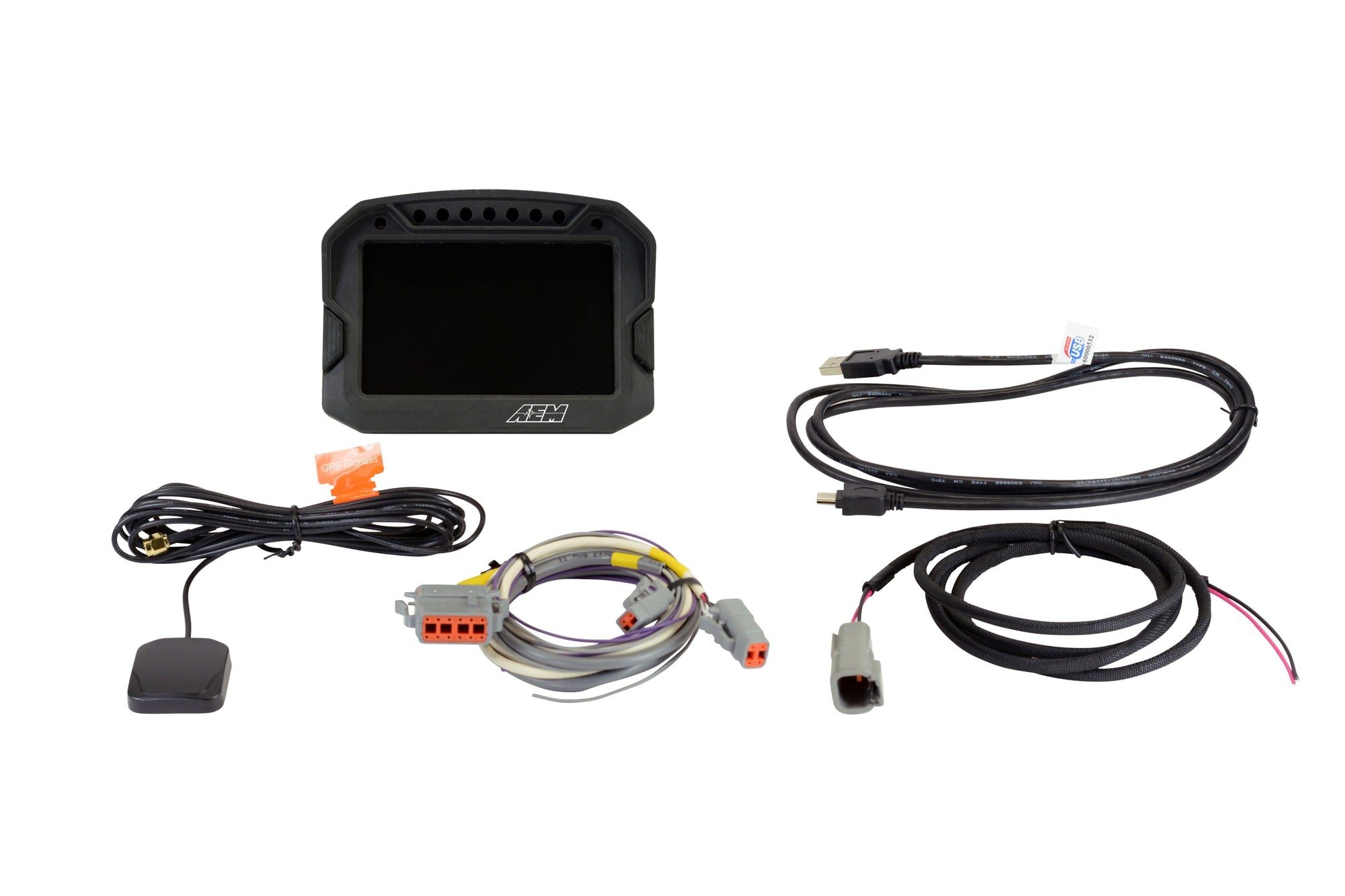

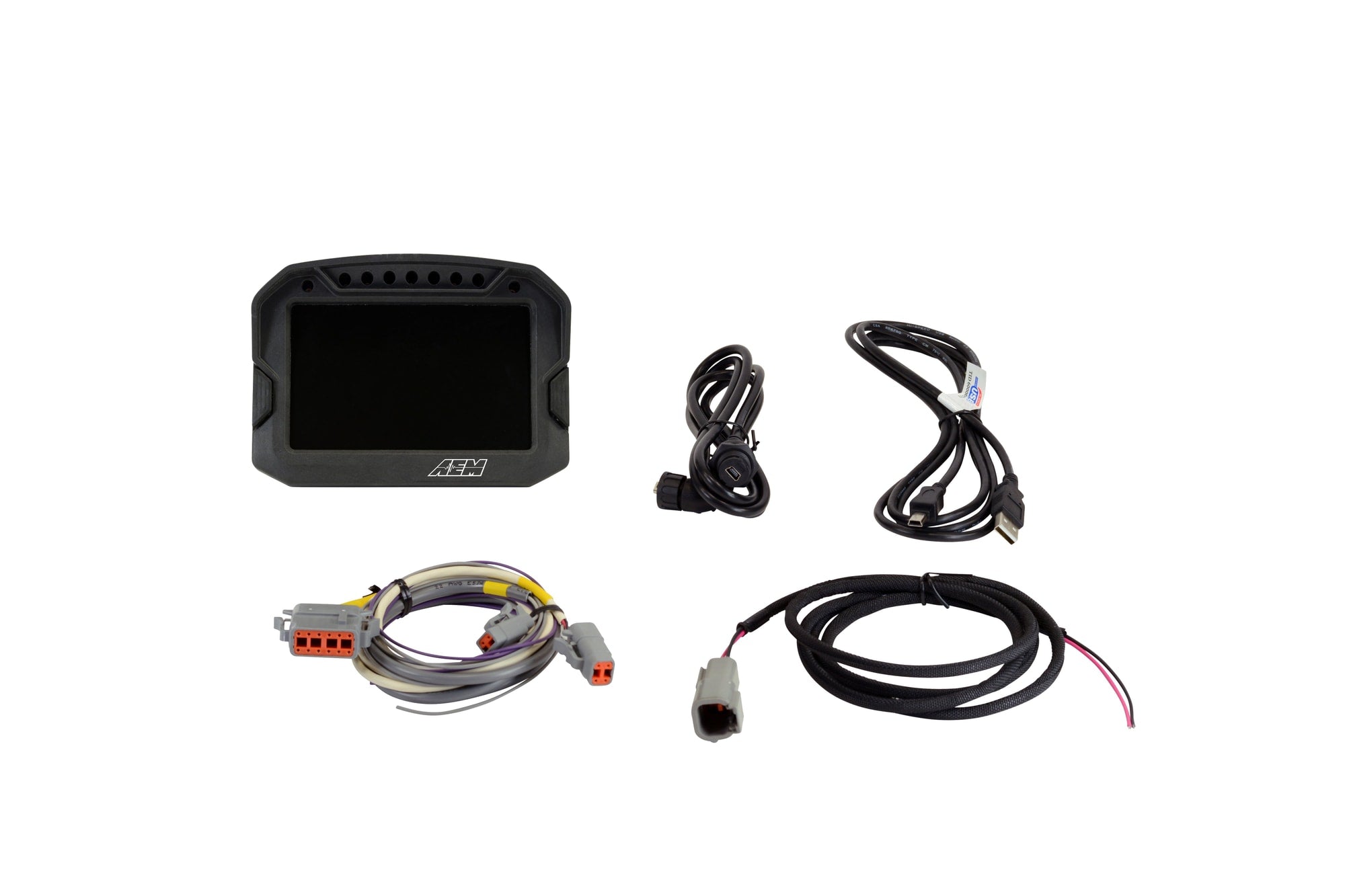

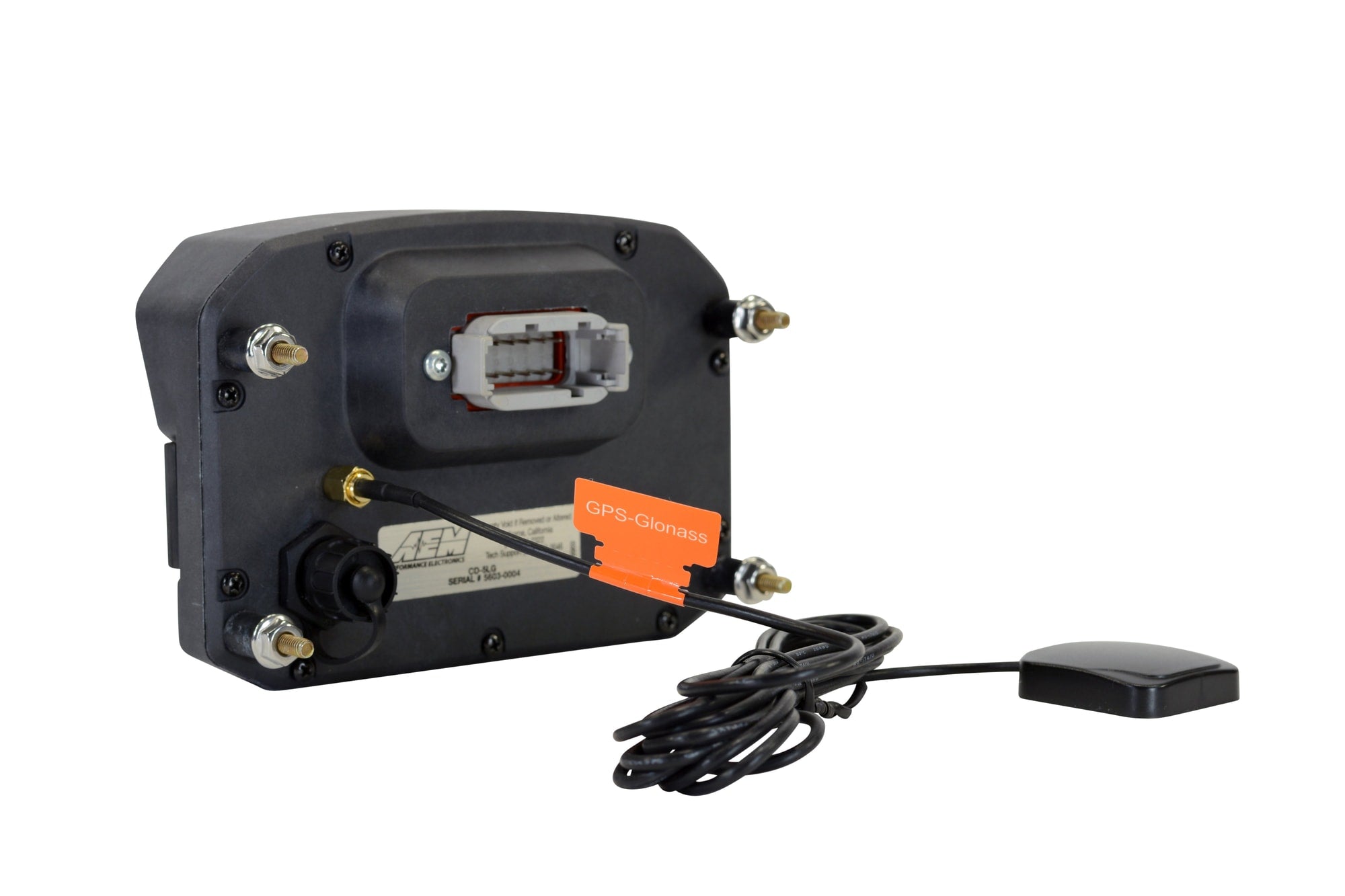

5-inch diagonal screen, carbon fiber composite enclosure, GPS antenna and wiring harness included

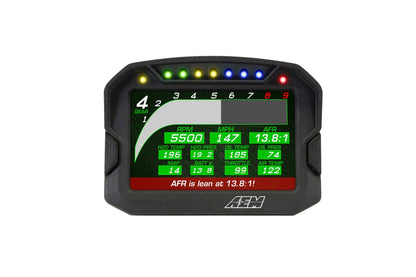

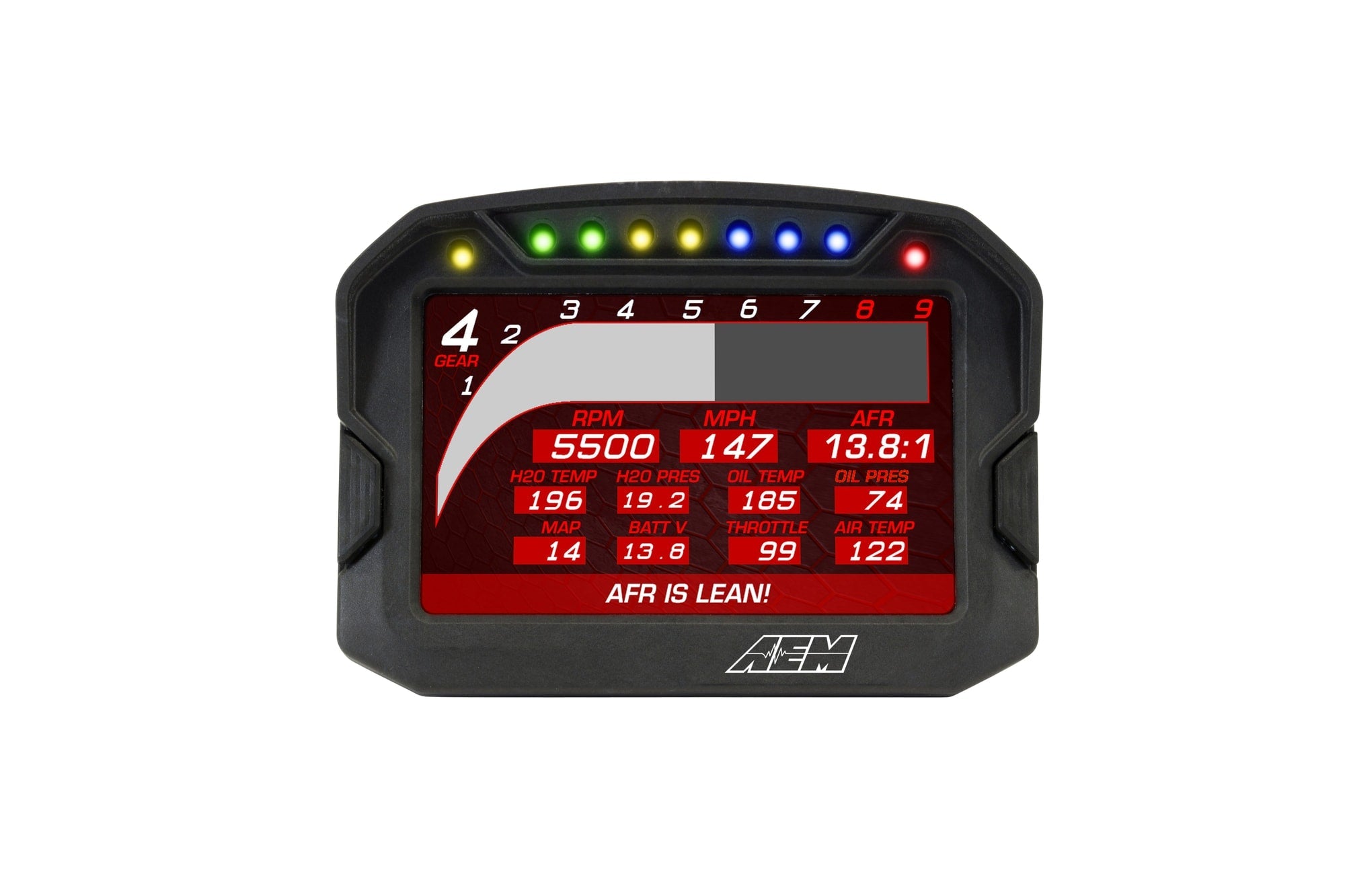

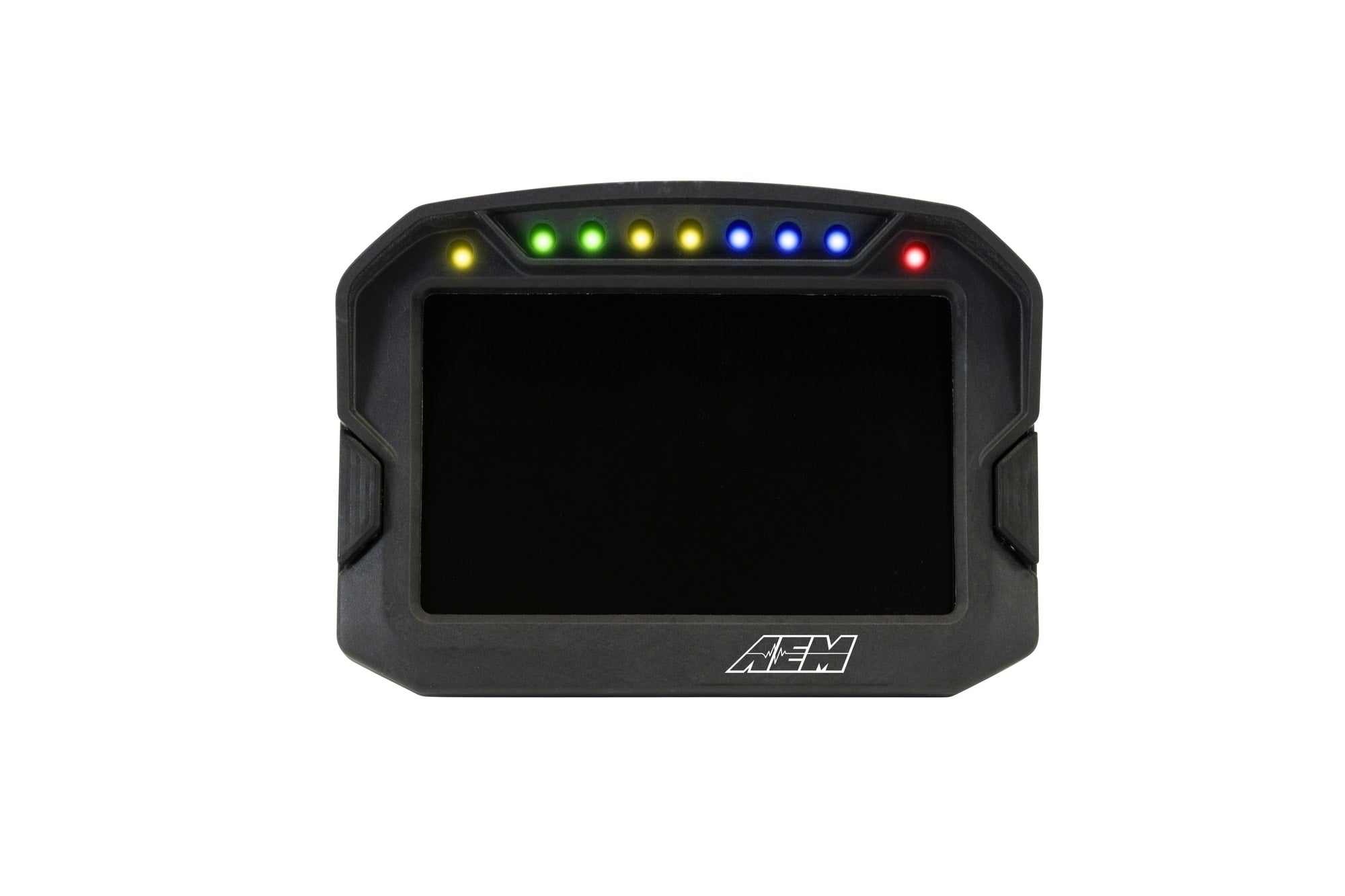

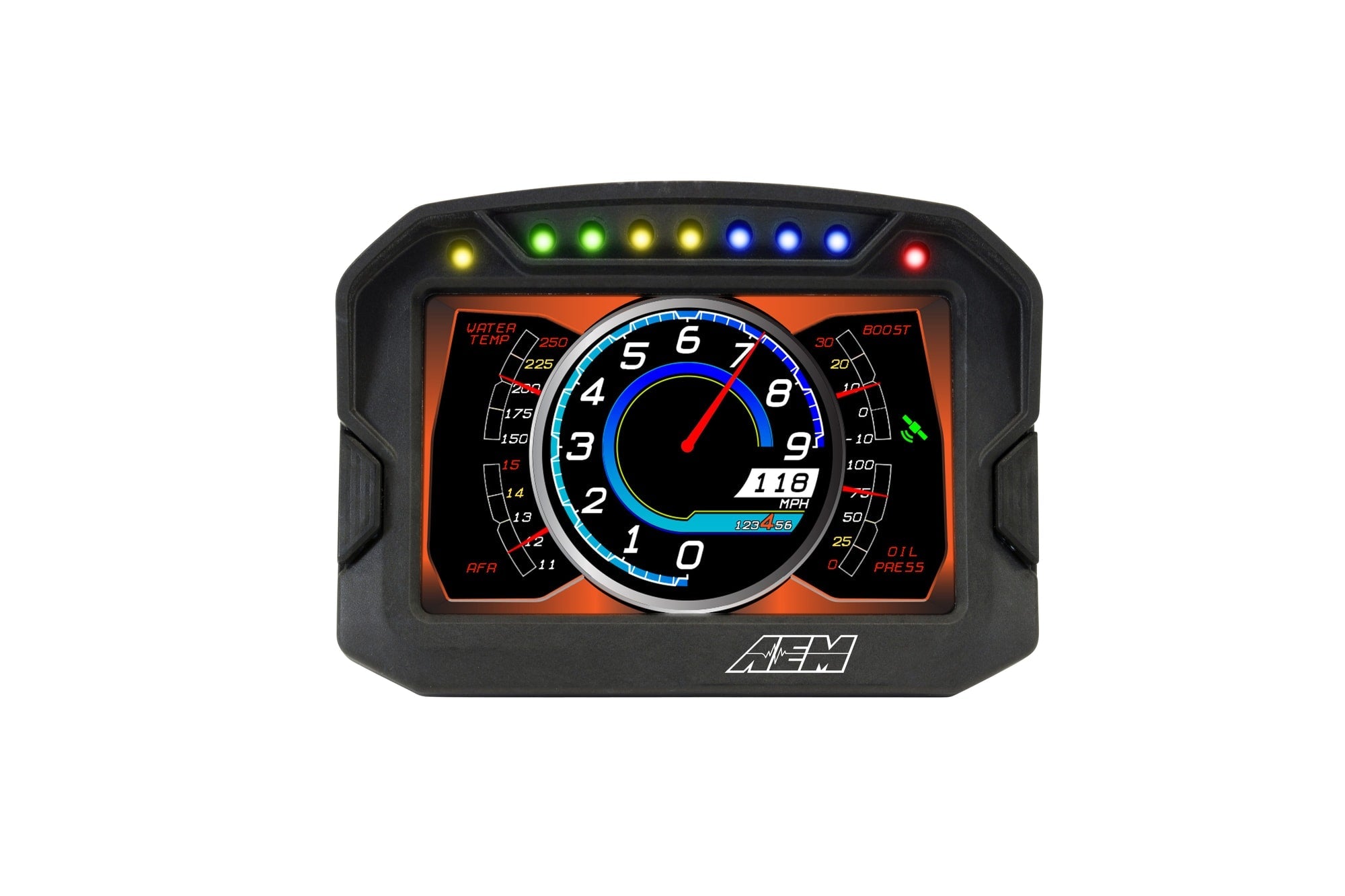

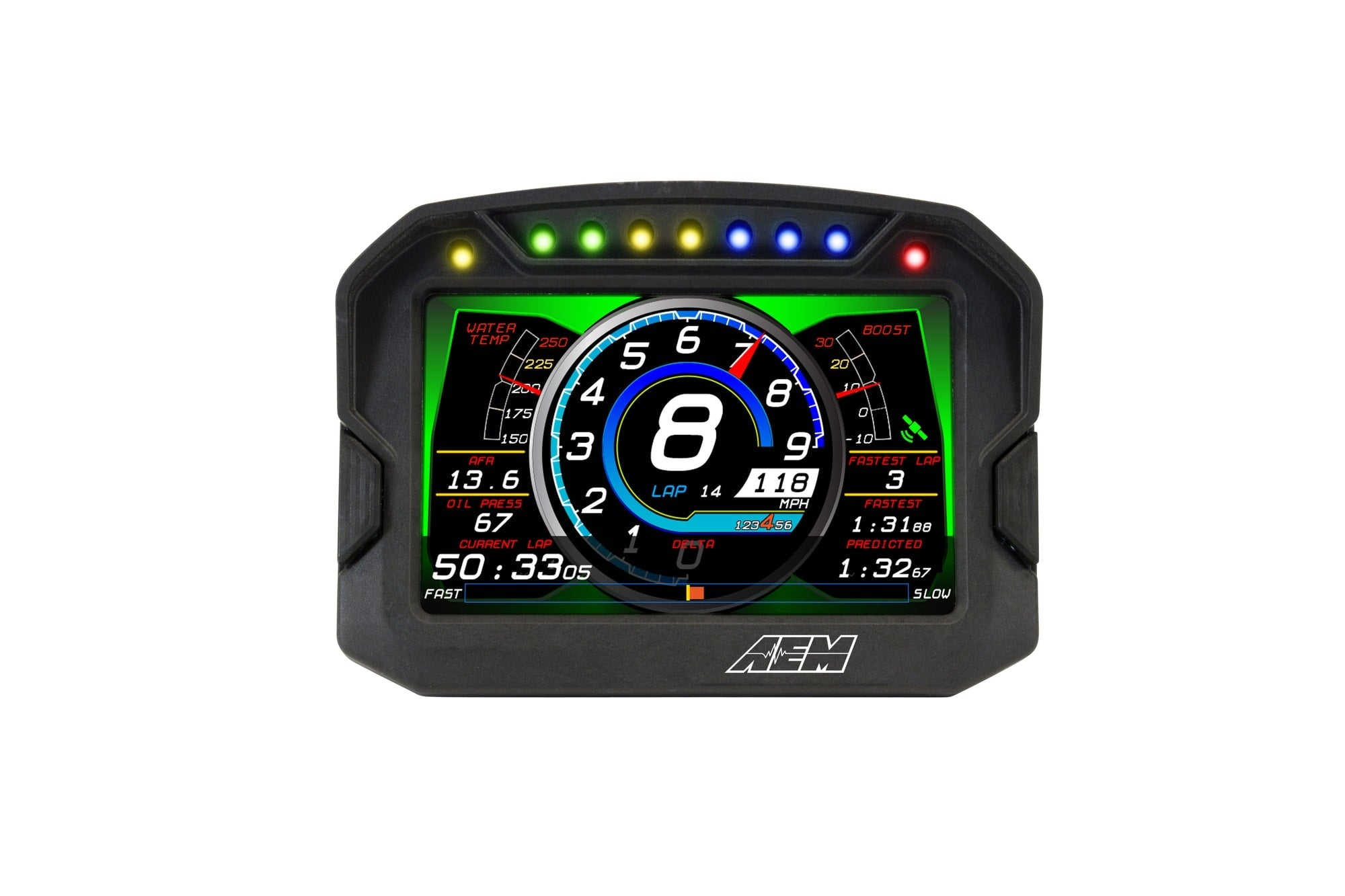

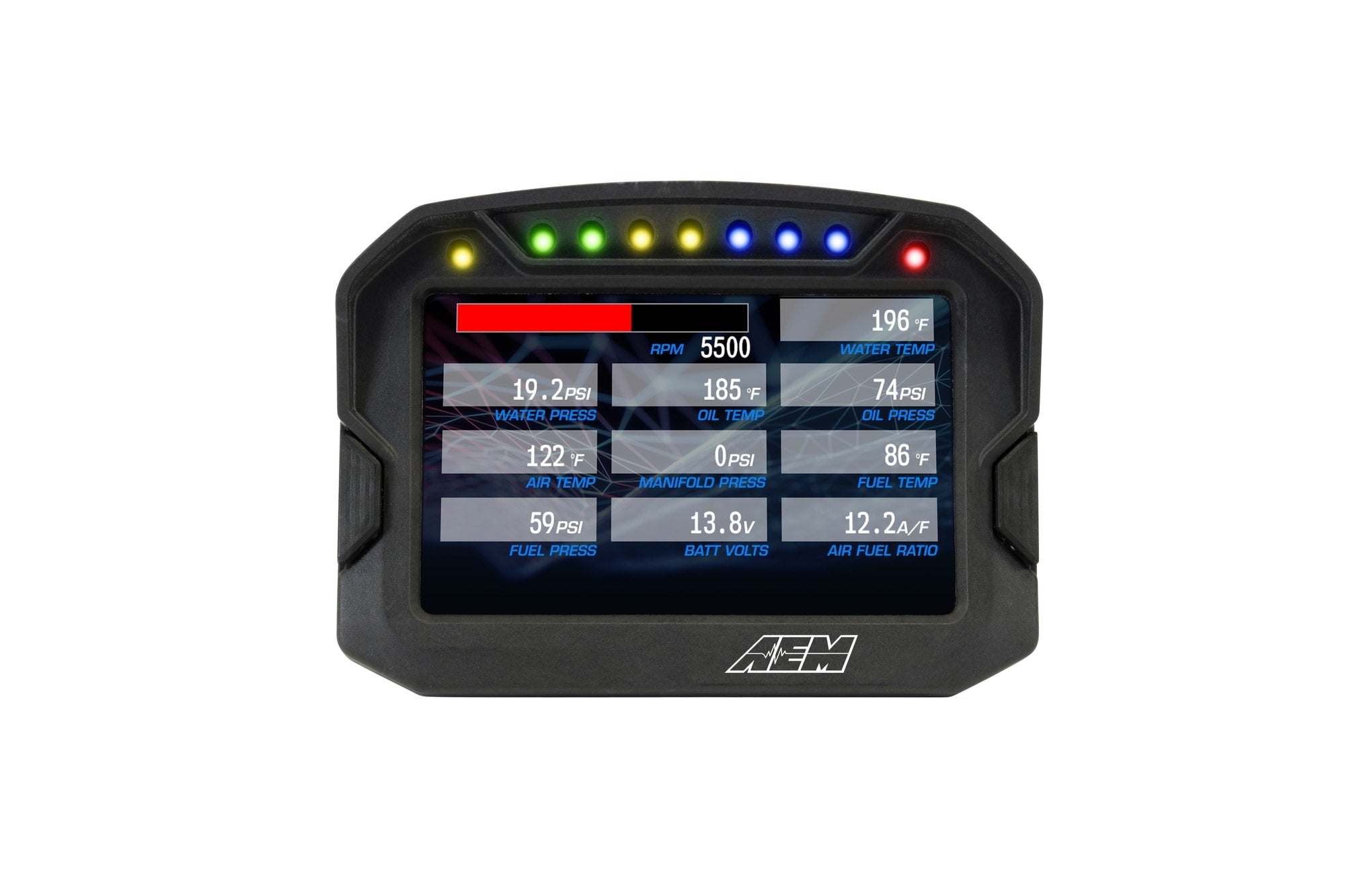

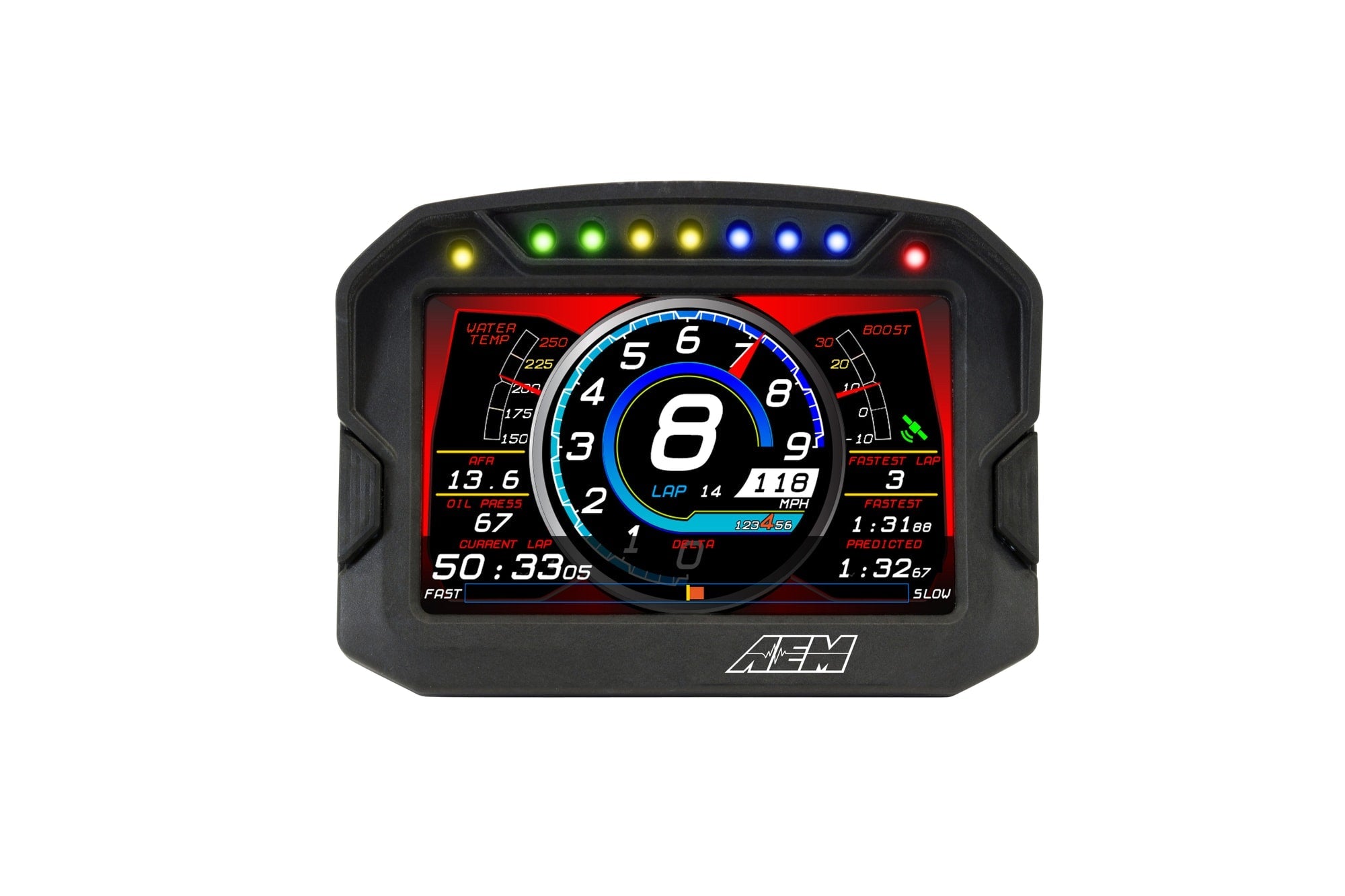

The CD-5 Carbon receives channels from two independent CAN bus inputs and it does not require special modules to read AEM and/or 3rd-party CAN signals. We have validated it to communicate with over 250 non-AEM devices, 2008-up stock ECUs via the OBDII port (see Supported Apps Tab), and the CD-5 Carbon can be added to any vehicle with the addition of our 22 Channel CAN Sensor Module. The CD-5 Carbon is ECU CAN ready and does not require external modules for CAN to CAN communication, just load your configuration and go! All channels can be named in virtually any language so that the information displayed makes sense to the user when displayed, whether on the main screen dashboard monitor or warning alerts. | VIEW AND LOG DATA FROM OVER 250 CAN DEVICES! | CD-5 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.
5-inch diagonal screen, carbon fiber composite enclosure, GPS antenna and wiring harness included
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- Free DashDesign Graphics Editor software
- Install the CD-5 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
- Two programmable LEDs
- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
- Full color 5" screen with 800x480 resolution

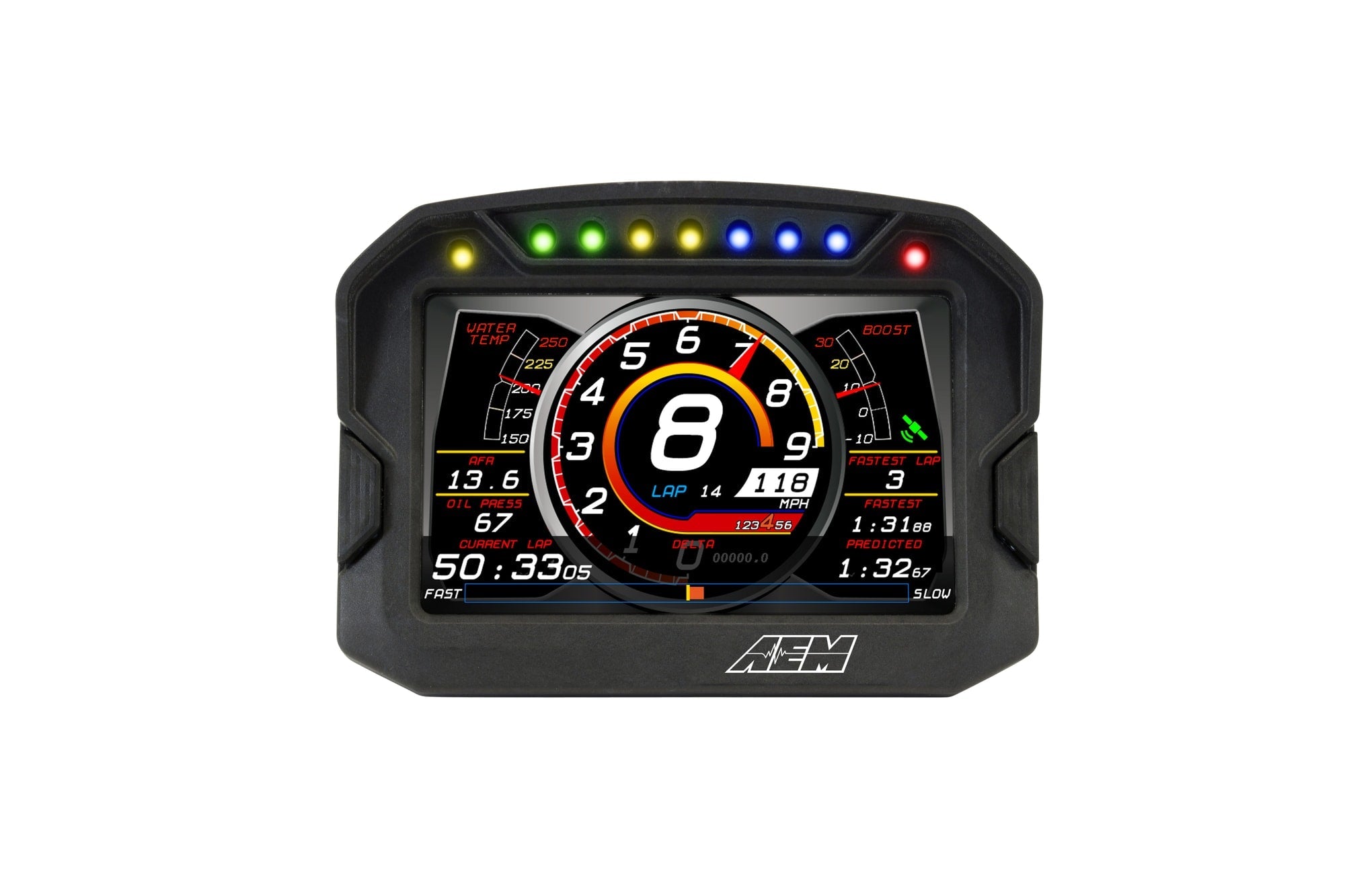

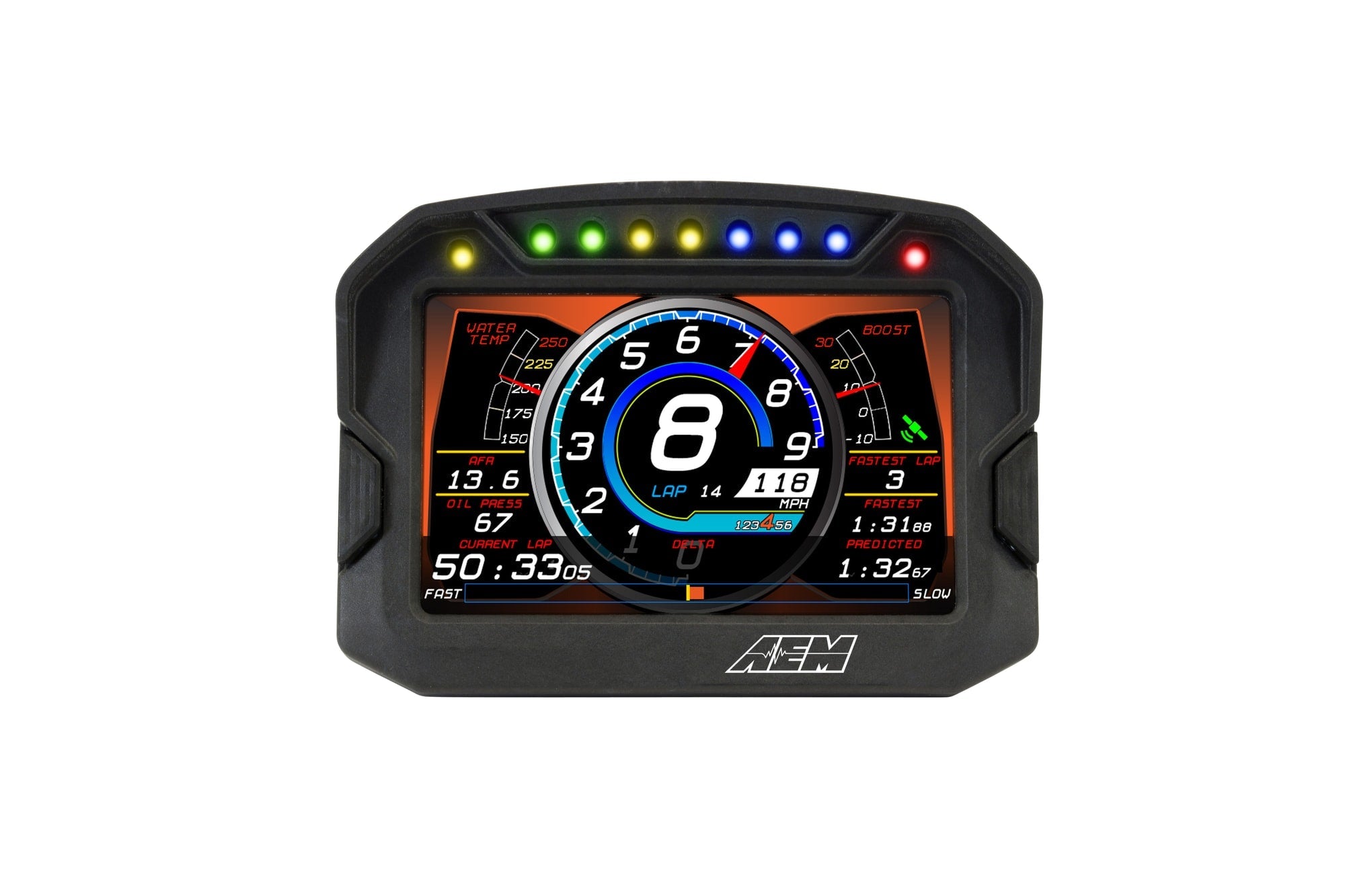

- Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
- Odometer function
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)

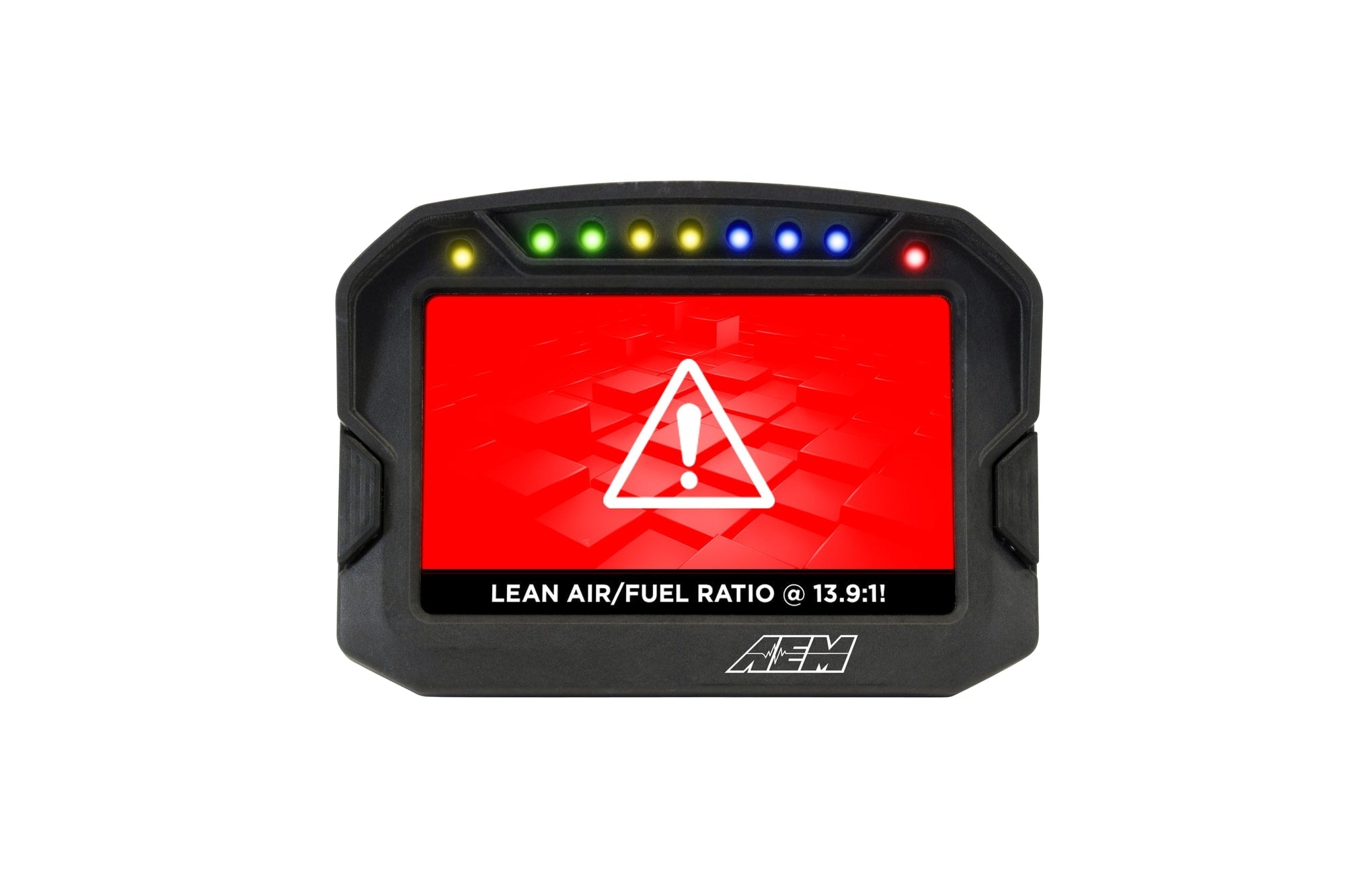

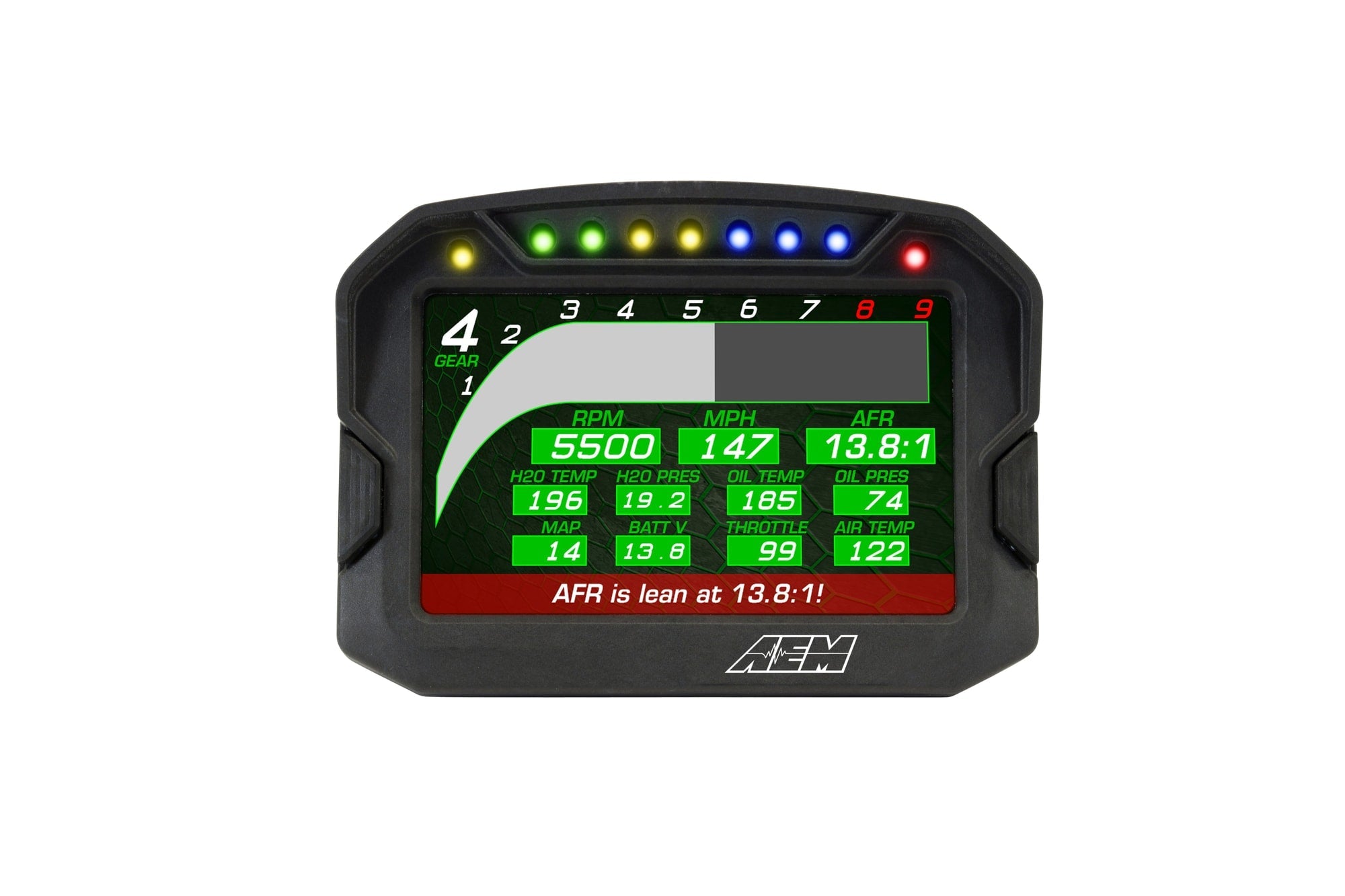

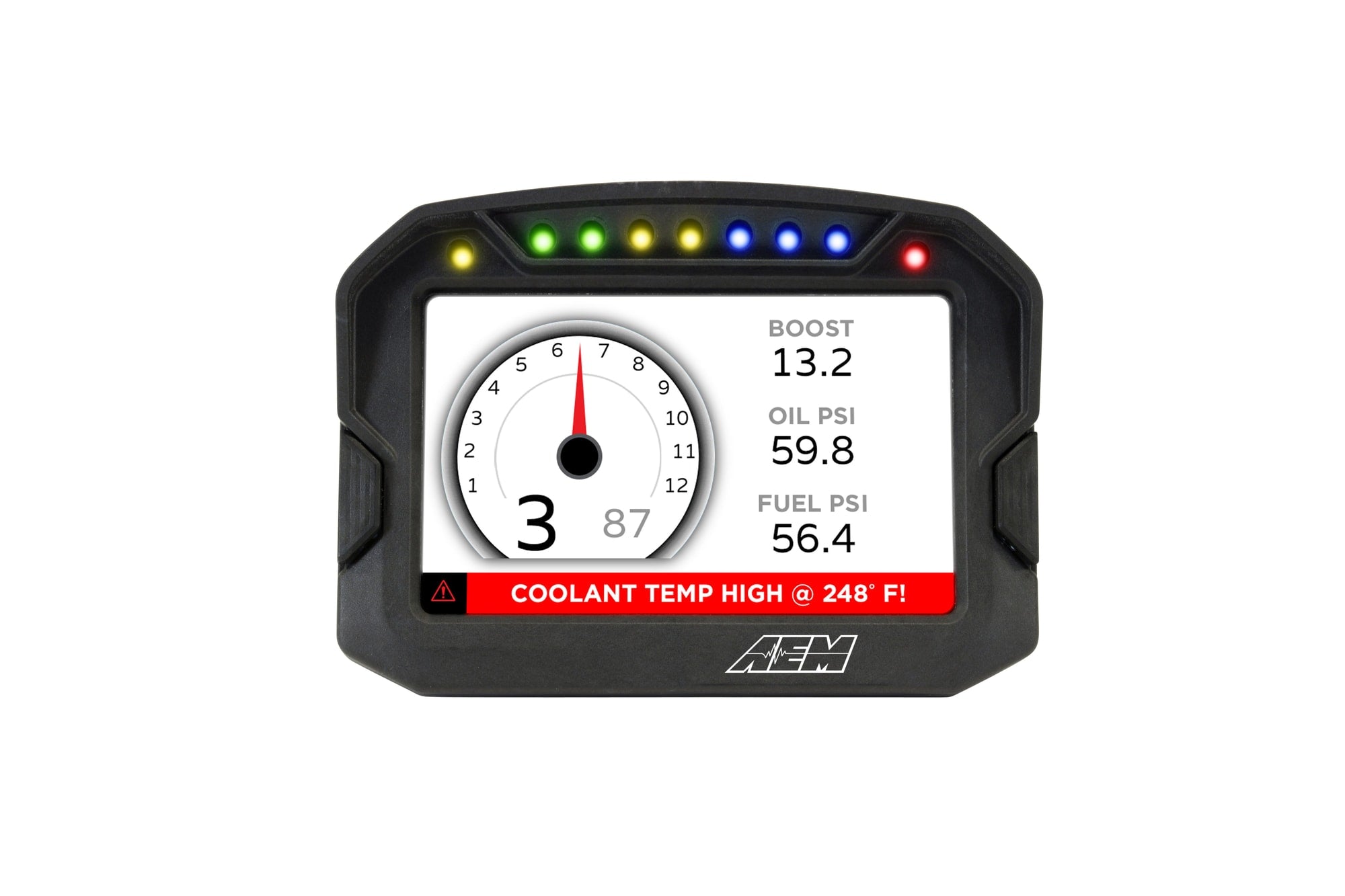

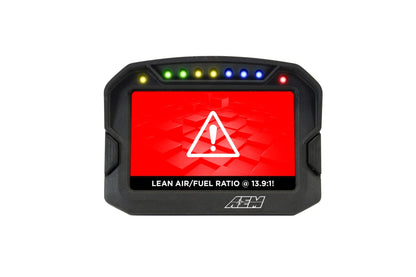

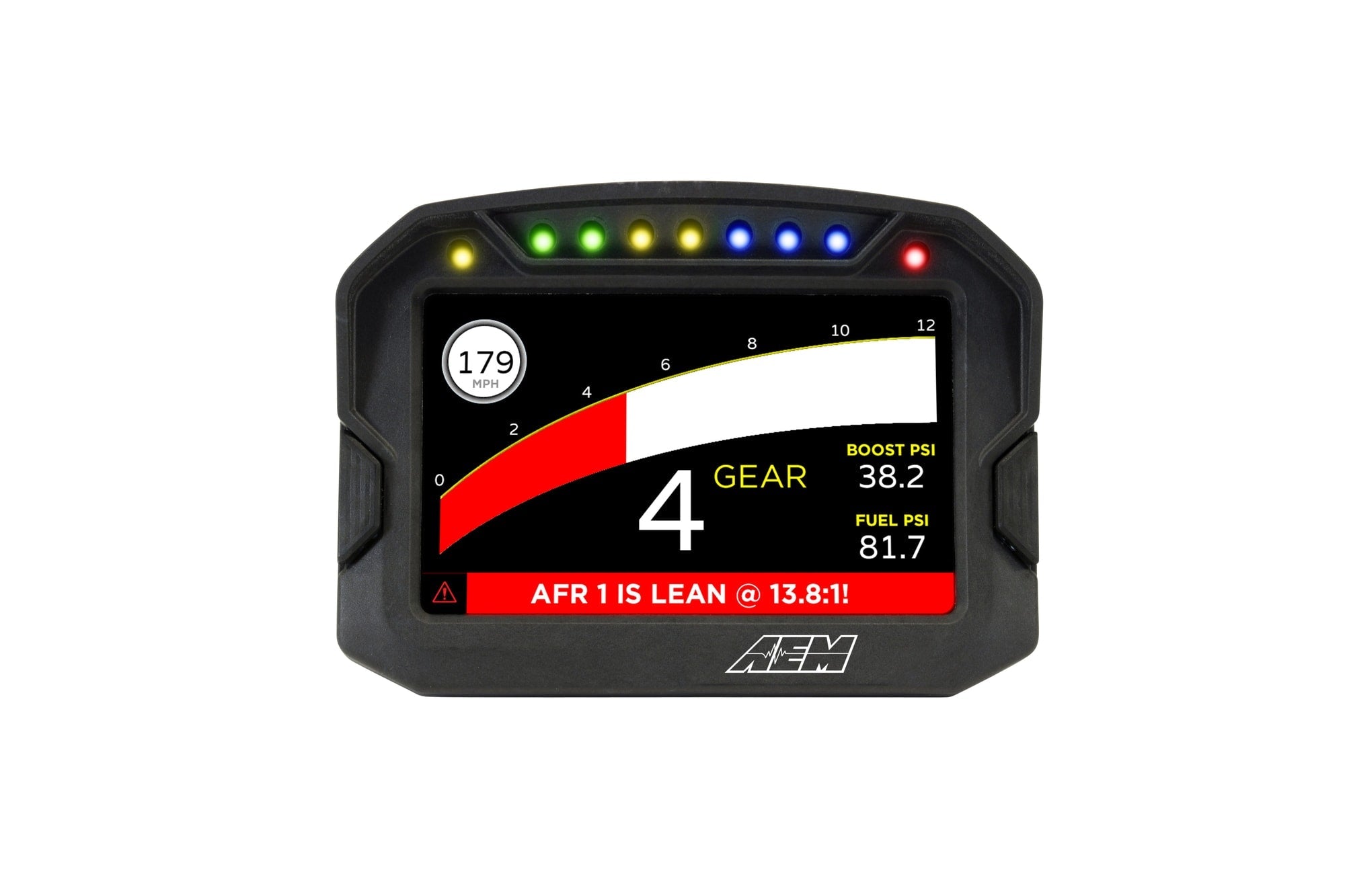

- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)

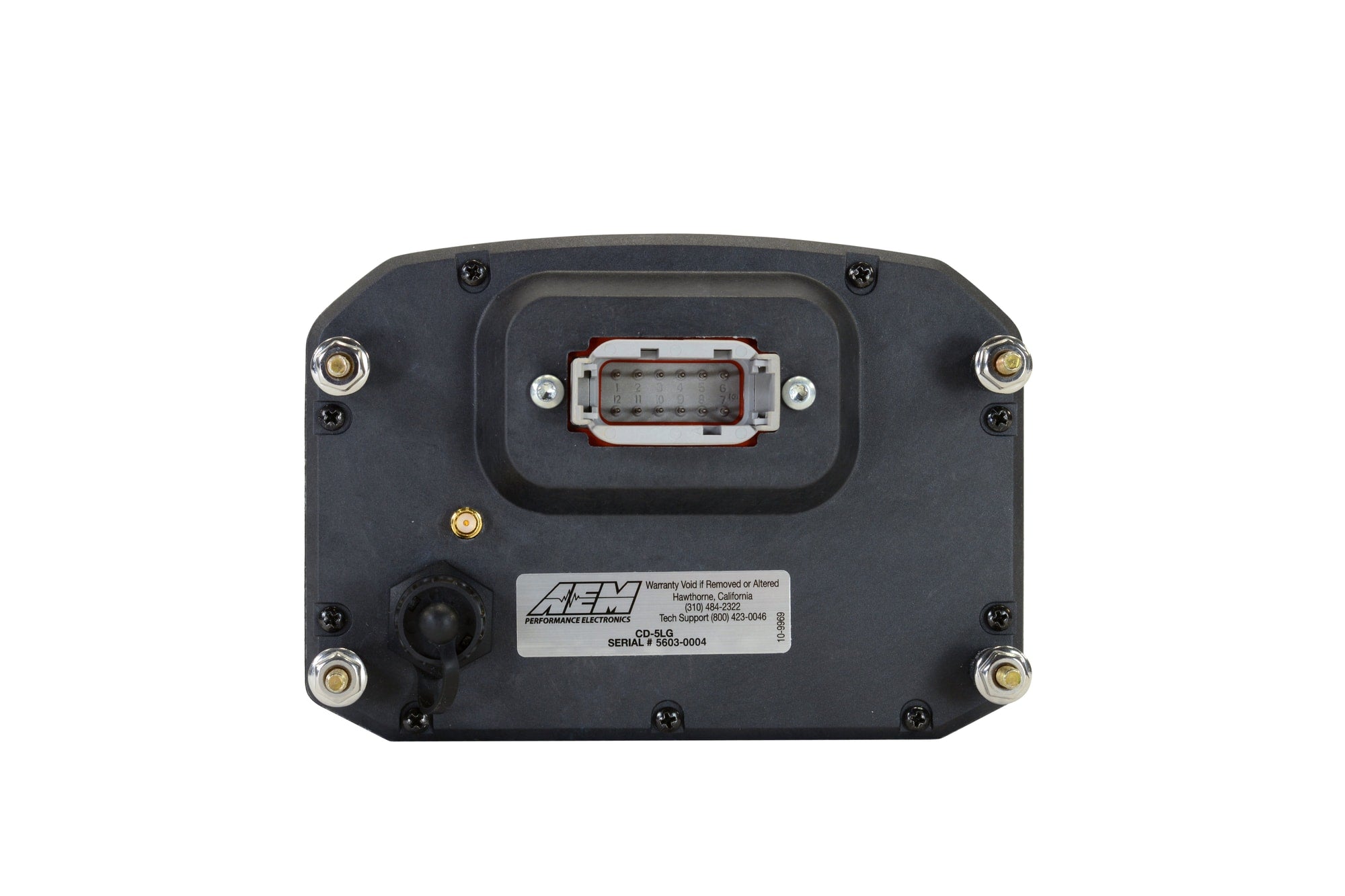

- Wiring interface/harness is identical to the CD-7
- IP66 water resistance allows for operation in boats and motorcycles without worry
- 'Headlight-in' connection dims the dash and LEDs during night operation
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
- User supplied graphics can be changed based on channel values (up to the full screen size)

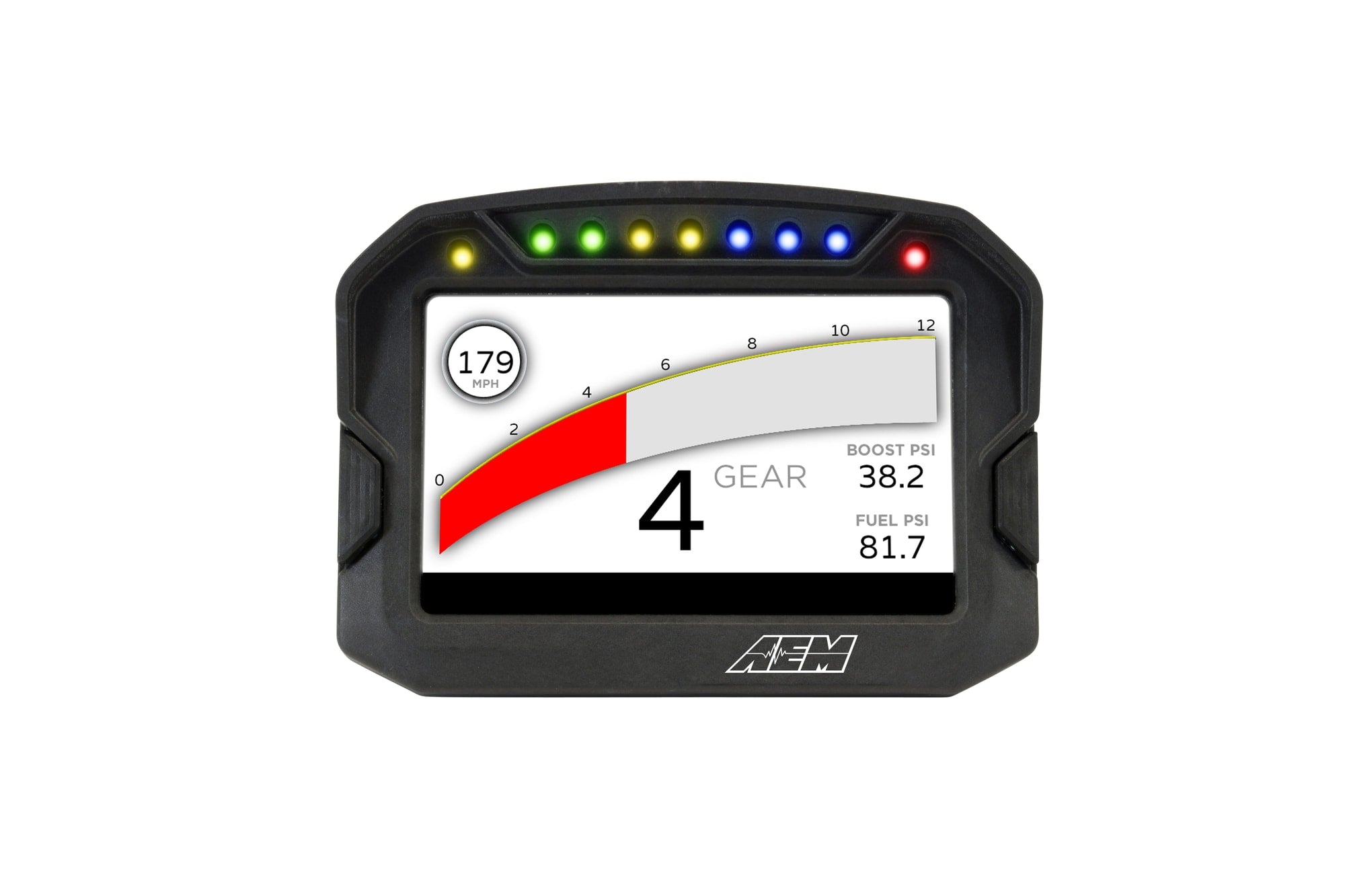

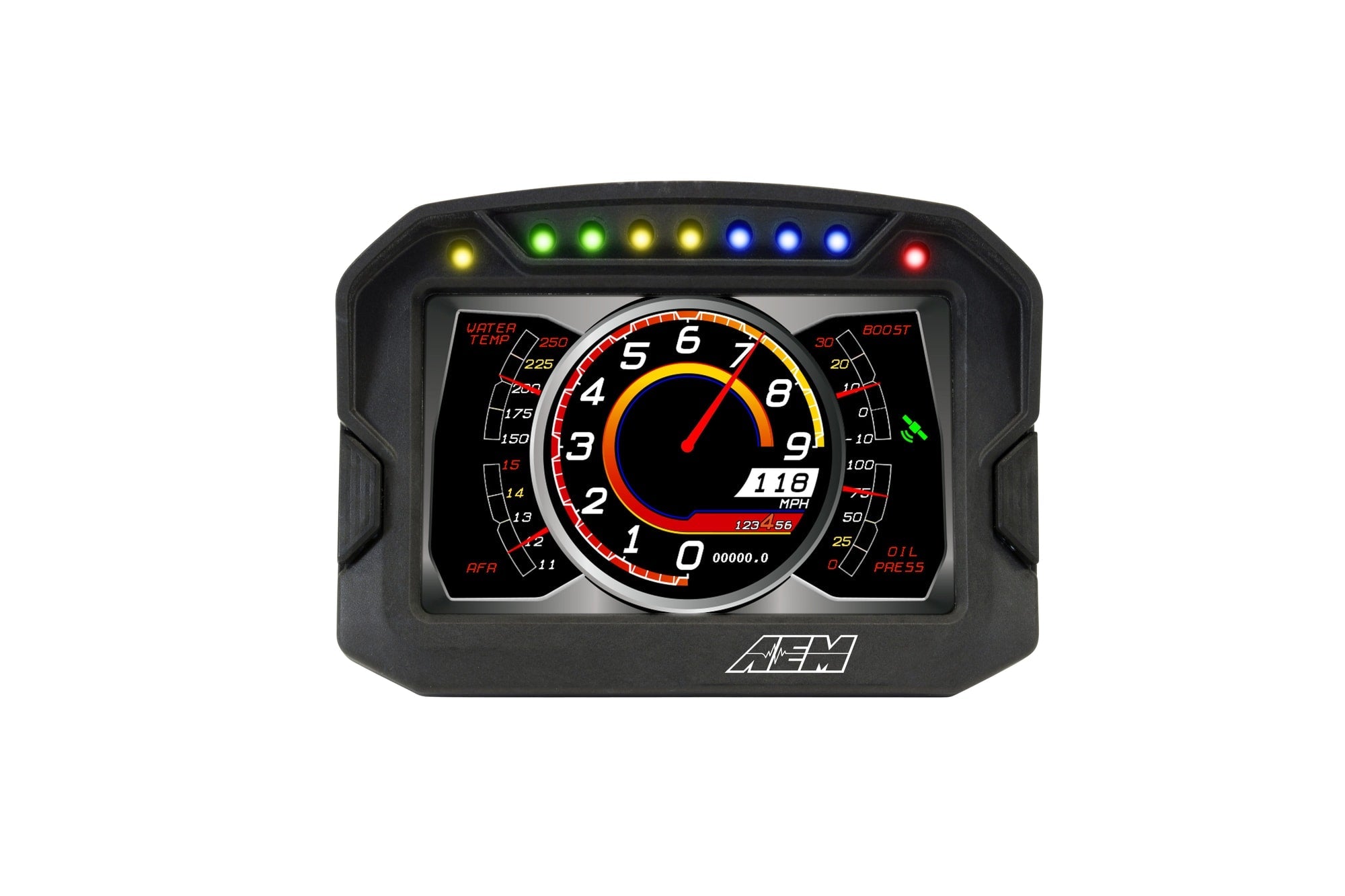

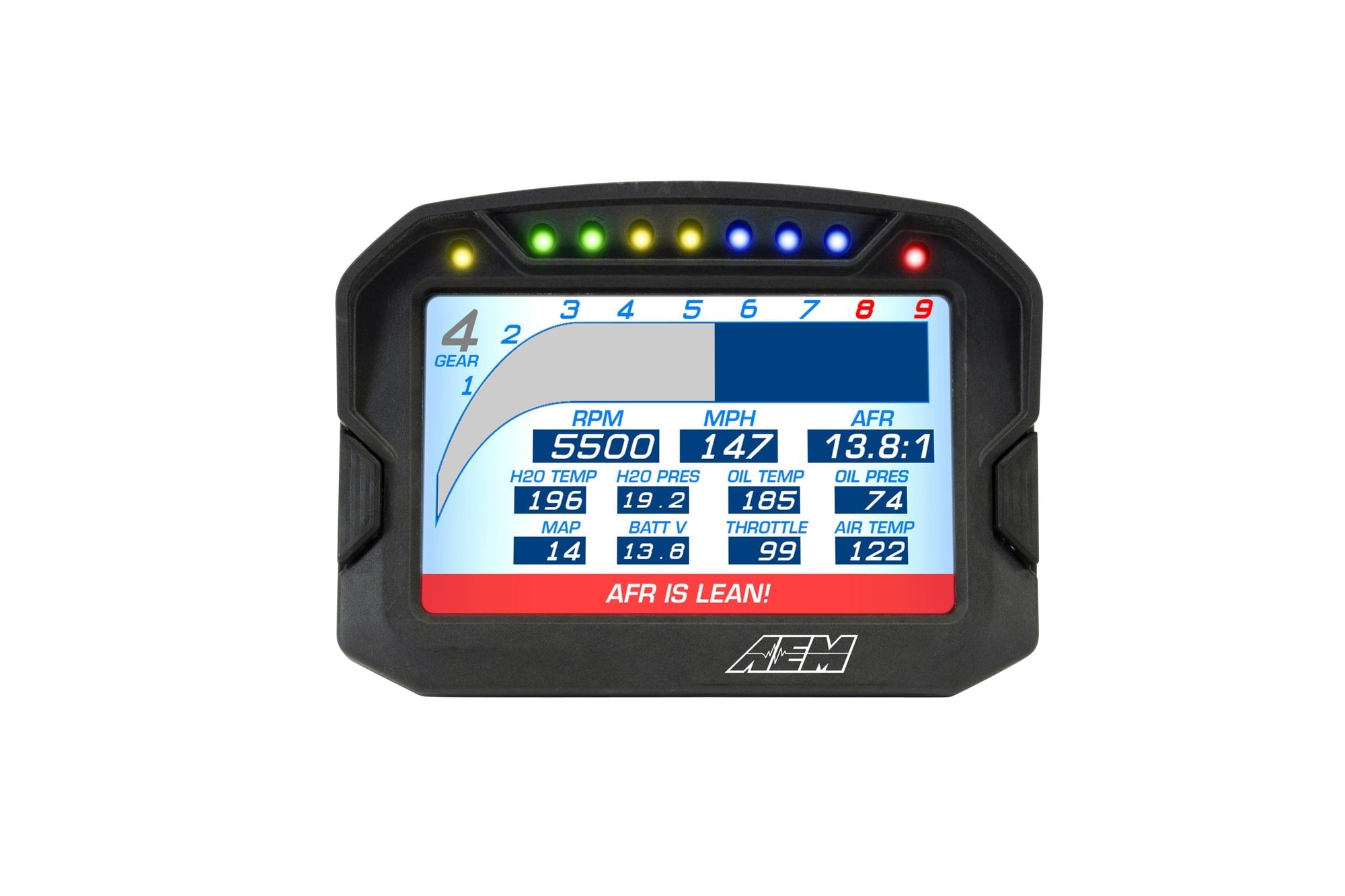

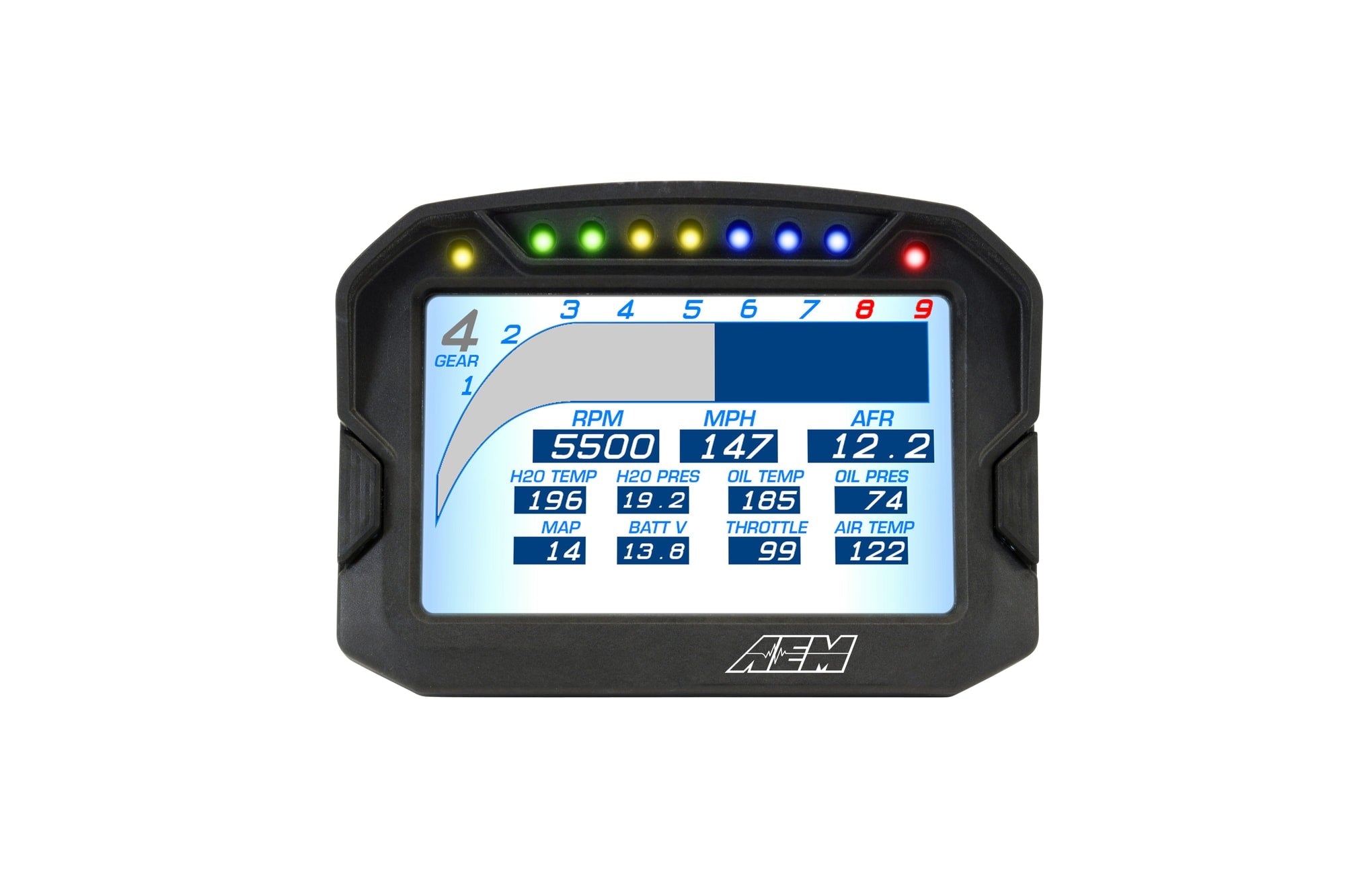

- Use included page layouts and input your channels and text, or create your own from scratch
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Total display weight of 11.7 oz./331 grams
- Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
- Convert CAN bus channel values to user-defined text in multiple languages
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- Available with or without on-board GPS receiver and antenna
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- Layout files interchangeable with all versions of the CD-7
📖
About this product
5-inch diagonal screen, carbon fiber composite enclosure, GPS antenna and wiring harness included
📋
Product Specifications
Analog Or Digital
Digital
Automotive Item Grade
Performance
Automotive Item Grade
Premium
Brand
AEM
Built-In Buttons
Yes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
CAN Ready
Yes
Category
Gauges and Gauge Accessories
Color
Black Carbon Composite
Connector Quantity
2
Country
US
Datalogging
No
Depth
3.1
Emission Code
4
Emission Code
5
Enclosure Material
Carbon Fiber
External Buttons Required
No
Gauge Quantity
1
GPS Included
Yes
Gps
Yes
Harness Included
Yes
HTS Code
9029204080
Illuminated
Yes
IP Rating
IP65
Logging
No
Material
Carbon Fiber Composite
OEM Replacement
No
Part Type
Digital Display
Part Type
Instrument Cluster
Product Type
Dash
Prop 65 Yes/No
Yes
Screen Size
5 Inch Diagonal
Sub Category
Instrument Panel
Terminal Quantity
12
Touchscreen
No
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
Wire Gauge Measurement
20
Wire Quantity
12
Wiring Harness Included
Yes
Wiring Harness Length
48
🛡️
Warranty & Compliance
Warranty
12 months · Manufacturer's 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
9029204080
📐
Dimensions & Shipping
Product Dimensions
12.25 × 7.75 × 3.25 in
Shipping Dimensions
12.25 × 7.75 × 3.25 in
Weight
930 g (0.93 kg)
