Product Details
Product Specifications
Basic Operating RPM Range
3500-8000 R3
Brand
Holley
Carburetor Flange
Square/4150
Carburetor Studs Included
No
Construction
Cast
EGR Port
No
Engine
GM LS3/L92
Flange Style
4150 Square Bore
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carb
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Product Type
Intake Manifold
Removable Runners
No
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Included
No
Warranty
Manufacturer's Limited 90 Day Warranty
Product Description
Key Features
Carbureted Hi-Ram Intake, 2 x 4150 (sideways and inline mounting)
- Runner Length 6.50�, As-Cast Runner Cross-Sectional Area Tapered 4.25 in² to 2.77 in²
- Plenum Top Gasket Type 3/32� Round O-ring Cord
- Mounting Flange Gasket Type Standard LS3 Molded O-Ring
- Port Size 2.49� Height x 1.21� Wide

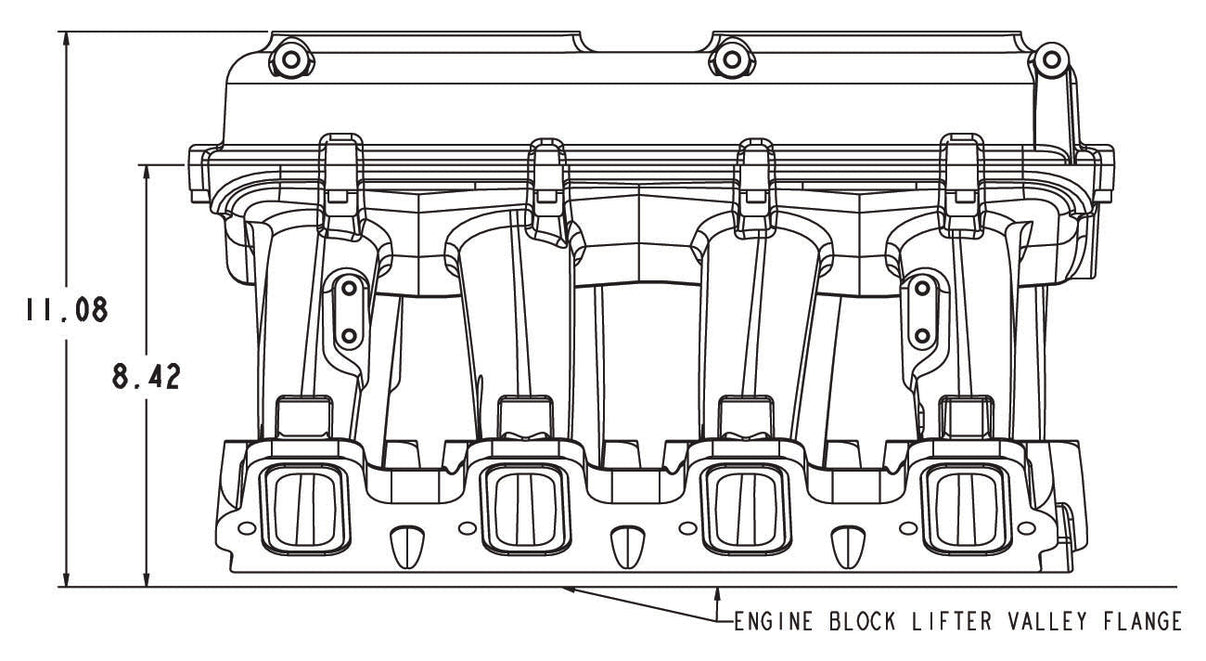

- Base Plenum Top Mounting Flange Height 8.42� to the lifter valley cover flange on engine block.
- Height (Carbureted or EFI, 2x4V Top Mount & Blank) 11.08� to the lifter valley cover flange on engine block.
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
Compatibility
Fits Holley Hi-Ram Intake - GM LS3/L92.
Please refer to manufacturer specifications for complete compatibility information.
