Holley EFIPart 300-135bkMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Recalibration of the ECU may be required when using this intake manifold design with OE ECU. Holley EFI LS main harnesses have a map sensor connecter designed for use with an LS1/2 style map sensor. The 558-416 is an adapter harness that can be used to

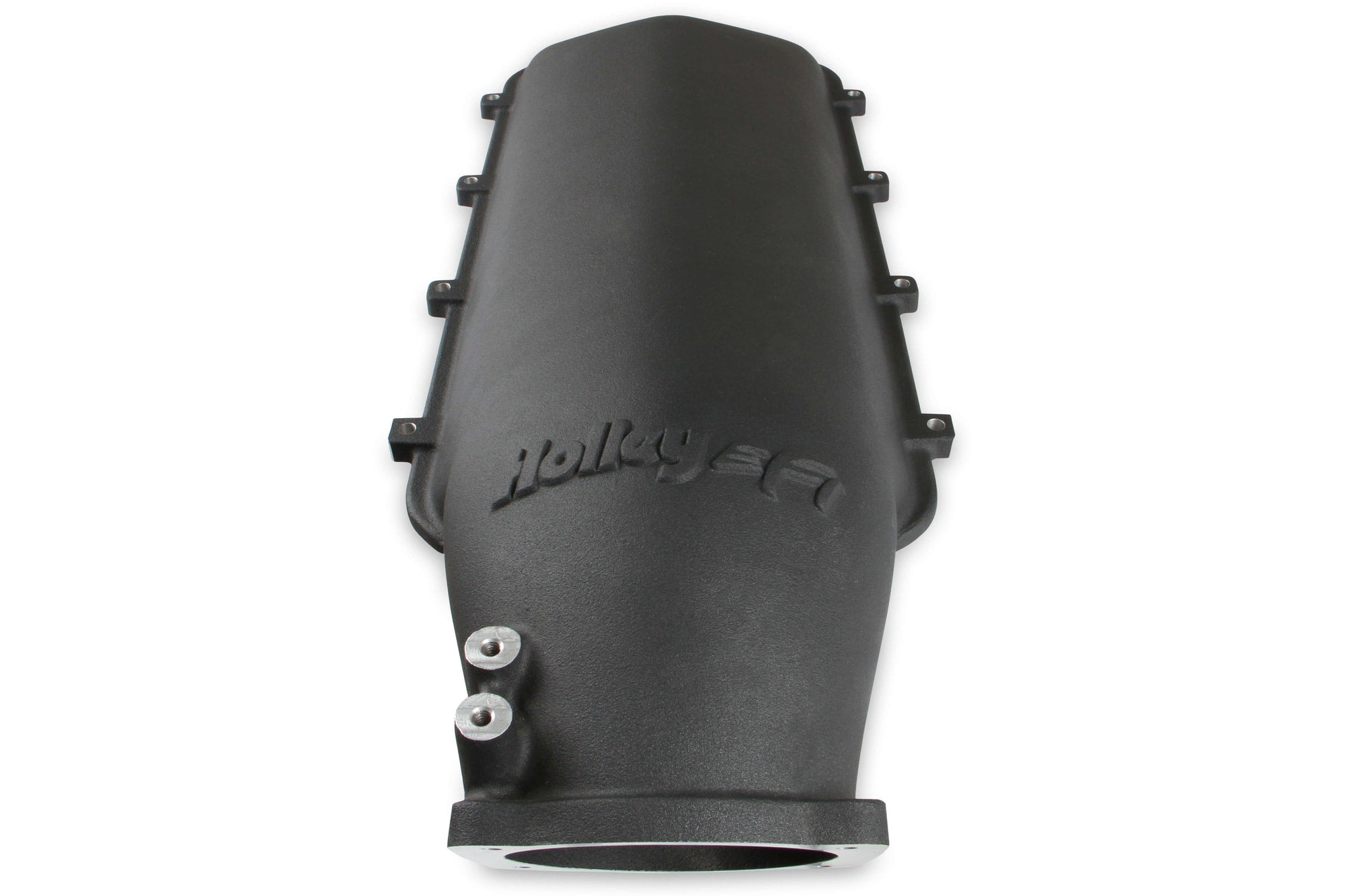

The Modular Mid-Rise intake utilizes the popular Holley LS3/L92 rectangle port Mid-Rise intake manifold along with a purpose built plenum base adapter and a Holley 95MM EFI plenum top which converts it into a Mid-Rise EFI intake manifold. With a max overall height of only 10.44", the Mid-Rise manifold is an excellent choice for street and performance street/strip applications with a power band from 1,500-6,500 RPM and limited hood clearance. It's perfect for turbocharged, or naturally aspirated applications. | This manifold is modular, and the plenum adapter (PN 300-231) will accept all of the popular Holley LS Hi-Ram plenum tops as a foundation for custom induction systems. | *** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions.
All GM LS Gen III or IV engines equipped with LS3/L92 style rectangular ports. Mid-Rise EFI Intake Manifold Kit Black Ceramic Coated. 1500-6500RPM Power Band.
- 1500-6500RPM Power Band
- Overall Height of 10.44 inches
- 92MM EFI Plenum
- Mid-Rise manifold for excellent street/strip performance
- Black Ceramic Coating for an aggresive look in your engine compartment
- Fits GM LS3/L92 engines
📖
About this product
All GM LS Gen III or IV engines equipped with LS3/L92 style rectangular ports. Mid-Rise EFI Intake Manifold Kit Black Ceramic Coated. 1500-6500RPM Power Band.
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
2500-7000
Basic Operating RPM Range
2500-7000 RPM
Brand
Holley EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
Category
Engine
CNC Ported
No
Color
Black
Construction
Cast
Country
CN
Cylinder Head Port Shape
Rectangle
Deck Height
9.24
EGR Port
No
Emission Code
3
Emission Code
4
Flange Style
EFI
Front Maximum Height
10.44
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
HTS Code
8409915085
Intake Port Gasket(s) Included
Yes
Manifold Type
Mid Rise
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Prop 65 Yes/No
Yes
Rear Maximum Height
9.99
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
2500-7000 RPM
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
95
Throttle Body Bore Diameter
95 MM
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
30.4 × 16.3 × 15.5 in
Shipping Dimensions
30.4 × 16.3 × 15.5 in
Weight
19053 g (19.05 kg)
