Key Features

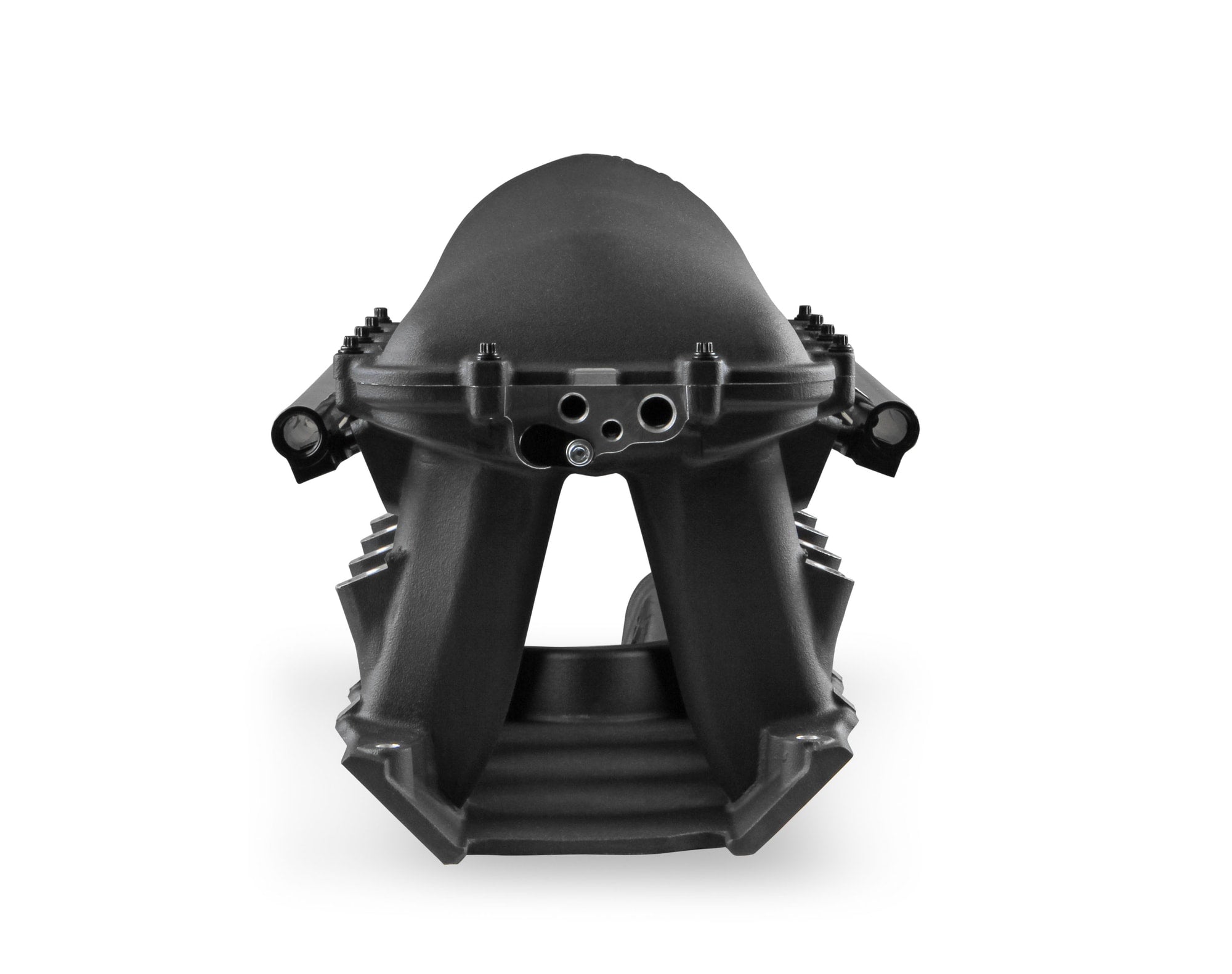

8.2" SBF Ford Hi-Ram EFI Manifold-Black
Manifold is designed for a 8.2" deck height.
• Cast aluminum construction.
*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions.

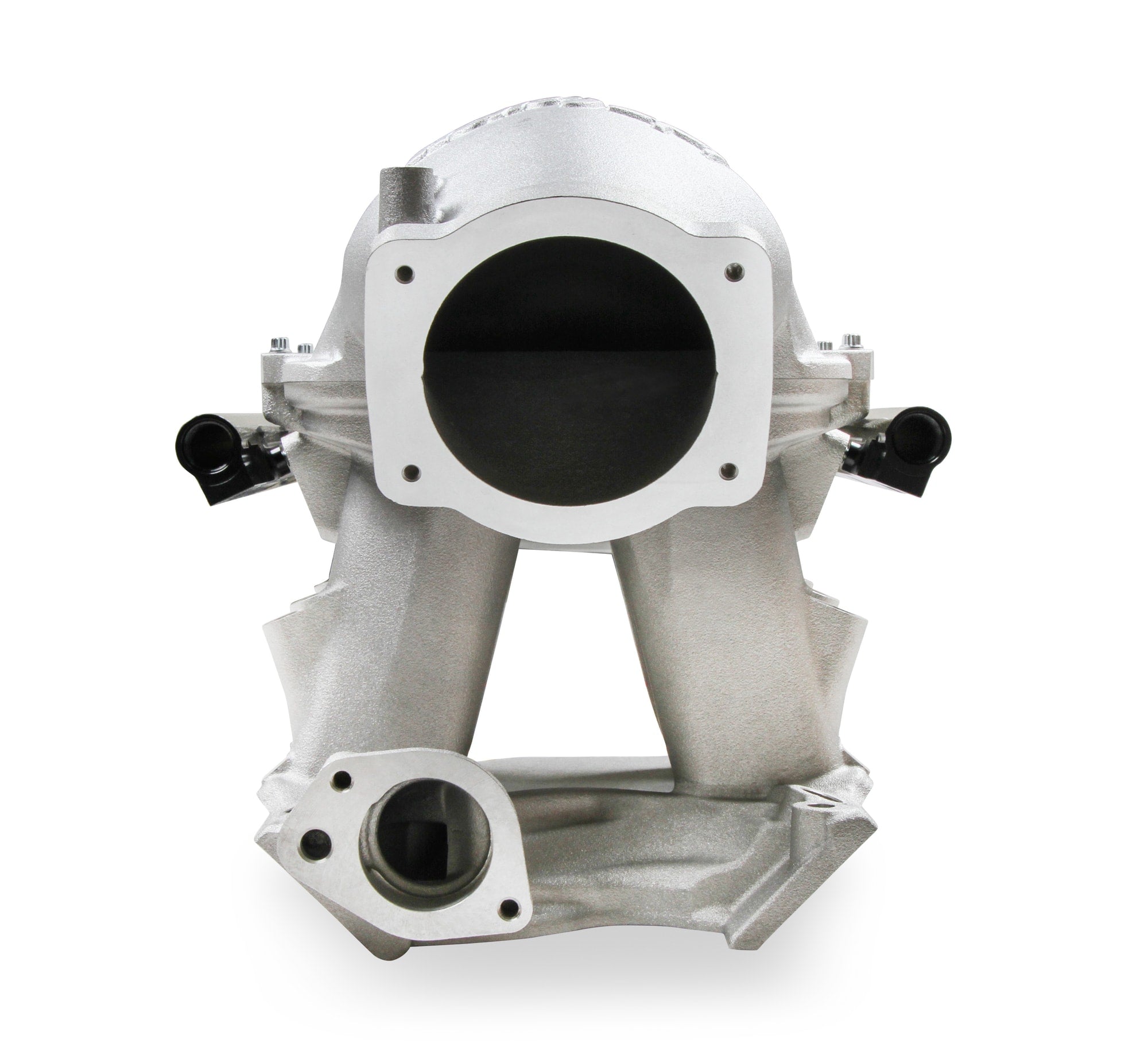

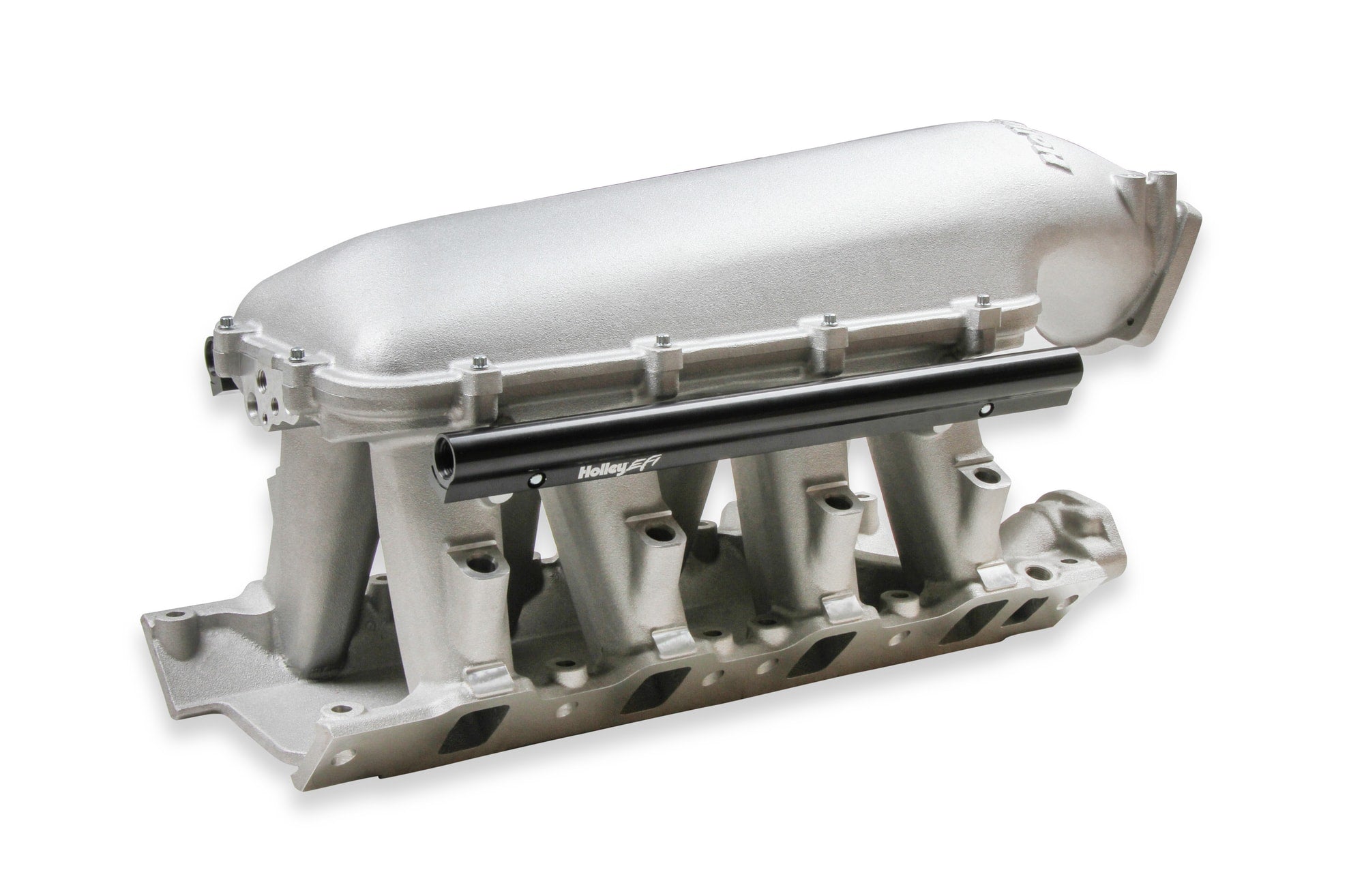

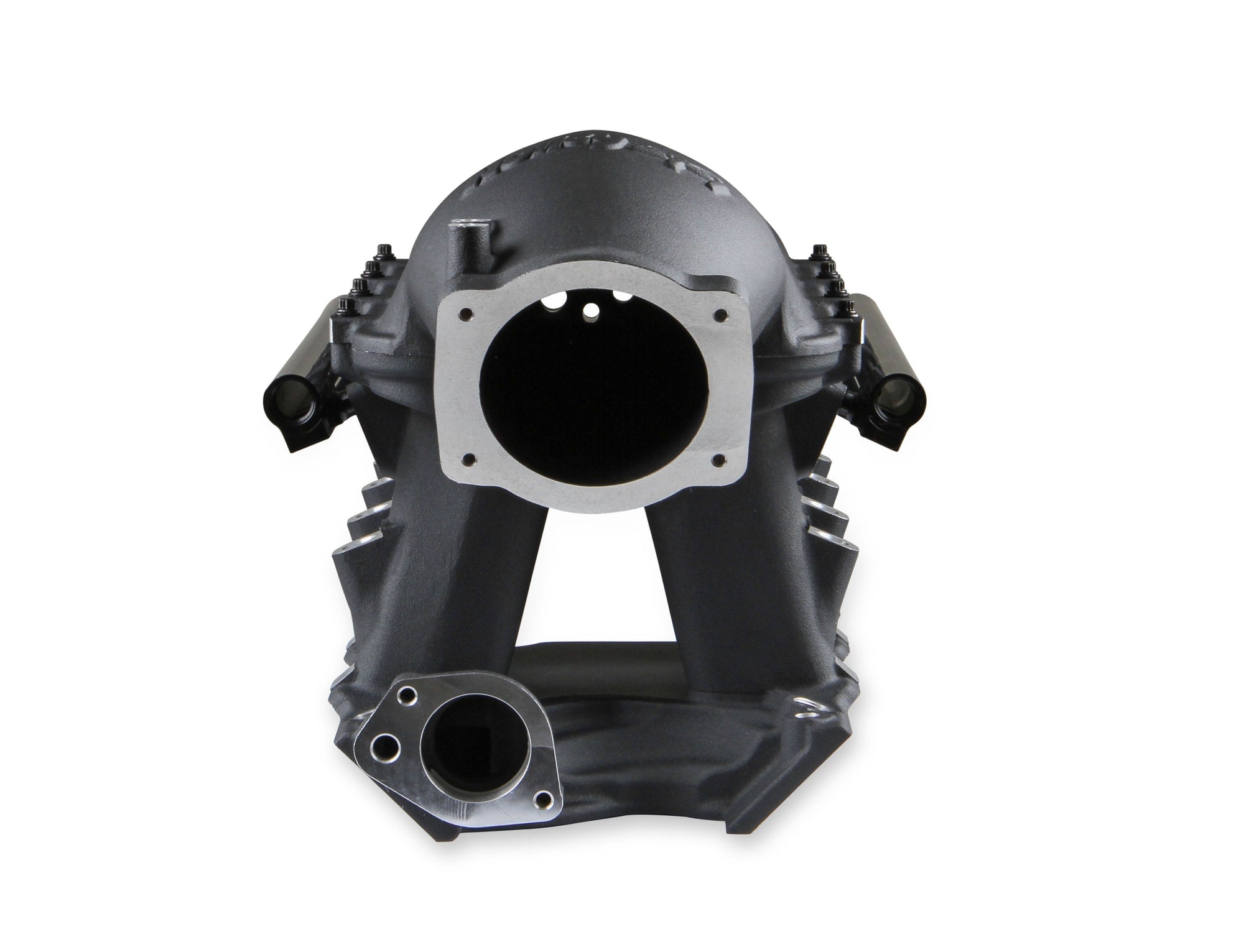

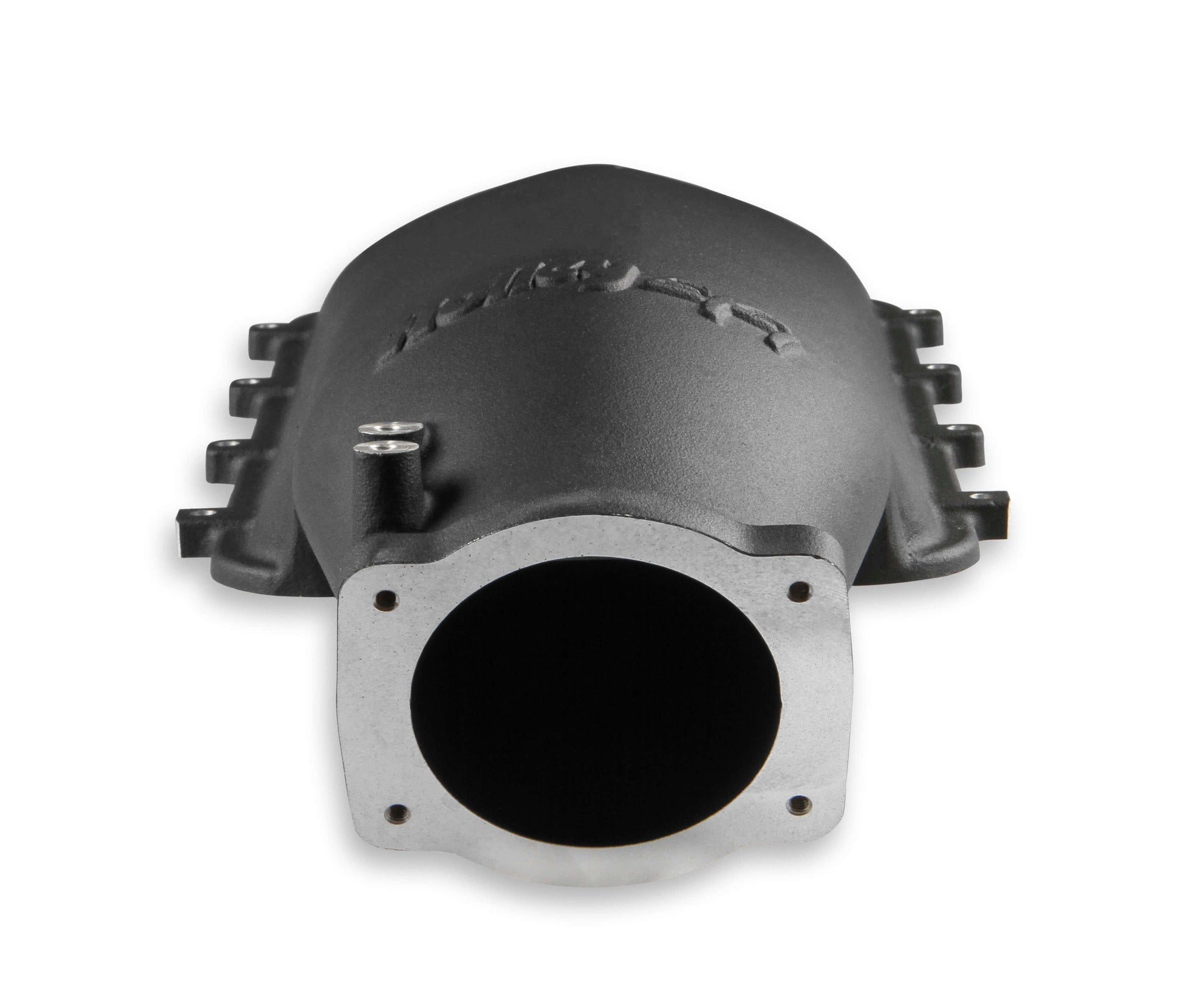

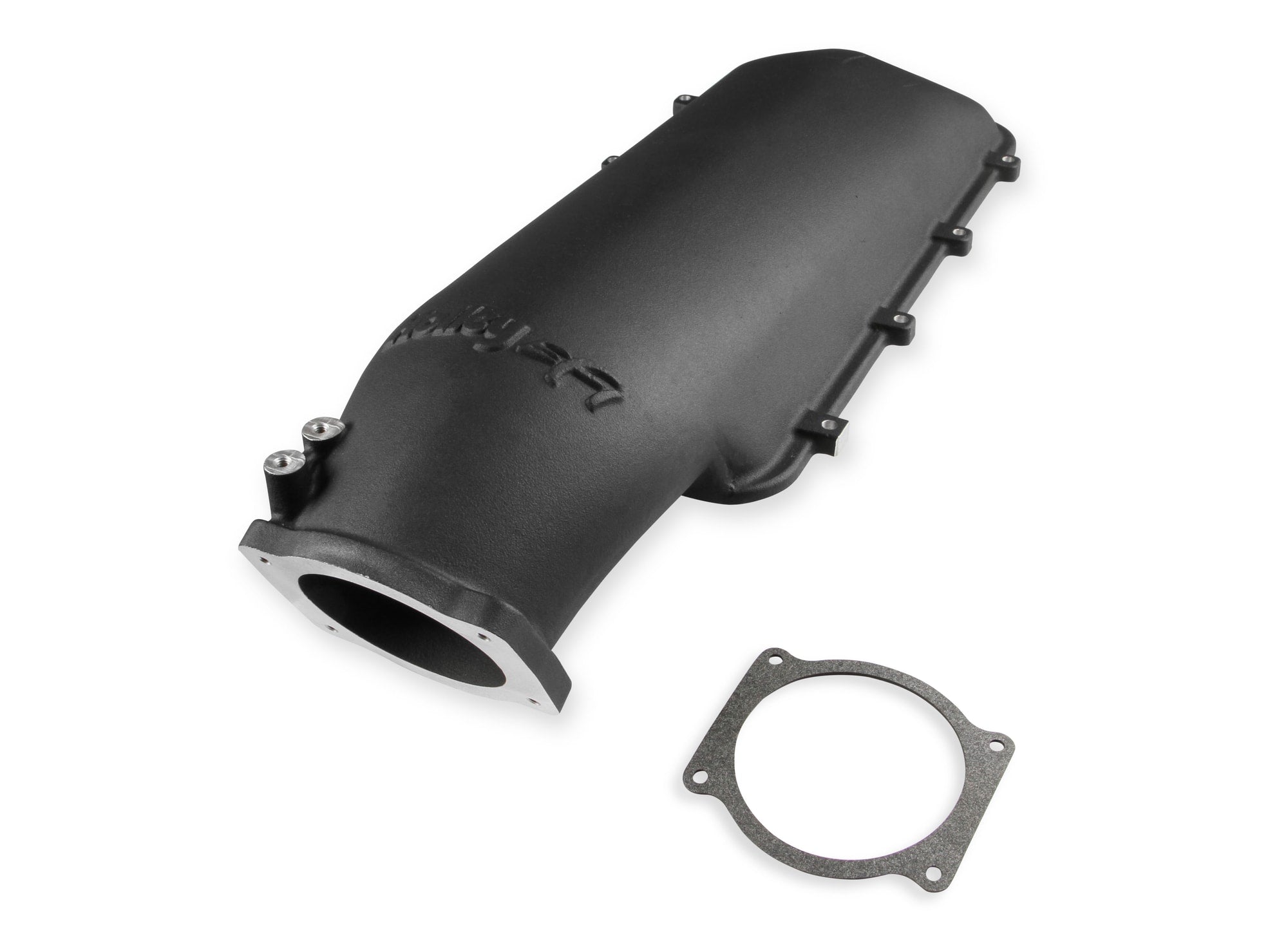

The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

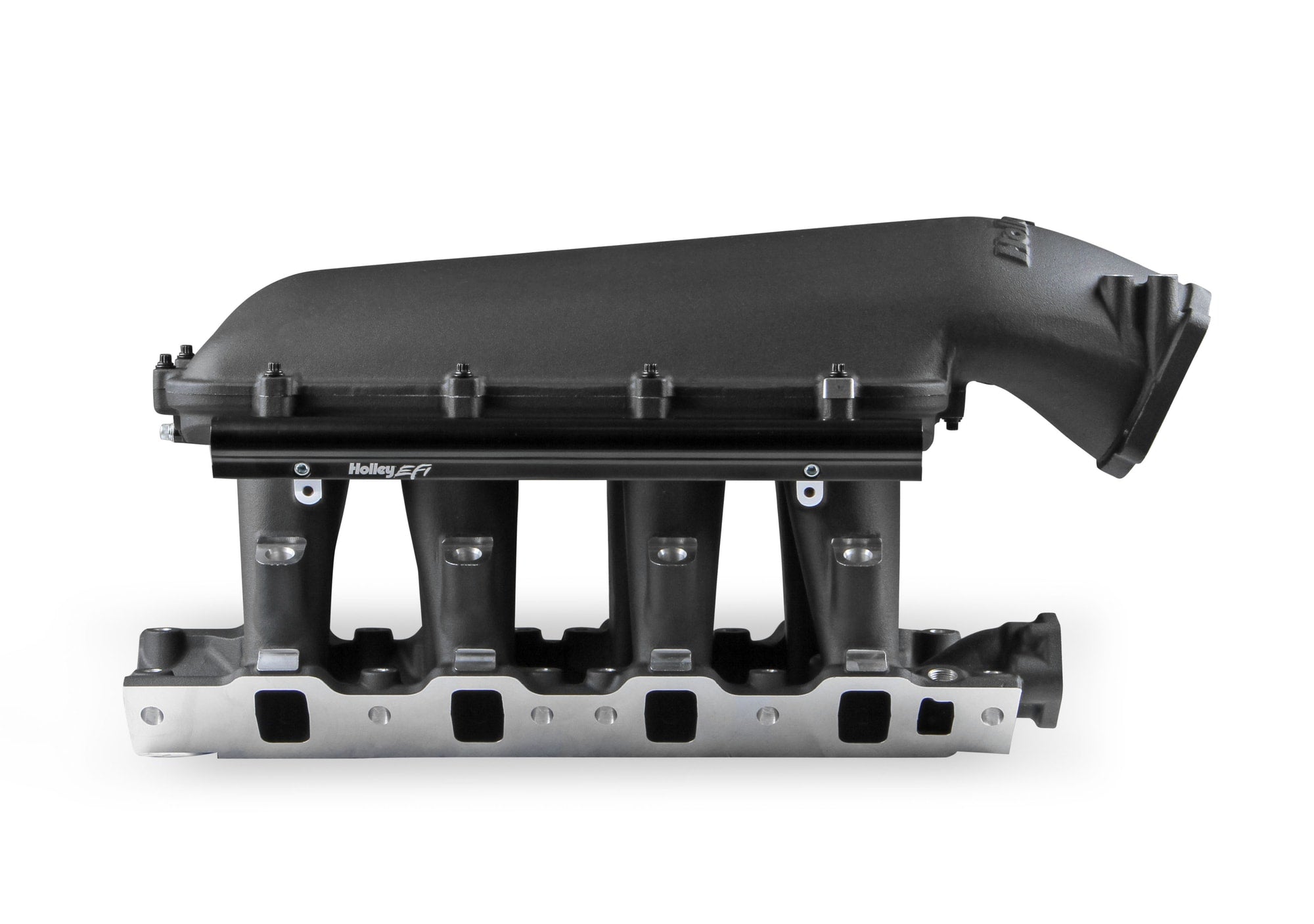

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations

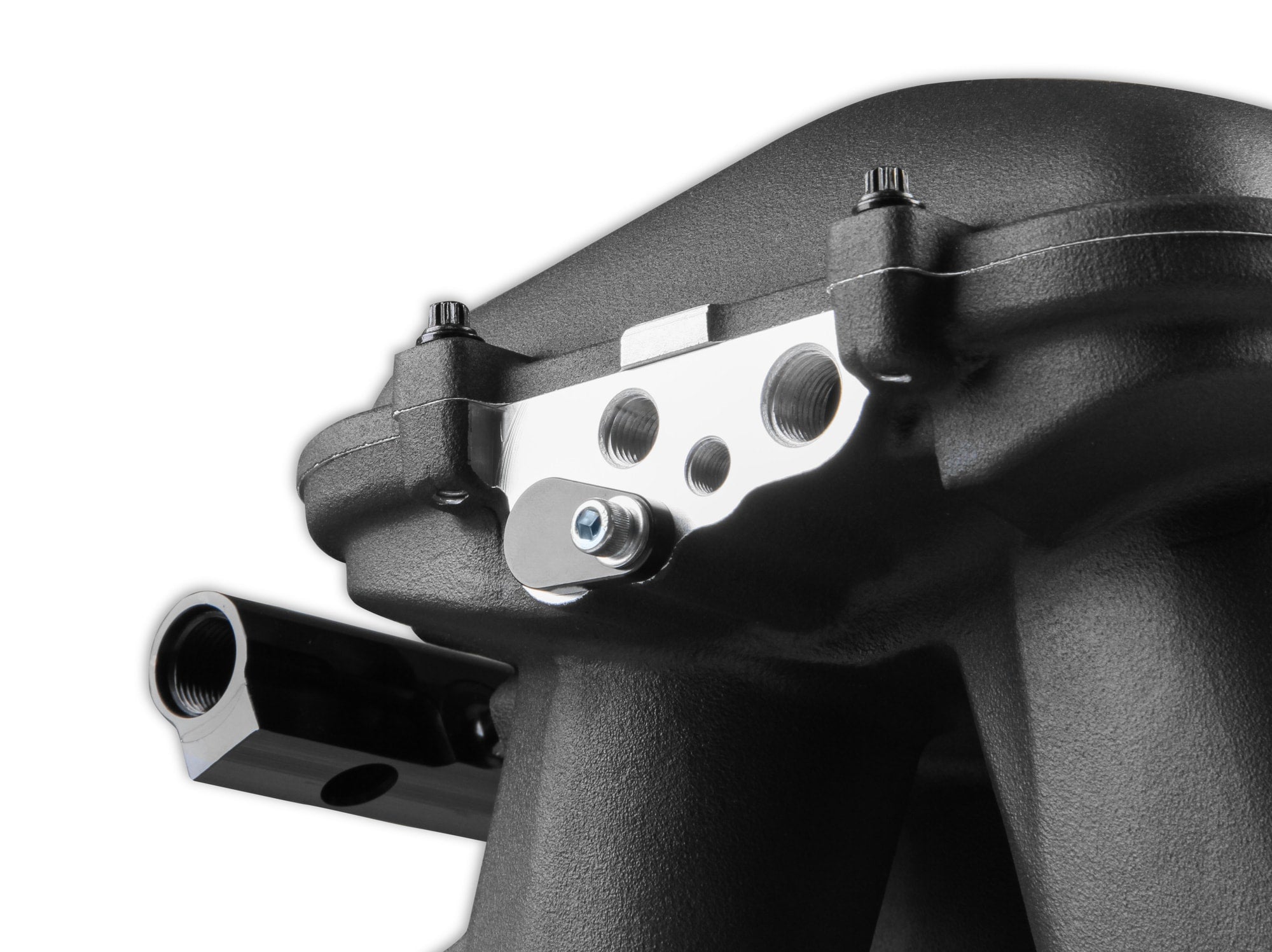

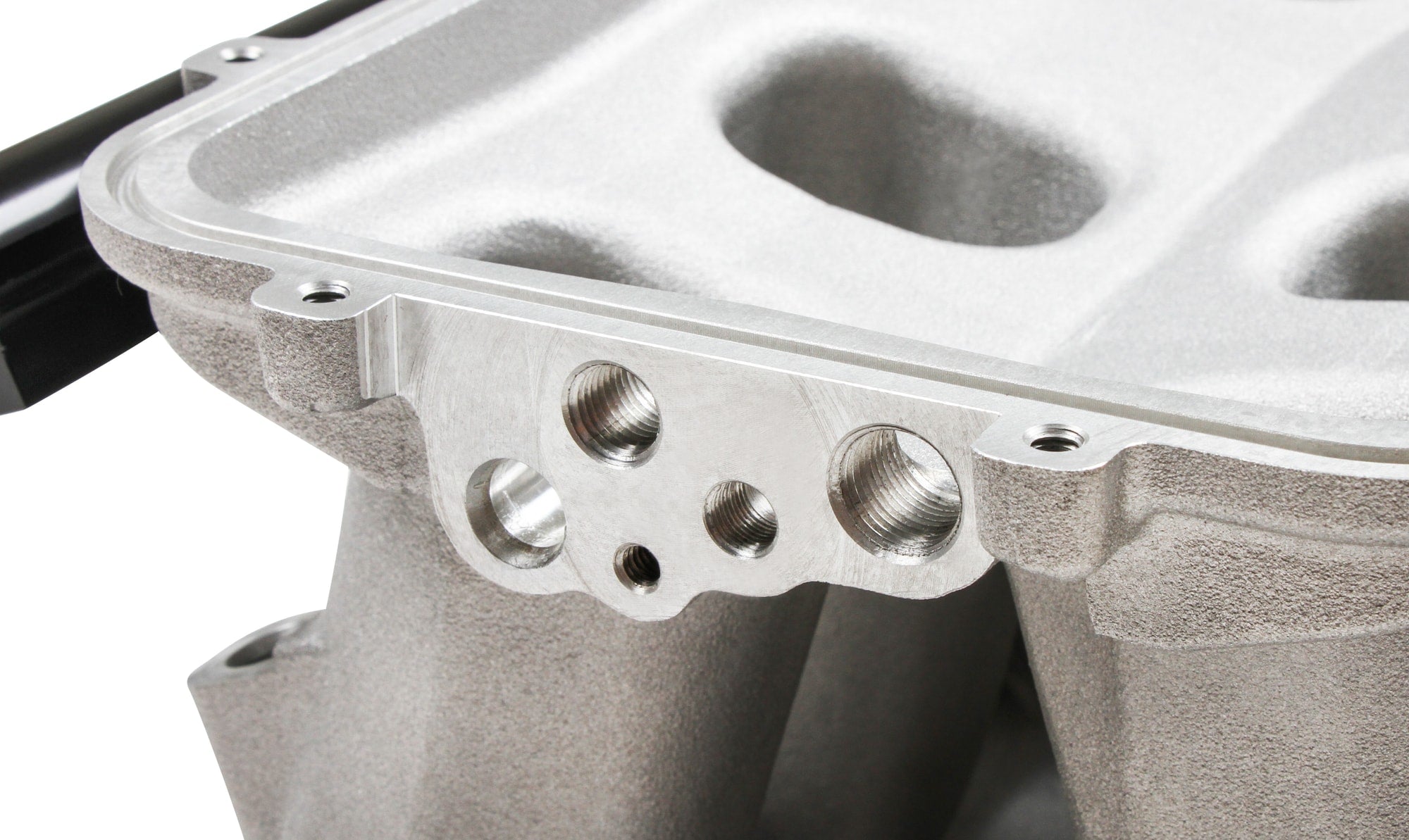

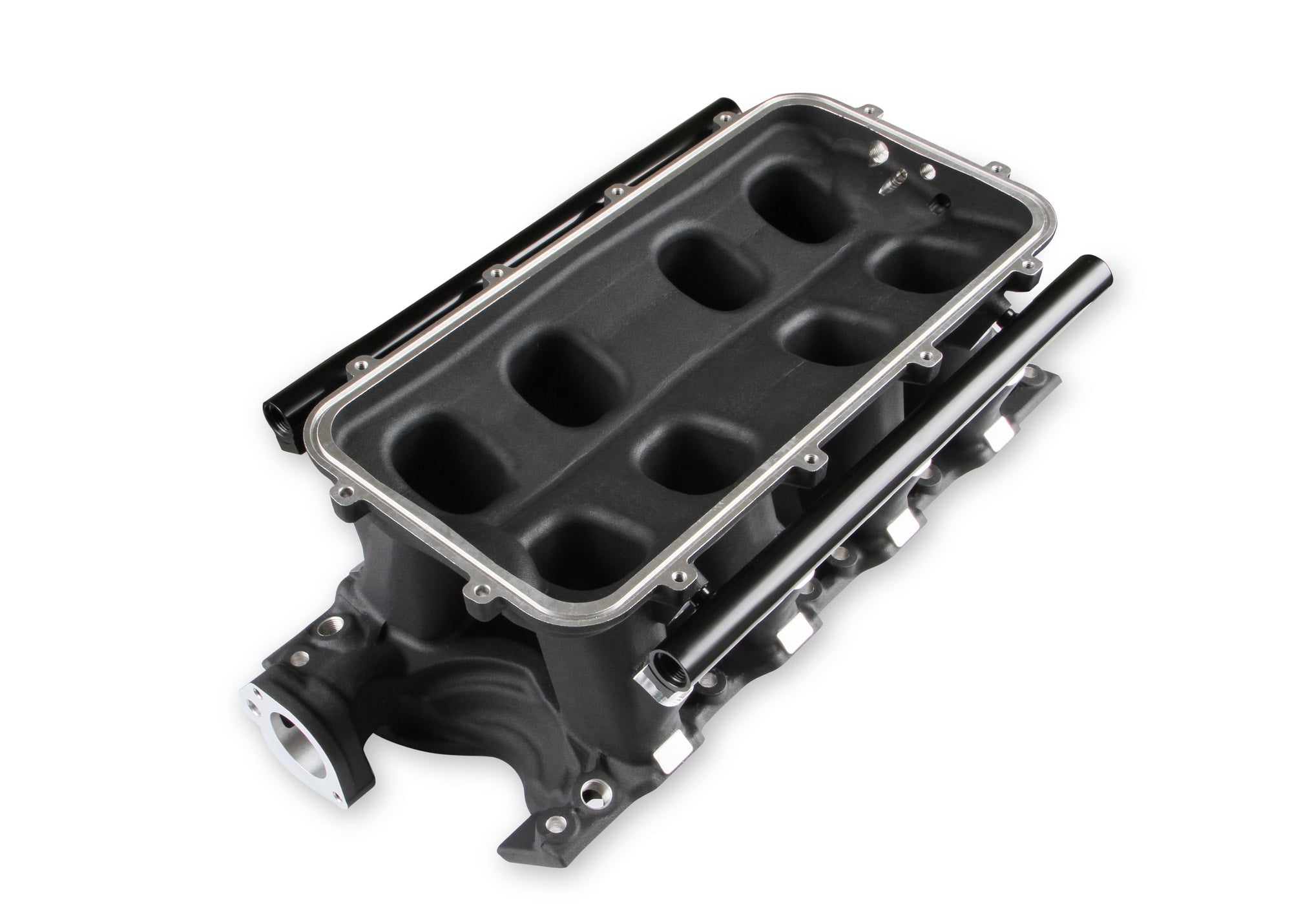

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
Manifold is designed for a 8.2" deck height.
• Cast aluminum construction.
*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions.
The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations
• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
📋
Product Specifications
Basic Operating RPM Range
1500-7000
Basic Operating RPM Range
1500-7000 RPM
Brand
Holley EFI
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
CNC Ported
No
Color
Black
Construction
Cast
Cylinder Head Port Shape
Rectangle
Deck Height
8.2
EGR Port
No
Engine
Ford Small Block
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Port Size
2.00" x 1.190"
Product Type
Intake Manifold
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
1500-7000
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
95 MM
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
95mm
Vacuum Ports
Yes
Warranty
Manufacturer's Limited 90 Day Warranty
📦

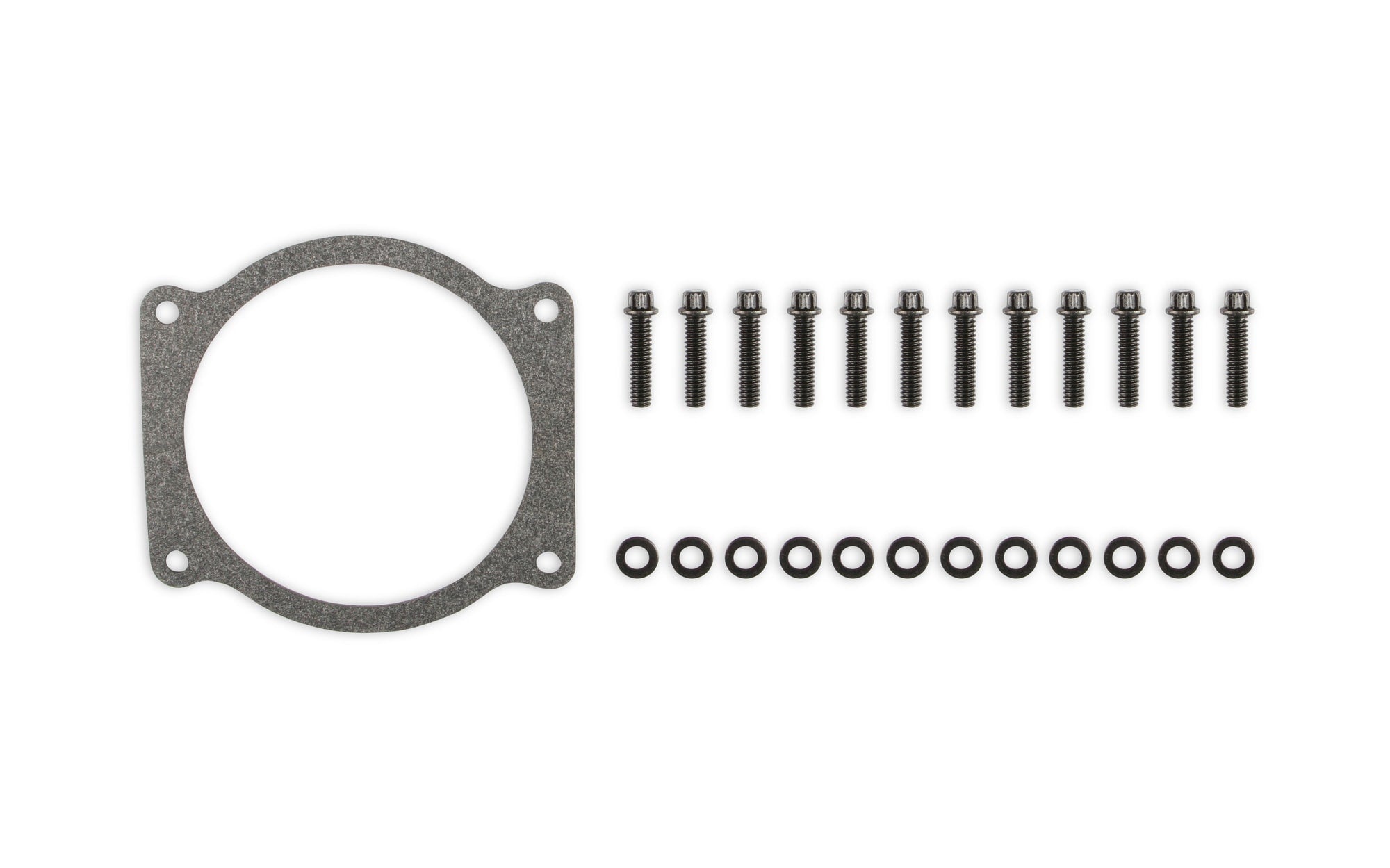

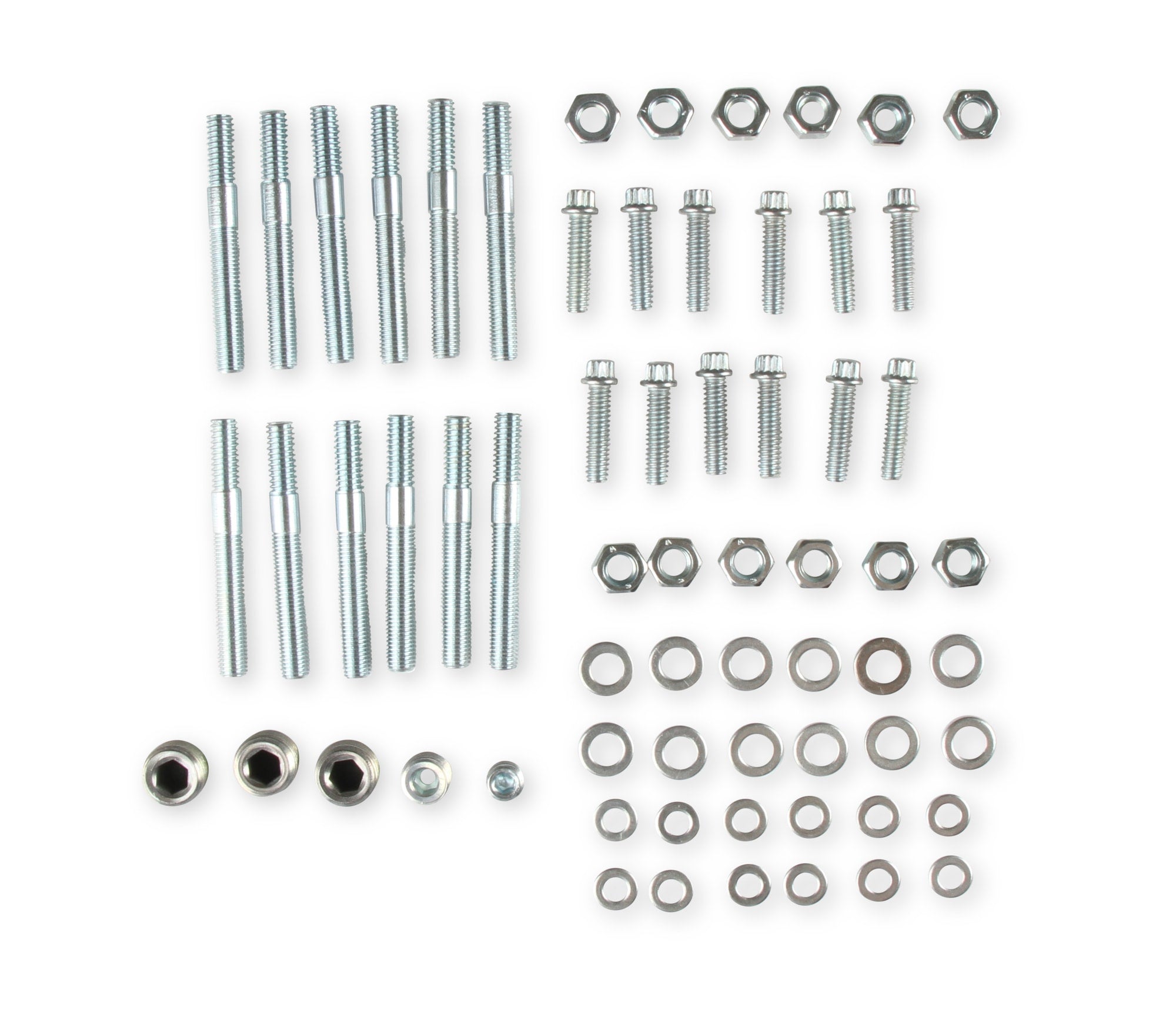

Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
